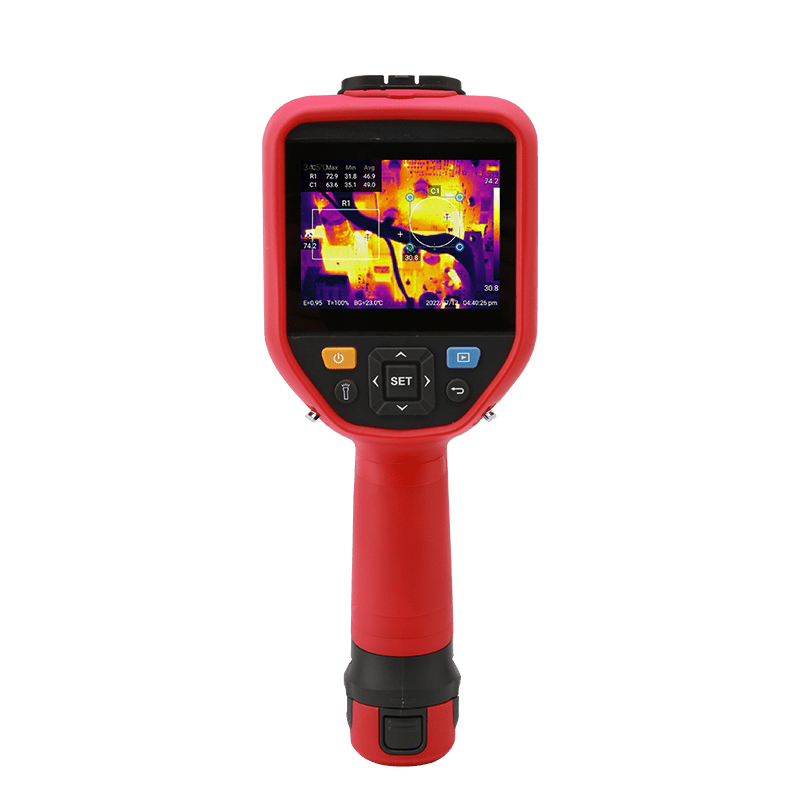

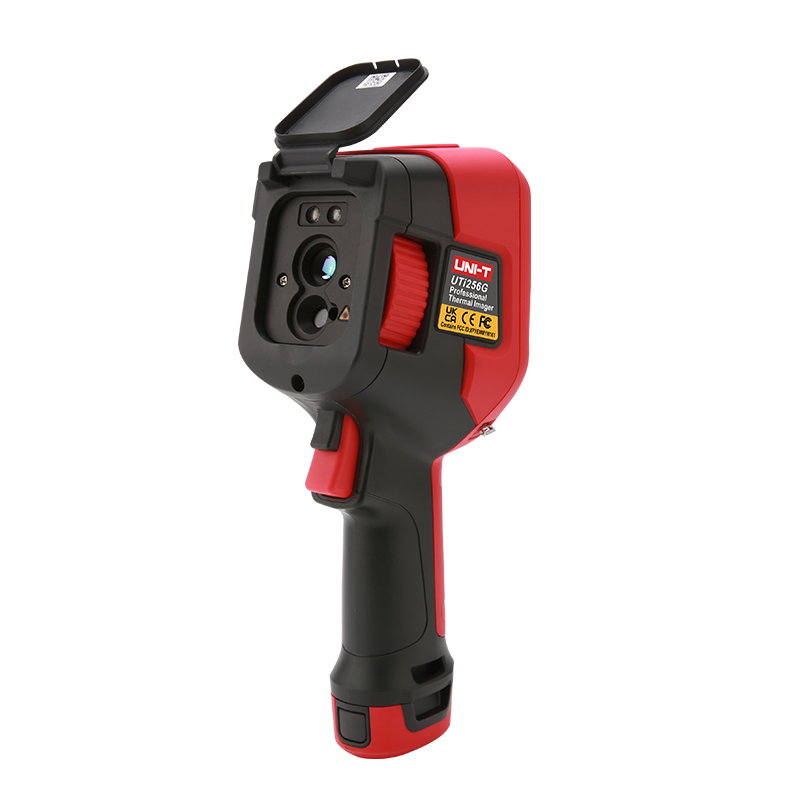

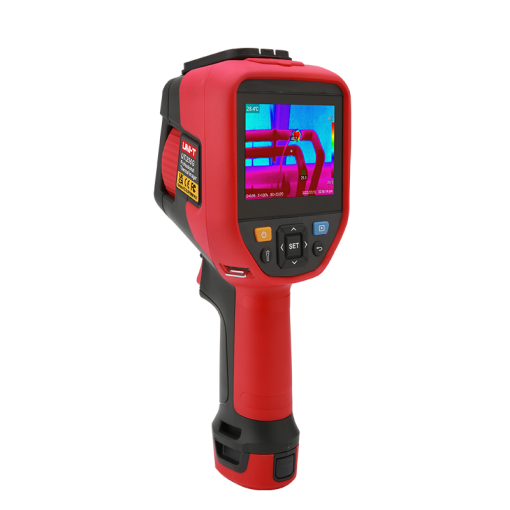

UNI-T UTi256G Professional Enhanced Thermal Camera
The UNI-T UTi256G is a professional-grade handheld thermal camera engineered for enhanced temperature analysis and rapid diagnostics. It features a high-sensitivity 256×192 pixel vanadium oxide (VOx) microbolometer sensor, delivering crisp thermal imagery across a wide temperature span from 20 °C to 400 °C. An 8.5 µm pixel pitch and NETD ≤50 mK ensure that even subtle heat differences are easily discerned. Its compact optics provide a 32°×24° field of view with an f/1.0 aperture, allowing users to survey large areas quickly.
A 3.5-inch, 320×240‐pixel TFT LCD presents real-time thermal data alongside a reticle target temperature readout, while four selectable color palettes iron, rainbow, white hot, and black hot highlight temperature gradients for intuitive interpretation. The UTi256G integrates a 2 MP visible‐light camera, facilitating side-by-side thermal and visual capture. It stores images as JPEGs with embedded temperature data on a 4 GB internal memory, accommodating up to 5,000 files. Emissivity is adjustable (0.01–1.00) with distance compensation (0.1 m–∞) to suit various materials and measurement conditions.
Powered by a rechargeable lithium-ion battery, it operates continuously for up to 5 hours. Rugged, ergonomic, and weighing just 340 g (with battery), the UTi256G is ideal for building inspections, electrical troubleshooting, mechanical maintenance, and energy audits.
Features:
- 256×192 VOx microbolometer sensor, NETD ≤50 mK.
- Temperature measurement range: –20 °C to 400 °C, accuracy ±2 °C or ±2 %.
- 32°×24° field of view, f/1.0 aperture, 8.5 µm pixel pitch.
- 3.5″ TFT LCD, 320×240 pixels, adjustable brightness.
- Four color palettes: iron, rainbow, white hot, black hot.
- 2 MP visible‐light camera with LED torch.
- Emissivity adjustable from 0.01 to 1.00; distance compensation 0.1 m to ∞.
- Image storage: JPEG with embedded temperature data on 4 GB internal memory.
- Up to 5,000 images stored internally.
- Image modes: thermal, visible, and picture-in-picture (overlay).
- USB 2.0 (Mini USB) and Mini HDMI interfaces for data transfer and display.
- Li-ion battery with up to 5 hours continuous runtime.
- Auto-power off, battery low indicator, and power management.
- Rugged, rubber-armored housing; operating temperature –10 °C to 50 °C; weight 340 g (with battery).
Specifications:
| Parameter | UTi256G Specification |
|---|---|
| Detector: | 256×192 VOx microbolometer, NETD ≤50 mK |
| Spectral Range: | 8 µm – 14 µm |
| Field of View (FOV): | 32° × 24°, f/1.0, 8.5 µm pixel pitch |
| Digital Zoom: | 1× to 4× |
| Temperature Range: | –20 °C to 400 °C (–4 °F to 752 °F) |
| Accuracy: | ±2 °C or ±2 % of reading |
| Emissivity: | Adjustable 0.01 – 1.00 |
| Distance Compensation: | 0.1 m to ∞ |
| Display: | 3.5″ TFT LCD, 320 × 240 pixels, adjustable brightness |
| Visible Camera: | 2 MP (1600 × 1200) with LED torch |
| Image Storage: | 4 GB internal (approx. 5,000 JPEG images with embedded temperature data) |
| Color Palettes: | Iron, Rainbow, White Hot, Black Hot |
| Image Modes: | Thermal, Visible, Picture-in-Picture (Overlay) |
| Image Format: | JPEG with temperature metadata |
| Video Output: | Mini HDMI |
| Interfaces: | USB 2.0 (Mini USB), Mini HDMI |
| Battery: | Removable 3.7 V Li-ion, 5 h runtime |
| Operating Temp.: | –10 °C to 50 °C |
| Storage Temp.: | –20 °C to 60 °C |
| Humidity: | ≤ 90 % RH (non‐condensing) |
| Drop Test: | 2 m shock-resistant, rubber-armored housing |
| Weight: | 340 g (including battery) |
| Dimensions (H × W × D): | 200 × 85 × 55 mm |
| Built-in Accessories: | Hand strap, lens cap, USB cable, wrist strap, rechargeable battery, charger |
Applications:
- Building Inspection.

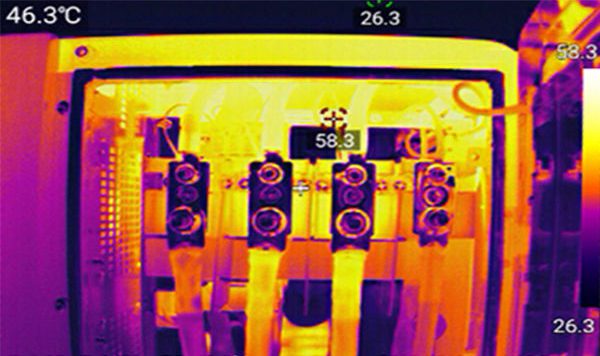

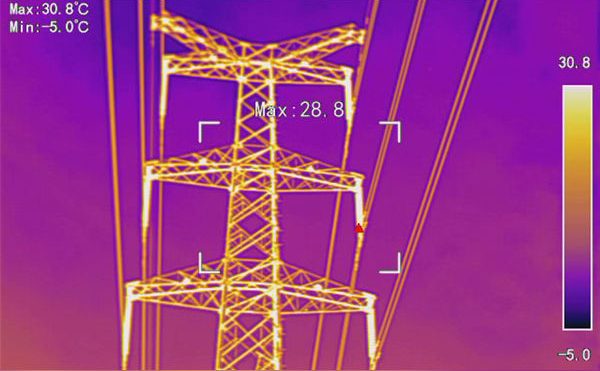

- Electrical Troubleshooting.
- Mechanical Maintenance.

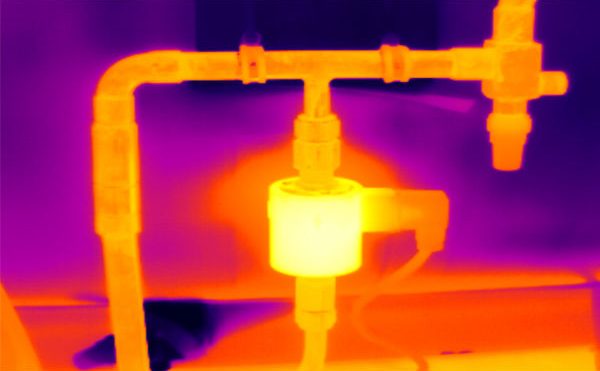

- HVAC System Analysis.
- Energy Auditing.
- Automotive Diagnostics.
- Preventive Maintenance.
- Research & Development.
- Firefighting Support.
- Public Safety.
Package Contents:
- 1x UTi256G thermal camera unit
- 1x Rechargeable 3.7 V Li-ion battery
- 1x USB data cable (Mini USB)
- 1x Mini HDMI cable
- 1x Battery charger with international adapters
- 1x Hand strap
- 1x Protective lens cap
- 1x User manual
- 1x Calibration certificate
