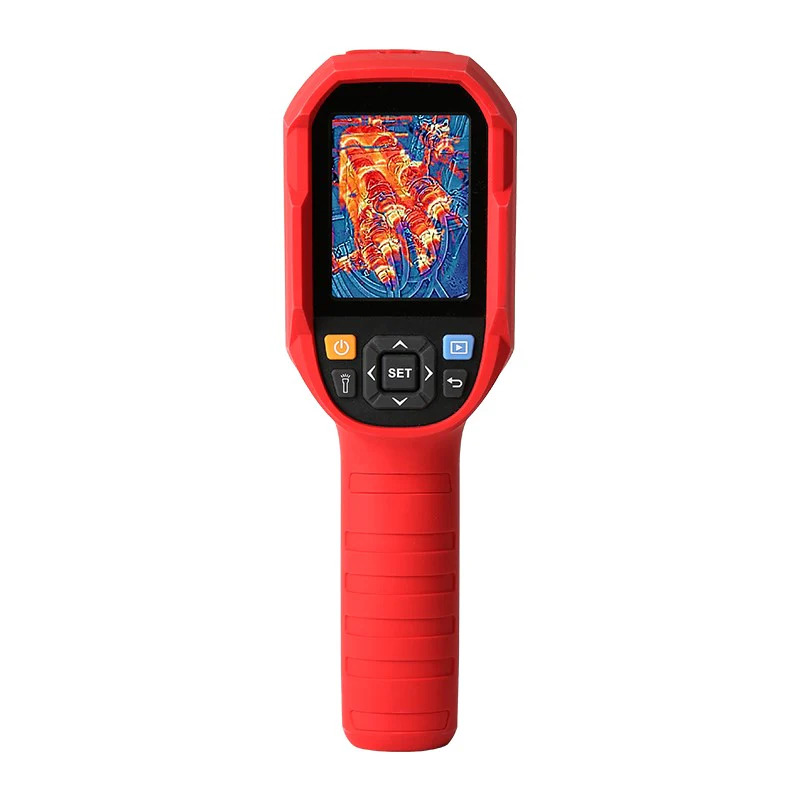

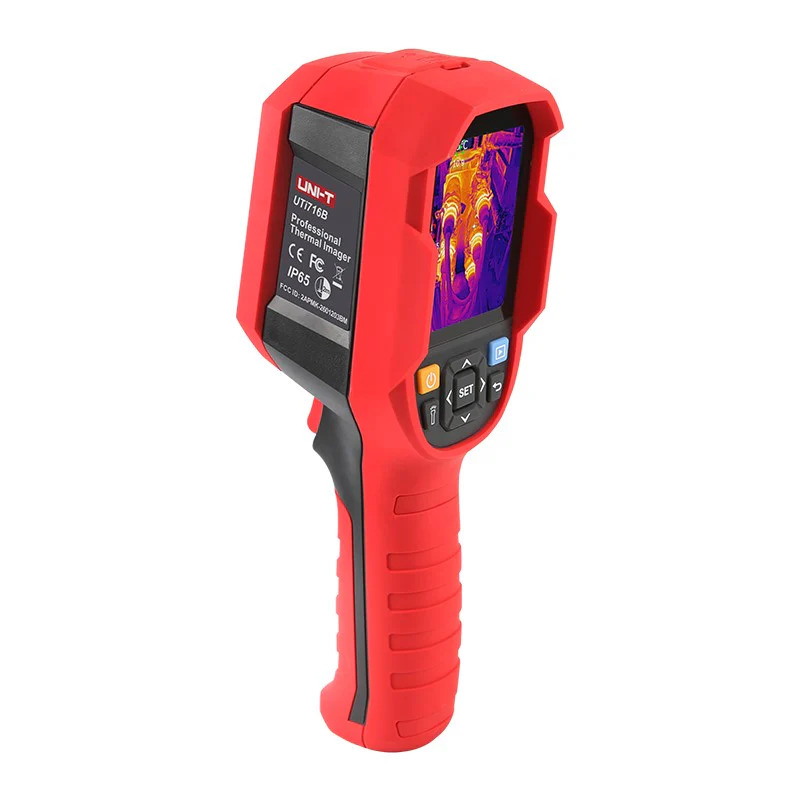

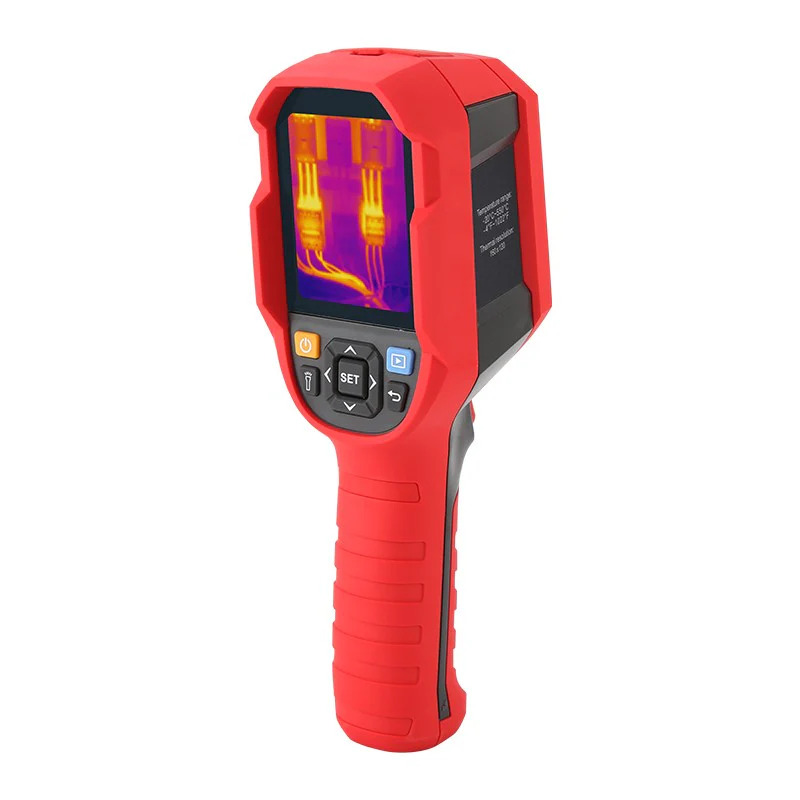

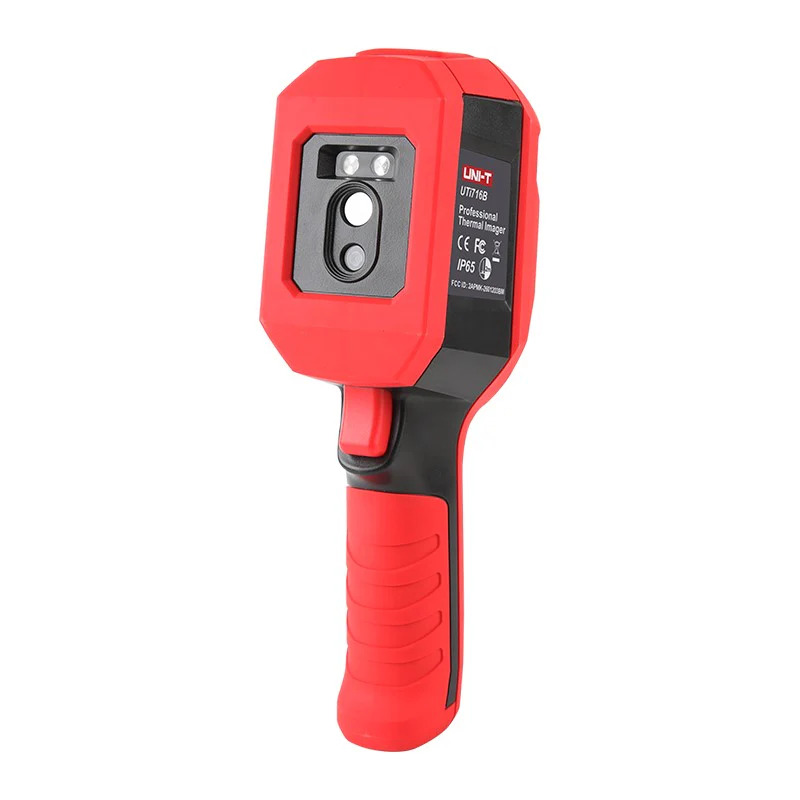

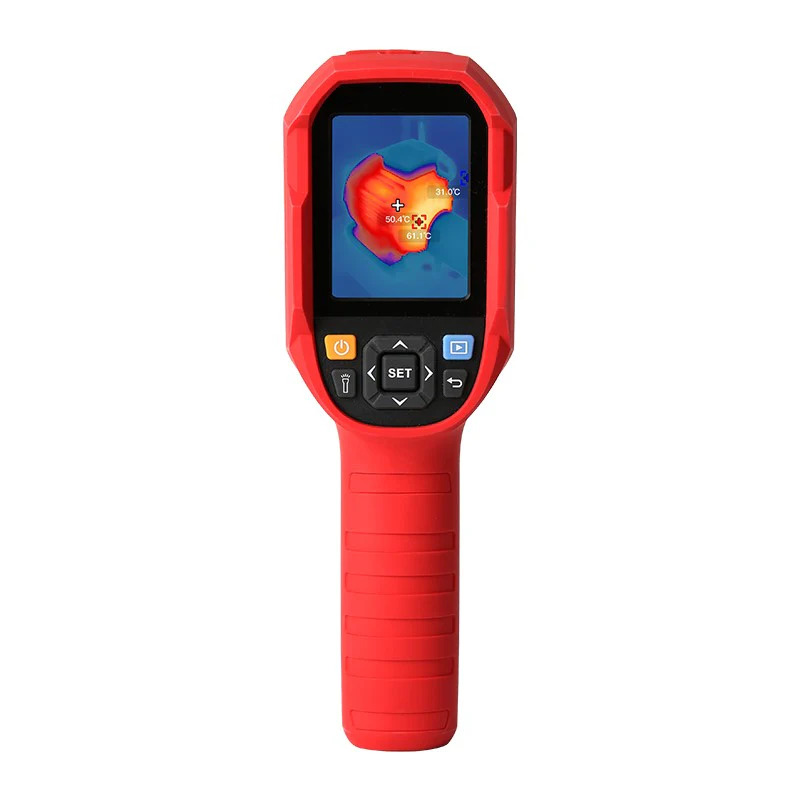

UNI-T UTi716B Thermal Camera
The UNI-T UTi716B is a rugged handheld thermal imaging camera engineered for professional field use in demanding environments. It combines reliable thermal detection with advanced image processing to deliver precise temperature visualization across a wide range. Built around a 160×120 infrared detector and enhanced with Super Resolution technology, the UTi716B produces more detailed thermal images than standard sensors. The device also incorporates a T-Mix image fusion algorithm, merging thermal and visual data to help users better understand what they’re measuring.
Designed with usability in mind, the UTi716B includes Wi-Fi connectivity that links to a mobile app for real-time monitoring, streaming, and transferring images or videos. The camera supports video recording so that thermal patterns and trends can be captured during inspections. Its durability features including an IP65 dust/water-resistant enclosure and protection from 2-meter drops make it suitable for work in harsh industrial and outdoor conditions. A rechargeable 5000 mAh battery offers extended operation, while built-in storage can archive many images and recordings on the device itself.
Practical tools included on the UTi716B such as multiple display modes, color palettes, high/low temperature alarms, and on-screen analysis points enable detailed inspection and quick decision-making on the job. Combined with a 2 MP visual camera, this thermal imager helps professionals quickly assess issues like electrical hot spots, HVAC inefficiencies, or mechanical overheating without interrupting regular workflow.
Features:
- Super Resolution image enhancement to 320×240 pixels.
- T-Mix image fusion algorithm for combined thermal/visual detail.
- Wi-Fi connectivity for mobile app monitoring and data transfer.
- Built-in video recording capability.
- Multi-language operating system.
- IP65 dust and water resistance.
- Drop-proof up to 2 meters.
- 2 MP visual camera integrated.
- On-screen high/low temperature alarms.
- Multiple color palettes and display modes.
Specifications:
| Specification | Details |
|---|---|
| Display: | 2.8″ TFT (320×240) |
| IR Resolution: | 160×120 pixels |
| Super Resolution: | 320×240 pixels |
| Spectral Range: | 8–14 µm |
| Pixel Size: | 12 µm |
| Frame Rate: | ≤ 25 Hz |
| Thermal Sensitivity (NETD): | ≤ 50 mK |
| Focus: | Focus-free |
| Field of View: | 40° (H) × 30° (V) |
| Temp. Measurement Range: | –20 °C to 550 °C |
| Accuracy: | ±2 °C or ±2% whichever greater |
| Image Modes: | Thermal, Visual, T-Mix, PIP |
| Color Palettes: | Multiple (e.g., White Hot, Ironbow) |
| Digital Camera: | 2 MP |
| Video Recording: | Yes |
| Wi-Fi: | Yes |
| Storage: | Built-in 32 GB |
| Battery: | 5000 mAh rechargeable |
| Operating Time: | ≥ 8 h |
| USB Interface: | Type-C |
| Protection: | IP65 & 2 m drop proof |
| Weight: | 600 g |
| Dimensions: | 236 × 75.5 × 86 mm |
Applications:
- Electrical maintenance & diagnostics.
- HVAC inspection & troubleshooting.
- Power distribution cabinet analysis.
- Mechanical equipment monitoring.
- R&D thermal analysis.
Package Contents:
- 1x UNI-T UTi716B heavy-duty thermal camera
- 1x Type-C USB cable
- 1x Quick start guide
- 1x 5000 mAh battery pre-installed in camera
