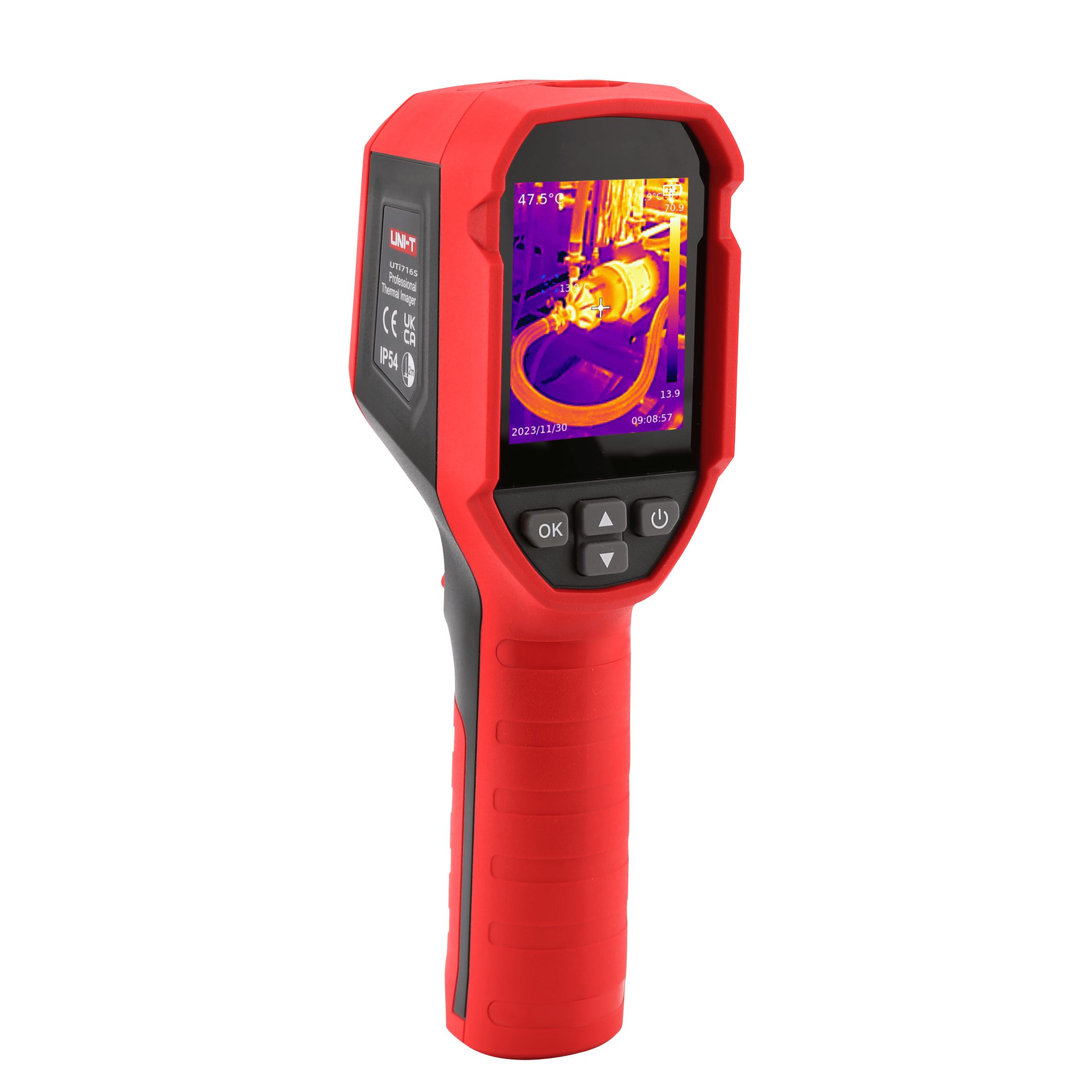

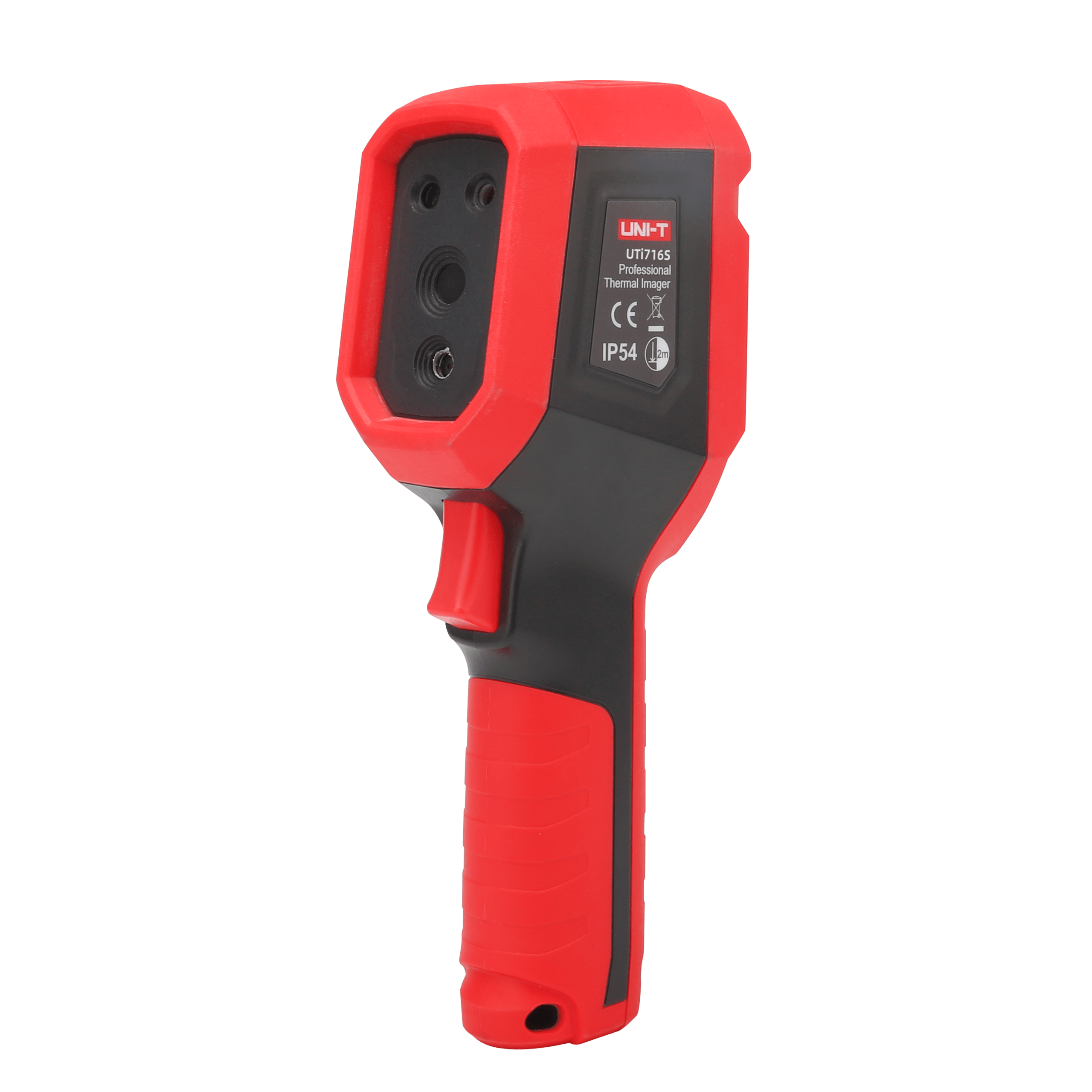

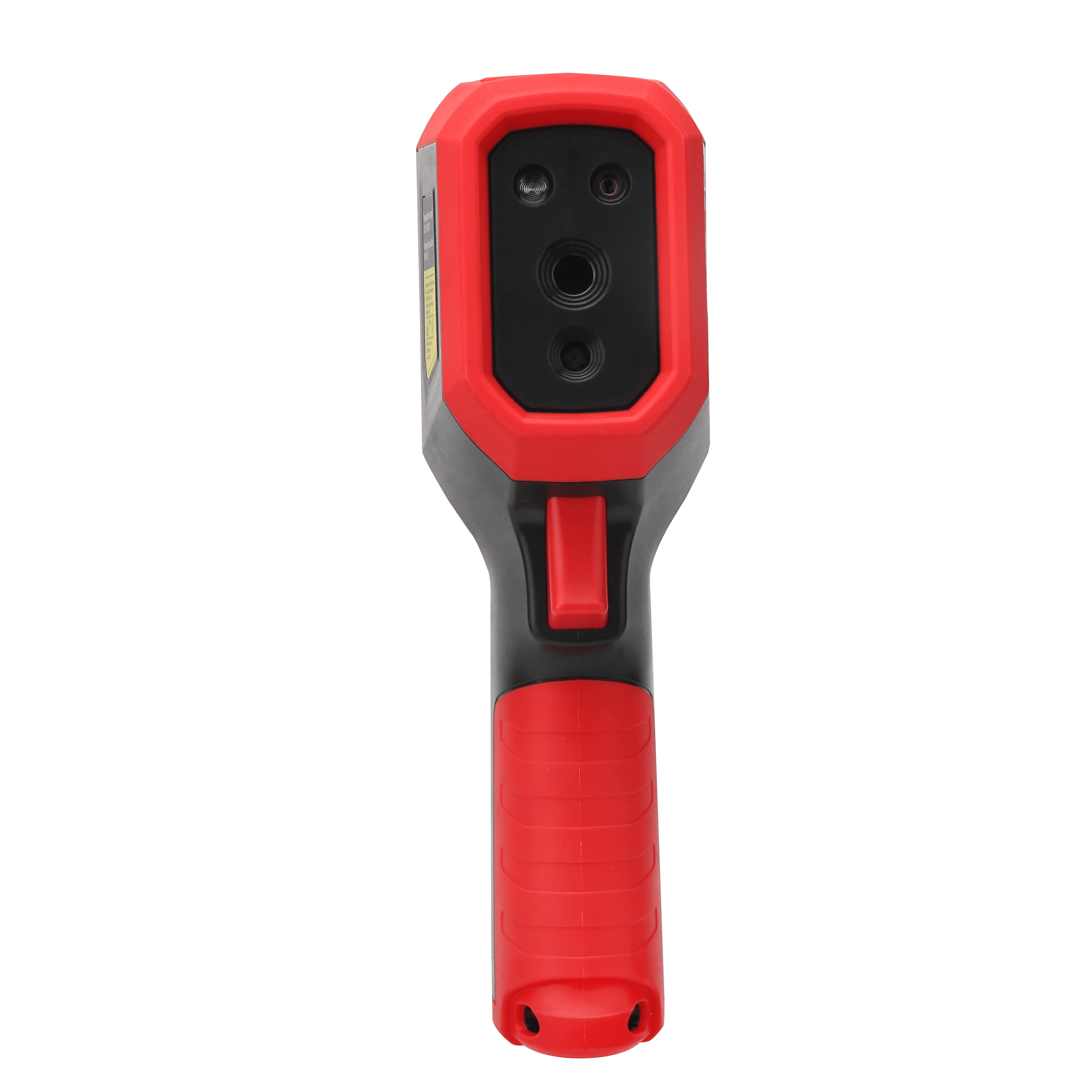

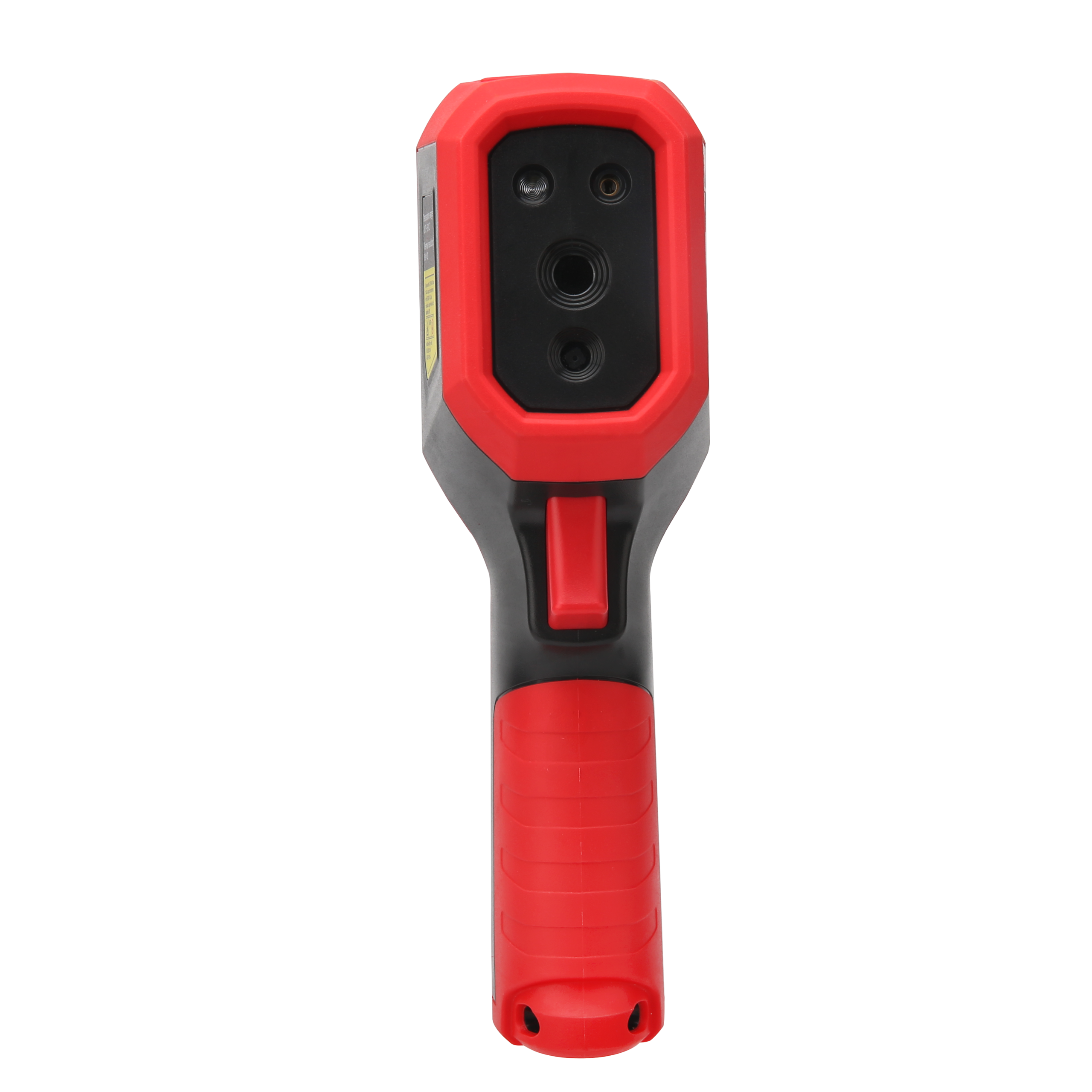

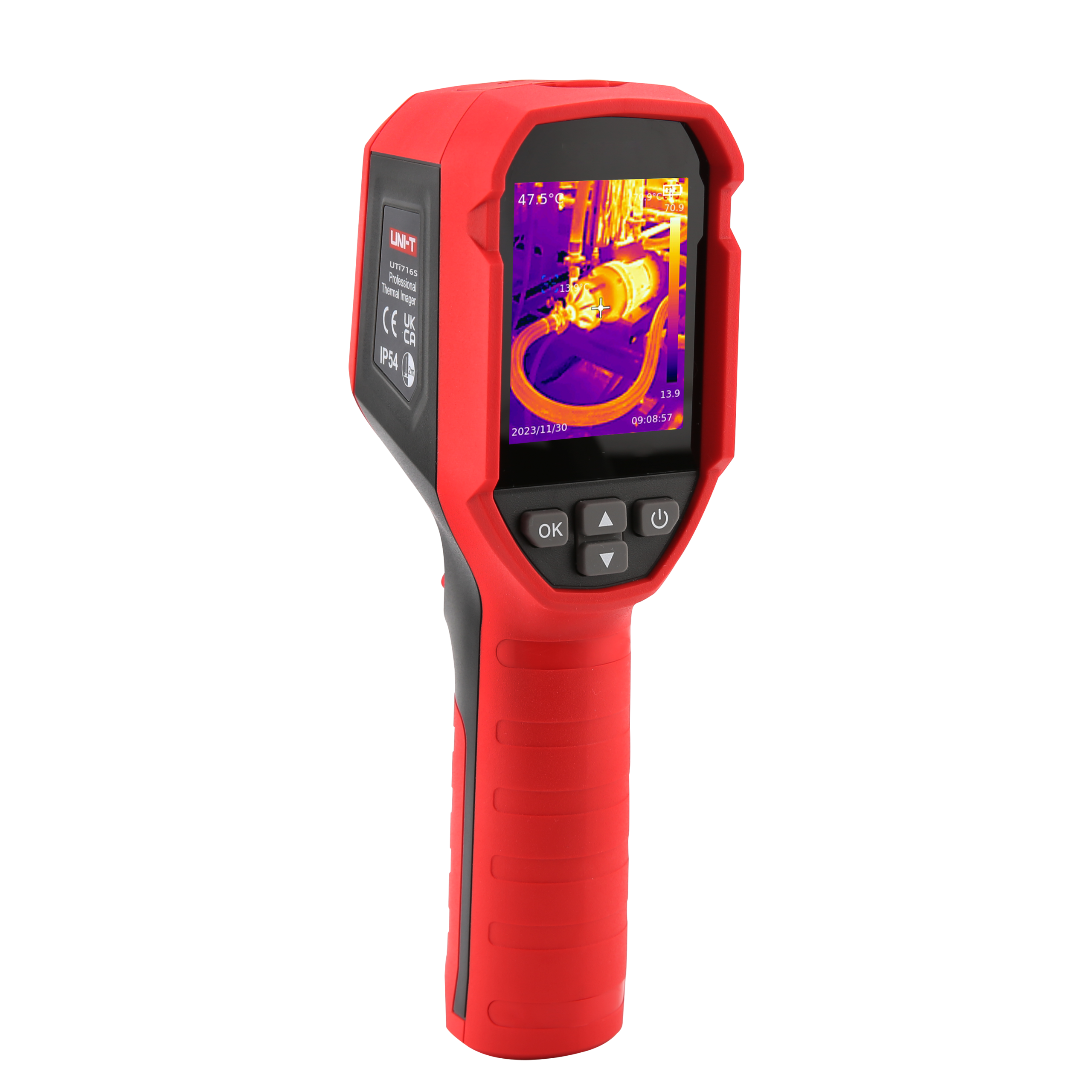

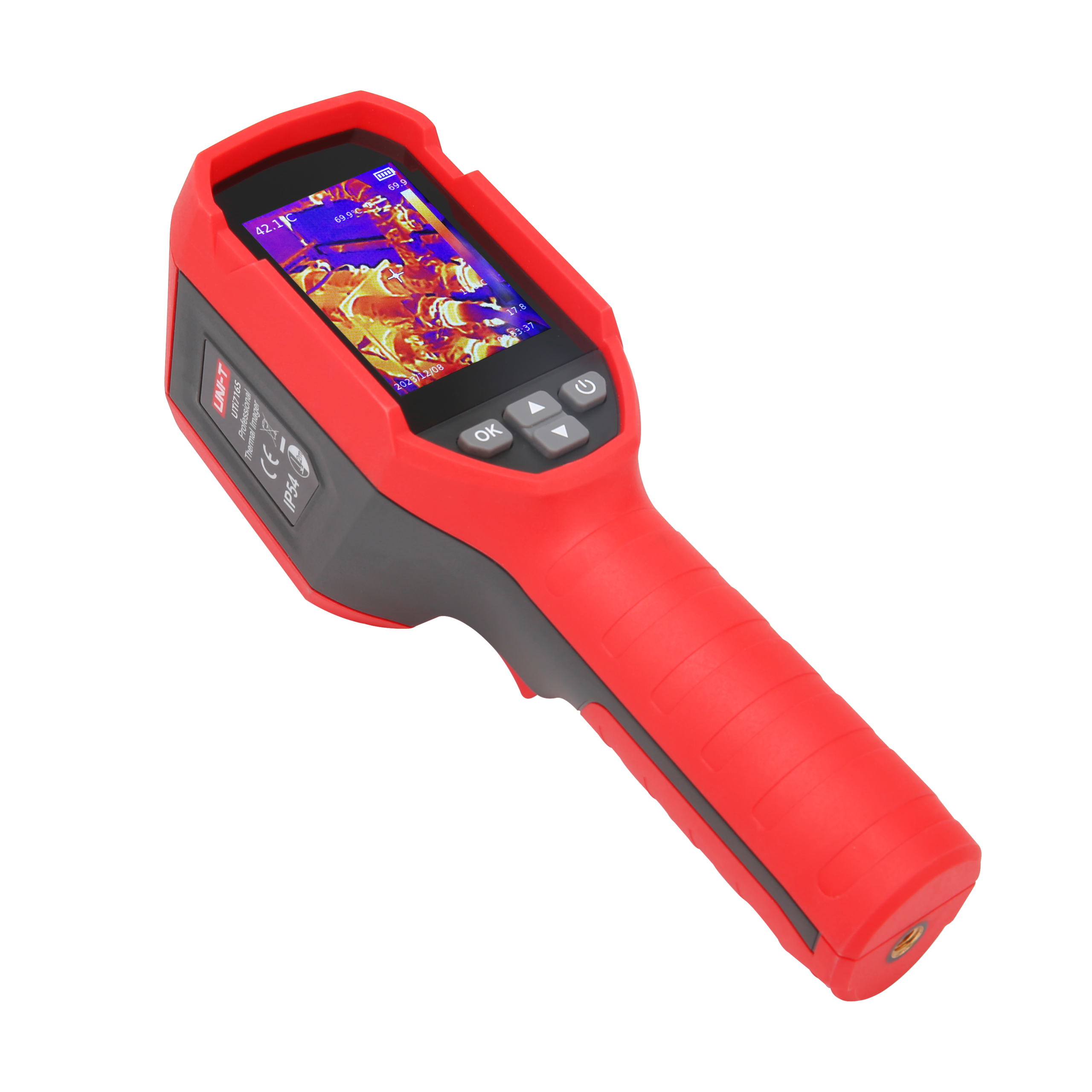

UNI-T UTi716S Cost-effective Thermal Camera
The UNI-T UTi716S is an entry-level, cost-effective portable thermal camera designed for easy, reliable inspection in a variety of environments. Built around a 160 × 120 thermal sensor, it incorporates a sturdy, IP54-rated housing capable of withstanding a 2 m drop. Its four-button interface and 2.4″ color TFT display make it simple to operate in field conditions. Under its hood, the UTi716S employs super-resolution image-enhancement technology to boost its native 19,200-pixel output up to 76,800 pixels, resulting in clearer IR images without sacrificing detail.
A built-in illuminator and laser pointer help highlight target areas, while multiple color palettes (White Hot, Black Hot, Ironbow, Lava, Rainbow, Rainbow HC) and fusion modes (T-Mix, VISPIP, IRT-Mix, PIP) allow flexible visualization. The device runs on a multi-language operating system and stores images (JPEG format) on an internal 32 GB memory. Powered by a 2600 mAh rechargeable Li-ion battery, it offers up to 6 hours of continuous operation. A USB Type-C interface enables data transfer and charging.
The UTi716S is ideal for HVAC troubleshooting, electrical utility inspection, mechanical maintenance, and automotive diagnostics, delivering reliable thermal imaging in a compact, field-ready package.
Features:
- 2.4″ TFT color display.
- Wide temperature measurement range (–20 °C to 550 °C).
- Rich color palettes (White Hot, Black Hot, Ironbow, Lava, Rainbow, Rainbow HC).
- Built-in illuminator and laser pointer.
- Simple four-button design.
- Ultra-long battery life (≥ 6 hours).
- Multi-language operating system (EN, FR, DE, ES, IT, SV, PL, CZ).
- PC analysis software compatibility.
- Super-resolution image enhancement (from 19,200 to 76,800 pixels).
Specifications:
| Specification | UTi716S Value |
|---|---|
| IR resolution (pixels): | 160 × 120 |
| Super resolution (pixels): | √ (320 × 240) |
| Pixel size: | 12 µm |
| Frame rate: | ≤ 25 Hz |
| Thermal sensitivity (NETD): | ≤ 50 mK |
| Focus: | Focus-Free |
| Field of view (FOV): | 40° (H) × 30° (V) |
| Display: | 2.4″ TFT (320 × 240) |
| Temperature measurement range: | –20 °C to 550 °C |
| Accuracy: | ± 2 °C or ± 2 % (whichever is greater) |
| Color palettes: | White Hot, Black Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image modes: | Thermal, Visual image, Fusion (T-Mix), PIP |
| Temperature compensation: | – |
| Hi/Lo temperature alarm: | √ |
| Hi/Lo temperature tracking: | √ |
| Digital camera resolution: | 2 MP |
| Laser pointer / LRF: | √ / – |
| LED lighting: | √ |
| Analysis software: | PC application |
| Battery: | 2600 mAh rechargeable Li-ion |
| Operating time: | ≥ 6 hours |
| USB interface: | USB Type-C |
| Storage: | 32 GB internal memory |
| Image storage format: | JPG |
| Protection: | IP54 & 2 m drop proof |
| Certificates: | CE, FCC, RoHS |
| Languages: | EN, FR, DE, ES, IT, SV, PL, CZ |
| Weight: | 326 g |
| Dimension: | 197 × 72 × 60 mm |
| LCD animation, LED flashlight, buzzer: | √ |
| PC interface: | PC compatible (via USB) |
| Thermal contrast enhancement: | Super resolution |
| Fusion modes: | T-Mix, VISPIP, IRT-Mix, PIP |
| Battery life indicator: | – |
Applications:
- Automotive Inspection.
- HVAC.
- Mechanical Maintenance.
Package Contents:
- 1× UTi716S Thermal Imaging Camera
- 1× Protective Carrying Case
- 1× USB Charging Cable
- 1× Quick Start Guide
- 1× Calibration Certificate
