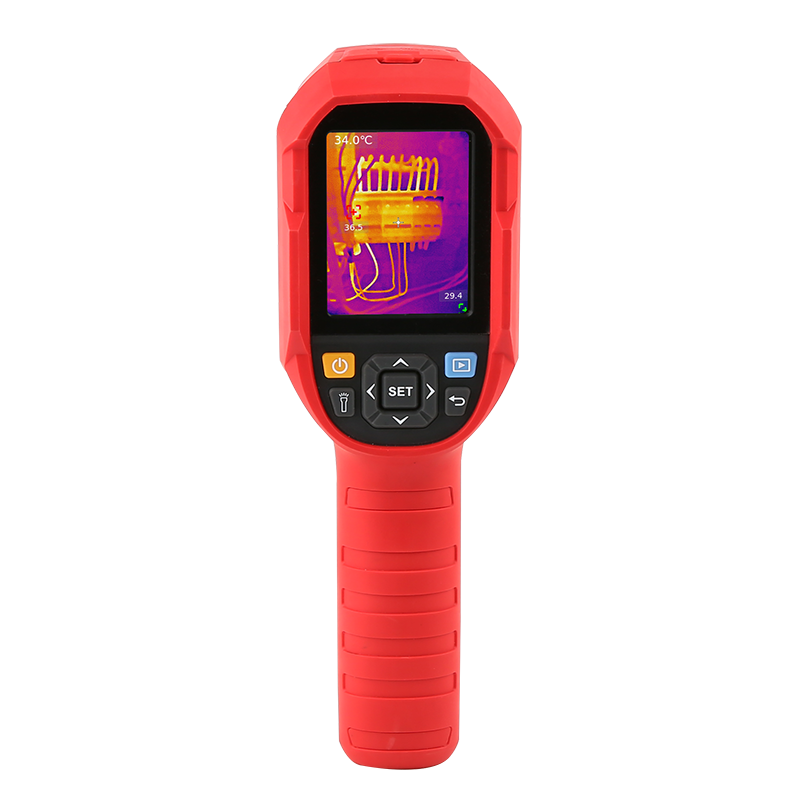

UNI-T UTi720B Heavy Duty Thermal Camera
The UNI-T UTi720B is a heavy-duty thermal camera engineered for professional field use, blending rugged durability with advanced imaging. Built on the previous generation’s tough chassis, it raises image quality through Super Resolution and the T-Mix 2.0 fusion algorithm, producing clearer radiometric thermal images that reveal fine detail in inspections and diagnostics. The unit also supports Super IR enhancement for improved thermal clarity under challenging conditions.
Connectivity and workflow tools make the UTi720B suited for modern inspection tasks: onboard Wi-Fi enables live streaming and easy file transfer to PC or app for analysis, while video recording and thermal-link functions let users document findings in real time. A built-in 2MP visual camera and multiple image modes (thermal, visual, T-Mix fusion, PIP) help correlate thermal data with visible detail for faster troubleshooting.
Designed for demanding environments, the UTi720B combines long battery life (a 5000 mAh rechargeable Li-ion cell), IP65 ingress protection and 2 m drop resistance, and a compact, ergonomic body making it appropriate for HVAC, electrical cabinet, R&D and mechanical equipment inspection where reliable, accurate thermal measurement is required.
Features:
- Super Resolution imaging (UTi720B: 512×384 super-res).
- T-Mix 2.0 image fusion algorithm (radiometric fusion).
- Super IR mode for enhanced thermal detail.
- Wi-Fi connectivity and Wi-Fi live streaming.
- Video recording (JPG/MP4 storage).
- Thermal Link function.
- Multiple image modes: Thermal, Visual, T-Mix fusion, PIP.
- On-screen analyzer (5 points / 3 rectangles).
- HI/LO temperature alarm and tracking.
- Built-in digital camera (2 MP) to capture visible images.
- LED lighting, LCD animation, LED flashlight, buzzer.
- Large built-in storage (UTi720B: 32 GB).
- Long-life rechargeable battery (5000 mAh Li-ion), operating time ≥7 hours (UTi720B).
- Rugged protection: IP65 and 2 m drop proof.
Specifications:
| Specification | UTi720B (from PDF) |
|---|---|
| Model: | UTi720B |
| IR resolution: | 256 × 192 (native) |
| Super resolution: | 512 × 384 (Super-res enabled) |
| Pixel size: | 12 µm |
| Frame rate: | ≤ 25 Hz |
| Thermal sensitivity (NETD): | ≤ 50 mK |
| Focus: | Focus-free |
| Field of view (FOV): | 56° (H) × 42° (V) |
| Display: | 2.8″ TFT (320 × 240) |
| Temperature measurement range: | −20 °C to 550 °C |
| Accuracy: | 20 °C–120 °C: ±1.5 °C or ±1.5% (whichever greater).−10 °C–20 °C & 120 °C–550 °C: ±2 °C or ±2% (whichever greater) |
| Color palettes: | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image modes: | Thermal, Visual, T-Mix fusion, PIP |
| On-screen analysis: | 5 points / 3 rectangles; HI/LO alarm & tracking |
| Digital camera: | 2 MP |
| Storage: | Built-in 32 GB (UTi720B) |
| File format: | JPG (images) / MP4 (video) |
| Battery: | 5000 mAh rechargeable Li-ion; operating time ≥7 hours |
| Interface: | Type-C USB; Wi-Fi |
| Protection / Durability: | IP65 ingress protection; 2 m drop proof |
| Weight: | ~600 g |
| Dimensions: | 236 × 75.5 × 86 mm |
| Certifications: | CE, FCC, RoHS |
| Languages: | EN, FR, DE, ES, IT, SV, PL, CZ |
Applications:

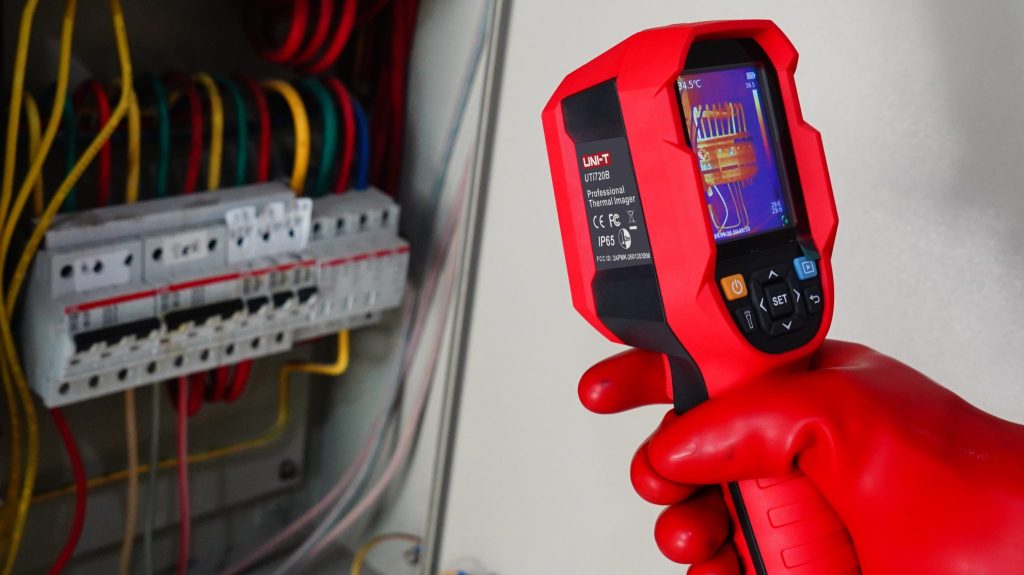

- Power Distribution Cabinet inspection.
- HVAC inspection.

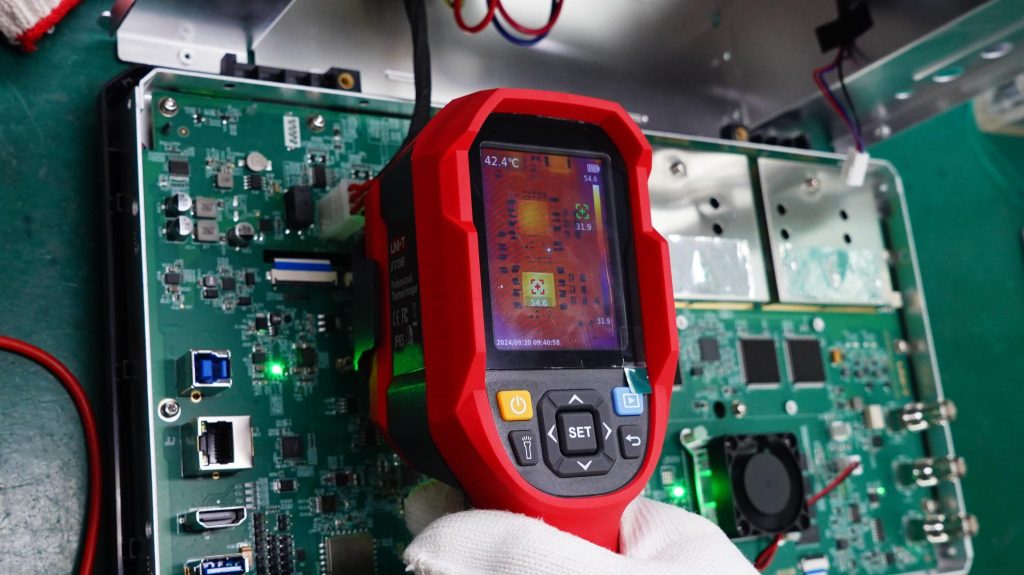

- R&D (research & development).

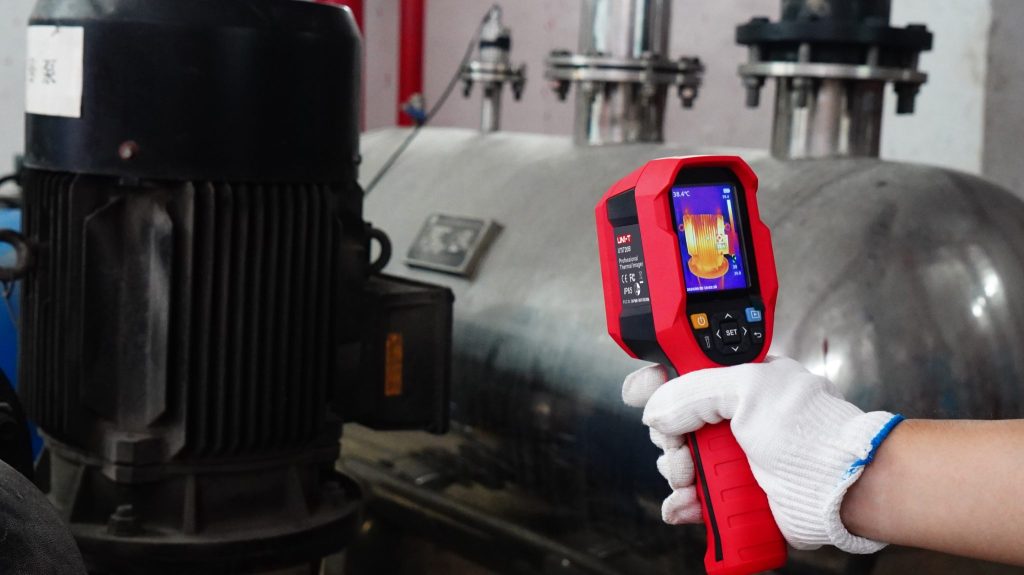

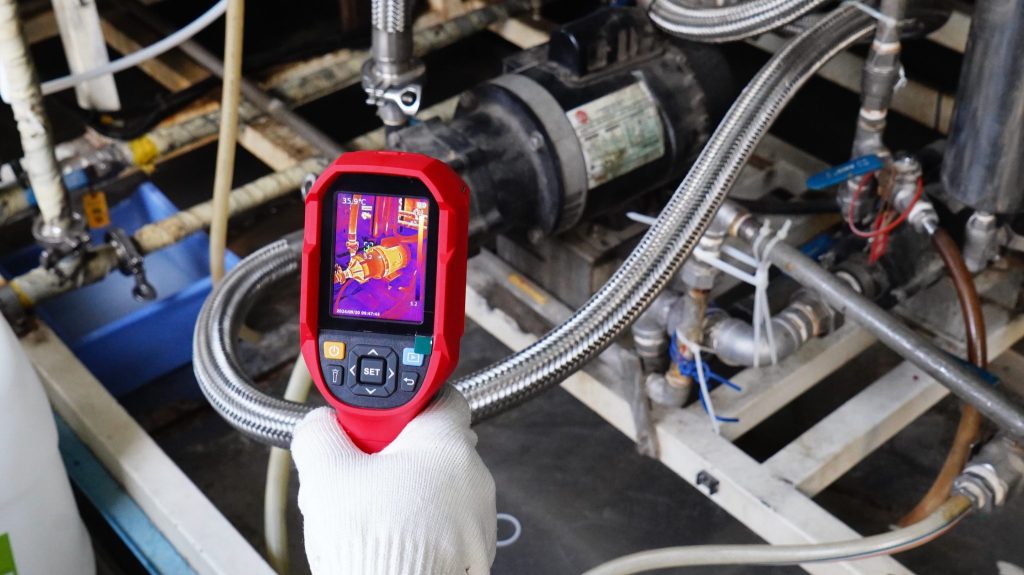

- Mechanical equipment inspection.
Package Contents:
- 1x UTi720B thermal camera
- 1x Rechargeable Li-ion battery (5000 mAh)
- 1x USB Type-C cable
- 1x User manual / quick start guide
- 1x Wrist strap or shoulder strap
- 1x Protective carry case
