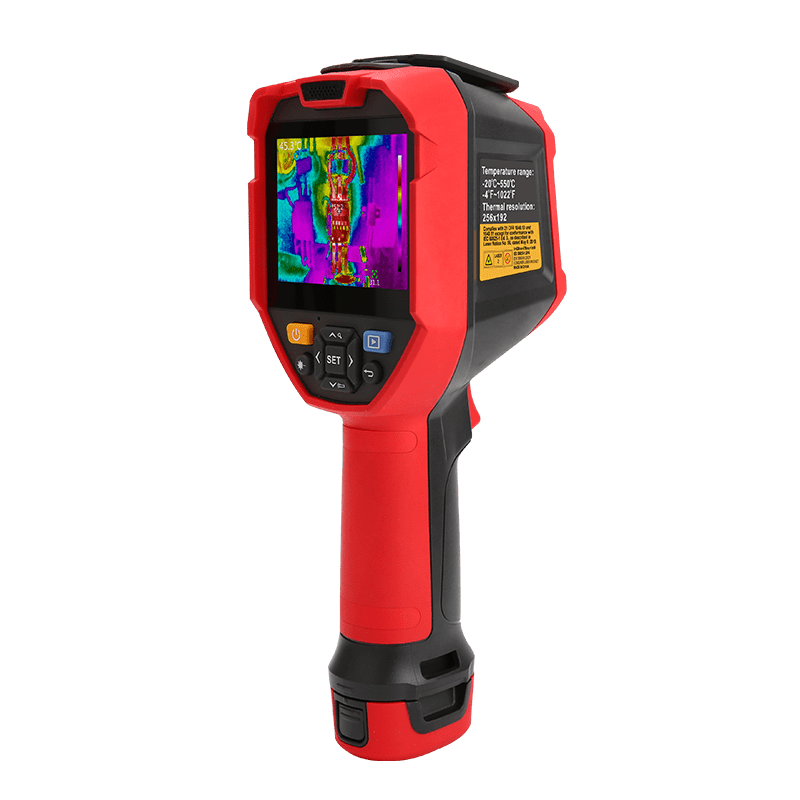

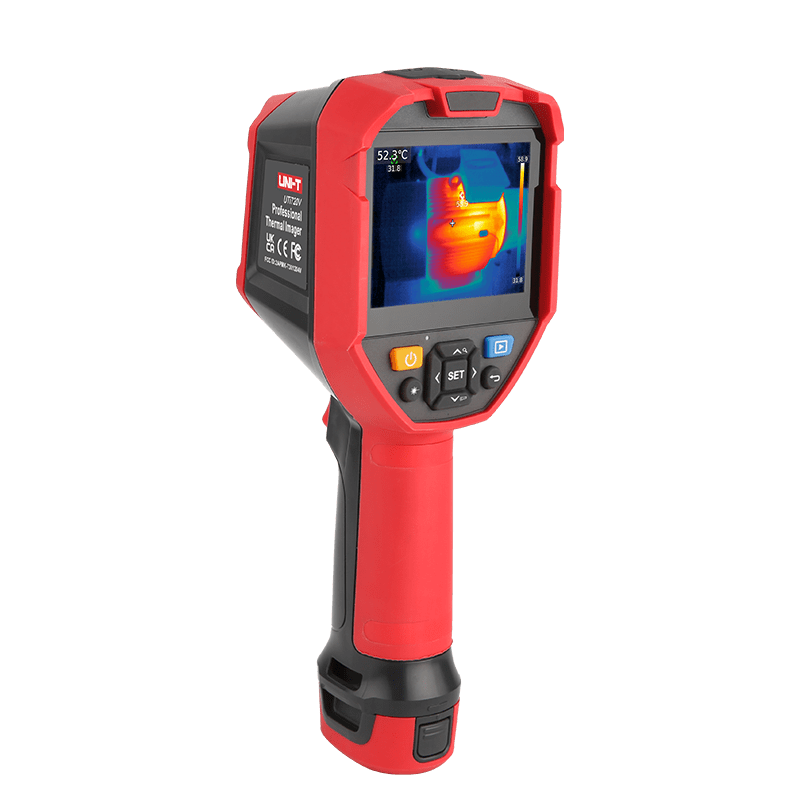

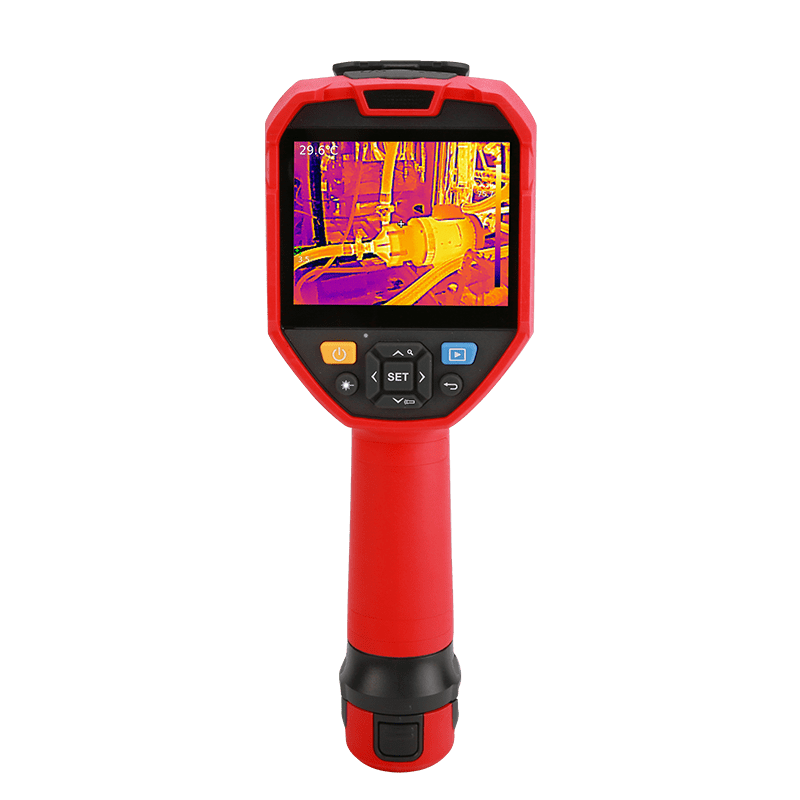

UNI-T UTi720V Professional Thermal Imaging Camera
The UNI-T UTi720V is a professional-grade thermal imaging camera engineered for precision non-destructive inspection across demanding industrial environments.
Designed to detect subtle thermal abnormalities, it combines high-definition infrared resolution with a 5MP digital camera to deliver clear, detailed imaging for accurate diagnostics. Its intuitive 3.5″ IPS touchscreen simplifies operation, allowing real-time adjustments and analysis directly on the device. Built for versatility, the UTi720V features Wi-Fi connectivity for live streaming, data transfer, and seamless integration with mobile apps and PC software.
The integrated laser rangefinder enhances safety by enabling measurements from a distance, while robust IP54-rated construction ensures reliability in harsh conditions. Ideal for professionals, it streamlines workflow with video/voice recording, customizable alarms, and adaptive image fusion (T-Mix) to highlight critical temperature variations.
Features:

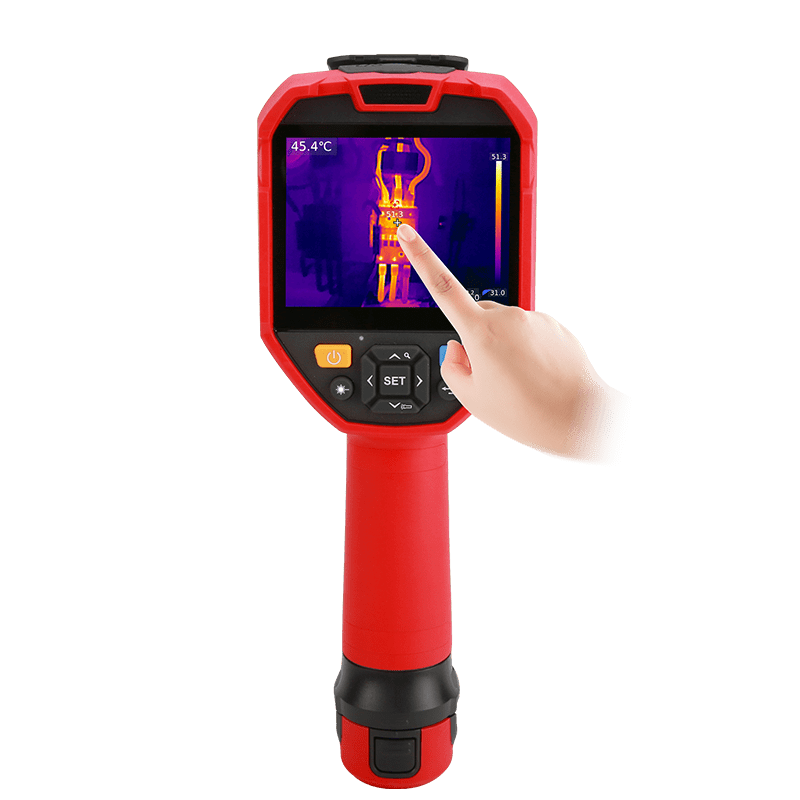

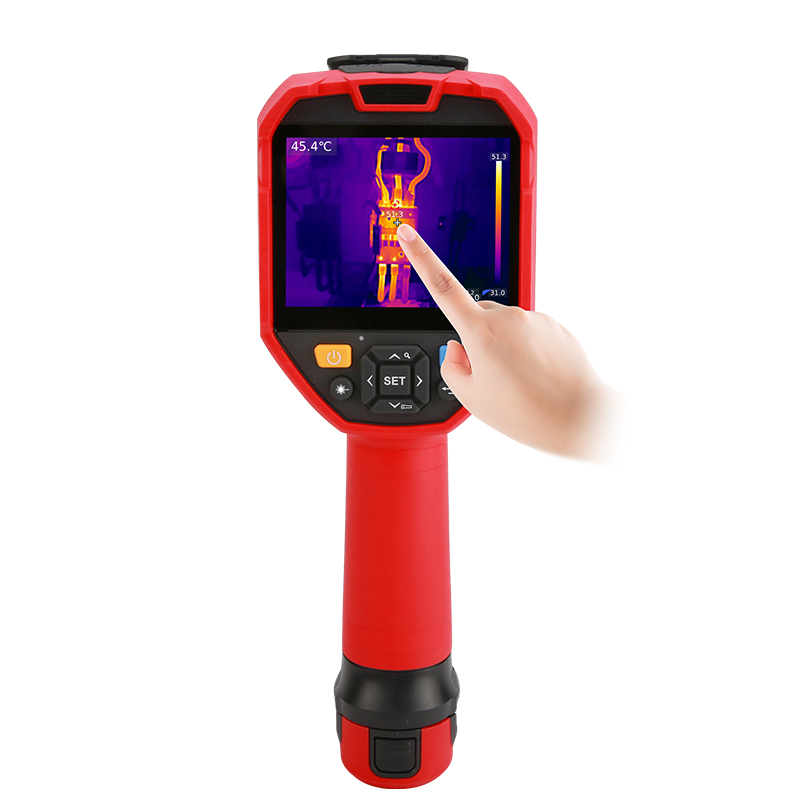

- 3.5″ HD Touch Screen.
- T-Mix Adaptive Dual-Range Image Fusion.
- Wi-Fi Live Streaming & Data Transfer.
- Laser Distance Measurement (up to 30 meters).

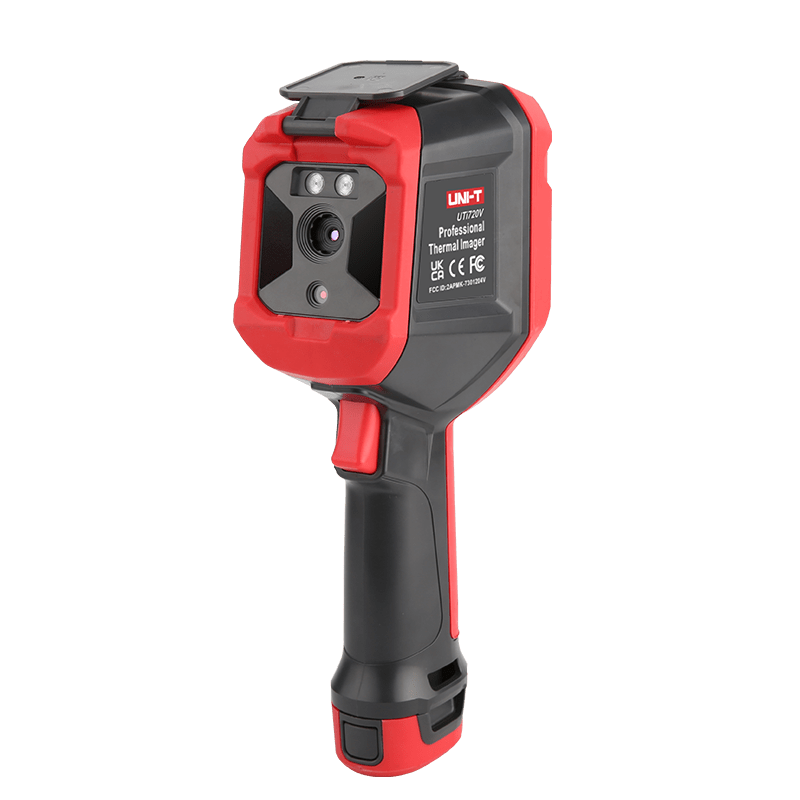

- 5MP Digital Visible Light Camera.
- On-Screen Analyzer (points, lines, rectangles, circles).
- Hi/Lo Temperature Alarm (visual/audio alerts).
- Video and Voice Recording.
- IP54 Water/Dust Resistance.
- 2-Meter Drop Protection.
- Mobile App & PC Software Integration.
- QR Code Annotation.
Specifications:
| Parameter | UTi720V |
|---|---|
| Display: | 3.5″ IPS Touch (640×480) |
| IR Resolution: | 256×192 pixels |
| Thermal Sensitivity: | ≤50 mK (NETD) |
| Frame Rate: | ≤25 Hz |
| Temperature Range: | -20°C to 550°C |
| Accuracy: | ±2°C or ±2% |
| Field of View (FOV): | 56°(H) × 42.2°(V) |
| Focus: | Fixed (Focus-Free) |
| Digital Zoom: | 2x, 4x |
| Laser Ranging: | 30 meters |
| Battery: | 5200mAh Li-ion (UT-M17) |
| Operating Time: | ≥4 hours (Wi-Fi off) |
| Storage: | 32GB Micro SD (included) |
| Connectivity: | USB Type-C, Wi-Fi |
| Weight: | 654g |
| Dimensions: | 260mm × 97mm × 99mm |
| Certifications: | CE, UKCA, FCC, RoHS |

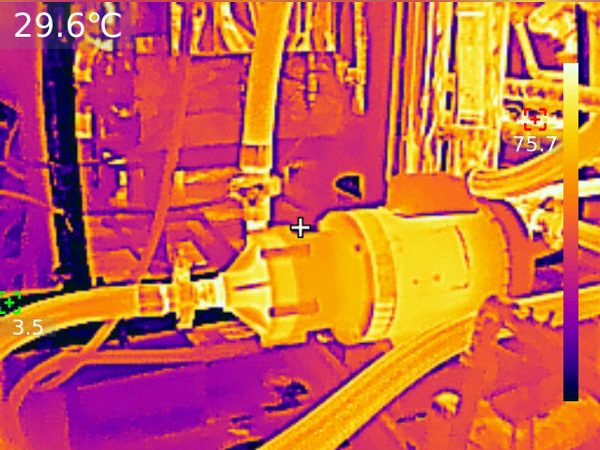

Applications:
- Industrial Inspection.
- Electrical Maintenance.
- Mechanical Diagnostics.
- Building Inspection.
- Automotive Troubleshooting.
- Energy Audits.
- HVAC System Analysis.
- Preventive Maintenance.
Package Contents:
- 1x Thermal Imager
- 1x USB Cable
- 1x Micro SD Card (32GB)
- 2x Rechargeable Li-ion Battery (UT-M17)
- 1x Quick Start Guide
- 1x Documents Download Operation Guide
- 1x HS Impact-Proof Portable Case
