UNI-T UTi740M Smartphone Thermal Camera Module for Android

UNI-T UTi740M Smartphone Thermal Camera Module for Android

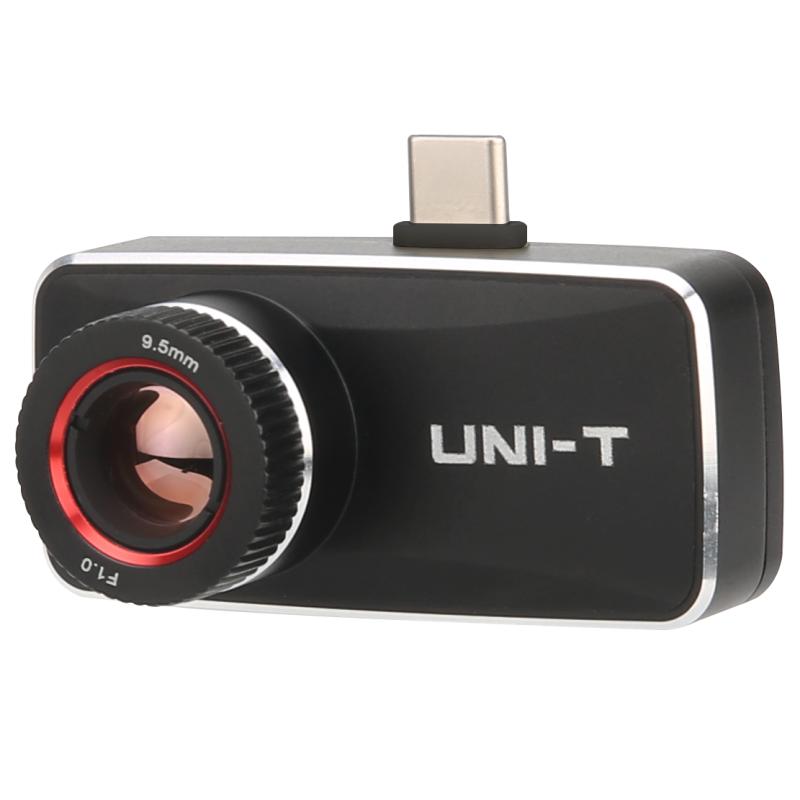

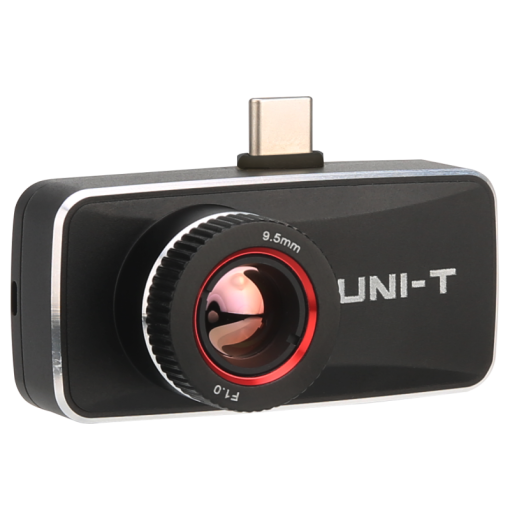

The UNI-T UTi740M transforms any compatible Android smartphone into a handheld thermal imaging device. It connects via USB-C and, once the “Thermal Mobile” app is installed, streams infrared data directly to the phone. At its heart is a high-sensitivity VOx detector with a 400 × 300 IR-pixel array (upgraded in real time via 4× Super-Resolution to 800 × 600), delivering clear, detailed thermal images even at various distances thanks to its manual‐focus ring. The compact aluminum-alloy housing (58 × 27 × 28.6 mm, 46 g) ensures easy portability for HVAC inspections, building diagnostics, or electrical troubleshooting.

Thermal sensitivity is ≤ 45 mK @ 25 °C, with a 29° (H) × 21.5° (V) field of view and a 9.5 mm focal length lens, enabling accurate capture of temperature differentials from –20 °C to 550 °C. On-screen tools (5 points, lines, rectangles, circles) allow immediate hotspot analysis, while selectable color palettes (e.g., Ironbow, White Hot, Lava) aid visual interpretation. Real‐time alarms (Hi/Lo) and isotherm modes further streamline inspections. Stored still images are saved as JPG and videos as MP4; data offload and device updates occur via USB. CE, FCC, and RoHS certifications underline its compliance.

Overall, the UTi740M is a plug-and-play thermal camera module that leverages an Android smartphone’s display and battery, offering a cost-effective, professional thermal solution.

Features:

• High-sensitivity VOx detector (12 µm) with 400 × 300 IR pixels.
• 4× Super-Resolution to boost real-time image quality to 800 × 600.
• Manual focus ring for clear imaging at varied distances.
• Plug-and-play integration via USB-C with “Thermal Mobile” app.
• 29° (H) × 21.5° (V) field of view for broad scene capture.
• Thermal sensitivity ≤ 45 mK @ 25 °C for precise temperature differentiation.
• On-screen analyzer (5 points, 1 line, 3 rectangles, 3 circles).
• Hi/Lo temperature alarm and tracking.
• Multiple color palettes (Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC).
• Image and video recording (JPG, MP4).
• Isotherm modes: Auto, Below, Above, Section, Manual.
• Temperature measurement range: –20 °C to 550 °C (± 2 °C or ± 2 % industrial; ± 0.5 °C EST).
• Multi-language support (ZH, EN, FR, DE, IT, ES, SV, PL, CZ).

Specifications:

Applications:

• Building Inspection.
• HVAC System Diagnosis.

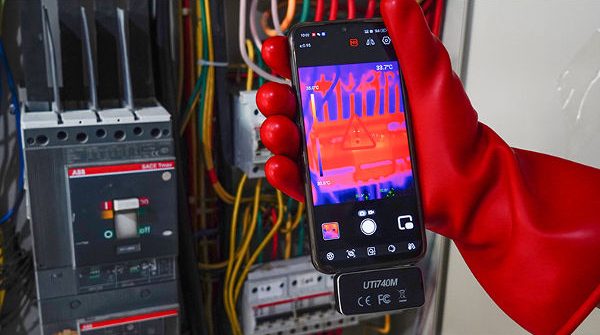

• Electrical Equipment Inspection.
• PCB R&D Thermal Analysis.

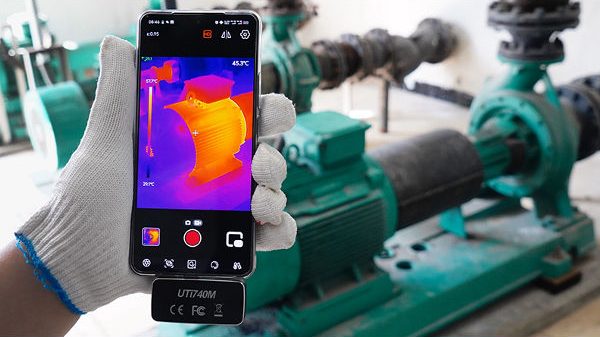

• Equipment Fault Detection.

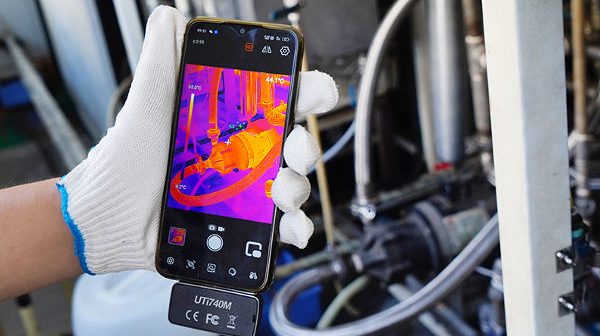

• Industrial Process Monitoring.

Package Contents:

• 1x UTi740M Module
• 1x Type-C Extension Cable
• 1x Hand Strap
• 1x Cleaning Cloth
• 1x Cloth Bag
• 1x Quick Start Guide
• 1x Operation Guide (Digital Download)

UNI-T  UTi740M Documents:

• Datasheet
