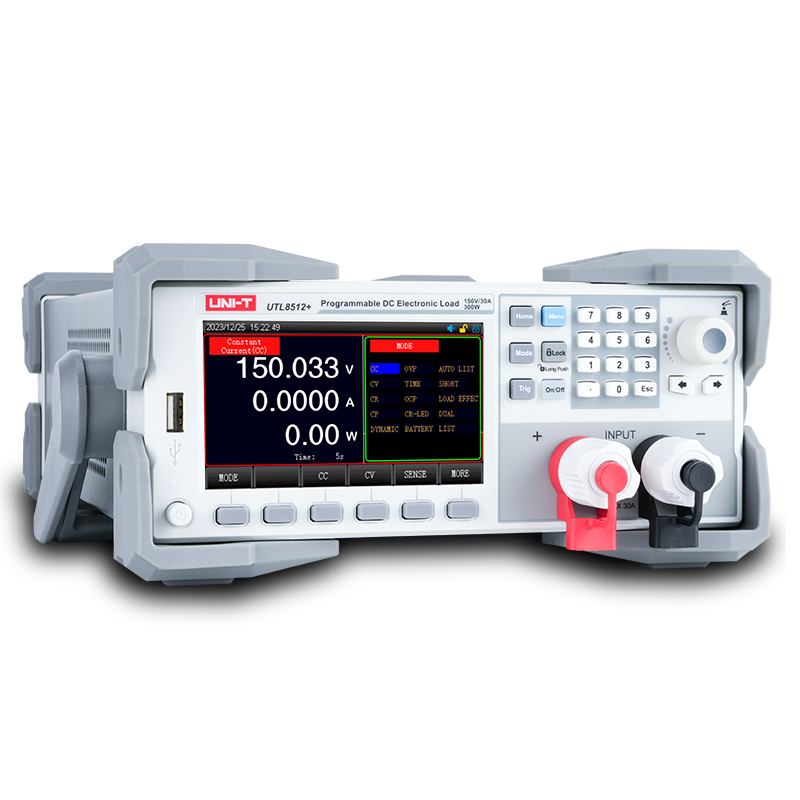

UNI-T UTL8512+ Programmable DC Electronic Load
The UNI-T UTL8512+ Programmable DC Electronic Load is a compact, high-performance programmable DC electronic load designed for precise power testing in R&D, production, and quality assurance environments. It delivers up to 300W total power with a voltage range of 0-150V and current up to 30A, featuring exceptional resolution of 0.01mV/0.01mA for accurate measurements. Supporting CC/CV/CR/CP modes plus dynamic, list, and battery tests a maximum dynamic frequency of 50kHz and a wide current slew rate from 0.0006A/μS to 3A/μS, it excels in simulating real-world load conditions like battery discharge or power supply validation. Its ½ 2U rack-mountable size saves space, while RS232 connectivity enables easy integration with PCs for automated testing via software. Ripple measurement, and robust protections like OVP/OCP/OPP. Ideal for electronics engineers needing reliable, versatile load simulation without bulk.
UNI-T UTL8512+ Features
- 150V/30A/300W capacity. Delivers robust power for testing power supplies and batteries reliably.
- 0.1mV/0.01mA resolution. Provides precise measurements essential for R&D and quality assurance.
- 50kHz max dynamic frequency. Simulates fast load transients accurately in real-world scenarios.
- Multi-mode operation (CC/CV/CR/CP). Supports diverse testing needs from basic to advanced dynamic tests.

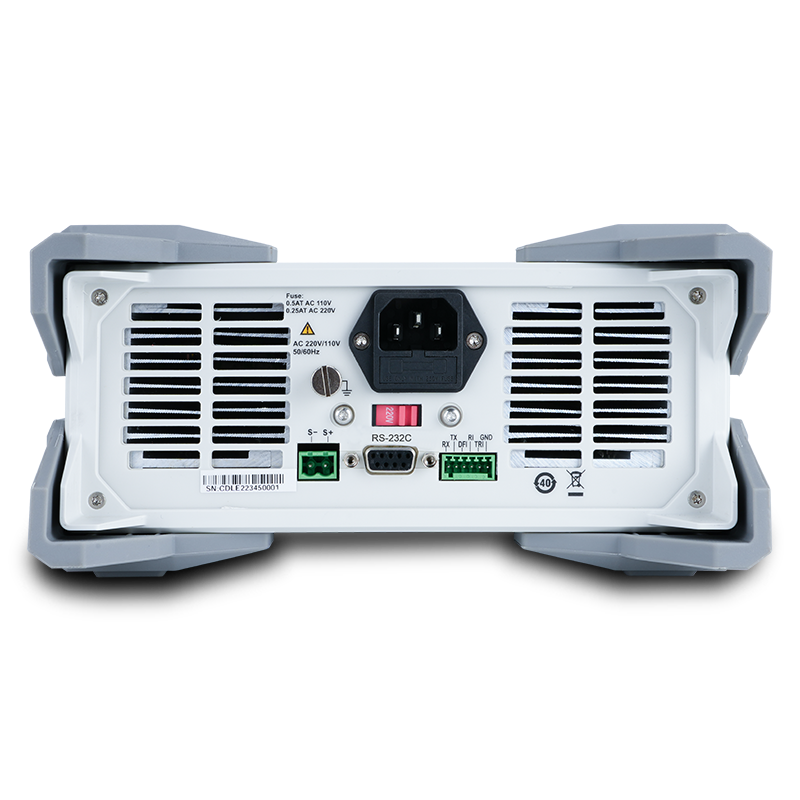

- RS232 connectivity with remote sense. Enables automated PC control and precise voltage compensation.
- Comprehensive protections (OVP/OCP/OPP). Ensures safe operation during high-stress load simulations.
- Compact ½ 2U design. Maximizes lab space efficiency without compromising performance.
- Ripple measurement (Vpp/Ipp). Captures noise accurately for cleaner power analysis.
UNI-T UTL8512+ Applications
- Power supply testing for validating output stability and performance under various loads.
- Battery simulation and discharge testing to evaluate capacity and charge curves accurately.
- Charger testing to ensure safe and efficient operation across input conditions.
- LED driver and lighting simulation for function verification and efficiency checks.
- Over-current and maximum power point testing to confirm protection mechanisms.
- Automated production line testing with programmable sequences for consistent quality control.
Package Contents
- 1x UNI-T UTL8512+Programmable DC electronic load
- 1x Power Cable
- 2x Spare Fuses
- 1x USB Cable
- 1x User Manual
