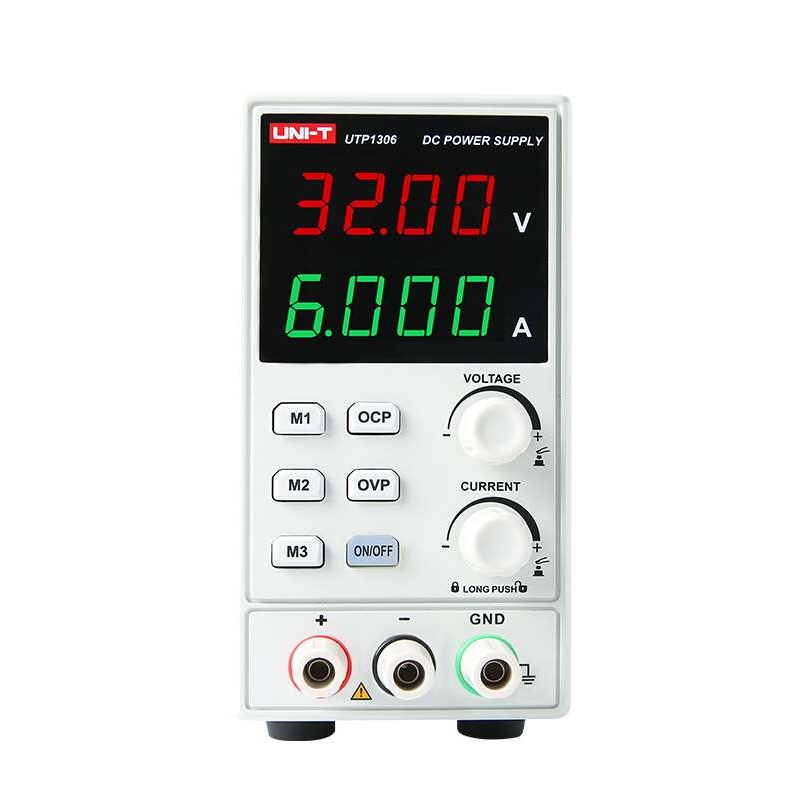

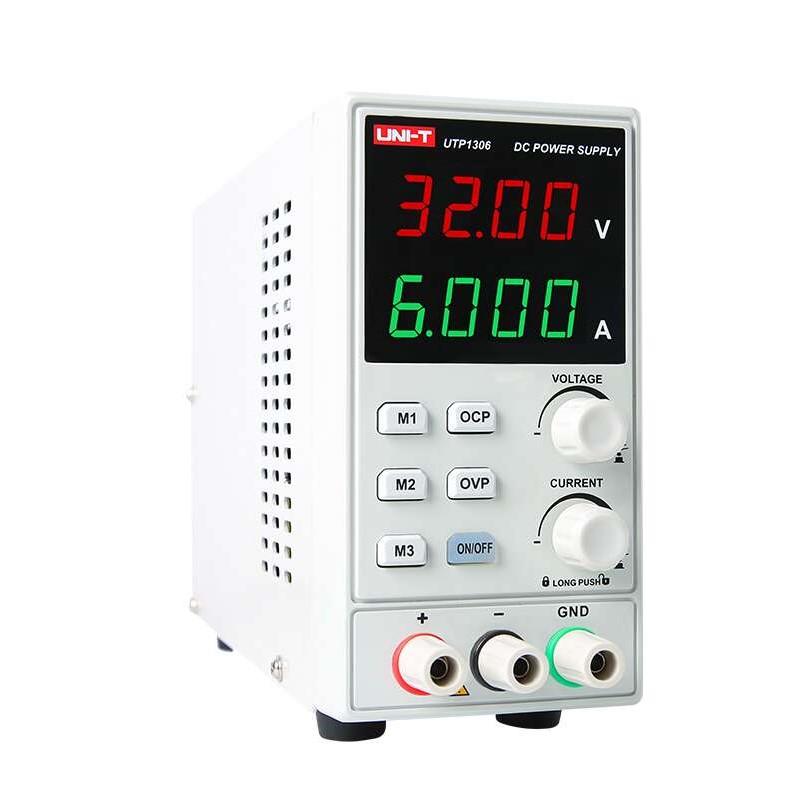

UTP1306 is a switch-type DC regulated power supply with single channel, which has OCP/OVP protection function, 3 groups of storage/recall pre set values and output switch.
Features:
- Single output
- Output: 32V, 6A
- Resolution: 10mV/1mA
- Over voltage/current protection
- 3 groups of one-key recall of stored datas
- Over current/voltage protection value settable
- Independent output switch.
Tech. Specifications:
| Specifications | ||
| Model | UTP1306 | |
| Output voltage | 0~32V | |
| Output current | 0~6A | |
| Output power | 192W | |
| Load regulation | CV＜0.1%+5mVCC＜0.2%+3mA | |
| Accuracy(25℃±5℃) | Voltage | ＜0.1%+5mV |
| Current | ＜0.2%+3mA | |
| Ripple and noise | ≤1mVrms | |
| Output regulation resolution Reliability | CV: 10mV (typical), CC: 1mA (typical); MTBF(e): ≥2000hrs | |
| Display mode |
4-bit LED voltage and current dual display
|
|
| Feature | Auto conversion of constant voltage and current with current limit protection | |
| General Characteristics | ||
| Power | Input voltage: 110V AC/220V AC; 50Hz~60Hz | |
| Product color | White and grey | |
| Product net weight | 1.9kg | |
| Product size | 80mm x 150mm x 230mm | |
Documents
UTP1306 User’s Guide
UTP1300 Series Power Supply Datasheet-EN
