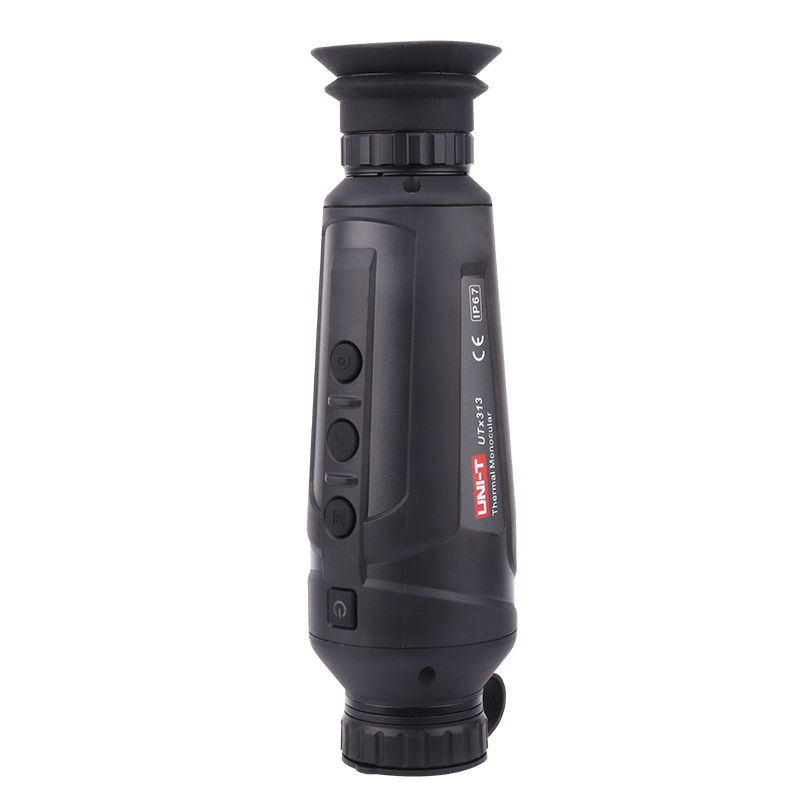

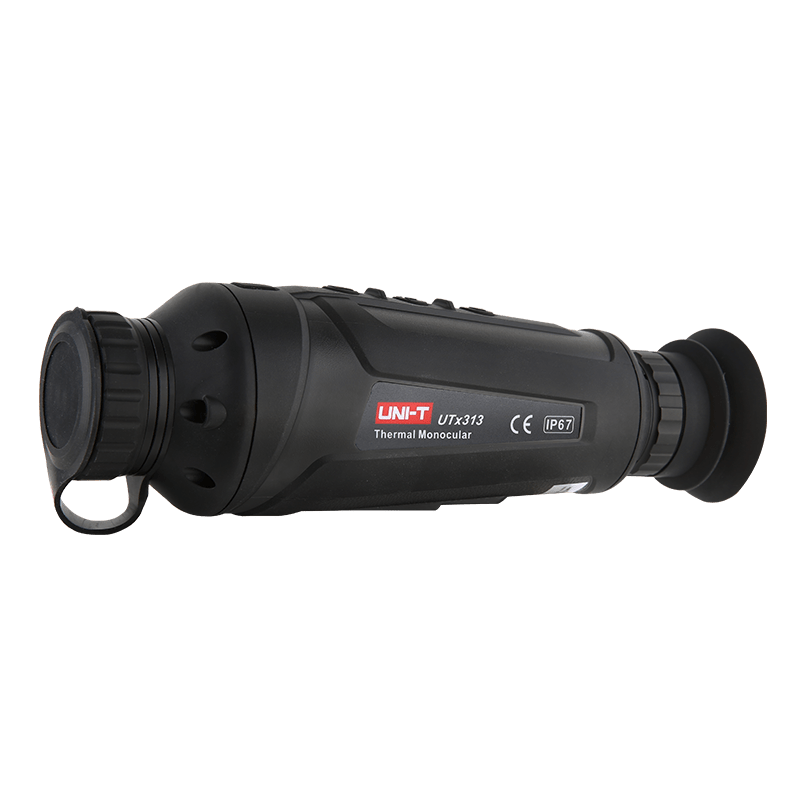

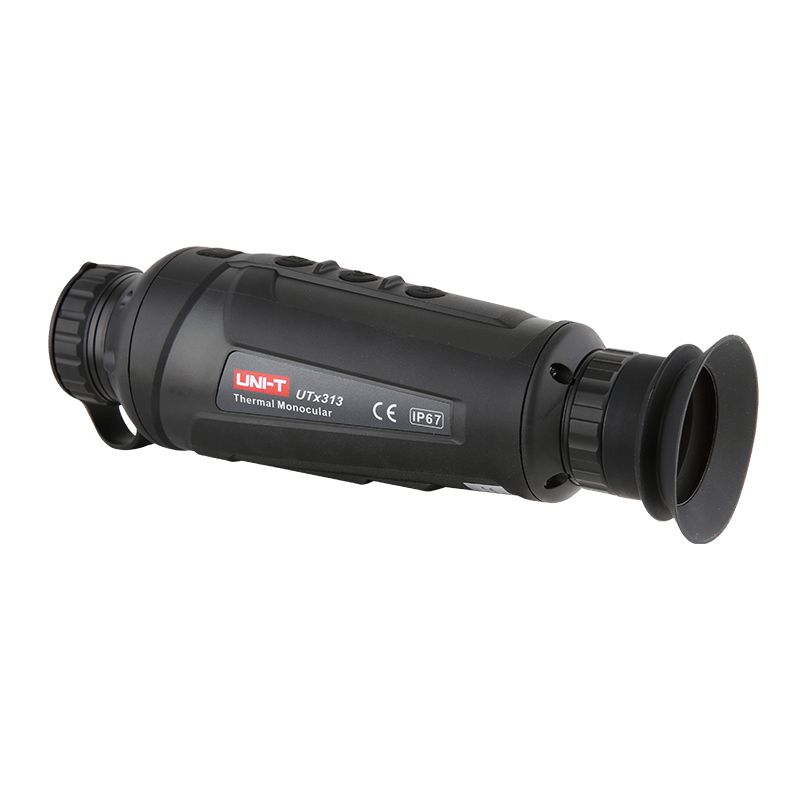

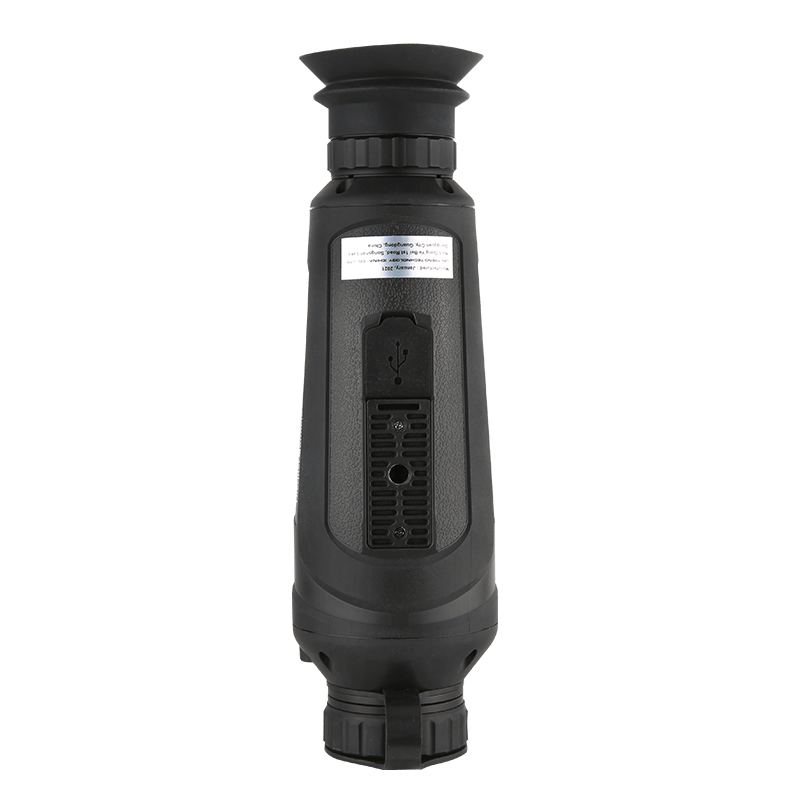

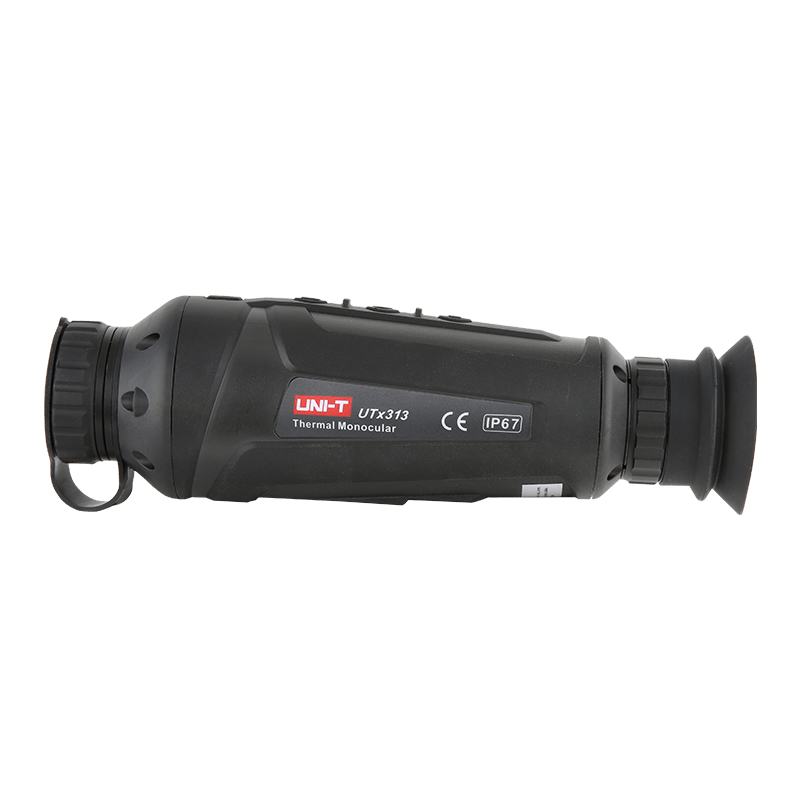

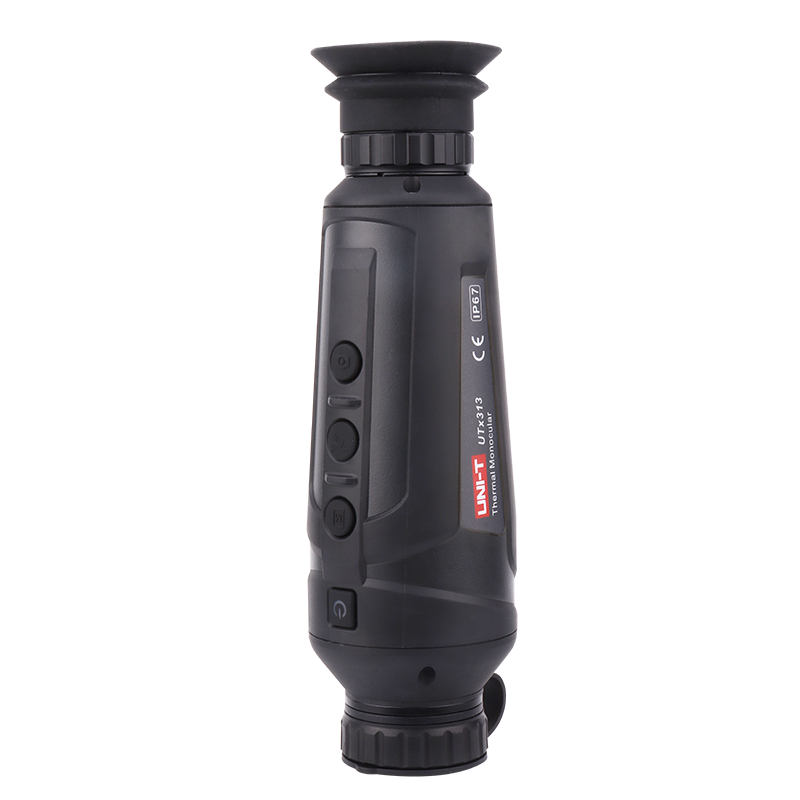

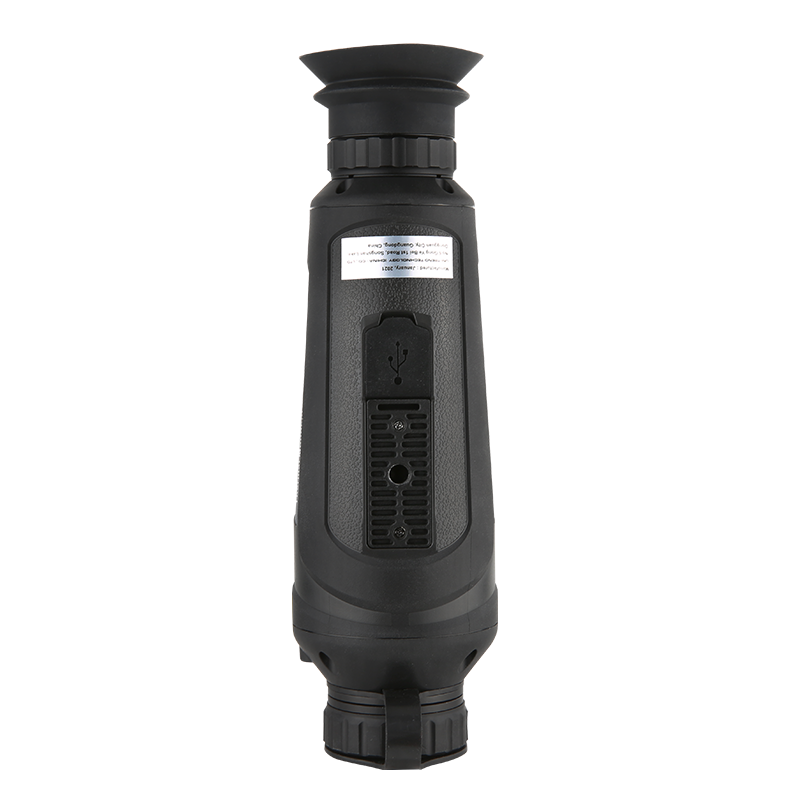

UNI-T UTx313 Thermal Monocular
The UNI-T UTx313 Thermal Monocular is a handheld infrared imaging device engineered to reveal thermal signatures invisible to the naked eye. It transforms heat radiation into real-time visual data, enabling users to navigate darkness, fog, or dense foliage with enhanced situational awareness.
Built for rugged outdoor use, it features an IP67-rated, shock-resistant chassis (2m drop-proof) and operates in extreme temperatures (-10°C to +50°C). Its compact, ergonomic form (207x62x62mm, 426g) ensures portability, while the manual focus and diopter adjustment (-5 to +3) cater to individual user comfort.
The device prioritizes intuitive operation with tactile buttons for quick access to functions like palette switching and digital zoom. It emphasizes safety with automatic shutter calibration and warnings against pointing at strong light sources. Designed for reliability, it balances performance with practicality for field use.
Features:
- Hot Trace: Tracks the highest-temperature object in real time.

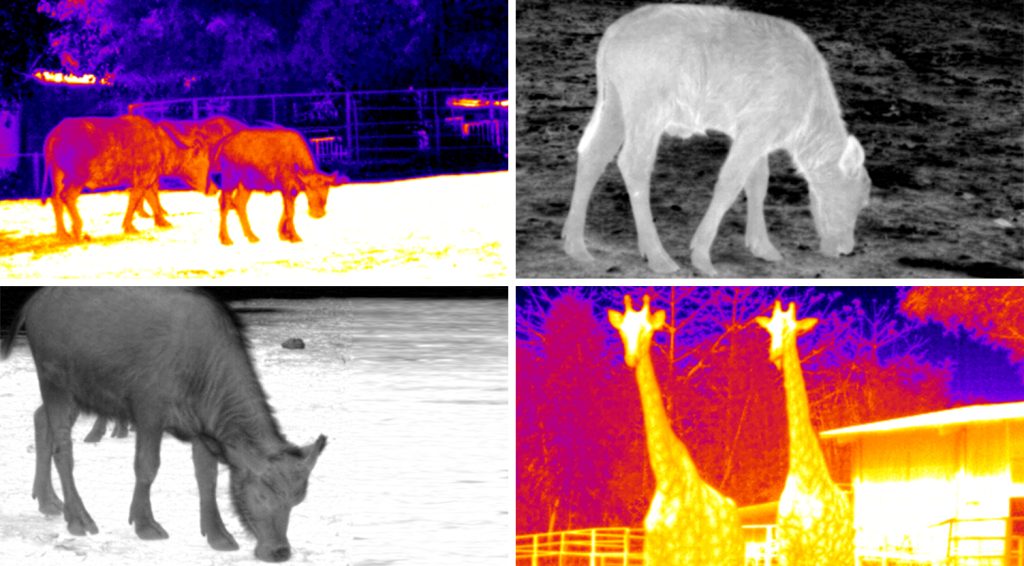

- 5 Palettes: Black Hot, White Hot, Hottest, Iron, Rainbow for thermal contrast.
- Image Capture: Manual/Auto modes; freezes/saves images (up to 1,000 stored).
- Digital Zoom: 1X, 2X, 4X magnification.
- BG Calibration: Adjusts for temperature discrepancies between device/environment.
- Shutter Adjustment: Manual/auto image correction for clarity.
- Diopter Adjustment: Customizable eyepiece focus (-5 to +3).
- Video Export: MCX interface for external monitors.
- Auto Power-Off: Configurable timer (5-30 min).
- IP67 Protection: Dust/water-resistant and impact-resistant.
Specifications:
| Parameter | UTx313 Specification |
|---|---|
| Detector Type: | Uncooled vanadium oxide |
| Resolution: | 384×288 pixels |
| Pixel Size: | 12μm |
| NETD: | <40mK |
| Lens Focal Length: | 13.5mm/F1.0 |
| Field of View: | 20.3° (H) × 15.2° (V) |
| Frame Rate: | 50Hz |
| Display: | 0.1″ LCOS, 1280×960 resolution |
| Digital Zoom: | 1X→4X |
| Battery: | Li-Ion 3.6V/4000mAh (21700) |
| Operating Time: | >8 hours continuous |
| Charging Time: | ≤4 hours (5V/2A adapter) |
| USB Interface: | Type-C (charging/data transfer) |
| Storage: | 16GB internal |
| Operating Temperature: | -10°C to +50°C |
| Weight: | 426g |
| Certifications: | UL, RoHS, CE |
Applications:
- Wildlife Detection.
- Human Detection.
- Vehicle Detection.
- Security Surveillance.
- Search and Rescue.
- Outdoor Navigation.
Package Contents:
- 1x Thermal Monocular
- 1x User Manual
- 1x USB Cable
