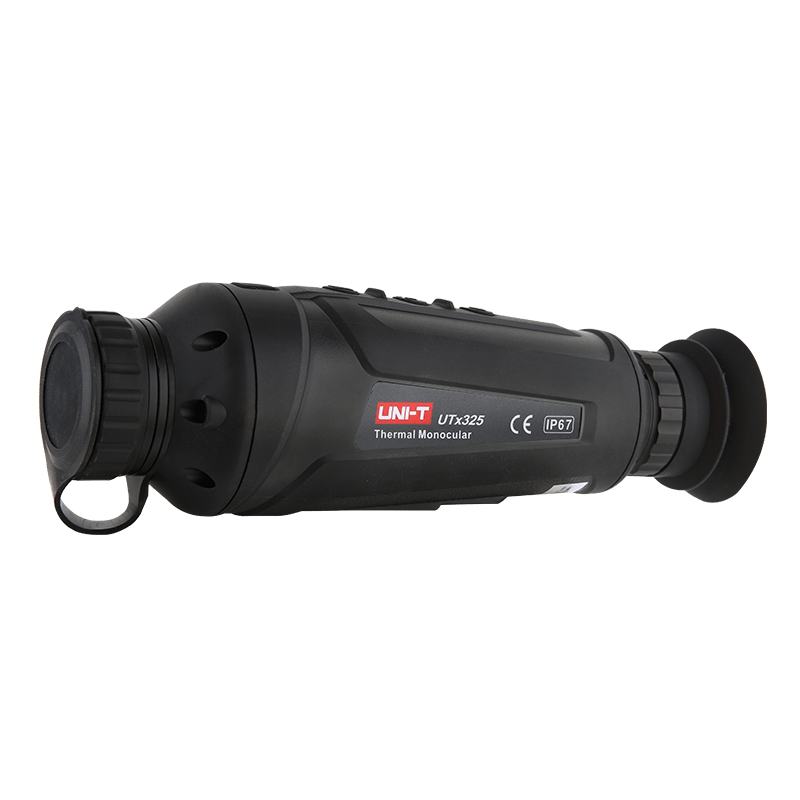

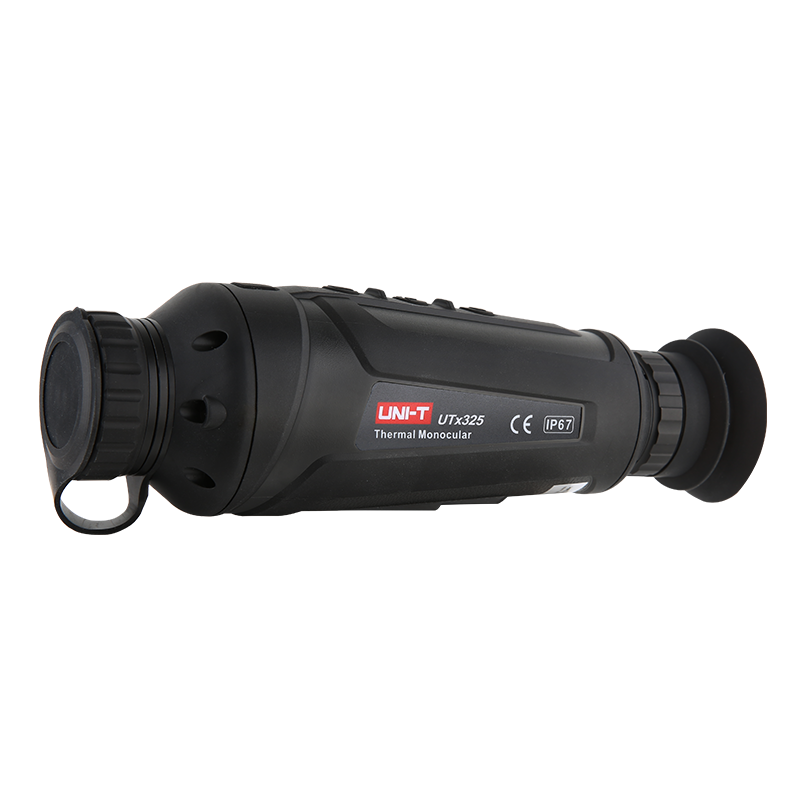

UNI-T UTx325 Thermal Monocular

UNI-T UTx325 Thermal Monocular

The UNI-T UTx325 Thermal Monocular is engineered for long-distance thermal detection, leveraging a high-sensitivity 25mm/F1.0 lens to resolve heat signatures far beyond standard ranges. It transforms infrared radiation into crisp visual data, excelling in extreme low-light, fog, or obscured environments where conventional optics fail.

Built to endure harsh conditions, its IP67-rated chassis resists dust, water immersion, and 2-meter impacts. The monocular compact form (207×62×62mm, 426g) ensures field portability, while the adjustable diopter (-5 to +3) and manual focus enable precise customization for extended observation sessions.

Users experience seamless control through tactile buttons for instant palette switching, digital zoom (1X–4X), and image capture. The Hot Trace function dynamically highlights the hottest object in real time, while automatic shutter calibration ensures consistent image clarity. Safety features include warnings against exposure to bright light sources.

Features:

• Extended Detection Range: 25mm lens for ultra-long-distance thermal imaging.
• Real-Time Hot Trace: Auto-tracks maximum-temperature targets.
• Multi-Palette Imaging: Black Hot, White Hot, Hottest, Iron, Rainbow.
• Dual Capture Modes: Manual freeze/save or auto-save to 16GB storage.
• BG Calibration: Compensates for ambient temperature interference.
• MCX Video Output: Live analog feed to external monitors.
• Adjustable Auto Power-Off: 5/15/30/50 min presets or OFF.
• Diopter Customization: Sharpens display for individual vision needs.

Specifications:

Applications:

• Long-Range Surveillance.
• Border Security.
• Wildlife Research.
• Industrial Monitoring.
• Search and Rescue.

Package Contents:

• 1x Thermal Monocular (UTx325)
• 1x User Manual
• 1x USB Type-C Cable

UNI-T UTx325 Documents:

• Instruction Manual
• Datasheet
