Universal Car Seat Force Pressure Sensor 200x170mm

200.00 EGP

Buy Now
Availability: In Stock
SKU:2717733513476

What is car/bus seat pressure membrane sensor ?

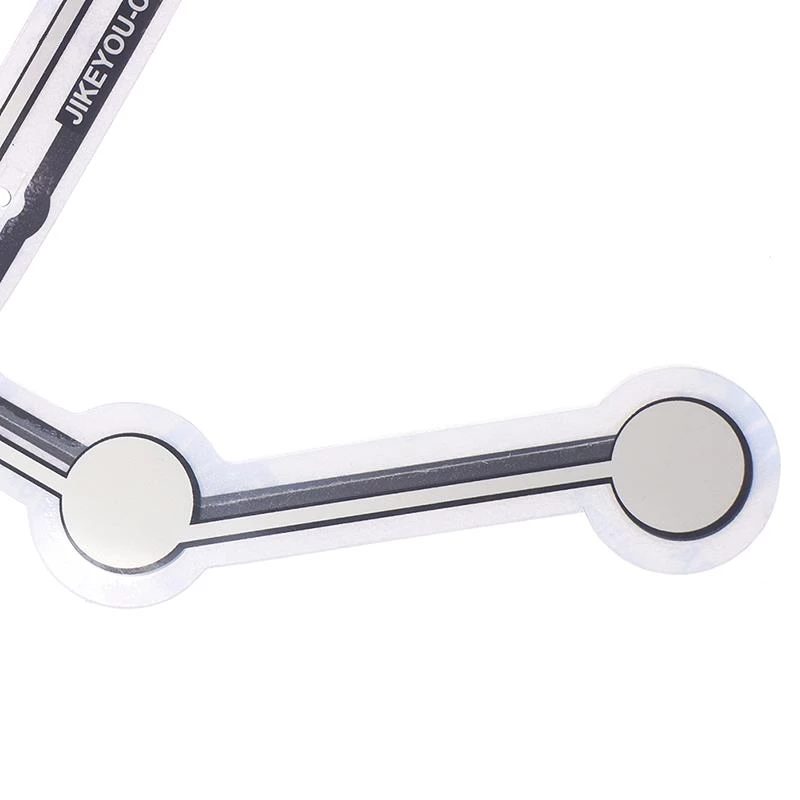

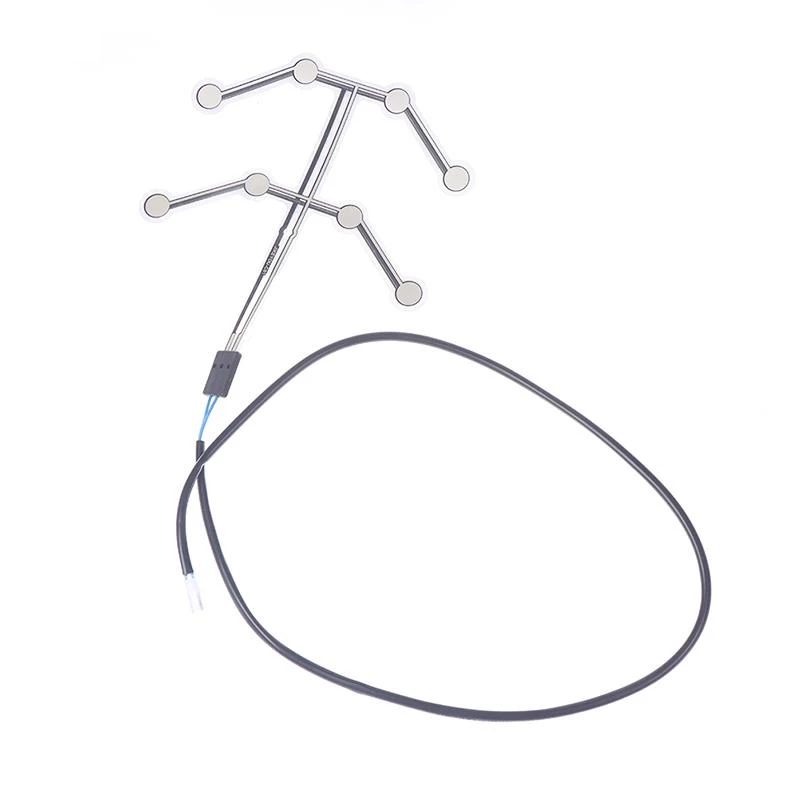

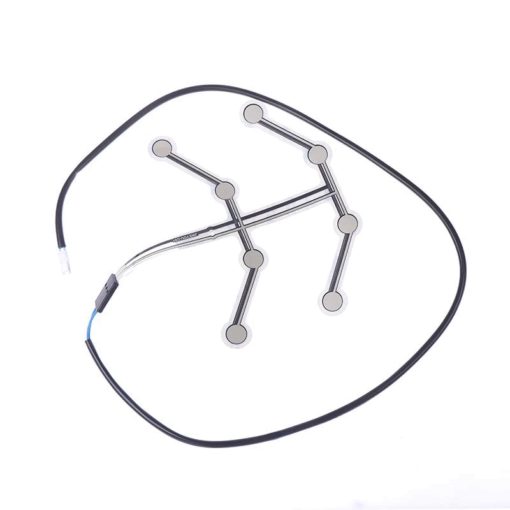

The Car seat sensors is a film type contact sensor, the Car seat sensor’s contact points are evenly distributed on the seat’s stressed surface, Car seat sensors Generate a trigger signal when the seat receives a pressure from the outside. The Car seat pressure sensors applies to the car seat occupancy perception system, Such as car seat belt alarm sensor system, Taxi automatic meter, car Airbag sensing system and Driver’s departure sensing. For example with this Car seat sensor, It can sense whether there are people on the seat or not, Airbags will not open if there is no one. When the driver leaves the seat, the car will automatically return to neutral. People Design car seat sensor shape and contact points’ sensitivity According to the car seat’s shape, hardness, and skin tightness.
The car seat pressure sensors usually contain four layers, up circuit layer, between adhesive layer, down circuit layer and back adhesive layer. Other accessories are wire cables and connectors.

    • Color: As picture shows
    • Material: Plastic
    • Size: 200x170mm
    • Rope length: approx.75cm
    • Compatible With: fit for Universal cars

Note:

1) All dimensions are measured by hand, there may be small deviations.

2) Color may vary slightly due to the color setting of each individual monitor.

Basic Properties .

Electrical Properties:
Rated Voltage ≤50V DC
Rated Current ≤ 100mA
Operating Power ≤1W
Insulation Resistance ≥100MΩ (250V DC)
Loop Resistance 10Ω~2kΩ (based on the design)
Contact Resistance 0.5 ~ 5Ω
Wire Lead Resistance <1Ω/cm
Base Material Voltage Withstand 1500V DC
Mechanical Properties:
Operation Force More than 500g
Tail Bending Performance ≤180°
Vibration 20G’s max.
Thickness 0.7~2 mm
Environmental Properties:
Operation Temperature -40°C to +90°C (-40°to 176°F)
Storage Temperature -40°C to +90°C (-40°to 185°F)
Atmospheric Pressure 86 ~ 106 kPa
