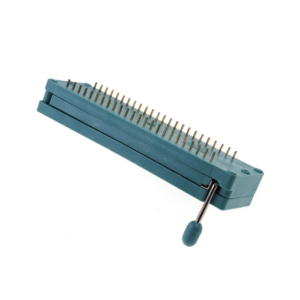

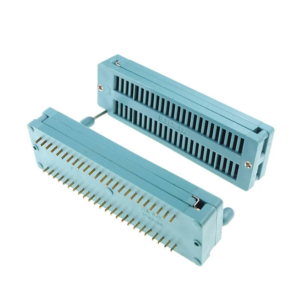

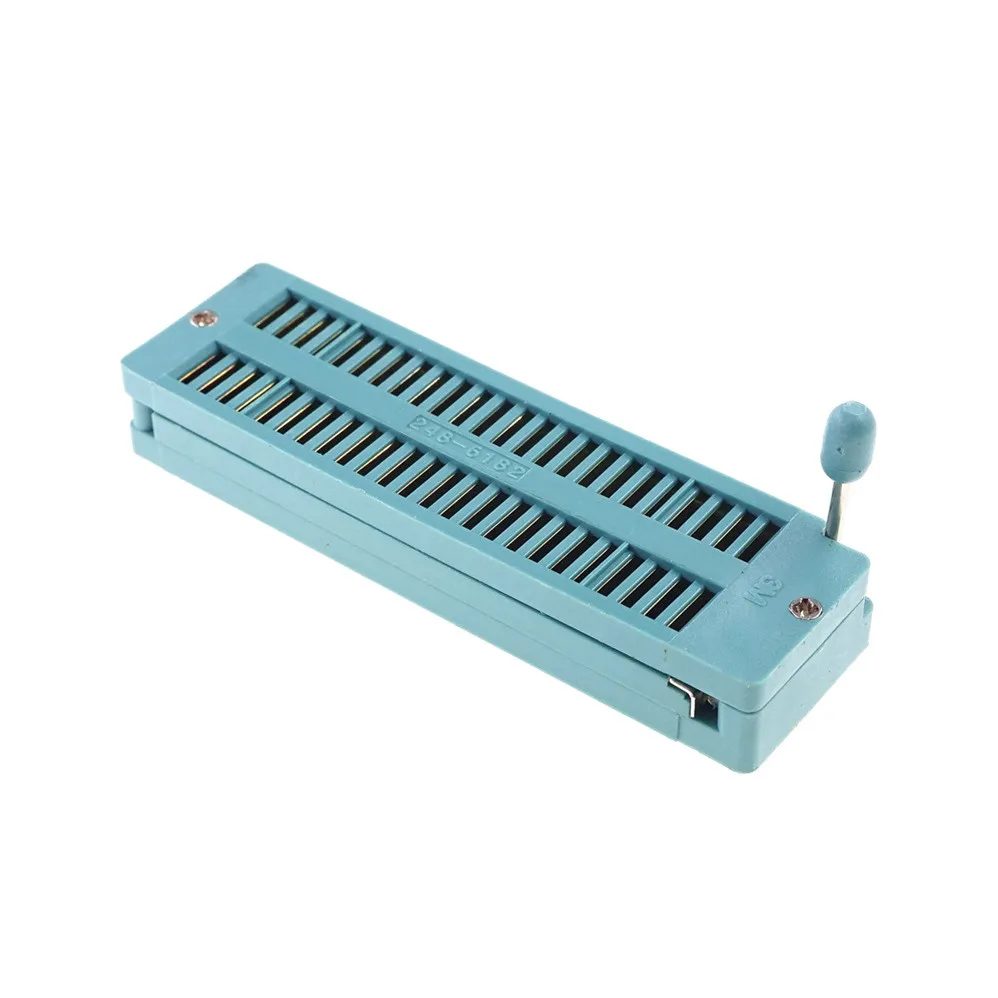

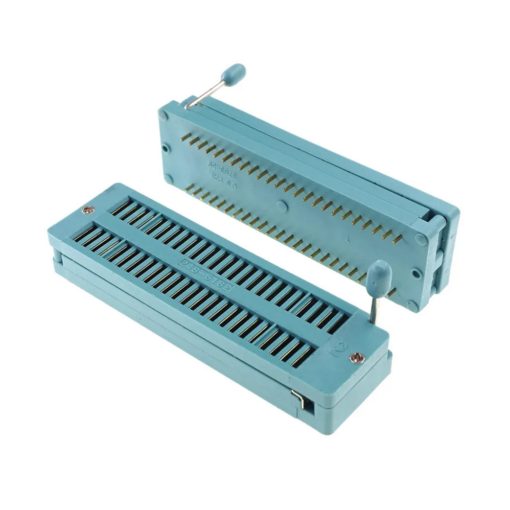

Universal ZIF Socket 48 Pins
48 Pin ZIF IC Test Socket makes adding and removing ICs from circuit boards a simple task. Ideal for usage with ICs that need to be changed frequently. It comes with an armature for locking and unlocking the IC to the base.
The IC’s own weight is sufficient to keep it in place. The clamps in the socket latch onto the pins of the IC when the lever is pulled down, locking it in place.
This 48 Pin ZIF IC Test Socket can be used with any 48 pin DIP programmable IC. This device is designed for programmers, and it can also be used on a breadboard.
Features
- Compact mechanical construction to ensure long-term life.
- Zero insertion and extraction pressure.
- Standard 0.100(2.54mm) IC pitch, easy to mount in the PC board.
- All plastics are UL 94V-0 grade fire retardant.
Specifications:
- Number of Pins: 48 Pin
- 2 Rows
- Open Frame
- Pin Pitch: 2.54 mm
- Solder Tail Termination
- Mounting Type: Through Hole
Applications:
Commonly used in electronic prototyping, testing, and development environments where frequent insertion and removal of ICs are required. These sockets provide a convenient and reliable way to test and program integrated circuits.
Dimensions:
