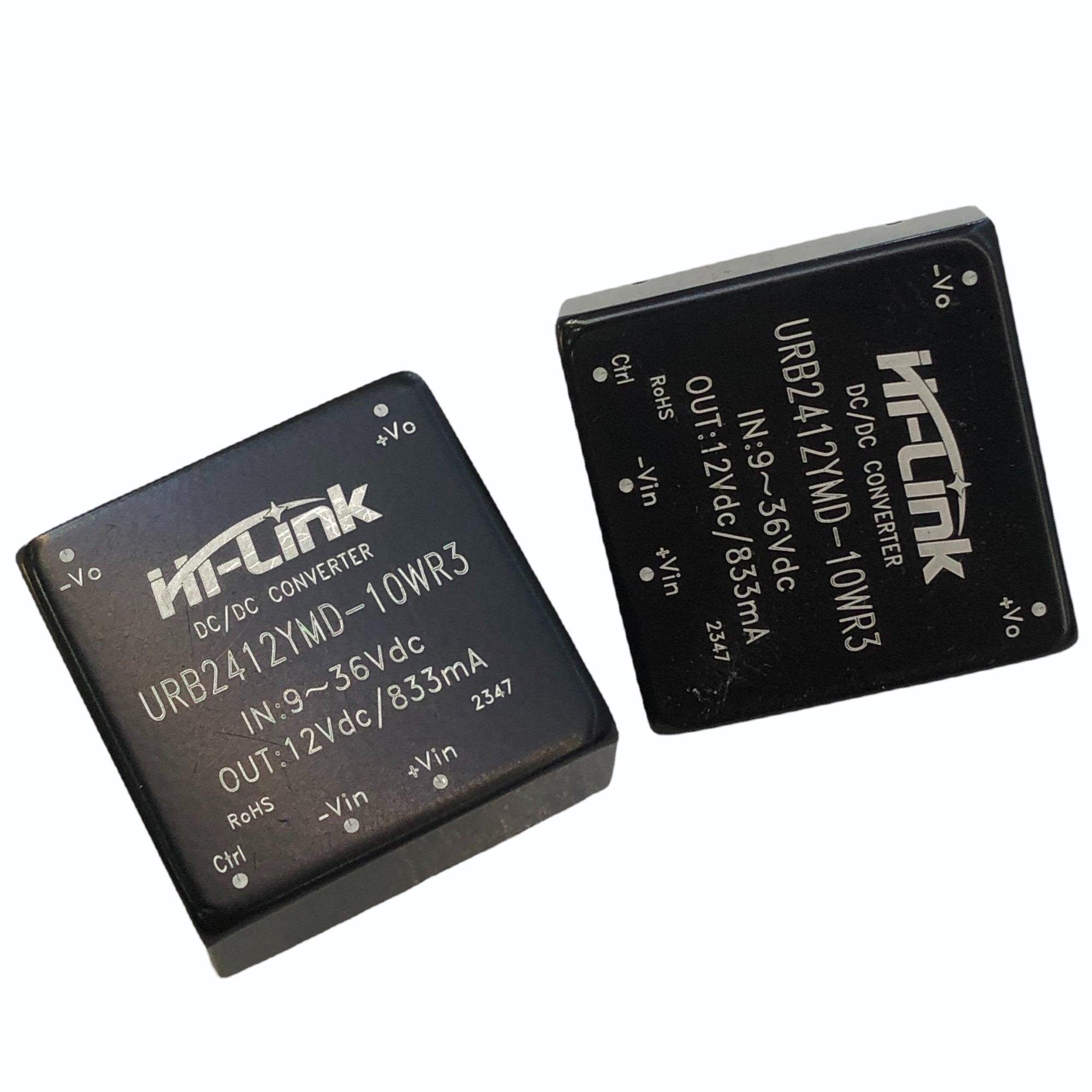

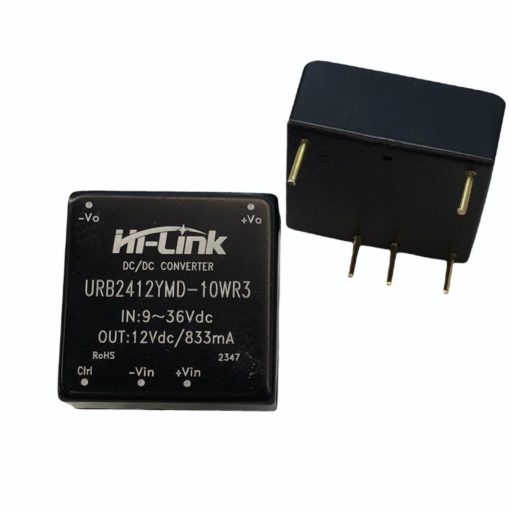

HI-LINK URB2412YMD-10WR3 DC/DC Power Module 12V 833mA 10W
The HI-LINK URB2412YMD-10WR3 is a high-performance isolated DC/DC power module designed to deliver reliable and efficient power conversion. It provides a stable 12V output with a maximum current of 833mA, offering up to 10W output power. This module features high efficiency, compact design, and excellent thermal performance, making it suitable for industrial control, instrumentation, communication equipment, and other applications requiring isolated regulated power. With its wide input voltage range, built-in protection functions, and compliance with safety standards, the URB2412YMD-10WR3 ensures stable operation, long service life, and dependable performance in demanding environments.
Features
- Output power up to 10W with high efficiency.
- Stable 12V output with 833mA maximum current.
- Wide input voltage range for versatile applications.
- High isolation voltage for enhanced safety and reliability.
- Compact module design, easy for PCB integration.
- Built-in protection against overcurrent, overvoltage, and short circuits.
- Excellent thermal performance for stable operation in harsh environments.
- Low ripple and noise, ensuring clean and stable power supply.
- Long service life with high reliability for industrial use.
- Ideal for industrial control, instrumentation, and communication equipment.
Specifications
| Parameter | Specification |
| Brand | HI-LINK |
| Model Number | URB2412YMD-10WR3 |
| Type | Isolated DC/DC Power Module |
| Input Voltage Range | (9 – 36) VDC |
| Output Voltage | 12VDC |
| Output Current | 833mA (Max) |
| Output Power | 10W |
| Efficiency | Up to 80% |
| Isolation Voltage | 1500VDC |
| Ripple & Noise | ≤ 75mVp-p |
| Line Regulation | ±0.2% |
| Load Regulation | ±0.5% |
| Protection Features | Overvoltage, Overcurrent, Short Circuit |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Cooling Method | Natural Convection |
| Package Type | DIP module |
| Mounting Type | Through hole |

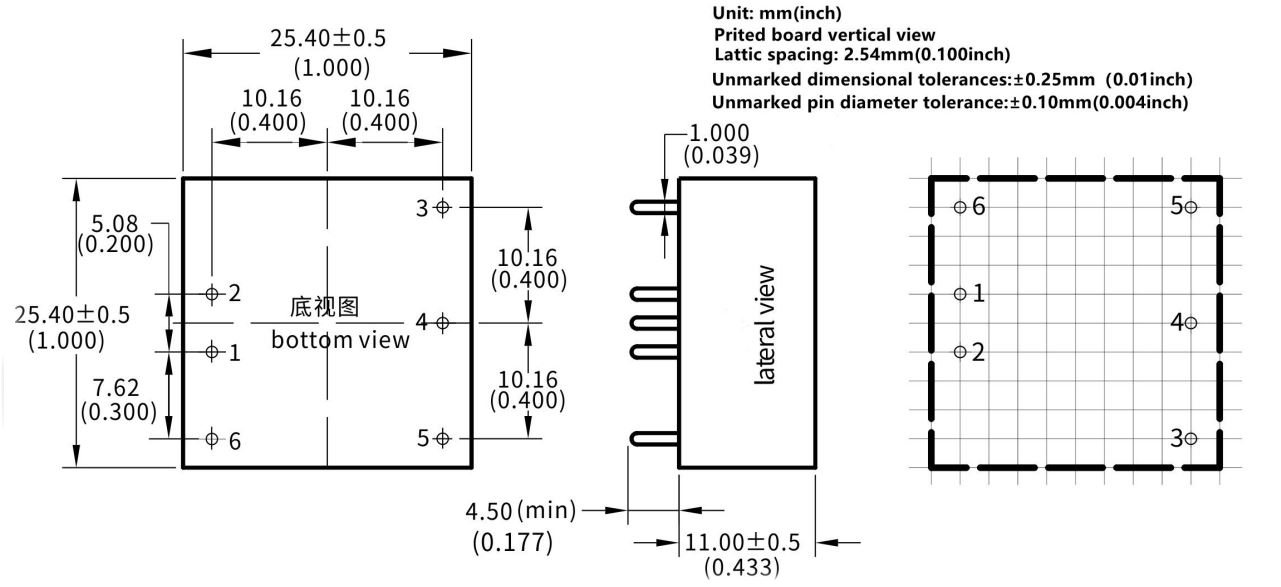

Dimensions and Pin Configuration
Applications
- Medical Equipment.
- Industrial Control Systems.
- Electric Power Systems.
- Instrumentation.
- Communication Equipment.
- Railway Systems.
