Description

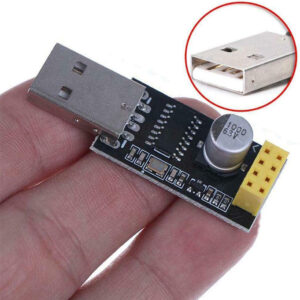

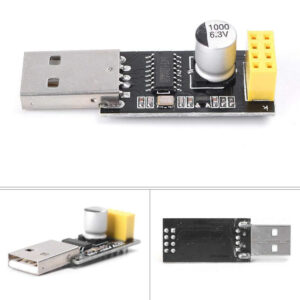

This USB to UART/ESP8266 Adapter Programmer for ESP-01 WiFi Modules with CH340G Chip converts the signal from a USB interface to a PC / laptop to match a serial module ESP8266
This converter module has CH340 chip which is reliable and with high performance. It is compatible with most Windows systems. The adapter features integrated capacitors to maintain a current of 1000 pF.

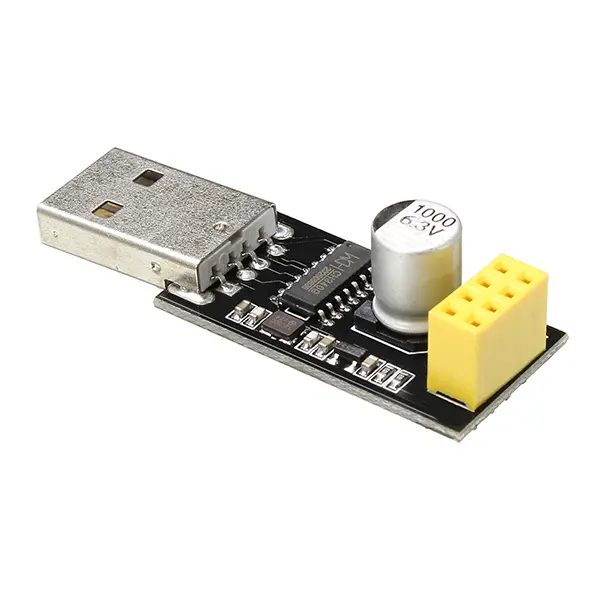

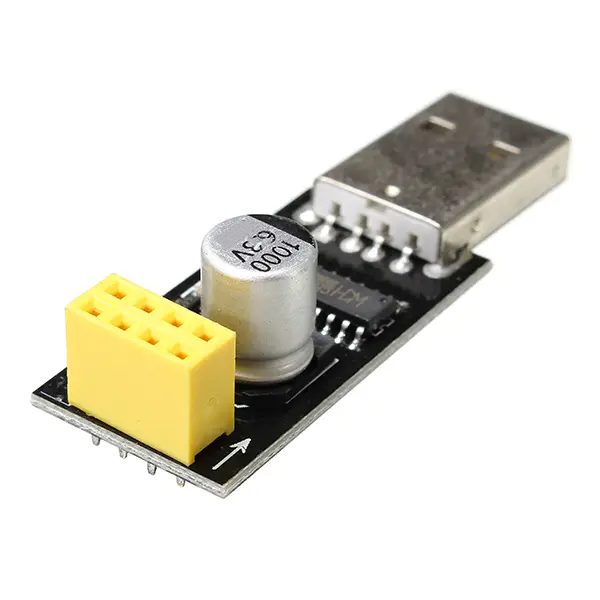

USB to ESP-01 adapter module has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do ESP-01 functional debugging. ESP-01 serial Wi-Fi module can be directly plugged into the yellow pin header without any connecting wire.
USB to UART/ESP8266 Programmer used for an ESP-01 module with the ESP8266 chip. It has CH340G USB to TTL driver IC onboard, so you can easily use your computer to do with ESP-01.
Note: The package does not include any ESP8266 Wifi Module
Functionality and Use:
- Connectivity: Plug the USB end of the module into a computer or USB-enabled device. The development board facilitates communication between the USB port and the ESP8266 module.
- Programming: With appropriate drivers and software on the host system, you can send commands, firmware updates, or other instructions to the ESP8266 module via the USB interface.
- Wireless Communication: The ESP8266 module, now programmed, can connect to a WiFi network and communicate wirelessly. This is often used in IoT applications for tasks like sending sensor data to a server, receiving commands from a remote device, or acting as a web server.
- Development and Prototyping: This module is particularly useful during the development and prototyping phases of projects that involve the ESP8266 module. It provides a convenient interface for programming and testing the module before it’s integrated into a larger system.
Technical Specification:
- Operating Voltage: 4.5 to 5.5V
- Current: 0.3A
- Driver Chip: CH340G
- Logic Input: 3.3V
- Size: 50mm*18mm*14mm (L*W*H)
Features:
- Selectable working mode: On-board toggle switch. UART side for serial TTL debugging by AT commands, PROG for firmware programming
- Using CH340 turns serial port chip for stable performance and compatibility
- Supports all basic windows versions
- The adapter plate integrated 1000μF solid capacitors to ensure the current supply
- Using 3225 SMD crystal oscillator, improve the stability of serial work, on a beautiful and tall
- The interposer board is specifically designed for ESP8266 The USB Turn serial port
Applications:
- IoT applications
- Robotics applications
