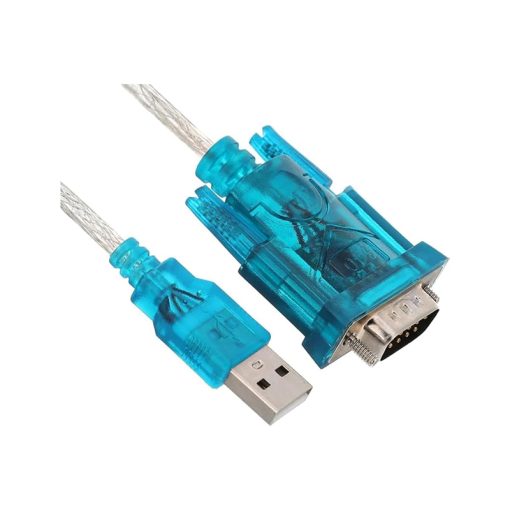

Name: Usb To RS232 Converter Cable
SKU: 300000010505
Availability: OutOfStock

Introduction

This USB-Serial device provides a simple and easy way to connect Universal Serial Bus (USB) and Serial port interface.

With the advantage of USB port, users have the capability to utilize the peripheral with serial port interface in an easy to use environment such as plug and play&hot swap function. This adapter is designed for ideal connections to Cellular phone，Digital Camera, Modems or ISDN terminal adapter with over 1 Mbps data transfer rate.

Package Content

Hardware：USB-Serial（DB9）
Cable Software：USB-Serial driver on CD-ROM
User’s Mannal

Product Features

USB Specification Rev 1.1 compliant
Support the RS232 Serial interface
Over 1Mbps data transfer rate
Support remote wake-up and power management
Cable length: approx. 70 cm

System Requirements

IBM PC 486DX4-100 MHz CPU or higher or compatible system
Available USB port
CD-ROM drive
Windows 98. Windows ME,Windows 2000,Windows XP

APPLE COMPUTER

Power G3 OR G4 CUP or higher or compatible system
Available USB port
CD-ROM drive
Mac OS 8.6 or Higher

Compatibility:

Works with devices with RS-232 serial ports like: other PCs with RS-232 ports, Bluetooth serial adapters, PDAs, GPS receivers, routers, firewalls, modems, printers, embedded character displays, scan tools, sonar units, embedded boards, etc. Specific devices include: Garmin eTrex GPS, Seiko Label Printer, iRobot Create, Cisco products with serial consoles, US Robotics Modems, NexStar telescopes, Equus Scan Tools, Uniden Hand Held Scanners, etc. Works with software like: HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.

Connector compatibility note:

The DB9 connector has fixed female side screw in connections. For connecting to a device that also has fixed female side connectors an inexpensive DB9 Female/Female Mini Gender Changer (Coupler) will be needed.

Features:

Provides the connection between USB and the traditional RS-232 serial port
Works with cellular phones, PDA, digital cameras, modems, and others
Supports the RS-232 serial interface (standard 9-pin serial)
Supports automatic handshake mode
USB full speed communication and bus-powered
Single cable USB to serial communication
Easy installation
System requirements:
Mac OS 9.1 & higher
Windows 98SE /ME /2000 /XP /Vista /7/8/8.1/10
Microsoft signed drivers for 32/64-bit Windows10, Windows 8.1, Windows 8, Windows 7
Vista; Mac OS X 10.6 and later
Linux 2.4 or above
open source drivers included in Linux kernel 2.4.31 and later

RS-232

Compatible RS232 Devices

USB to RS232 adapter works with modems, ISDN Terminal Adapters, digital cameras, label writers, palm PCs, PDAs,cashier register,CNC,PLC controller,tax printer,POS, bar code scanner, label printer, etc.

Compatible Operating System

– Windows 10, Windows 8, Windows 7, Vista, XP, Windows 2000 (Windows 7,8,10 should auto detect and install the drivers).

– Driver free for Windows 7/ 8/ 8.1/ 10 system, when the pc connect the Internet, it should auto detect and install the driver.

– MacOS X 10.6 and above (both computer and device must support macOS).

– Linux kernels 2.4.31 and later.

USB to RS232 DB9 Serial Converter Adapter Cable

1. Before buying this cable, please check the pinouts in the picture to see if your RS-232 devices’ are the same with ours.

2. USB 2.0 to RS-232 – Installed as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND.

3. Install the provided CD-ROM driver to your PC or laptop to enable this adapter


Easy Install, Ultra Compatibilty The driver provides support for Windows 10, 8, 7, Vista, 2000, XP, 98, Apple MAC OS8 or higher, Linux 2.4.0 and later, OpenBSD 2.9 and later & FreeBSD 4.7 and later. If connected to the internet, the latest driver may download and install automatically. The included driver CD may not be the latest.	Built with the World Renowned Connect any RS-232 device to a wide range of operating systems via USB. releasing drivers when necessary to provide support for new operating systems and to apply fixes.	Flexible Connectivity This USB 2.0 to RS-232 Serial Adapter provides instant connectivity with modems, ISDN TAs, PDS, handheld & pocket PCs, digital cameras, POS, serial printers, etc. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring a high speed and or low serial communications port. Converts a USB port into a 9-pin male RS-232 serial port capable of speeds up to 230,400 bps.
