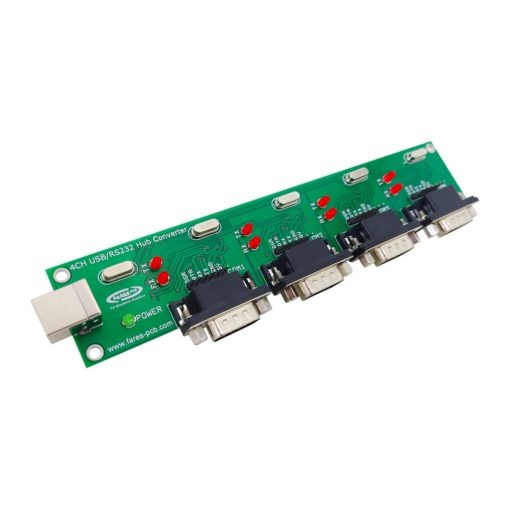

USB Type-B to RS232 Hub Converter 4-Channel
The 4-Channel USB/RS232 Hub Converter is a compact, board-level serial hub that converts a single USB Type-B connection into four independent RS-232 ports using a CH340 USB-to-UART bridge. It offers both DB9 male and pin-header RS232 outputs, per-channel control signals and clear LED status indicators for easy diagnostics, making it suitable for serial device testing, multi-port communication, legacy equipment interfacing and industrial control applications.
Features
- No of channels: 4.
- USB interface: type B.
- RS232 interface: DB9 male + pin header.
- Driver: CH340.
- Signals per channel: RX, TX, DTR, and DSR.
- USB speed: high speed.
- Maximum transfer rate: 1Mbps.
- Operating temperature: (-40….85˚C).
- Green LED for power indication.
- Two red LEDs for serial communication activity RX, Tx for each channel.
- Four (Ø 3.5mm) mounting holes for easy installation.
- Dimension: 185 x 45 x 15mm.
Specifications
| Parameter | Value |
|---|---|
| Brand | FARESPCB |
| Channel Count | 4 |
| USB Interface | Type-B |
| USB Driver | CH340 |
| RS232 Interface | DB9 male + pin header |
| Signals Per Channel | RX, TX, DTR, DSR |
| USB Speed | HighSpeed |
| Maximum Transfer Rate | 1Mbps |
| Operating Temperature | −40…+85°C |
| Indicators | 1× green power LED 2× red (RX,TX) per channel |
| Mounting Holes | 4× Ø3.5mm |
| Dimensions | 185mm x 45mm x 15mm |
Applications
- Multi-port serial interfacing for legacy equipment, PLCs and instrumentation.
- Test benches, manufacturing and service racks requiring simultaneous serial connections.
- Point-of-sale, modem, telemetry and RS-232 peripheral integration with modern USB-only hosts.
- Development and debugging of serial devices where multiple UART channels are needed.
- Lab and field use with moderate throughput serial logging and control tasks.
Package Contents
- 1× USB Type-B to RS232 Hub Converter 4-Channel.
