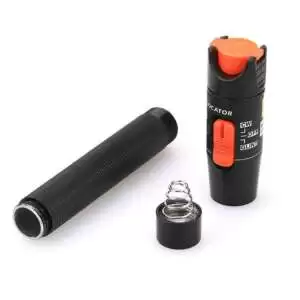

Visual Fault Locator HT-10 10mW

10mW Pen Shape Fiber Optic Visual Fault Locator (VFL) with 2.5mm Universal Adapter (650nm, 10km, ST/FC/SC Connector)
The Pen Shape Visual Fault Locator (VFL) is a robust, cost-effective fiber optical cable test tool for locating faults within OTDR dead zones. As a visual fault identifier (VFI), it can quickly identify faults in fiber optic jumper cables, distribution frames, patch panels, and splice trays. Using bright red laser light of 650nm wavelength, the HT-10 locates faults visually by having the light pinpoint the exact location of the fault. With output power up to 10mW, a 10km range of usage, and metal housing

Features

• Easy identification of fiber break, bend, fiber tracing, and fiber routing
• Small size, easy to field test. High-quality pen-type visual fault locator
• Common interface 2.5mm (FC, SC, ST)
• 650nm visible laser diode can be operated in continuous or pulsed modes
• Mode button cycles between Continuous Wave (CW) and Pulsed (2Hz) modes
• Metal sandblasting with matte paint design, better hand feeling, and more durable
• Endcap protects laser unit

Specifications

• Model: HT-10
• Wavelength:650+/-10nm
• Emitter Type: FP-LD red light
• Dynamic Distance:8-10km
• Output power: > 10mw
• Connector: 2.5mm universal adapter
• Working Temperature:-10℃+60℃
• Storage Temperature:-20℃+70℃
• Battery Type: 2x 1.5V AA Batteries
• Size: (Approx.)
  • Top diameter: 2.5cm
  • Bottom diameter: 2cm
  • Height: 17.5cm
