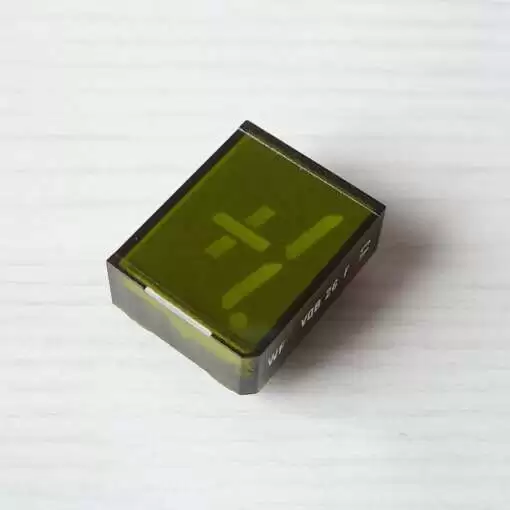

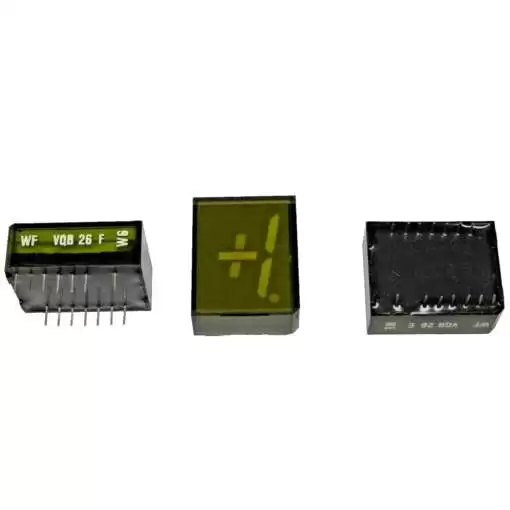

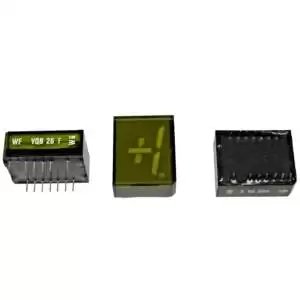

RFT light shaft indicator, glowing Yellow. Possible characters “+”, “-“, “1”. Anodes and cathodes are brought out separately.
Character height 19.6mm, one decimal point. High quality and a very dimensionally accurate display element.
Specifications:
- Forward DC voltage (Vf): 2 – 2.6V
- Forward direct current (If): 20mA
-
Peak forward current (Ifrm): 150mA
- Reverse DC voltage: 6V
- Blocking direct current: 100uA
- Operating temperature range: -25°C ∼ 85°C

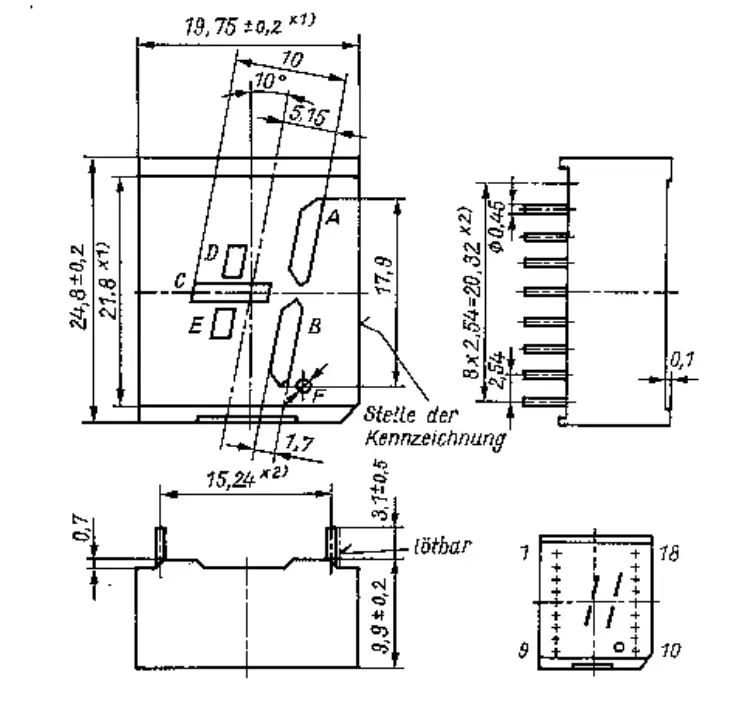

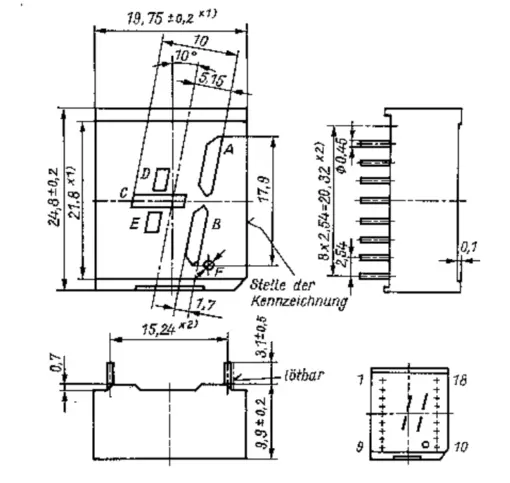

Pin Out
| Pin | VQB26F |
| 1 | Without Pin |
| 2 | A (Cathode) |
| 3 | D (Anode) |
| 4 | D (Cathode) |
| 5 | C (Cathode) |
| 6 | E (Cathode) |
| 7 | E (Anode) |
| 8 | F (Cathode) |
| 9 | Without Pin |
| 10 | F (Anode) |
| 11 | F (Cathode) |
| 12 | B (Cathode) |
| 13 | B (Anode) |
| 14 | C (Anode) |
| 15 | A (Anode) |
| 16 | Without Pin |
| 17 | A (Cathode) |
| 18 | Without Pin |
