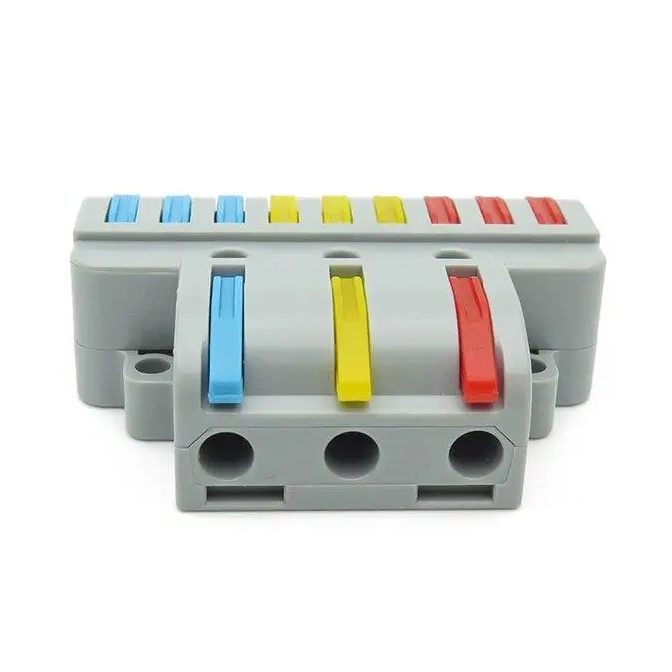

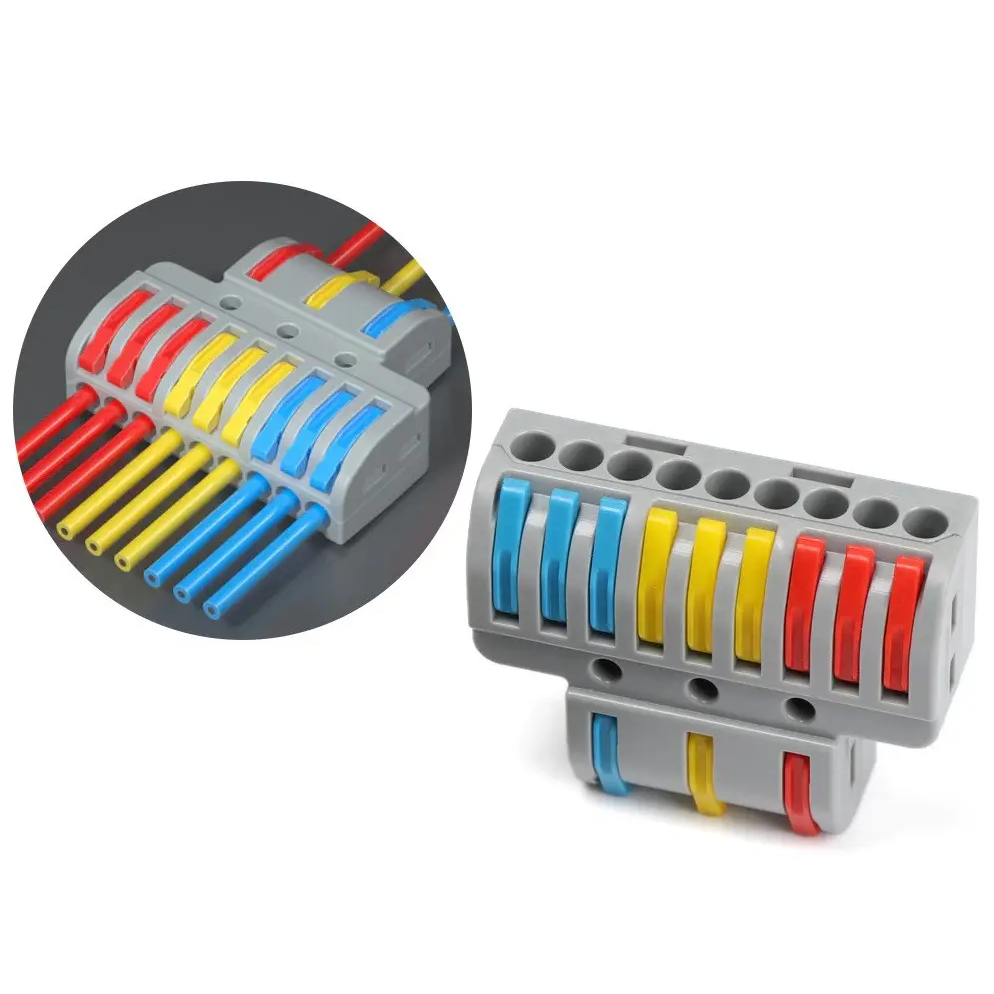

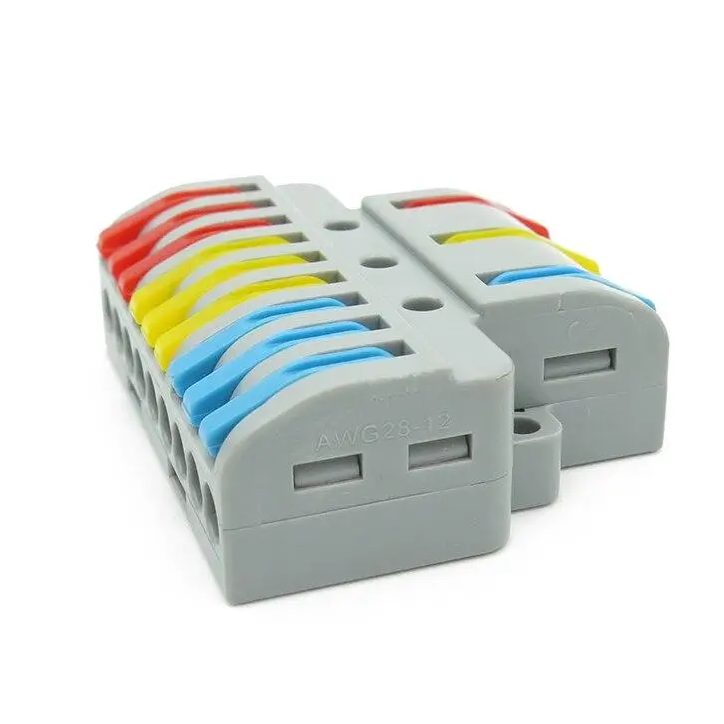

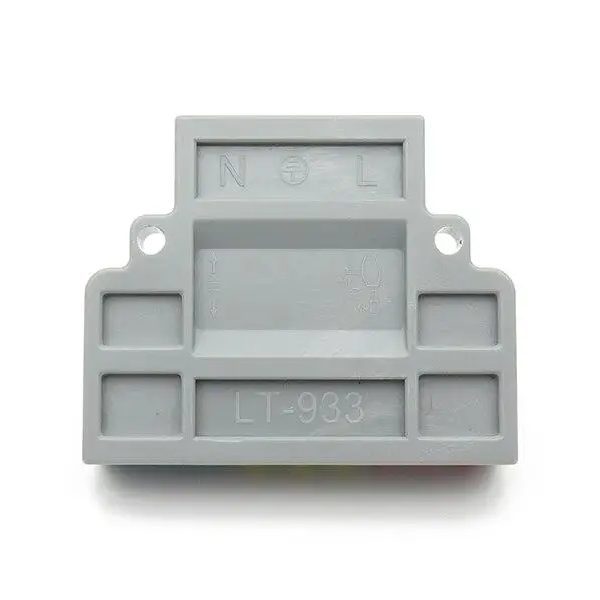

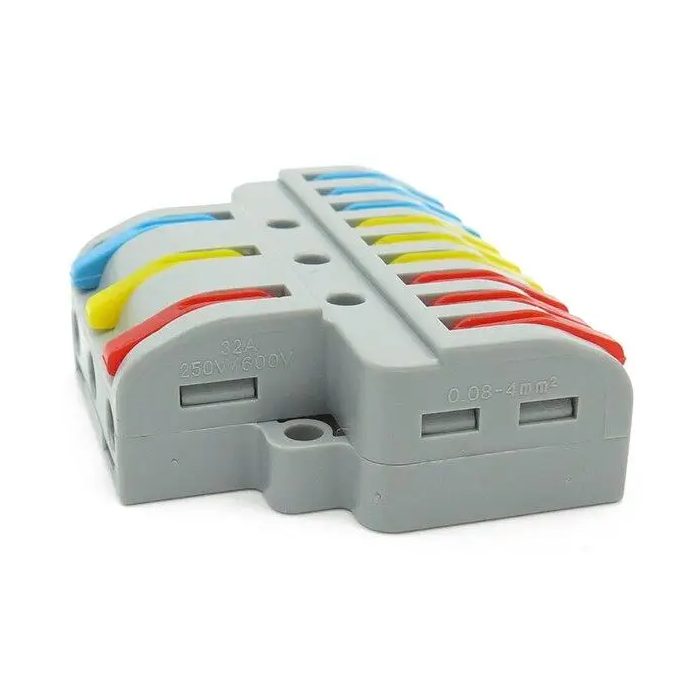

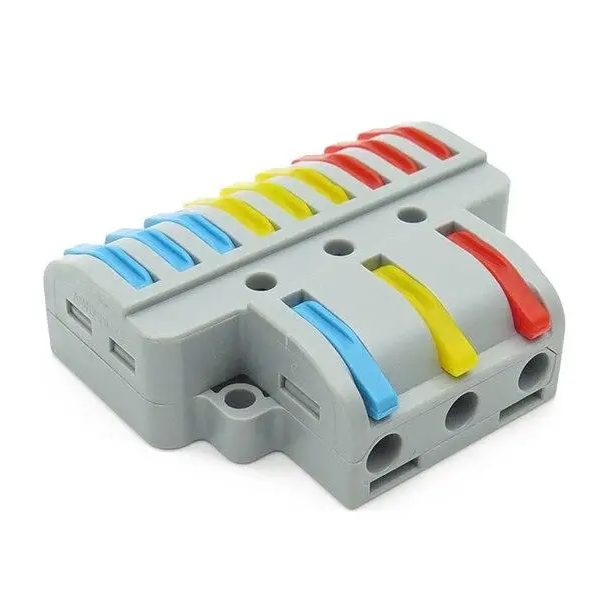

WAGO LT-933 Panel-Mount Wire Connector 3 In 9 Out

The WAGO LT-933 Panel-Mount Wire Connector 3 In 9 Out is a versatile electrical connector designed to simplify complex wiring tasks. Featuring 3 input terminals and 9 output terminals, it allows multiple connections from a single power source, ensuring efficient distribution of electricity. Its compact design saves space while the tool-free, lever-actuated terminals provide secure and reliable connections. Ideal for lighting systems, junction boxes, and various low-voltage applications, the LT-933 offers excellent conductivity, easy installation, and long-lasting performance in residential, commercial, or industrial setups.

Features

• Fast, easy, no-twist necessary, reduces installation time and twist fatigue.
• Supports 3 input and 9 output connections for easy distribution.
• Compatible with solid, stranded, and flexible wires.
• Color-coded for easy identification of different sizes.
• Each wire is individually clamped; provides more secure gripping on conductor.
• Provides reliable and vibration-resistant electrical contact.
• No bare wires to cause shorts.
• Reusable and easy to disconnect for maintenance or changes.

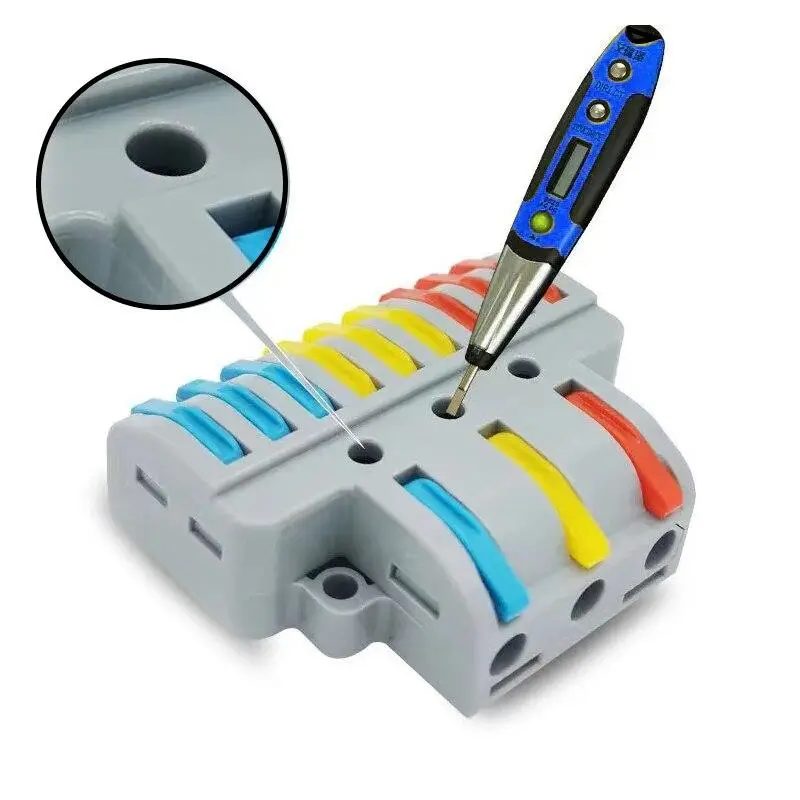

• Test point in back; provides easy testing with voltage tester.
• Compact and space-saving for use in tight enclosures.
• Flame-retardant and durable plastic construction.
• Built-in wire stripping length gauge.

Specifications

• Brand: WAGO
• Model: LT-933(SPL-93)
• Connector Type: Panel-Mount Wire Connector
• Connection Type: 3 Input to 9 Output
  • Input: 3 Wire
  • Output: 9 Wire
• Orientation: Straight

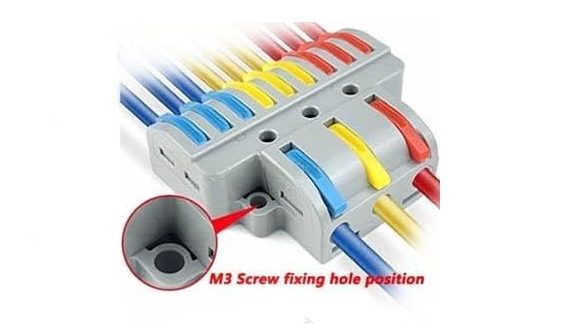

• Mounting Type: Panel-Mounting (Screw-Hanging)
• Rated Voltage: 250VAC
• Rated Current: 32A
• Rated Power: 6 KW
• Compatible Wire Sizes: 28–12 AWG
  • BV 0.08 mm² – 4.0 mm²
  • BVR 0.08 mm2 – 2.5 mm2
• Wire Type: Solid, stranded, and flexible conductors
• Housing Material: Flame-retardant polycarbonate (PC)
• Contact Material: Copper alloy with tin plating
• Operating Temperature: -40°C to +85°C
• Reusable: Yes, with easy rewire functionality
• Dimensions(L X W X H): 48mm X 39mm X 15.5mm

Applications

• Ideal for distributing power in lighting systems and fixtures.
• Suitable for residential, commercial, and industrial wiring projects.
• Used in junction boxes for neat and organized connections.
• Effective in control panels and electrical distribution boards.
• Handy for home automation and smart device installations.
• Supports DIY electrical repairs and upgrades.
• Commonly used in ceiling fan and LED strip connections.
• Ensures safe and quick parallel wiring in tight spaces.

Package Contents

• 1 X  WAGO LT-933 Panel-Mount Wire Connector 3 In 9 Out

Datasheet

• WAGO LT-933
