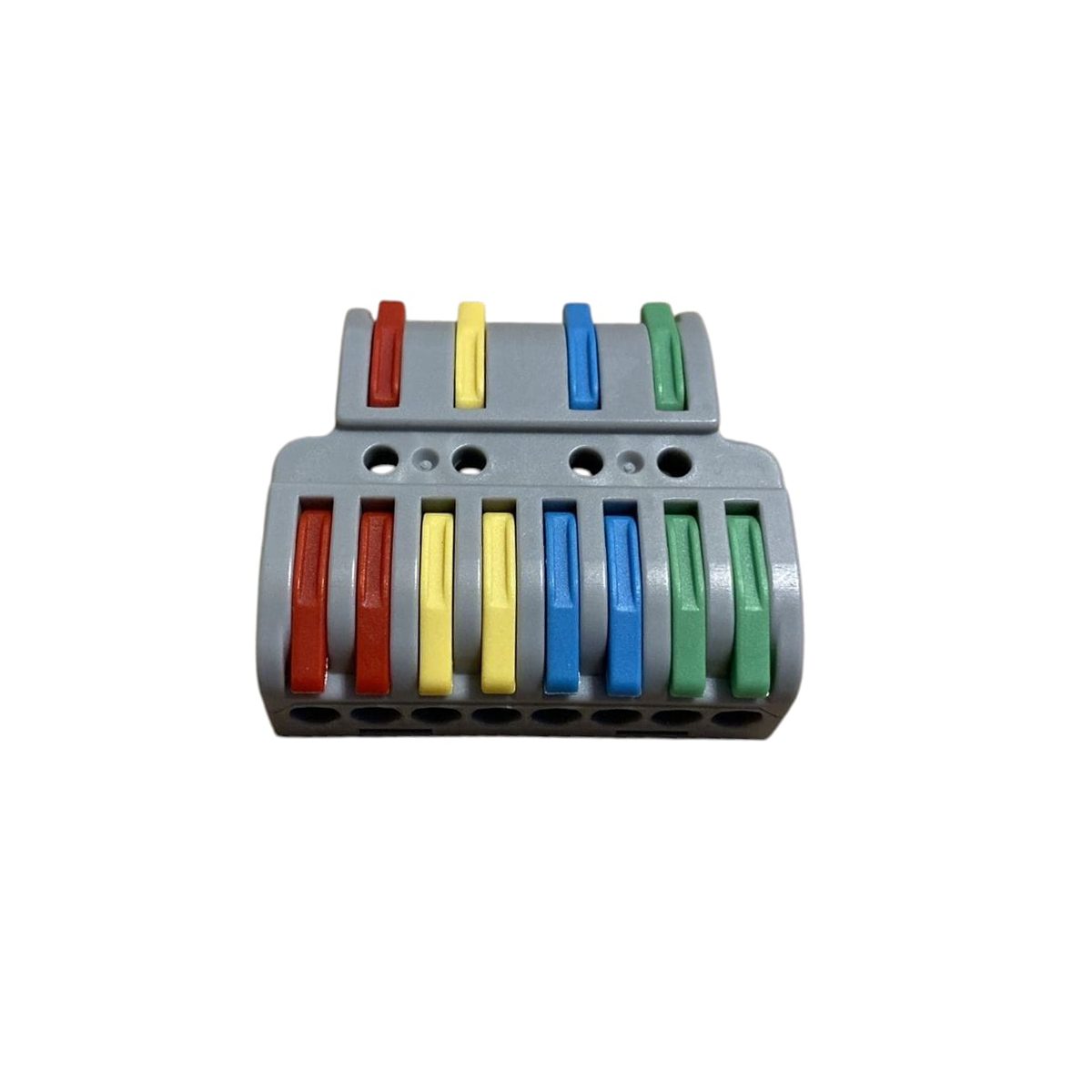

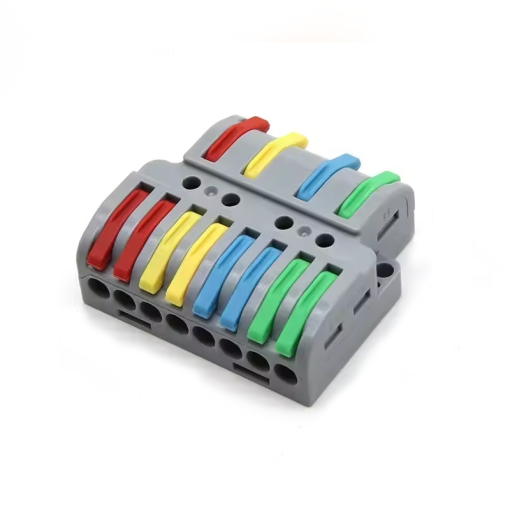

WAGO LT4-8 Panel-Mount Wire Connector 4 In 8 Out

WAGO LT4-8 Panel-Mount Wire Connector 4 In 8 Out

The WAGO LT4-8 Panel-Mount Wire Connector 4 In 8 Out is a quick connection terminal designed for efficient and secure wiring connections in electrical installations. It allows four input wires to be connected and distributed to eight output wires, facilitating neat and organized panel wiring. This connector features a wire clamp design for reliable conductor retention and ensures fast, tool-free installation, making it suitable for household and industrial electrical applications. Its panel-mount capability allows it to be fixed securely within electrical cabinets or distribution panels, enhancing wiring management and safety. The LT4-8 connector is compact and user-friendly, widely used by electricians for quick and dependable wire terminations.​

Features

• Fast, easy, no-twist necessary, reduces installation time and twist fatigue.
• Supports 4 input and 8 output connections for easy distribution.
• Compatible with solid, stranded, and flexible wires.
• Color-coded for easy identification of different sizes.
• Each wire is individually clamped; provides more secure gripping on conductor.
• Provides reliable and vibration-resistant electrical contact.
• No bare wires to cause shorts.
• Reusable and easy to disconnect for maintenance or changes.
• Test point in back; provides easy testing with voltage tester.
• Compact and space-saving for use in tight enclosures.
• Flame-retardant and durable plastic construction.
• Built-in wire stripping length gauge.

Specifications

• Brand: WAGO
• Model: LT4-8
• Connector Type: Panel-Mount Wire Connector
• Connection Type: 4 Input to 8 Output
  • Input: 4 Wire
  • Output: 8 Wire
• Orientation: Straight

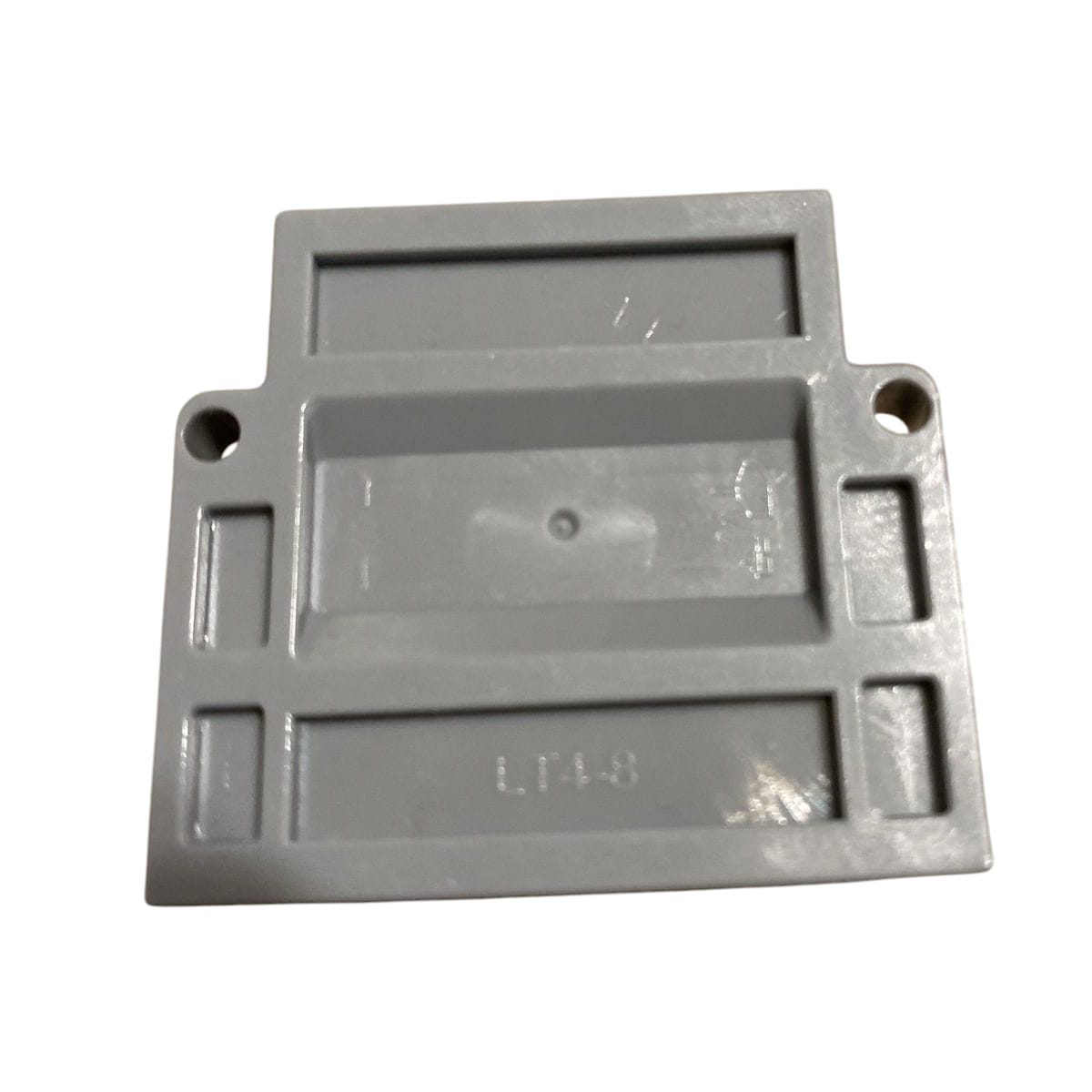

• Mounting Type: Panel-Mounting (Screw-Hanging)
• Rated Voltage: 250VAC
• Rated Current: 32A
• Rated Power: 6 KW
• Compatible Wire Sizes: 28–12 AWG
  • BV 0.08 mm² – 4.0 mm²
  • BVR 0.08 mm2 – 2.5 mm2
• Wire Type: Solid, stranded, and flexible conductors
• Housing Material: Flame-retardant polycarbonate (PC)
• Contact Material: Copper alloy with tin plating
• Operating Temperature: -40°C to +85°C
• Reusable: Yes, with easy rewire functionality
• Dimensions(L X W X H): 39.8mm X 43.5mm X 15.5mm

Dimensions

Applications

• Ideal for distributing power in lighting systems and fixtures.
• Suitable for residential, commercial, and industrial wiring projects.
• Used in junction boxes for neat and organized connections.
• Effective in control panels and electrical distribution boards.
• Handy for home automation and smart device installations.
• Supports DIY electrical repairs and upgrades.
• Commonly used in ceiling fan and LED strip connections.
• Ensures safe and quick parallel wiring in tight spaces.

Package Contents

• 1 X  WAGO LT4-8 Panel-Mount Wire Connector 4 In 8 Out

Datasheet

• WAGO LT4-8
