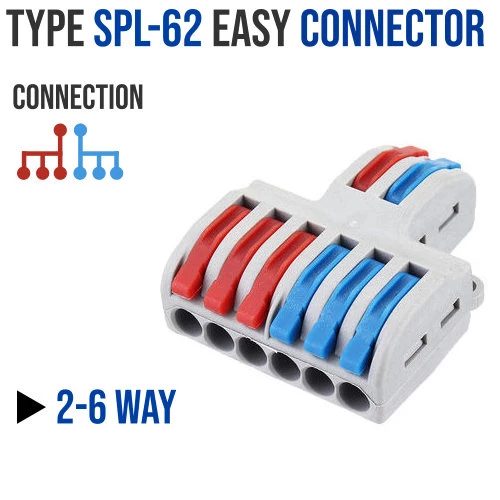

WAGO SPL-62 Panel-Mount Wire Connector 2 In 6 Out
The WAGO SPL-62 Panel-Mount Wire Connector 2 In 6 Out is a versatile and efficient solution for electrical wire distribution. Designed with two input terminals and six output terminals, it enables quick and secure parallel wiring without the need for tools. Its push-in connection technology allows for easy insertion of solid, stranded, or flexible wires, ensuring strong and reliable electrical contact. The transparent housing provides clear visibility for connection verification, while the compact design fits easily into junction boxes and tight spaces. Ideal for lighting circuits, home wiring, and electrical panels, the SPL-62 offers a safe, reusable, and time-saving wiring solution.
Features
- Supports 2 input and 6 output connections for easy distribution.
- Tool-free, push-in design for quick and secure wiring.
- Compatible with solid, stranded, and flexible wires.
- Transparent housing for visual inspection of connections.
- Compact and space-saving for use in tight enclosures.
- Reusable and easy to disconnect for maintenance or changes.
- Flame-retardant and durable plastic construction.
- Provides reliable and vibration-resistant electrical contact.
Specifications
| Attribute | Value |
|---|---|
| Brand | WAGO |
| Model | SPL-62 |
| Connector Type | Panel-Mount Wire Connector |
| Connection Configuration | 2 Input to 6 Output |
| Number of Inputs | 2 Wire |
| Number of Outputs | 6 Wire |
| Orientation | Straight |
| Mounting Type | Panel-Mounting (Screw-Hanging) |
| Rated Voltage | 250VAC |
| Rated Current | 32A |
| Rated Power | 6 kW |
| Compatible Wire Size (AWG) | 28–12 AWG |
| Compatible Wire Size (BV) | 0.08 mm² – 4.0 mm² |
| Compatible Wire Size (BVR) | 0.08 mm² – 2.5 mm² |
| Supported Wire Types | Solid, stranded, and flexible conductors |
| Housing Material | Flame-retardant Polycarbonate (PC) |
| Contact Material | Copper alloy with tin plating |
| Operating Temperature | -40°C to +85°C |
| Reusable | Yes (rewire capable) |
| Dimensions (L × W × H) | 39mm × 34mm × 14.5 mm |
Applications
- Ideal for distributing power in lighting systems and fixtures.
- Suitable for residential, commercial, and industrial wiring projects.
- Used in junction boxes for neat and organized connections.
- Effective in control panels and electrical distribution boards.
- Handy for home automation and smart device installations.
- Supports DIY electrical repairs and upgrades.
- Commonly used in ceiling fan and LED strip connections.
- Ensures safe and quick parallel wiring in tight spaces.
Package Contents
- 1 X WAGO SPL-62 Panel-Mount Wire Connector 2 In 6 Out
