WAGO SPL-82 Panel-Mount Wire Connector 2 In 8 Out

The WAGO SPL-82 Panel-Mount Wire Connector 2 In 8 Out is a versatile electrical connector designed for reliable and quick cable distribution. It features 2 input ports and 8 output ports, allowing for efficient power branching in compact spaces. This connector supports tool-free installation with a lever-operated mechanism, ensuring secure and maintenance-free wire connections. Suitable for both solid and stranded wires, the SPL-82 is ideal for use in lighting systems, junction boxes, and distribution panels. Its compact design and durable insulating housing make it a practical choice for various residential and commercial wiring applications.

Features

• Fast, easy, no-twist necessary, reduces installation time and twist fatigue.
• Supports 2 input and 8 output connections for easy distribution.
• Compatible with solid, stranded, and flexible wires.
• Color-coded for easy identification of different sizes.
• Each wire is individually clamped; provides more secure gripping on conductor.
• Provides reliable and vibration-resistant electrical contact.
• No bare wires to cause shorts.
• Reusable and easy to disconnect for maintenance or changes.
• Test point in back; provides easy testing with voltage tester.
• Compact and space-saving for use in tight enclosures.
• Flame-retardant and durable plastic construction.
• Built-in wire stripping length gauge.

Specifications

• Brand: WAGO
• Model: SPL-82
• Connector Type: Panel-Mount Wire Connector
• Connection Type: 2 Input to 8 Output
  • Input: 2 Wire
  • Output: 8 Wire
• Orientation: Straight
• Mounting Type: Panel-Mounting (Screw-Hanging)
• Rated Voltage: 250VAC
• Rated Current: 32A
• Rated Power: 6 KW
• Compatible Wire Sizes: 28–12 AWG
  • BV 0.08 mm² – 4.0 mm²
  • BVR 0.08 mm2 – 2.5 mm2
• Wire Type: Solid, stranded, and flexible conductors
• Housing Material: Flame-retardant polycarbonate (PC)
• Contact Material: Copper alloy with tin plating
• Operating Temperature: -40°C to +85°C
• Reusable: Yes, with easy rewire functionality

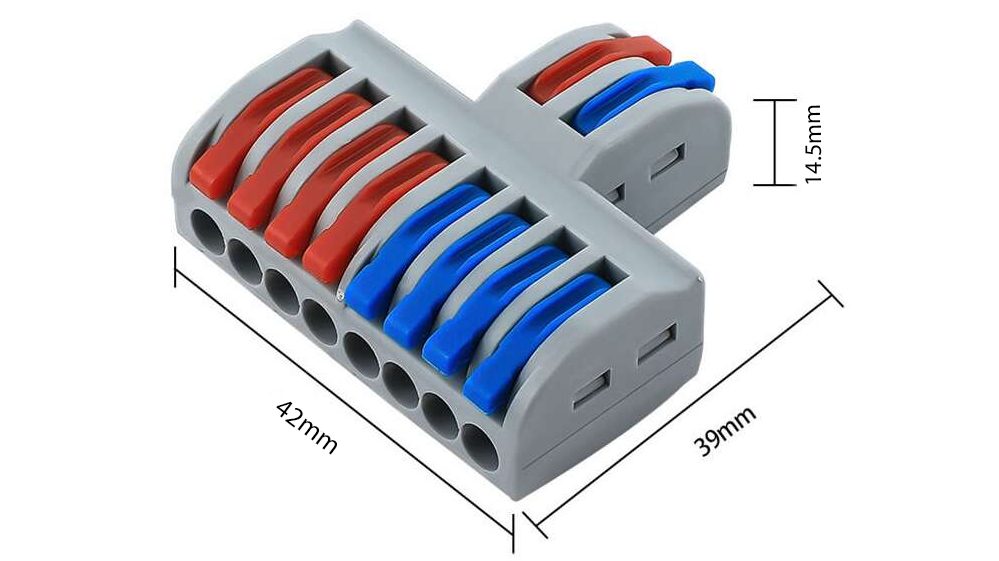

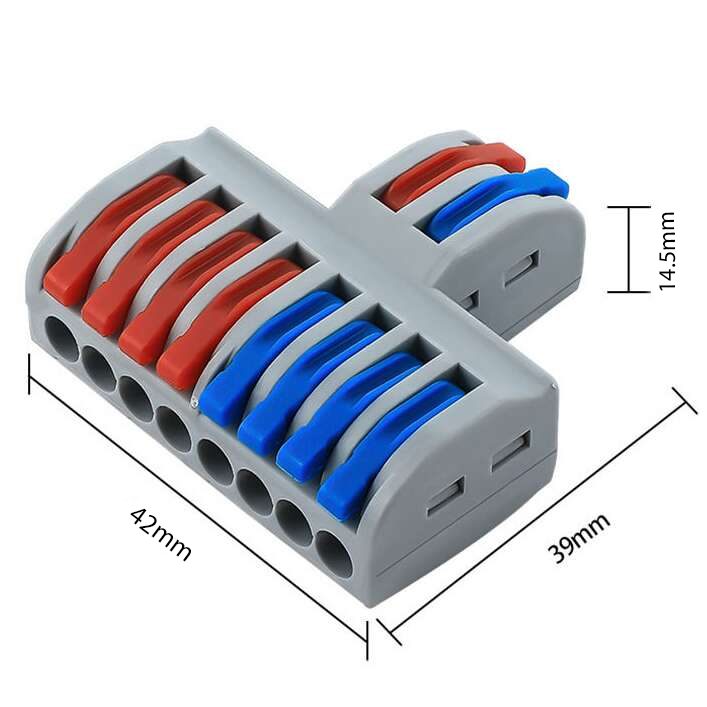

• Dimensions(L X W X H): 39mm X 42mm X 14.5mm

Applications

• Ideal for distributing power in lighting systems and fixtures.
• Suitable for residential, commercial, and industrial wiring projects.
• Used in junction boxes for neat and organized connections.
• Effective in control panels and electrical distribution boards.
• Handy for home automation and smart device installations.
• Supports DIY electrical repairs and upgrades.
• Commonly used in ceiling fan and LED strip connections.
• Ensures safe and quick parallel wiring in tight spaces.

Package Contents

• 1 X  WAGO SPL-82 Panel-Mount Wire Connector 2 In 8 Out

Datasheet:

• WAGO SPL-82
