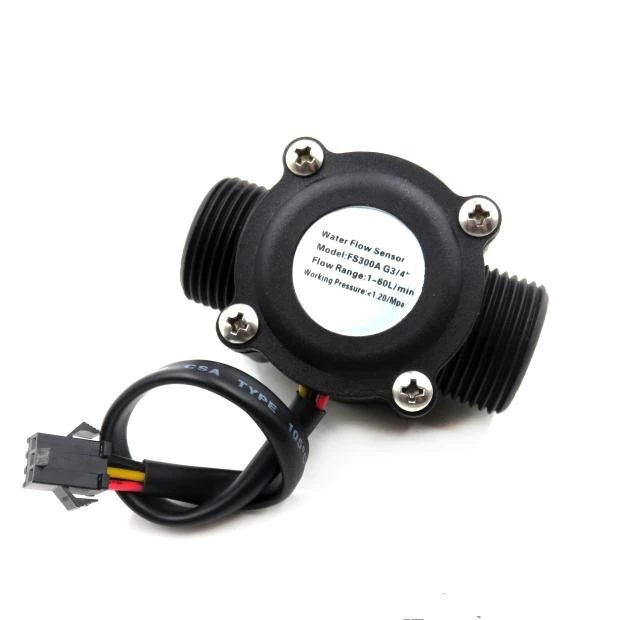

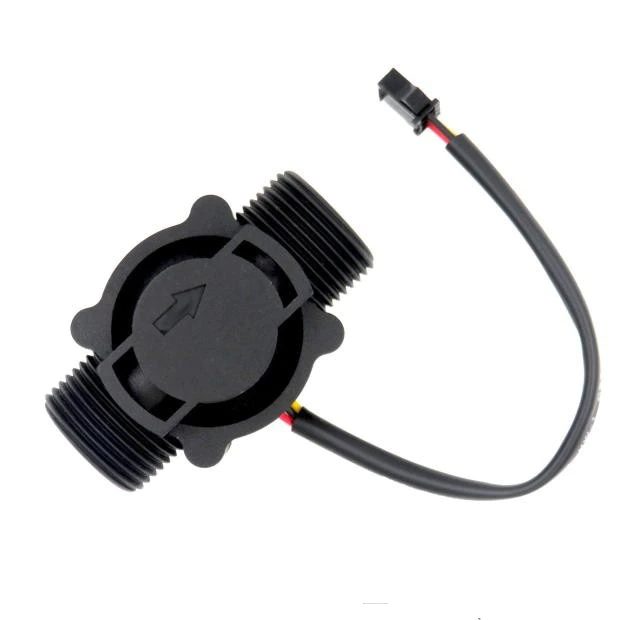

Water Flow Sensor FS300A G3/4″

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

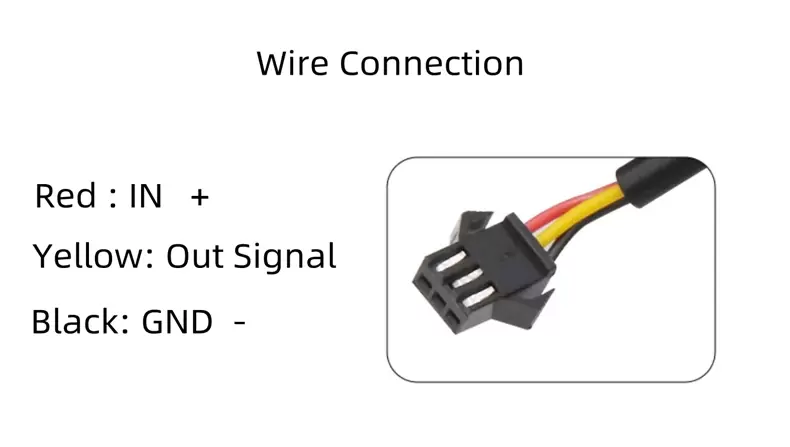

This type of flow sensor is used to measure liquid flow within a pipe and is ideally suited for monitoring water consumption in irrigation control systems, flow in cooling systems, and other areas where volume or the presence of water flow are monitored. Each side of the sensor has a G3/4″ connection and the sensor is connected by way of a 3 pin connector.

FEATURES

• Compact, Easy to Install
• High Sealing Performance
• High Quality Hall Effect Sensor
• RoHS Compliant

SPECIFICATIONS

• Mini. Wokring Voltage: DC 4.5V
• Max. Working Current: 15mA (DC 5V)
• Working Voltage: DC 5V~24V
• Flow Rate Range: 0~60L/min
• Load Capacity: ≤10mA (DC 5V)
• Operating Temperature: ≤80℃
• Liquid Temperature: ≤120℃
• Operating Humidity: 35%～90%RH
• Water Pressure: ≤1.2MPa
• Storage Temperature: -25～+ 80℃
• Storage Humidity: 25%～95%RH
• Cable Length: (Approx.) 13cm
