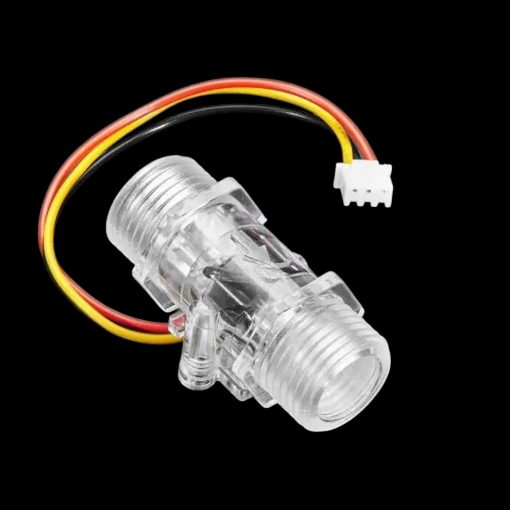

Water Flow Sensor Transparent YF-S201C
The Water Flow Sensor Transparent YF-S201C is an advanced, high-performance flowmeter designed to measure water flow with precision and reliability. Featuring a transparent housing, this sensor allows users to visually inspect water flow, adding an extra layer of functionality.
The G1/2 threaded interface makes installation simple and straightforward, Wire Connector Connection (JST XH 2.54) 3Pin Female Connector, while the device supports a wide flow range, making it ideal for a variety of applications in both industrial and domestic settings.
Features:

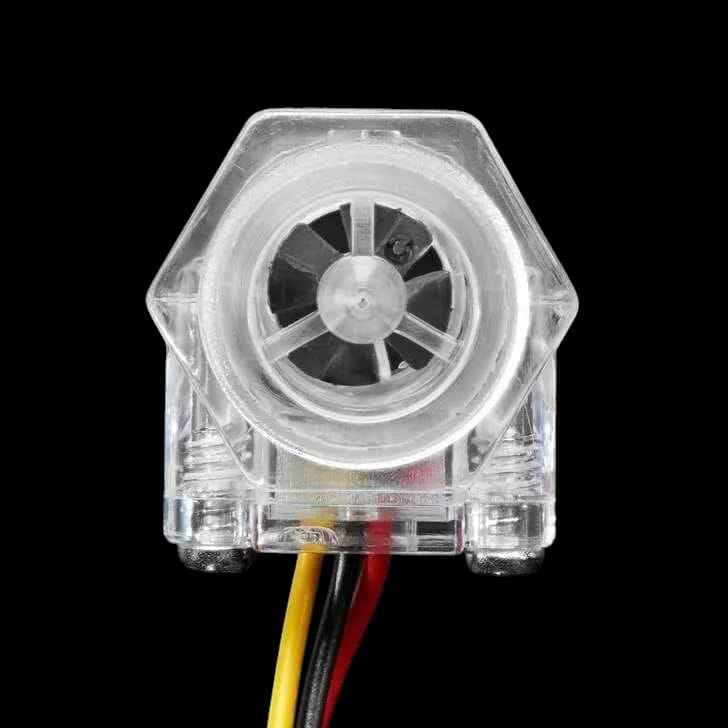

- Transparent Housing The clear casing allows for real-time visual inspection of the water flow, offering enhanced monitoring and detection of potential blockages.
- Wide Flow Range Accurately measures water flow from 1 to 30L/min, perfect for various applications such as water dispensers, irrigation systems, and more.
- Versatile Voltage Compatibility Operates within a voltage range of 5-15V, allowing seamless integration into different systems.
- Standard G1/2 Connector Easy to install with G1/2 threading, compatible with standard piping systems for quick and secure setup.
- Wire Connector Connection (JST XH 2.54) 3Pin Female Connector.
- Hall Effect Sensor Utilizes a Hall effect sensor to generate a pulse signal that provides precise measurement data for microcontroller or digital systems (e.g., Arduino, Raspberry Pi).
- Durable and Reliable Constructed with high-quality, corrosion-resistant materials to ensure long-term performance, even in harsh environments.
Dimensions:
Specifications:
- Sensor Type: Water Flow Sensor
- Connector Dimeter: G 1/2 inch
- Output Signal: (PWM) Pulse Output Signal
- Material: Transparent plastic housing for easy visual monitoring
- Color: Transparent
- Normal Voltage: DC 5V~18V
- Max. Working Current: 15mA (DC 5V)
- Load capacity: ≤ 10 mA (DC 5V)
- Flow Rate Range: 1~30L/min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80℃
- Liquid Temperature: ≤120℃
- Operating Humidity: 35%～90%RH
- Allowing Pressure: ≤1.75MPa
- Storage Temperature: -25～+ 80℃
- Storage Humidity: 25%～95%RH
- Electric strength: 1250V/min
- Insulation resistance: ≥ 100MΩ
- External threads: 1/2″
- Outer Diameter: 20mm
- Intake Diameter: 9mm
- Outlet Diameter: 12mm
- Wire Connection:
- Red wire: VCC power supply 5VDC to 24VDC
- Black wire: GND
- Yellow wire: (PWM) Pulse Output Signal
- Wire Connector Connection: (JST XH 2.54) 3Pin Female Connector
A simple sensor for measuring the flow of liquids. Consists of a pinwheel that has a magnet and Hall sensors. By counting the pulses of a hanging fan, in a simple way, you can measure the flow of liquids. With this method, the electronic part of the sensor has no contact with water.
Applications:
- Water dispensers and purification systems.
- Automated irrigation and agricultural equipment.
- Water heating and circulation systems.
- Smart home and industrial automation.
- DIY electronics and microcontroller projects.
Package Contents:
- 1 X Water Flow Sensor Transparent YF-S201C
