Water Level/Detection Sensor

Water Level/Detection Sensor

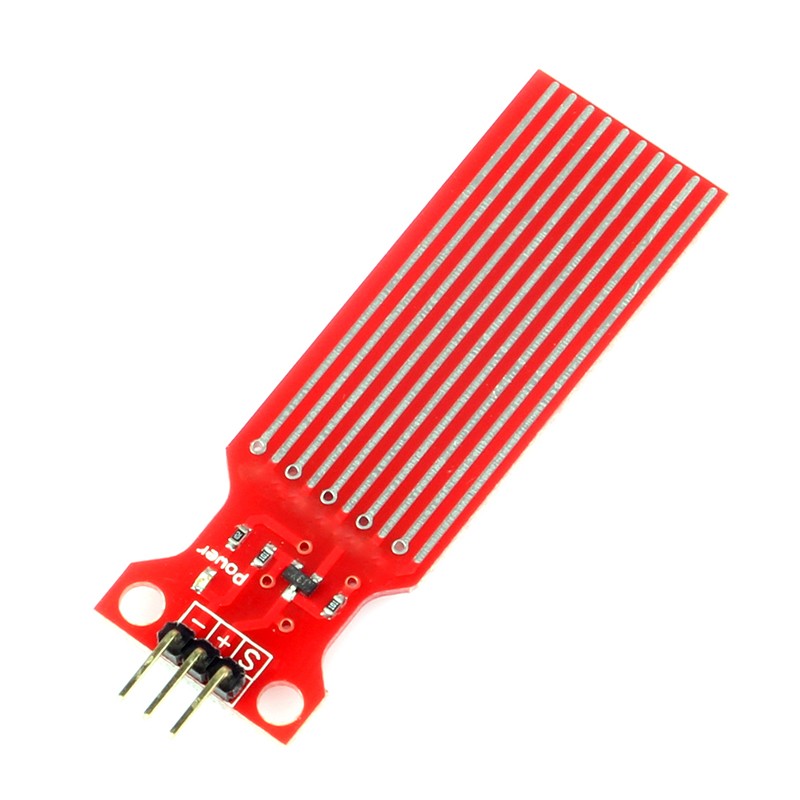

The Water Level/Detection Sensor is an easy-to-use, cost-effective water drop/level identification sensor that determines the water level by measuring the water droplets/water volume with a series of exposed parallel wire traces. It is easy to complete the conversion of water quantity to analog signal, and the output analog value can be directly read by the Arduino development board to achieve the effect of water level alarm.

Features

• High sensitivity to water presence and level changes.
• Analog output for continuous level monitoring.
• Simple interface with microcontrollers like Arduino.
• Low power consumption suitable for battery-powered applications.
• Compact design for easy installation in tight spaces.

Specifications

PINOUT

The sensor has an analog output that should be connected to the pin of the A/D converter (analog input in Arduino). This will allow you to measure the proportional voltage signal to determine the fluid level.

Applications

• Rainwater detection systems.
• Liquid leakage monitoring.
• Water tank level measurement.
• Smart irrigation systems.
• Home appliance water detection.

Package Contents

• 1x Water Detection/Level Sensor Module.

Documents

• Sensor User Guide.
• Example Arduino Program.
