WiFi ESP8266-12-E Serial TTL Module

150.00 EGP

Quantity
Price
<50
150.00 EGP
50 - 99
135.00 EGP
100+
125.00 EGP
× WiFi ESP8266-12-E Serial TTL Module
Buy Now
Availability: In Stock
SKU:300000009342
Description

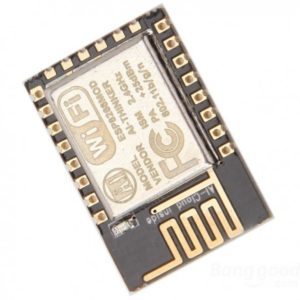

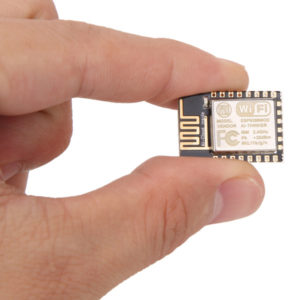

Wi-fi module based on the ESP8266 chip. Works in standard wi-fi 802.11 b/g/n at 2.4 GHz. Equipped with 22 leads – pitch 2 mm, of which 11 is GPIO, 1 ADC and SPI. Has a built-in LED and a PCB antenna. The plate size 24 x 16 mm.

Features of the module ESP-12E

Features that distinguish the ESP 12-E module on the background of the whole family of ESP-XX:

  • Has 16 pins:
    • 11 x GPIO – digital outputs/inputs
    • 1 x ADC input – analog-to-digital converter
    • 1 x SPI interface
    • 1 x I2C interface
    • 2 x UART (TX, RX) – for communicating, for example with Arduino
  • Mounting: SMD / THT:
    • Holes diameter: 0.9 mm
    • Pitch of leads: 2 mm
  • The default UART communication speed: 115200 bps
  • Equipped with built-in PCB antenna
  • Module shielded
  • Dimensions: 24 x 16 mm
Connecting

The module has 22 leads, pitch of 2 mm.

Moduł WiFi ESP-12E ESP8266

PIN DESCRIPTION
TxD The transmitter of the serial interface UART.
RxD The receiver of the serial interface UART.
GPIO x Lead GPIO (digital output/ input) with a serial number.
GPIO 0 GPIO with special function:
To update, you need to indicate the low status (connect to GND).
GPIO 15 GPIO No. 15 with a special function:

In normal and programming mode should indicate the low status (conect to GND).

ADC Input of analog-to-digital converter.
REST The system reset.
EN

(CH_PD)

Power down – indication of low state causes a transition to sleep mode.To update, you need to indicate a high status (3.3 V).
VCC The Power – 3.3 V.



The product is compatible with Arduino

Instruction of connecting the module with Arduino basing on the module ESP-01.

Tile tolerates a voltage of 3.3 V. Therefore, you must choose Arduino operating on voltage 3.3 V or use a converter.

Specifications:
  • Supply voltage: 3.3 V
  • Current consumption at rest: approx. 10 mA
  • Chip: ESP8266
  • Flash memory: 4 MB
  • Standard: wi-fi 802.11 b/g/n
  • Operates in the 2.4 GHz frequency
  • Supports WPA / WPA2 protections
  • Can work in AP mode (Access Point), STA (standalone) and AP+STA
  • Supports AT commands
  • Communication: UART (Rx, Tx)
  • The default UART speed: 115200 bps
  • Mounting SMD or THT
  • Pitch of leads: 2 mm
  • Hole diameter: 0.9 mm
  • Has 16 pitch leads 2 mm
    • 11 x GPIO – digital outputs/inputs
    • 1 x ADC input – analog-to-digital converter
  • Equipped with communication interfaces: SPI, UART, SDIO
  • Software support Lua
  • Tile sizes: 24 x 16 mm
