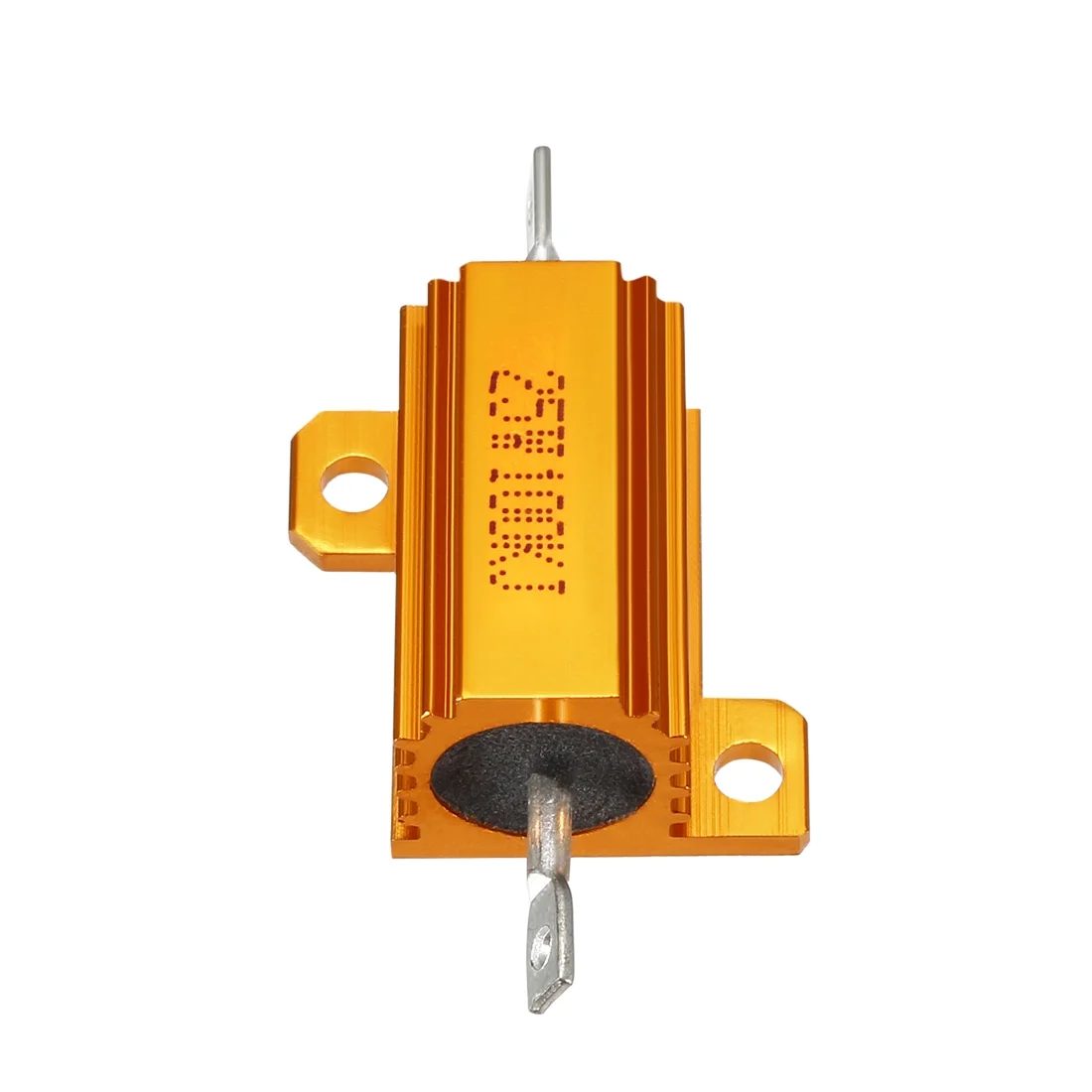

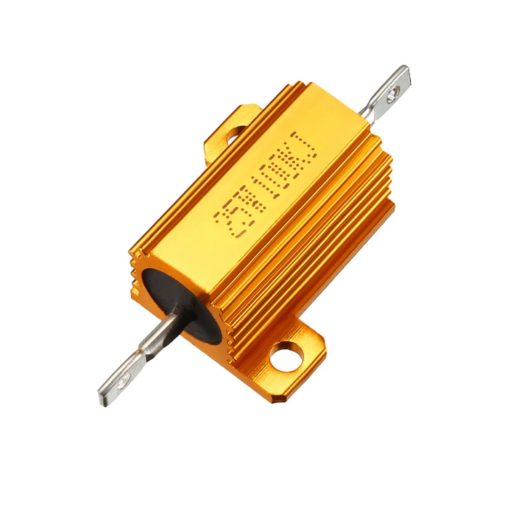

Product Description:
Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in harsh environment.
Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install.
Features & Benefits:
- High Stability
- High power to size ratio
- Metal housing allows chassis mounting and provides heat sink capability
Specifications
| Attribute | Value |
| Resistance | 100 kΩ |
| Power Rating | 25 W |
| Package/Case | Aluminium Housed |
| Tolerance | ±5 % |
| Technology | Wire Wound |
| Size | A Max | B Max | C Max | D Max | E Max | F ± 0.3 | G ± 0.3 | H Max | J Max | K Max | L ± 0.25 |
| 25W | 28 | 51 | 15 | 15 | 27.3 | 18.3 | 19.8 | 7.7 | 5.2 | 2.6 | 3.2 |
