WS2812 5050 RGB LED Driver Module Square Board 16 LED

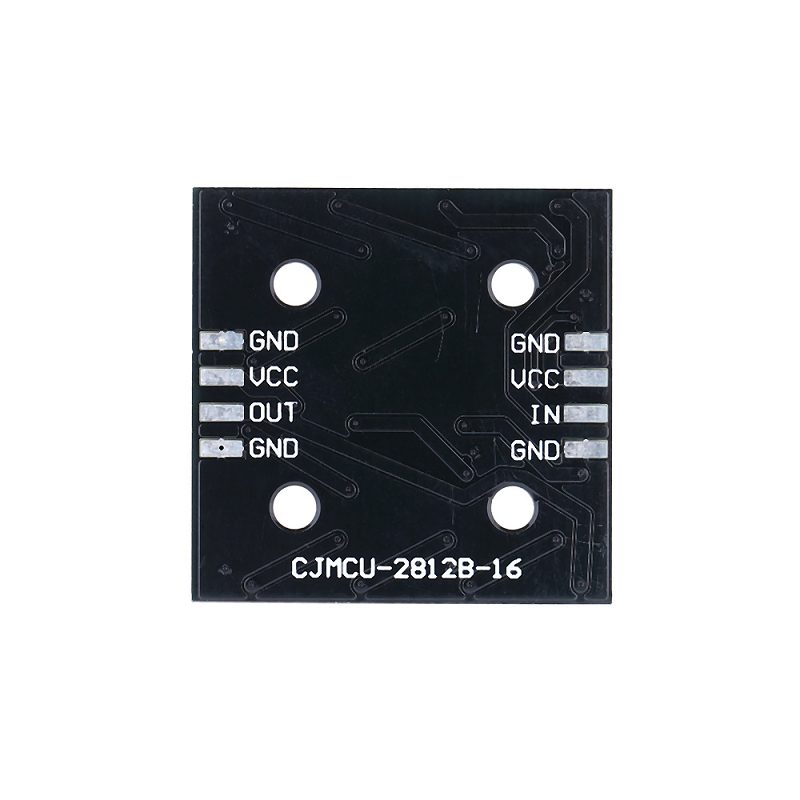

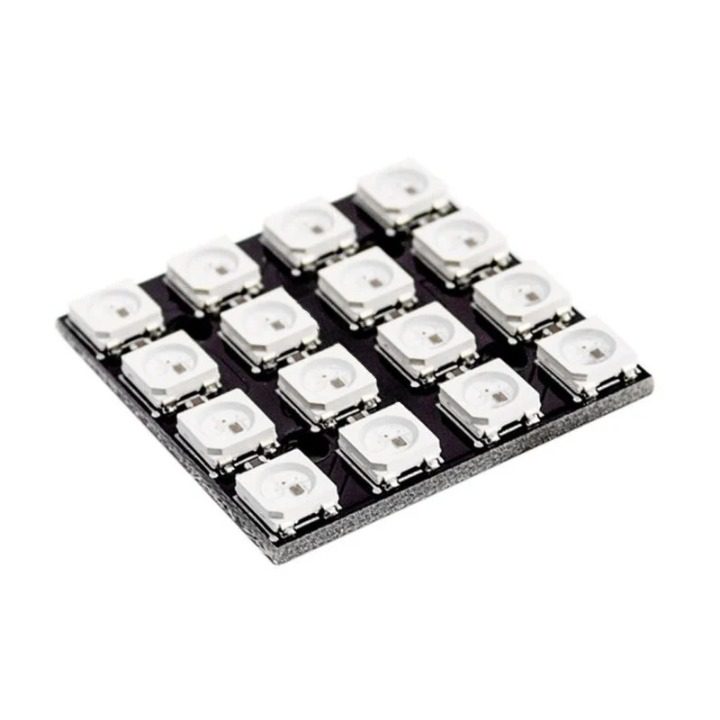

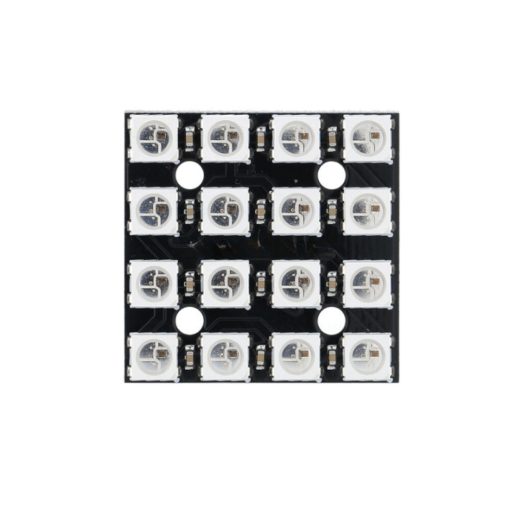

WS2812B 4×4 RGB LED Module

The WS2812B 4 x 4 RGB LED Module has built-in Full-Color Driving Lights Circular Development Board.

A small chainable board with 4×4 5050 RGB LEDs.
Use only one microcontroller pin to control as many as you can chain together.
Each LED is addressable as the driver chip is inside the LED.
Each pixel of the three primary color can achieve 256 brightness display, completed full color display, and scan frequency not less than 400Hz/s.
The color of the light were highly consistent, cost-effective.
Applicable for LED decorative lighting, Indoor/outdoor LED video irregular screen.

Features/Specs:

• Supply Voltage: DC 5V.
• LED driver chip: WS2812B
• Communication interface: single wire communication.
• The control circuit and the LED share the only power source.
• Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
• Send data at speeds of 800Kbps.
• The color of the light was highly consistent
• Full-color module, Full-color soft lights a lamp strip.
• LED decorative lighting, Indoor/outdoor LED video irregular screen
• Length: 30mm
• Width: 30mm
• Height: 3.4mm
