XC6206P502MR 200mA Fixed 5V Positive 6V SOT-23-3L Voltage Regulators (LDO) SMD
The XC6206P502MR, manufactured by Torex Semiconductor, is a high-precision, low-dropout (LDO) voltage regulator designed to deliver a stable 5V output with a maximum current of 250mA. Engineered for applications requiring efficient voltage regulation, this device is particularly suited for battery-powered and portable electronics where power conservation and space efficiency are critical. With a low dropout voltage of 175mV at 250mA, the XC6206P502MR ensures reliable performance even in low-voltage conditions, while its input voltage range of 1.8V to 6V accommodates various power supply configurations.
Features:
- Fixed output voltage: 5V.
- Maximum output current: 250mA.
- Low dropout voltage: 175mV at 250mA.
- Low quiescent current for energy efficiency.
- High ripple rejection for noise-sensitive applications.
Specifications:
|
Parameter |
Value |
|---|---|
|
Output Voltage |
5V |
|
Output Current |
250mA |
|
Dropout Voltage |
250mV @ 100mA |
|
Input Voltage Range |
6V |
|
Accuracy |
±2% |
|
Power Rating |
250mW |
|
Number of Outputs |
1 |
|
Number of Pins |
3 |
|
Package |
SOT-23-3 |
|
Operating Temperature |
-40°C to 85°C |
|
Mounting Style |
Surface Mount |
|
Datasheet |
XC6206P502MR |
|
RoHS Compliance |
Yes |

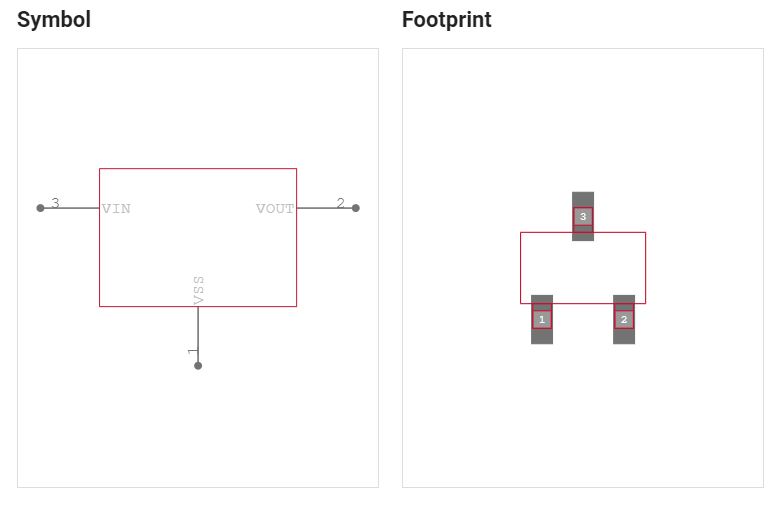

Pinout & Foot print:
