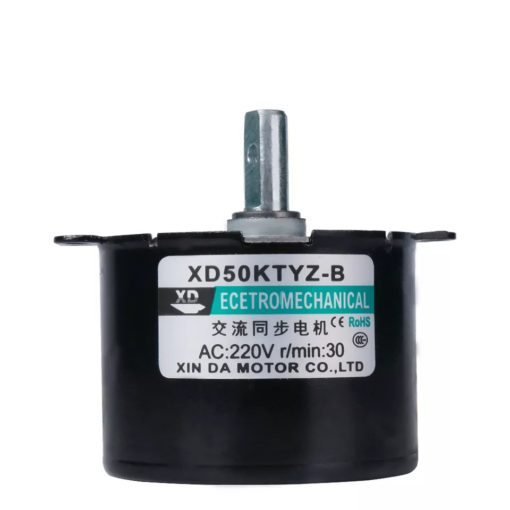

XD50KTYZ-B AC Synchronous Motor 30rpm 220V 2.5kg.cm
The XD50KTYZ-B AC Synchronous Motor 30rpm 220V 2.5kg.cm is a durable and efficient motor designed for continuous low-speed rotation with precise performance. Operating at 220VAC, it delivers a steady speed of 30rpm and provides a strong torque output of 2.5kg.cm, making it ideal for demanding applications. Built with an internal capacitor, the motor ensures stable phase operation, low noise, and reliable long-term use. Its compact and robust design allows easy integration into equipment such as display turntables, timing devices, automation systems, and other machinery requiring accurate and consistent rotational motion.
Features
- Stable 30 rpm constant speed operation at 220VAC.
- High torque output of 2.5kg.cm for reliable performance.
- Built-in internal capacitor for smooth and stable running.
- Low noise and vibration, suitable for continuous operation.
- Durable construction ensuring long service life.
- Compact design for easy installation in various devices.
- Energy-efficient operation with low power consumption.
- Bi-directional rotation (CW/CCW) depending on wiring.
- Ideal for automation systems, display turntables, and timing devices.
Specifications
| Parameter | Specification |
| Model Number | XD50KTYZ-B |
| Motor Type | AC Synchronous Motor |
| Rated Voltage | 220VAC |
| Rated Frequency | 50 / 60 Hz |
| Speed | 30 rpm |
| Torque Output | 2.5 kg·cm |
| Power Consumption | 6W – 10W |
| Direction of Rotation | CW / CCW (depending on wiring) |
| Capacitor | Built-in (0.14µF / 630V) |
| Noise Level | Low, suitable for continuous use |
| Operating Mode | Continuous (S1) |
| Operating Temperature | -15°C to +45°C |
| Body Diameter | 50 mm |
| Shaft Diameter | 7 mm |
| Humidity | 15% ~ 90%RH |
| Material | Metal housing and high-quality internal components |
| Applications | Display turntables, timing devices, automation equipment, household appliances |
Dimensions
The Control in Direction of Rotation:
- When connect line 1 to line 2 the direction of rotation in Clockwise (CW) direction.
- When connect line 1 to line 3 the direction of rotation in Counterclockwise (CCW) or Anticlockwise direction.
Applications
- Industrial Machinery.
- Display Systems.
- Home Appliances.
- Robotics.
- Agricultural Equipment.
- DIY and Hobby Projects.
- Medical Devices.
Package Contents
- 1 X XD50KTYZ-B AC Synchronous Motor 30rpm 220V 2.5kg.cm
