XL830L Digital Multimeter

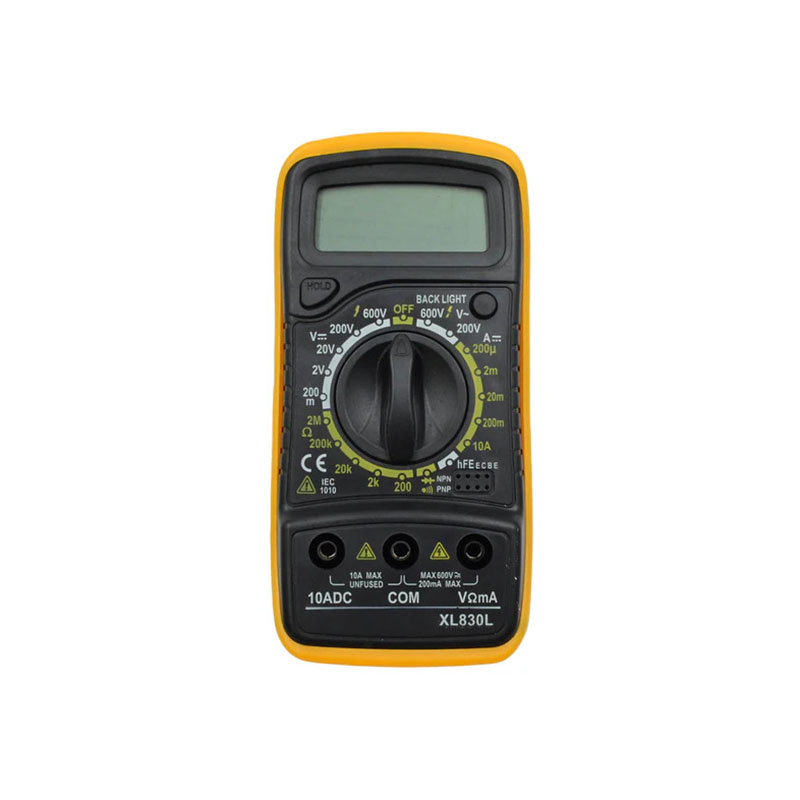

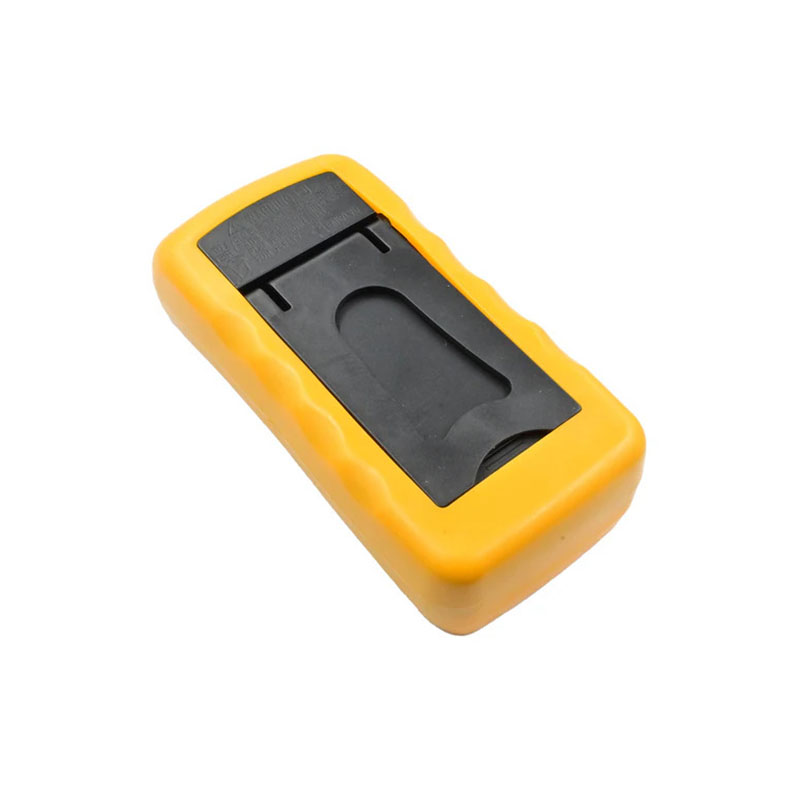

The XL830L multimeter carries the look and feel of a practical, no-nonsense handheld test instrument. Encased in a sturdy plastic shell with slightly textured surfaces for grip, it presents a rectangular face with a central LCD display flanked by a rotary selector dial and function buttons. The edges are reinforced; the corners somewhat rounded to absorb light shocks. The design is straightforward and utilitarian, with legible markings and a minimal aesthetic that prioritizes usability.
When you power it on, the display illuminates with clear digits, and the dial firmly clicks into each measurement position. The transition between ranges is responsive, and pressing function keys gives a satisfying tactile feedback. The input jacks accept probes firmly, and the leads plug in snugly. In use, the meter feels balanced in hand: neither too light to feel flimsy, nor too heavy to be tiring. The screen, while modest in size, offers clarity, and the symbols and units change cleanly as modes are switched.
Across extended measuring sessions, the XL830L holds up reliably. The display remains stable, even as you shift your grip or reposition probes. It doesn’t flash erratically or freeze. The tactile controls resist accidental nudging, and the rotary dial maintains solid detents. Overall, the impression is of a dependable, workhorse instrument not flashy, but faithful. It feels like a tool built for steady service in workshops, labs, or field work, quietly doing what’s asked without fuss or show.
Features:
- Manual ranging operation.
- Data hold function.
- Overload protection on ranges.
- Diode test mode.
- Continuity buzzer.
- Backlight (in some variants).
Specifications:
| Parameter / Function | Value / Range / Description |
|---|---|
| Display: | 3½-digit LCD (max reading ~1999) |
| DC Voltage: | 200 mV, 2 V, 20 V, 200 V, 600 V |
| AC Voltage: | 200 V, 600 V |
| DC Current: | 200 µA, 2 mA, 20 mA, 200 mA, 10 A |
| Resistance: | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Diode test / Continuity: | Yes (with audible buzzer) |
| Input impedance (voltage): | ~10 MΩ |
| Power supply: | 9 V battery (6F22) |
| Dimensions: | ~ 70 × 140 × 35 mm |
| Weight: | 165 with Battery |
| Color: | Yellow |
Applications:
- General electrical and electronic measurement.
- Circuit debugging & repair.
- Hobbyist / DIY electrical work.
- Educational / lab use.
- Field testing of DC/AC circuits.
- Low-current / component testing.
Package Contents:
- 1x XL830L digital multimeter

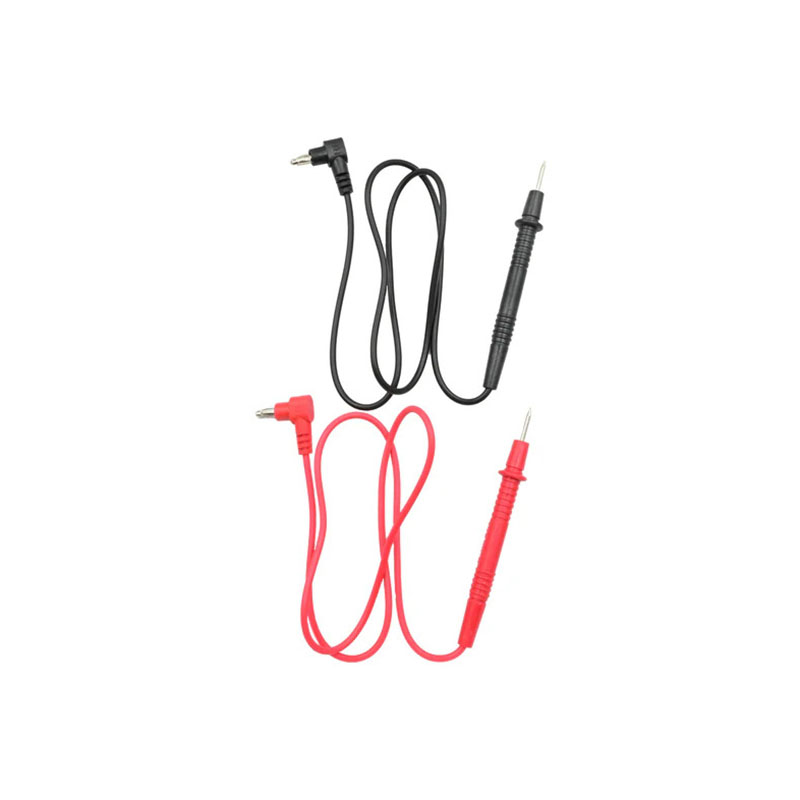

- 1x set Test leads / probes (red & black)
- 1x User manual / instruction booklet
- 1x Battery (9 V)
