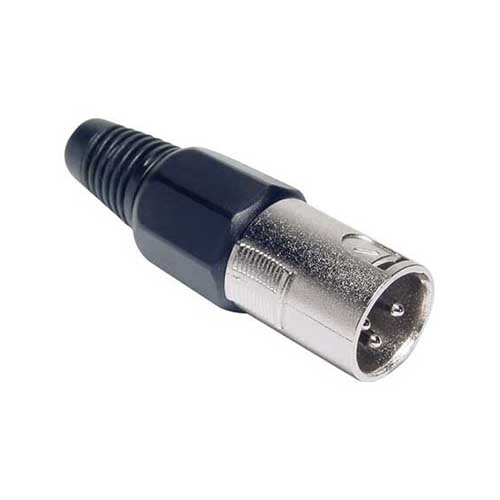

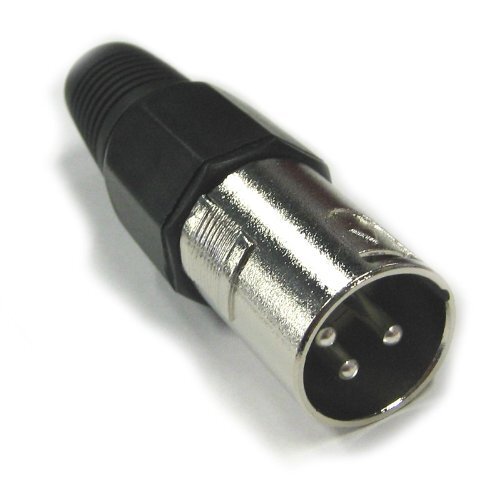

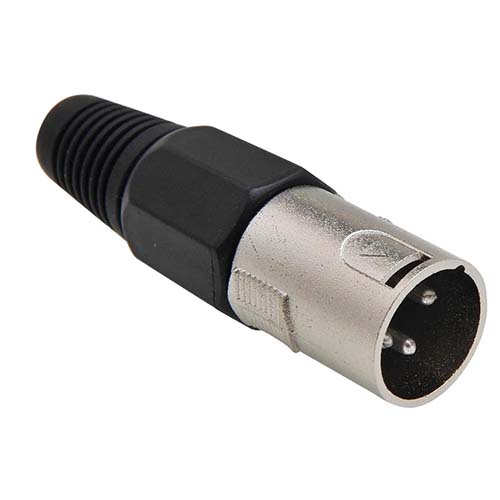

XLR Cable Connector Male 3 Pin for Wire – Screw Type
The 3-pin male XLR cable connector is a rugged electrical interface designed to securely join audio cable conductors to compatible equipment. Built around a cylindrical metal shell and three contact pins, this connector is widely used in audio signal chains where reliability and noise immunity are important. Its design features a sturdy latch that locks into the mating socket, preventing accidental disconnection during use.

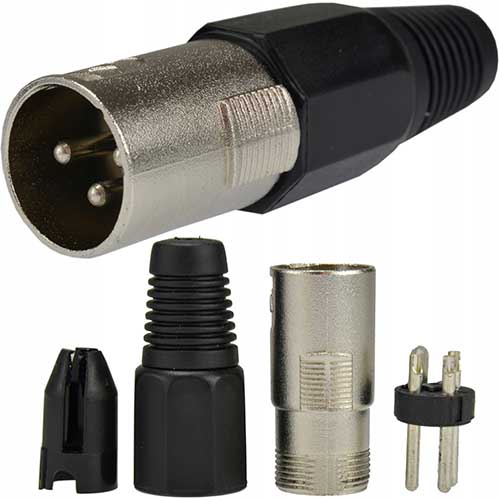

The connector houses three pins in a triangular arrangement, each corresponding to the ground, positive (hot), and negative (cold) signals of a balanced audio line. The male screw-type version allows you to terminate balanced cables by attaching the internal strands directly to screw terminals or through soldering, providing robustness and ease of assembly. With a smooth metal body and secure cable clamp, it ensures that the cable remains fixed under tension.
Designed to withstand repeated mating cycles, this connector combines durable materials with an ergonomic form factor, making it suitable even under the demanding conditions of live performance and studio environments. Its balanced signal transmission helps minimize noise and interference, ensuring clean audio transfer between devices like microphones, mixers, amplifiers, and outboard gear.
Features:
- Balanced 3-pin connector for reliable signal integrity.
- Screw-type wiring for secure cable termination.
- Metal body with latch lock for strong mechanical connection.
- Designed for repeated mating/unmating cycles.
- Compact and ergonomic design.
Specifications:
| Attribute | Value |
|---|---|
| Connector Type: | XLR |
| Gender: | Male |
| Pin Count: | 3 |
| Contact Resistance: | ≤ 3 mΩ |
| Insulation Resistance: | > 10 GΩ (initial) |
| Dielectric Strength: | ~1.5 kV DC |
| Rated Voltage: | < 50 V |
| Rated Current per Contact: | ~16 A |
| Cable O.D. Range: | ~3.5 – 8 mm |
| Wire Size: | Up to ~2.5 mm² / ~14 AWG |
| Locking: | Latch lock |
| Mounting: | Cable end |
| Wiring: | Screw/solder terminals |
| Material: | Metal shell, plated contacts |
| Protection Class: | ~IP40 |
| Operating Temp: | ~-30 °C to +80 °C |
| Color: | Black |
Applications:
- Professional Audio Signal Cabling.
- Microphone and Mixer Connections.
- Live Sound Reinforcement.
- Studio Recording Interconnections.
- Balanced Line Audio Transmission.
Package Contents:
- 1x XLR Cable Connector Male 3 Pin for Wire – Screw Type
