Features:
- LOW QUIESCENT CURRENT: 130µA
- 5V REGULATOR FOR EXTERNAL CIRCUITS
- LOW SPAN ERROR: 0.05%
- LOW NONLINEARITY ERROR: 0.003%
- WIDE-LOOP SUPPLY RANGE: 7.5V to 40V
- MSOP-8 AND DFN-8 PACKAGES
Applications:
- TWO-WIRE, 4-20mA CURRENT LOOP TRANSMITTER
- SMART TRANSMITTER
- INDUSTRIAL PROCESS CONTROL
- TEST SYSTEMS
- CURRENT AMPLIFIER
- VOLTAGE-TO-CURRENT AMPLIFIER
Technical Specifications
| Physical | |

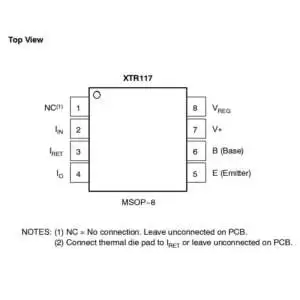

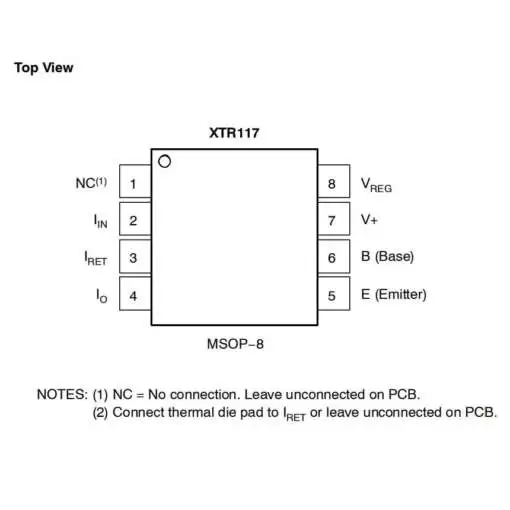

| Case/Package | VSSOP |
| Mount | Surface Mount |
| Number of Pins | 8 |
| Technical | |
| Interface | 2-Wire |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 40 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 7.5 V |
| Nominal Supply Current | 130 µA |
| Operating Supply Current | 20 mA |
| Output Current | 25 mA |
| Output Current per Channel | 25 mA |
| Output Type | Voltage |
| Packaging | Tape & Reel (TR) |
