- Position detection in industrial automation systems.
- Safety limit control in machinery and production equipment.
- End-stop detection in conveyors and assembly lines.
- Elevator and lift door control mechanisms.
- Packaging and textile machines for motion sensing.
- Robotics and CNC equipment for precision movement control.
- Testing and inspection devices requiring accurate mechanical feedback.

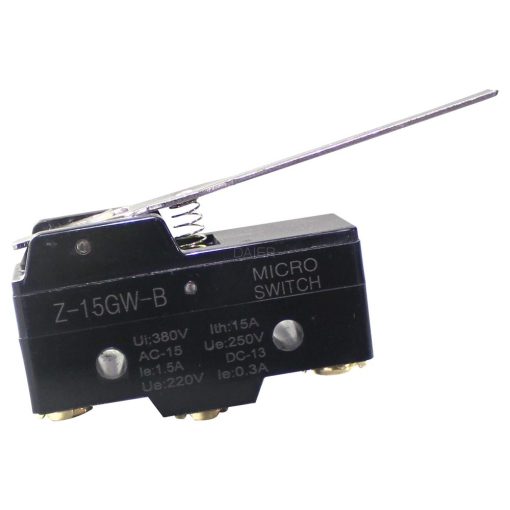

Z-15GW-B Panel Mount Limit Switch with Hinge Lever 250VAC 15A
Z-15GW-B Panel Mount Limit Switch with Hinge Lever offers 15A 250VAC capacity, ideal for industrial control, automation, ensuring precise mechanical actuation.
75.00 EGP
Buy NowZ-15GW-B Panel Mount Limit Switch with Hinge Lever 250VAC 15A
The Z-15GW-B Panel Mount Limit Switch with Hinge Lever 250VAC 15A is a durable and reliable mechanical switch designed for precision position detection and control in industrial and automation systems. It features a hinge lever actuator that ensures smooth and accurate operation when detecting mechanical movement or limits. Rated at 250VAC 15A, it supports high current loads suitable for heavy-duty applications. The switch’s panel-mount design allows easy installation and secure fitting, while its robust housing provides excellent resistance to wear, vibration, and mechanical impact. Ideal for use in machinery, conveyors, elevators, and automated equipment.
Features
- High-quality mechanical design ensures precise and reliable switching performance.
- Rated at 250VAC 15A for handling high current loads.
- Hinge lever actuator provides smooth and accurate operation.
- Panel mount structure allows easy and secure installation.
- Long mechanical life for durable and consistent performance.
- Strong housing resists vibration, shock, and environmental wear.
- Compact size suitable for various industrial and automation systems.
- Wide compatibility with machinery, conveyors, and control equipment.
- Quick-response mechanism for accurate position detection.
Specifications
| Attribute | Description |
| Product Type | Panel Mount Limit Switch |
| Model Number | Z-15GW-B |
| Actuator Type | Hinge Lever |
| Contact Type | SPDT (Single Pole Double Throw) |
| Rated Voltage | 250VAC |
| Rated Current | 15A |
| Operating Force | 1.96N (200gf) |
| Contact Resistance | ≤ 25 mΩ (initial) |
| Insulation Resistance | ≥ 100 MΩ at 500VDC |
| Dielectric Strength | 2000VAC, 50/60Hz for 1 minute |
| Mechanical Life | ≥ 10,000,000 operations |
| Electrical Life | ≥ 500,000 operations |
| Mounting Type | Panel Mount |
| Terminal Type | Screw Terminals |
| Operating Temperature | -25°C to +80°C |
| Housing Material | High-Strength Plastic / Metal Lever |
| Color | Black |
Dimensions
Applications
- 1 x Z-15GW-B Panel Mount Limit Switch with Hinge Lever 250VAC 15A
Datasheet
