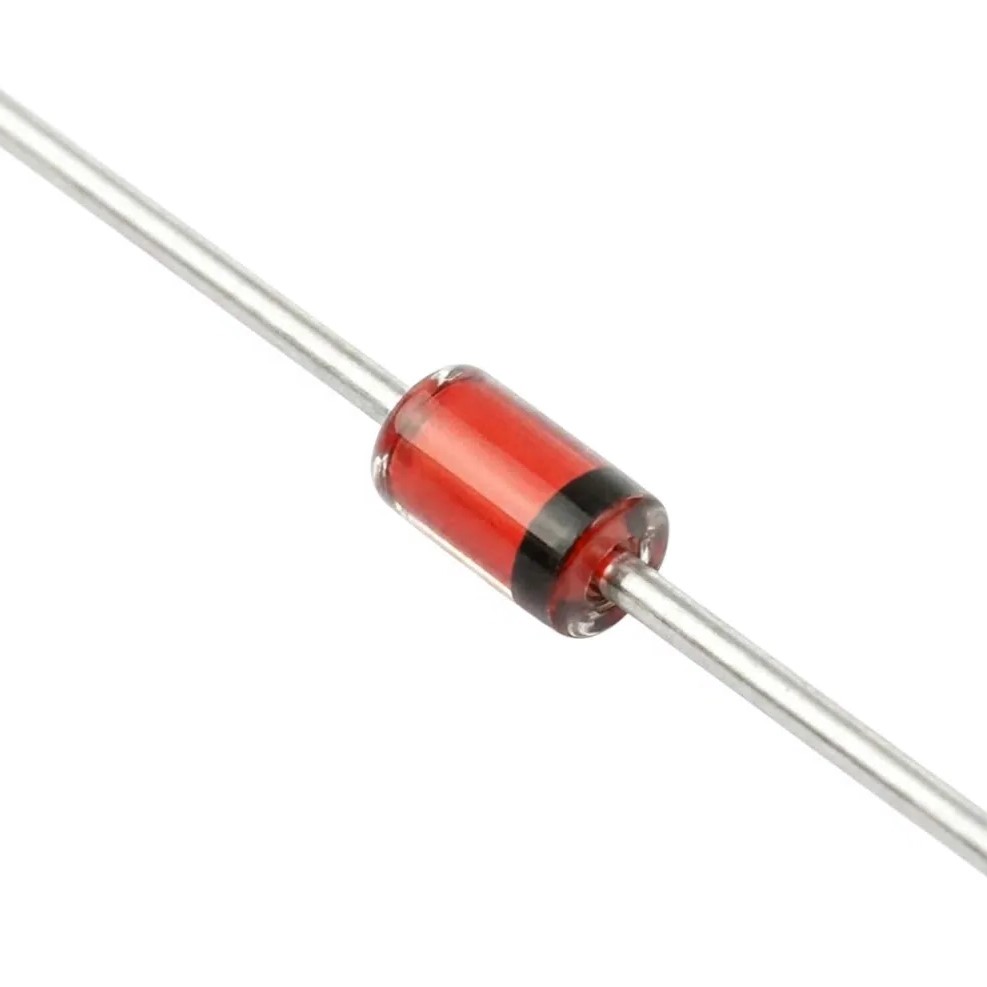

ZPY39 Zener Diode 39V DO-41
The ZPY39 is a high-performance silicon planar power Zener diode. Designed for robust voltage regulation, this diode features a high power rating and is graded according to the international E 12 standard. It is housed in a standard DO-41 axial-leaded package, making it suitable for a wide range of through-hole electronic applications.
✅Features
- Silicon Planar Power Design
- High Power Rating
- Durable Construction
| Parameter | Value / Condition |
|---|---|
| Nominal Zener Voltage (Vz) | 39 V |
| Test Current (IZT1) | 10 mA |
| Maximum Power Dissipation (Ptot) | 1300 mW |
| Dynamic Resistance (Zz) | Typ. 30 Ω (Max < 60 Ω) |
| Admissible Zener Current (Iz) | 26 mA |
| Reverse Voltage (VR) | > 29 V @ IR = 0.5 μA |
| Temperature Coefficient (TCVZ) | 8 to 12 10-4/°C |
| Thermal Resistance (Junction to Ambient) | 110 K/W |
| Maximum Junction Temperature | 175 °C |

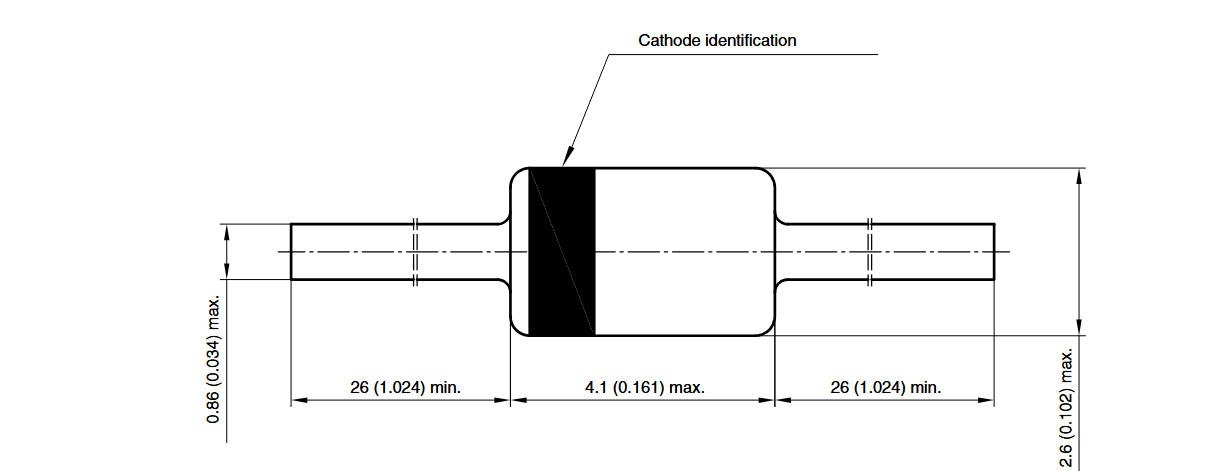

| Package Type | DO-41 (DO-204AL) |
💻Applications
- Stabilizing Circuits
- Clipping Circuits
🎁Package Content
- 1 x ZPY39 Zener Diode 39V DO-41
