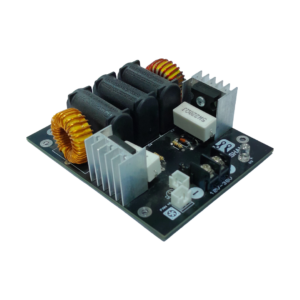

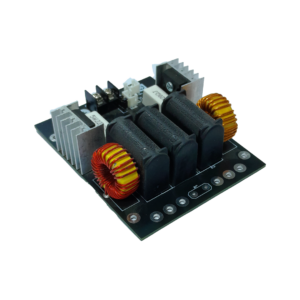

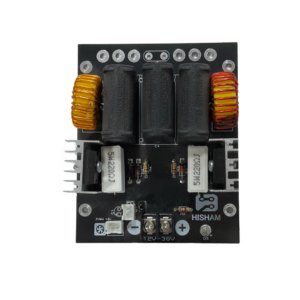

ZVS Induction Heating Module 12-36V 1000W

Feature:

• The induction heating circuit uses a 12‑36V low‑voltage DC power supply, the power is 1000W, and the heating speed is fast.
• Used for heat treatment such as quenching and annealing of small parts, and can also be used with graphite crucible to smelt metal.
• Using excellent PCB production, the power wire is fully copper design, which greatly increases the current.
• Found molten aluminum Power Requirements: 24V 350W – 500W power supply (15A to 20A) [melting point: 660 Degrees Celsius]
• Found melting copper, gold, silver, power requirements: 36V 700W-900W power supply (20A to 25A), respectively [melting point: 1083 Degrees Celsius, 1065 Degrees Celsius, 962 Degrees Celsius
• Uses: DIY small parts made of steel hardening, annealing below the melting point of 1100 Degrees Celsius metal smelting, DIY small cooker and so on

Specifications:

• Working voltage: DC 24-36V
• Working current:20A
• Power tube: Original IRFP260N (50A 200V)
• Material: CCL+METAL

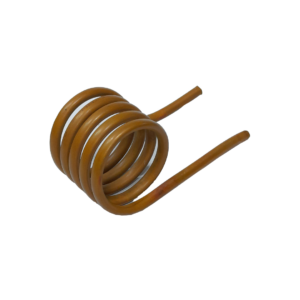

• Spiral copper pipe size: Inside diameter 40 mm, high 45mm
• Color :Black
• Dimensions: 10cm(L) x 8cm(w) x 7cm(H)

Notice:

Only direct heating a steel material (the magnet can be adsorbed material) Gold, silver, copper, aluminum can not be directly heated, need to match the graphite crucible melting, Work brass heating will need to use a lot of water circulation cooling, Without water circulating cooling are possible, but will burn into a black vortex brass, it will not be much affected

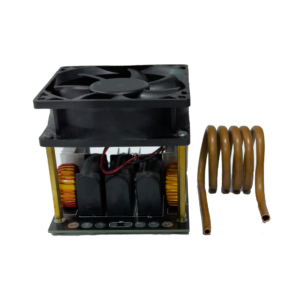

Package Contents:

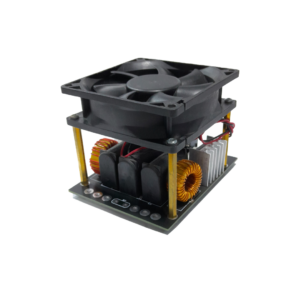

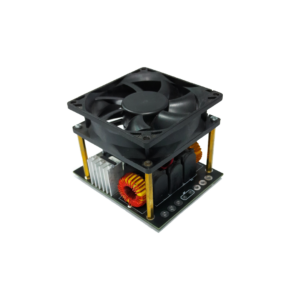

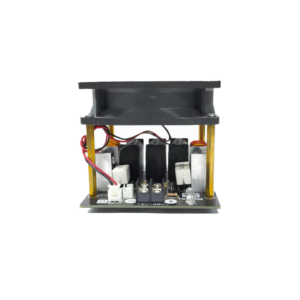

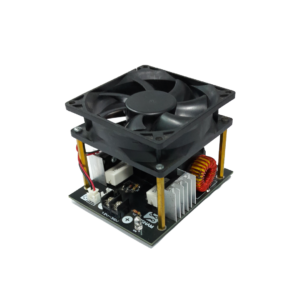

• 1x Induction Heating Board with Fan
• 1x Spiral copper pipe
• 1x Wooden Storage box
