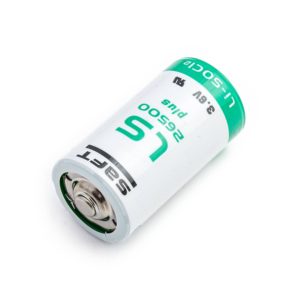

Saft LS-26500
Primary Li-SOCI2 C Battery
Power up specialty electronics with the immense power and stability of Saft LS-26500 cells. These C batteries are composed of a specialized lithium chemistry known as lithium-thionyl chloride which has the recognition of providing energy up to 3x longer than alkaline counterparts. With an impressive 3.6 volts of power, Saft LS-26500 batteries are armed to power memory back-ups, security systems, and more with reliability and precision. Thanks to its lithium chemistry, these primary batteries are suited for extreme weather. With the ability to handle below-freezing temperatures and extreme heat, Saft LS-26500 cells are primed for any sort of climate.
Please note that these primary cells are NOT rechargeable. Under no circumstances should they be placed in a charger. When fully discharged, please dispose of it according to your local regulations.
Features:
- High voltage response
- Low self-discharge rate
- Easy integration into compact systems
- Superior resistance to atmosphere corrosion
- Stainless steel container and end caps
- Low magnetic signature
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Underwriters Laboratories Component Recognition
- compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard
- Bobbin wound construction
Main Applications:
- Utility metering
- Automatic meter readers
- Navigational buoys
- Measuring equipment
- Industrial applications
- Professional electronics
Specifications:
- Battery Size: C
- Battery Chemistry: Lithium Thionyl Chloride
- Nominal Voltage: 3.6V
- Capacity: 7700 mAh
- Terminal Type: Finished version with flat positive end cap
- Operating Temperature Range: – 60°C/+85°C
- Dimensions:
- Diameter: 26mm
- Height: 50.4 mm
- Weight: 48 g
- Battery Shelf Life: 10 Years
