TM1990A iButton Access: Smart Reader & Security Key
Contents List
- Introduction
- What Is the TM1990A iButton Access System?
- Understanding the TM1990A iButton Reader
- What Is the TM1990A-F5 Smart Key?
- How the iButton Identification System Works?
- Understanding the 1-Wire Communication Interface
- Main Features and Technical Characteristics
- TM1990A Reader vs. TM1990A-F5 Smart Key
- Common Applications
- How to Connect the TM1990A iButton Reader?
- Reading an iButton with a Microcontroller

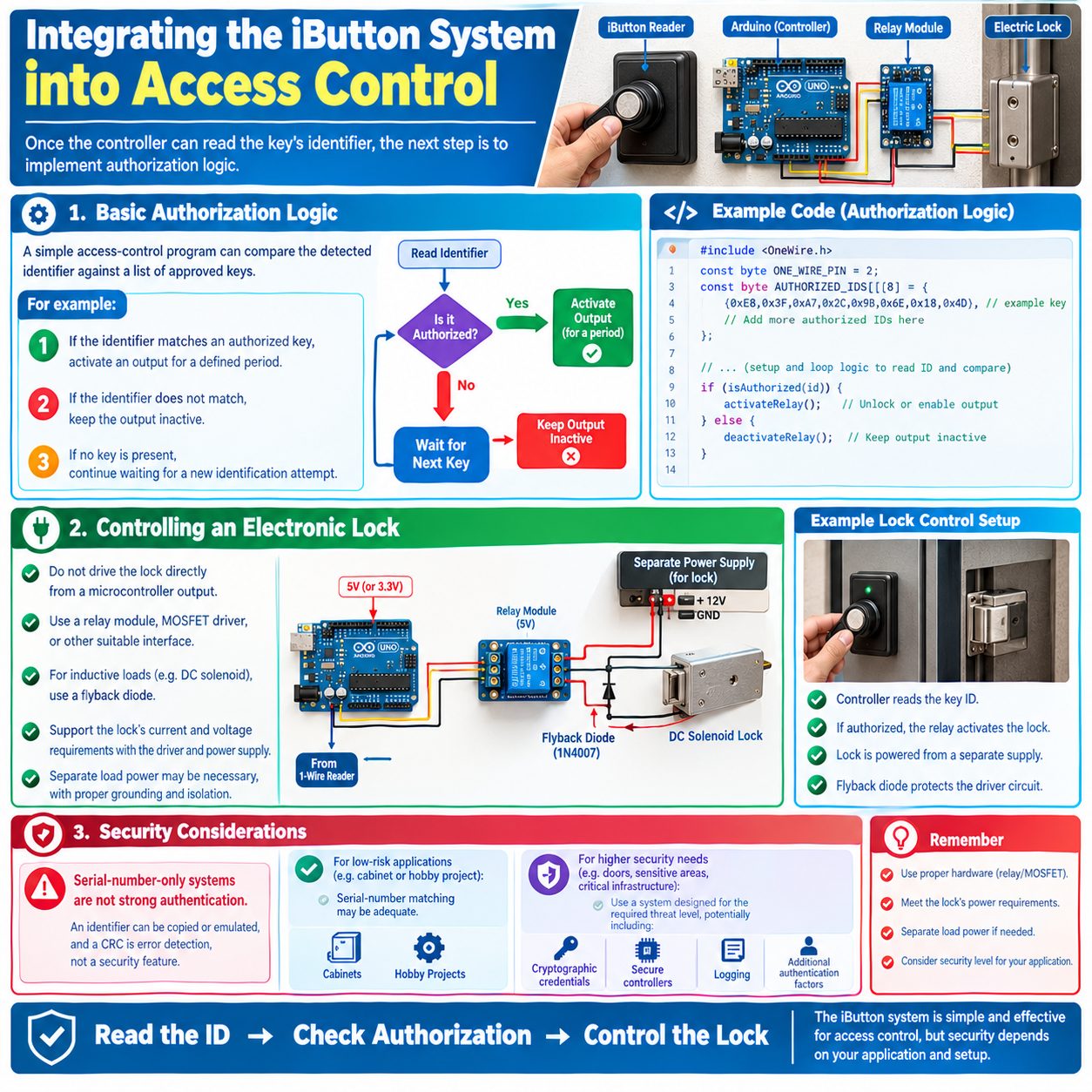

- Integrating the iButton System into Access Control
- Advantages and Limitations
- Installation and Troubleshooting Tips
- Frequently Asked Questions
- Conclusion
Time reading is 20min
1. Introduction
Electronic identification systems are widely used in access control, equipment tracking, attendance systems, and security applications.
One practical solution is the iButton identification system, which uses a small, durable electronic key that communicates with a compatible reader through physical contact.
The TM1990A iButton Reader and TM1990A-F5 Smart Key provide a simple way to identify a key or user through a digital identification number.

Unlike conventional contactless RFID cards, this type of key is read when its metal contacts touch a compatible reader.
The system can be integrated into microcontroller projects and electronic access-control equipment, allowing a controller to read an identifier and decide whether to activate a lock, open a door, record attendance, or perform another programmed action.
This article explains how the TM1990A iButton system works, its communication interface, wiring considerations, applications, advantages, and limitations. It is intended for beginners, hobbyists, and engineers who want to understand the technology and use it correctly in practical electronic projects.

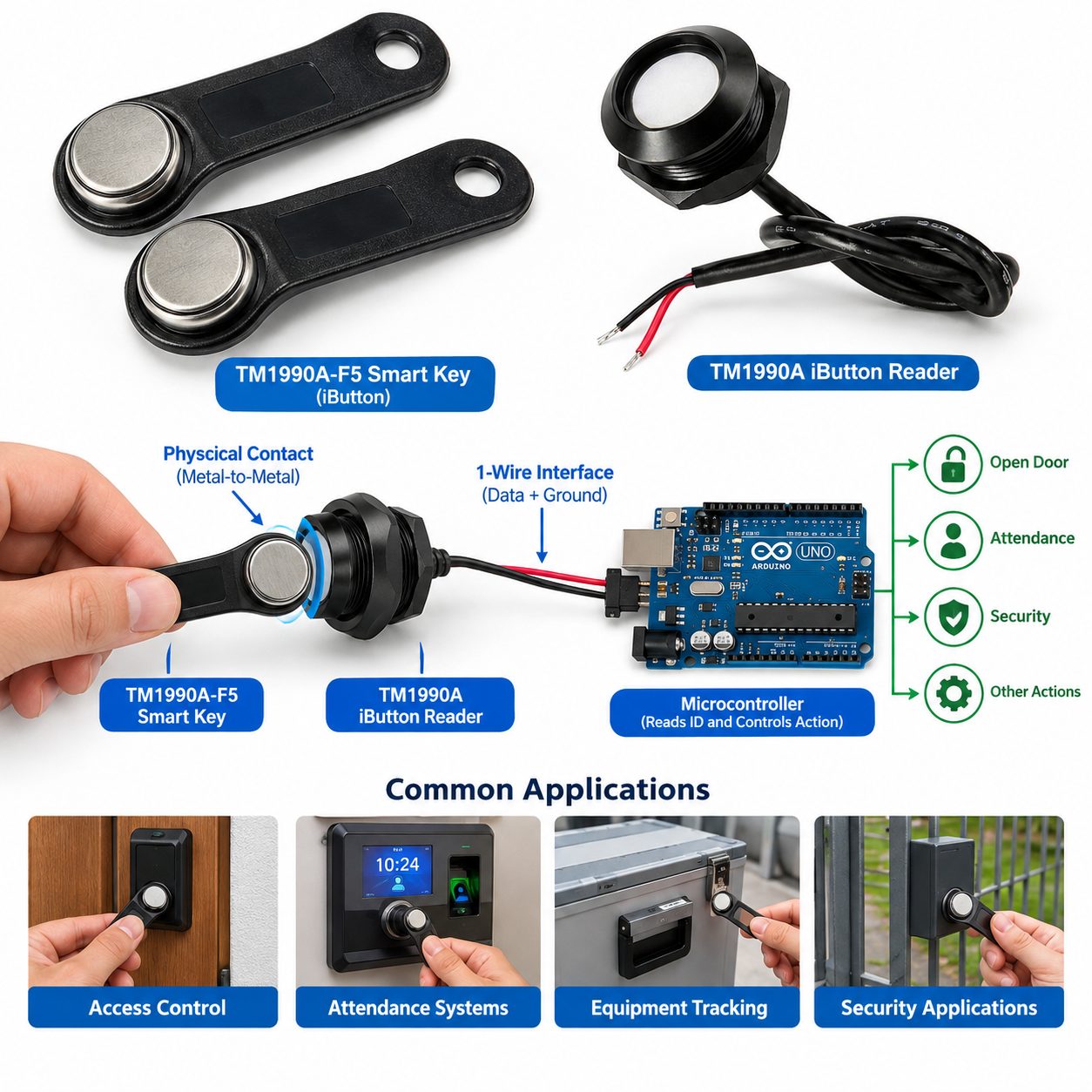

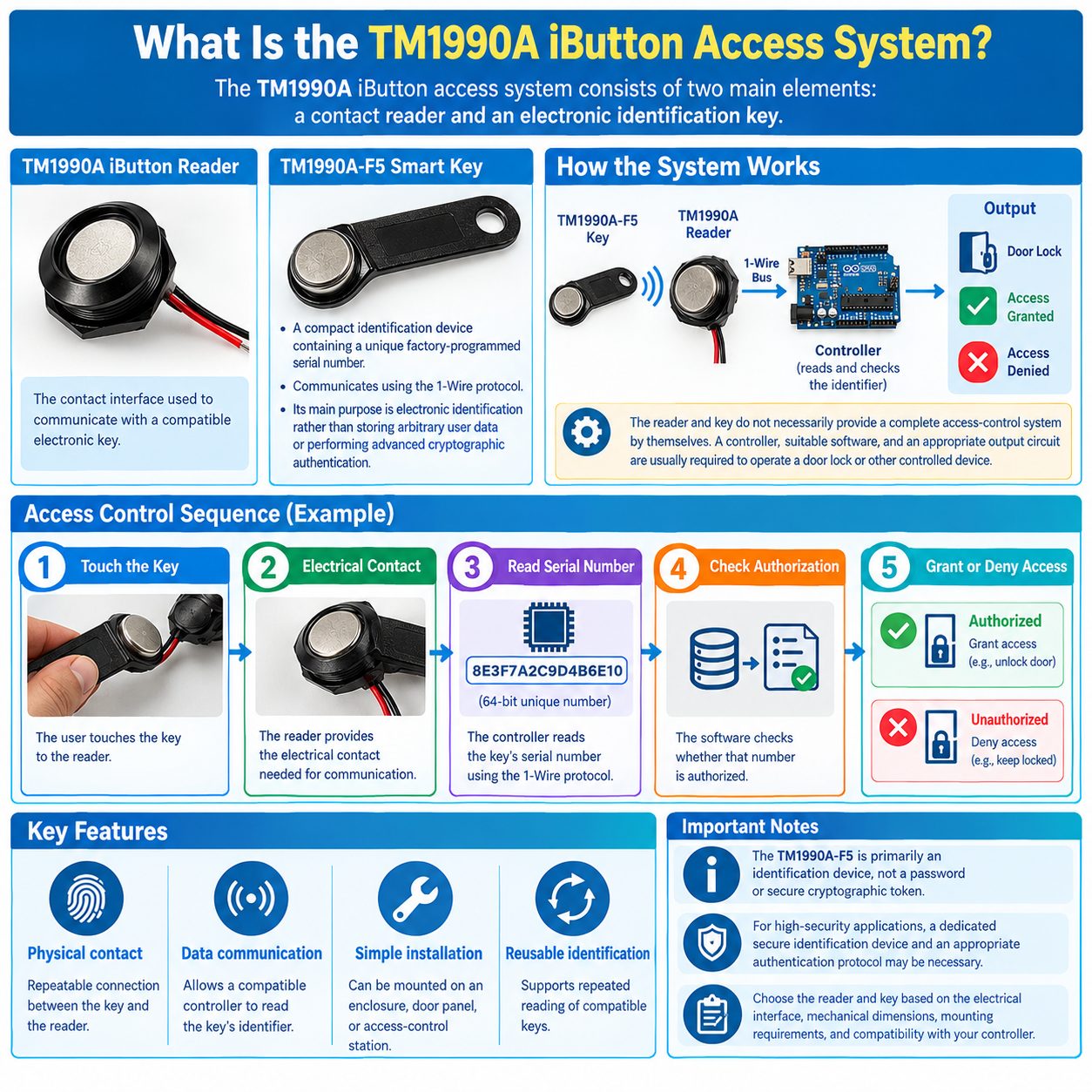

2. What Is the TM1990A iButton Access System?
The TM1990A iButton access system consists of two main elements: a contact reader and an electronic identification key.
The contact interface used to communicate with a compatible electronic key.
- A compact identification device containing a unique factory-programmed serial number.
- The TM1990A-F5 is described in its manufacturer’s documentation as a serial-number iButton device that communicates using the 1-Wire protocol.
- Its principal purpose is electronic identification rather than storing arbitrary user data or performing advanced cryptographic authentication.
- When the key touches the reader, the electronic system can retrieve its identification number.
- A connected controller can then compare that number against a list of authorized identifiers.

For example, an access-control system may follow this sequence:
- A user touches the key to the reader.
- The reader provides the electrical contact needed for communication.
- The controller reads the key’s serial number.
- The software checks whether that number is authorized.
- The controller grants or denies access.
An important distinction is that the reader and key do not necessarily provide a complete access-control system by themselves.
A controller, suitable software, and an appropriate output circuit are usually required to operate a door lock or other controlled device.

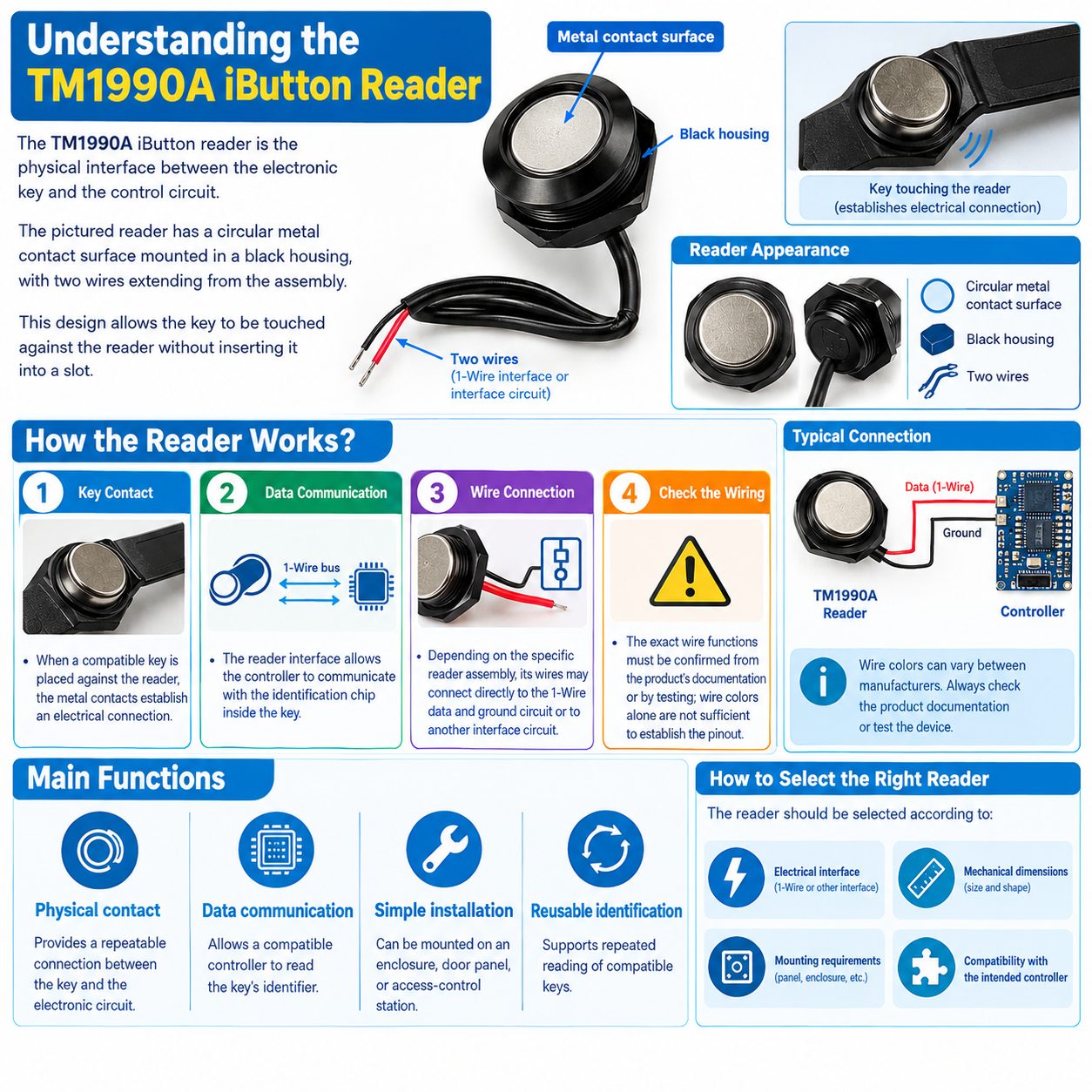

3. Understanding the TM1990A iButton Reader
- The reader is the physical interface between the electronic key and the control circuit.
- The pictured reader has a circular metal contact surface mounted in a black housing, with two wires extending from the assembly.
- This design allows the key to be touched against the reader without inserting it into a slot.

How the Reader Works?
- When a compatible key is placed against the reader, the metal contacts establish an electrical connection.
- The reader interface allows the controller to communicate with the identification chip inside the key.
- Depending on the specific reader assembly, its wires may connect directly to the 1-Wire data and ground circuit or to another interface circuit.
- The exact wire functions must be confirmed from the product’s documentation or by testing; wire colors alone are not sufficient to establish the pinout.
Main Functions
- Physical contact: Provides a repeatable connection between the key and the electronic circuit.
- Data communication: Allows a compatible controller to read the key’s identifier.
- Simple installation: Can be mounted on an enclosure, door panel, or access-control station.
- Reusable identification: Supports repeated reading of compatible keys.
The reader should be selected according to its electrical interface, mechanical dimensions, mounting requirements, and compatibility with the intended controller.

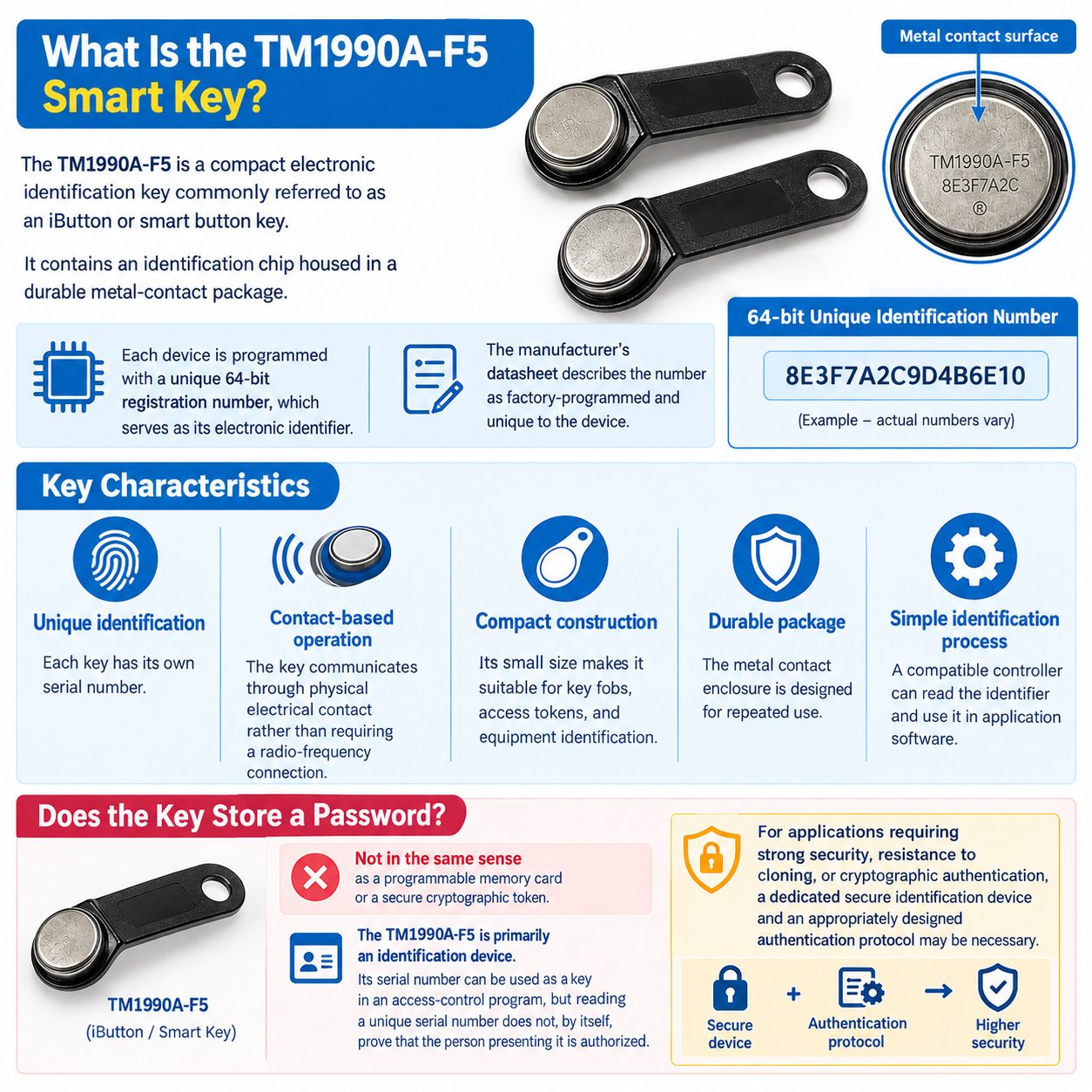

4. What Is the TM1990A-F5 Smart Key?
- The TM1990A-F5 is a compact electronic identification key commonly referred to as an iButton or smart button key.
- It contains an identification chip housed in a durable metal-contact package.
- Each device is programmed with a unique 64-bit registration number, which serves as its electronic identifier.
- The manufacturer’s datasheet describes the number as factory-programmed and unique to the device.

Key Characteristics
- Unique identification: Each key has its own serial number.
- Contact-based operation: The key communicates through physical electrical contact rather than requiring a radio-frequency connection.
- Compact construction: Its small size makes it suitable for key fobs, access tokens, and equipment identification.
- Durable package: The metal contact enclosure is designed for repeated use.
- Simple identification process: A compatible controller can read the identifier and use it in application software.
Does the Key Store a Password?
- Not in the same sense as a programmable memory card or a secure cryptographic token.
- The TM1990A-F5 is primarily an identification device.
- Its serial number can be used as a key in an access-control program, but reading a unique serial number does not, by itself, prove that the person presenting it is authorized.
- For applications requiring strong security, resistance to cloning, or cryptographic authentication, a dedicated secure identification device and an appropriately designed authentication protocol may be necessary.

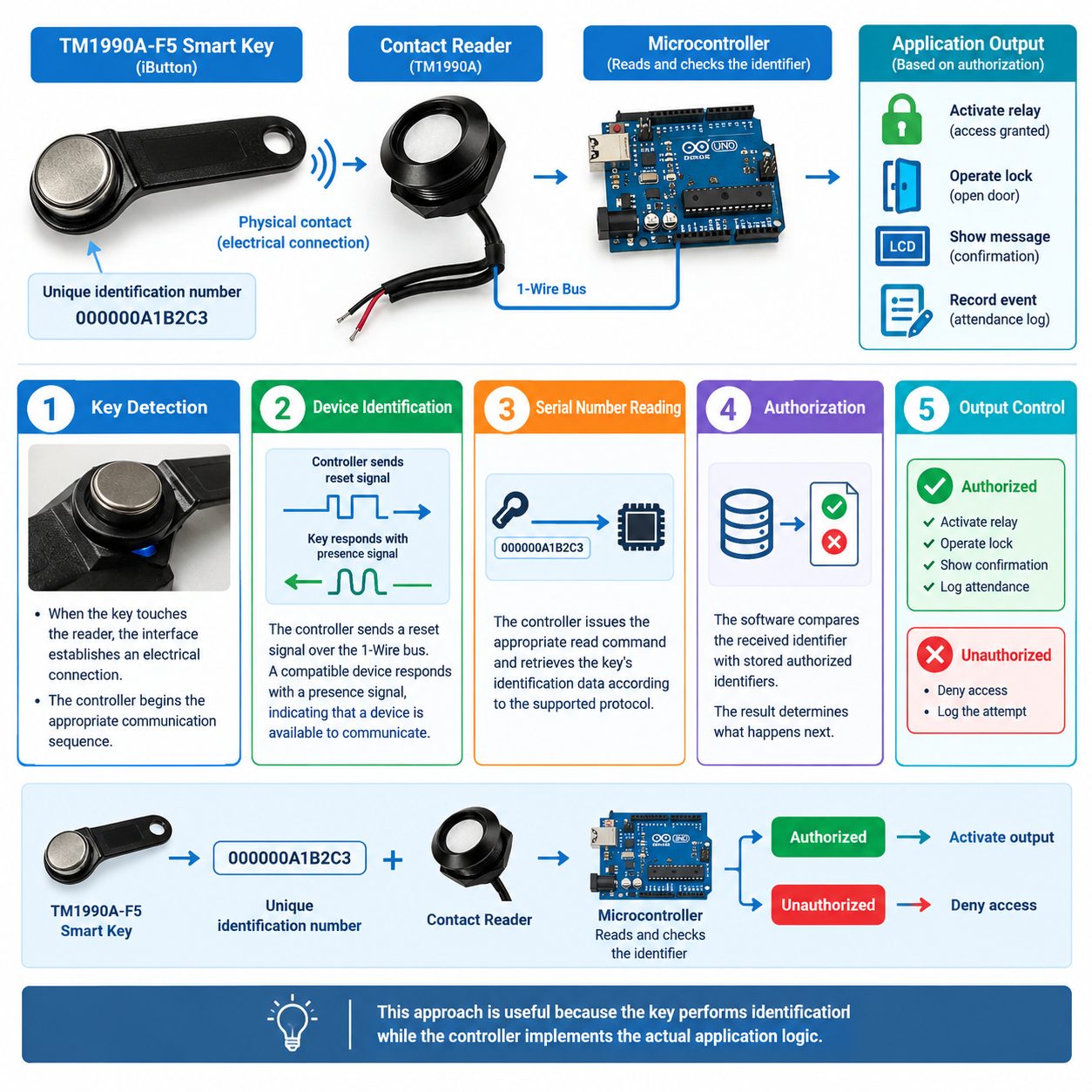

5. How the iButton Identification System Works?
The system uses physical contact to establish communication between the key and the reader.
The controller then reads and processes the key’s identifier.

Step 1: Key Detection
- When the key touches the reader, the interface establishes an electrical connection.
- The controller begins the appropriate communication sequence.
Step 2: Device Identification
The controller sends a reset signal over the 1-Wire bus. A compatible device responds with a presence signal, indicating that a device is available to communicate.
Step 3: Serial Number Reading
The controller issues the appropriate read command and retrieves the key’s identification data according to the supported protocol.
Step 4: Authorization
- The software compares the received identifier with stored authorized identifiers.
- The result determines what happens next.
Step 5: Output Control
If the identifier is authorized, the controller may activate a relay, operate a low-voltage lock, display a confirmation message, or record an attendance event.
If the identifier is not authorized, the software can deny access and optionally log the attempt.
The overall process can be represented as:
- TM1990A-F5 Smart Key
- Unique identification number
- Contact Reader
- Electrical connection
- Microcontroller
- Reads and checks the identifier
- Authorized
- Activate output
- Unauthorized
- Deny access
This approach is useful because the key performs identification while the controller implements the actual application logic.

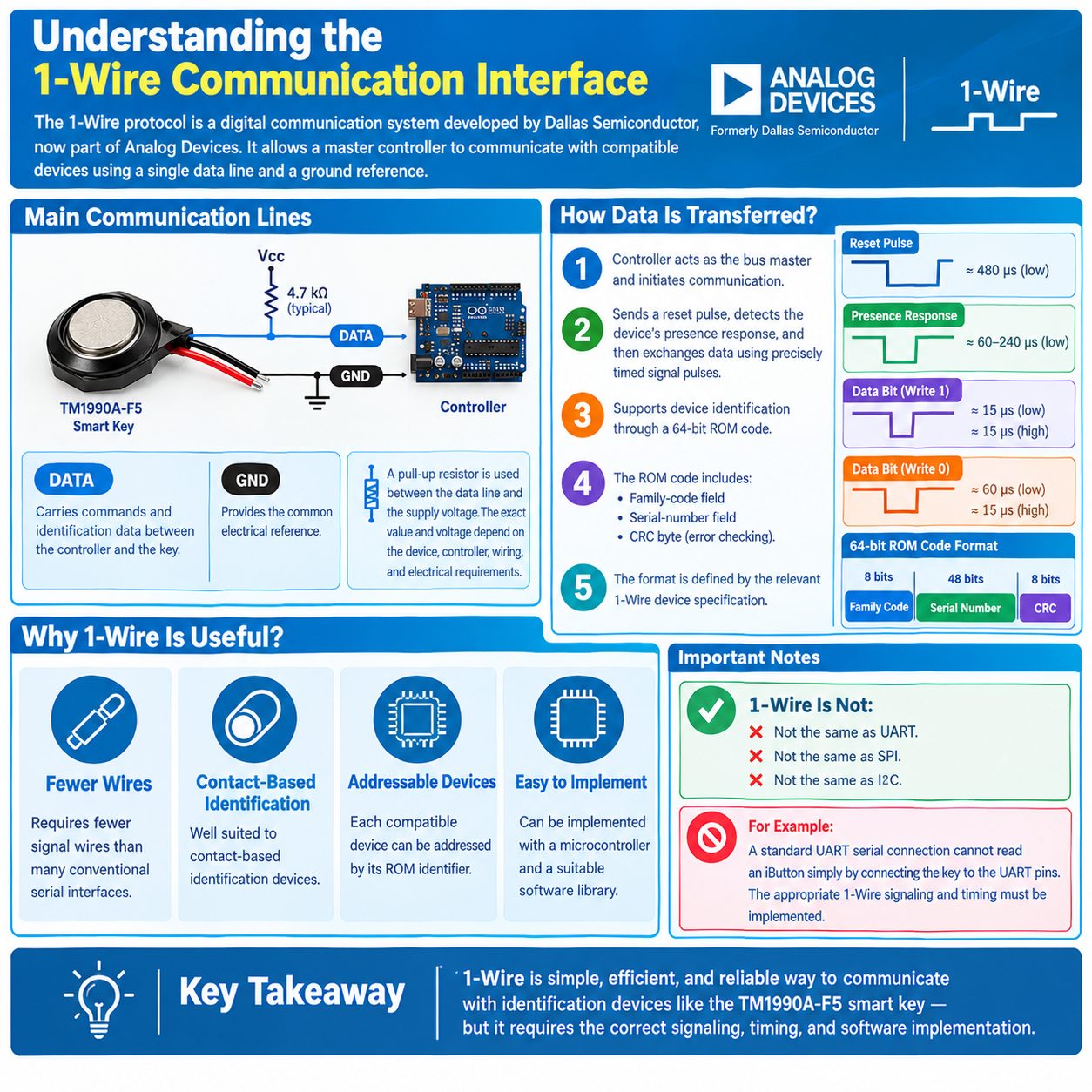

6. Understanding the 1-Wire Communication Interface
The 1-Wire protocol is a digital communication system developed by Dallas Semiconductor, now part of Analog Devices.
It allows a master controller to communicate with compatible devices using a single data line and a ground reference.

Main Communication Lines
A basic 1-Wire connection uses two electrical connections:
- DATA: Carries commands and identification data between the controller and the key.
- GND: Provides the common electrical reference.
A 1-Wire circuit typically uses a pull-up resistor between the data line and the appropriate supply voltage.
The exact value and voltage depend on the device, controller, wiring, and electrical requirements.
How Data Is Transferred?
- The controller acts as the bus master and initiates communication.
- It sends a reset pulse, detects the device’s presence response, and then exchanges data using precisely timed signal pulses.
- The protocol supports device identification through a 64-bit ROM code.
- This includes a family-code field, a serial-number field, and a CRC byte used for error checking.
- The format is defined by the relevant 1-Wire device specification.
Why 1-Wire Is Useful?
- It requires fewer signal wires than many conventional serial interfaces.
- It is well suited to contact-based identification devices.
- Each compatible device can be addressed by its ROM identifier.
- It can be implemented with a microcontroller and a suitable software library.
However:
- 1-Wire is not the same as UART, SPI, or I²C.
- A standard UART serial connection cannot read an iButton simply by connecting the key to the UART pins; the appropriate 1-Wire signaling and timing must be implemented.

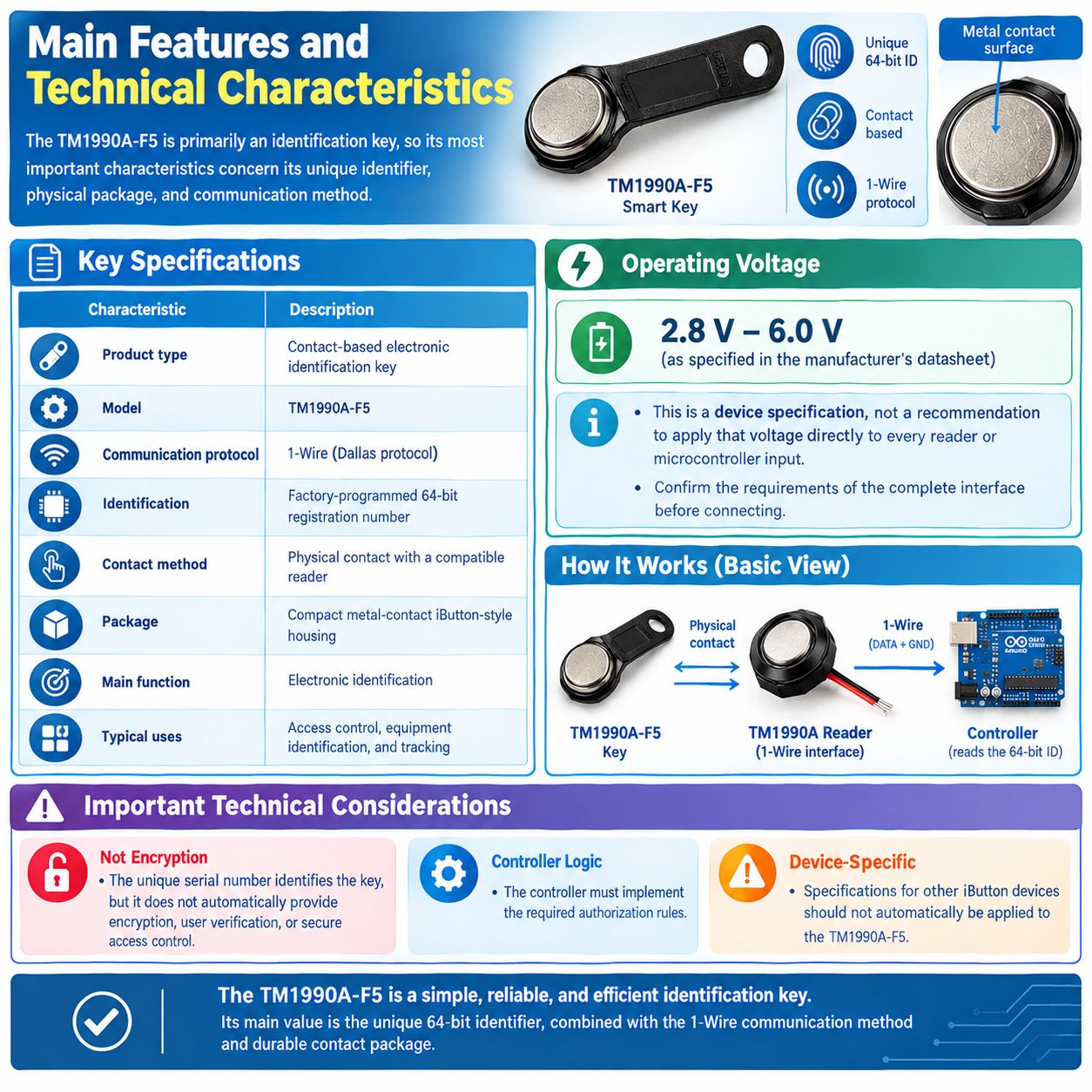

7. Main Features and Technical Characteristics
The TM1990A-F5 is primarily an identification key, so its most important characteristics concern its unique identifier, physical package, and communication method.

|
Characteristic |
Description |
|---|---|
| Product type | Contact-based electronic identification key |
| Model | TM1990A-F5 |
| Communication protocol | 1-Wire (Dallas protocol) |
| Identification | Factory-programmed 64-bit registration number |
| Contact method | Physical contact with a compatible reader |
| Package | Compact metal-contact iButton-style housing |
| Main function | Electronic identification |
| Typical uses | Access control, equipment identification, and tracking |
- The manufacturer’s datasheet specifies an operating range of 2.8 V to 6.0 V for the TM1990A-F5.
- This is a device specification, not a recommendation to apply that voltage directly to every reader or microcontroller input.
- Confirm the requirements of the complete interface before connecting it.
Important Technical Considerations
- The unique serial number identifies the key, but it does not automatically provide encryption, user verification, or secure access control.
- The controller must implement the required authorization rules.
- Also, specifications for other iButton devices should not automatically be applied to the TM1990A-F5.
- Some iButtons contain memory, clocks, sensors, or cryptographic functions, while this model is intended primarily for serial-number identification.
8. TM1990A Reader vs. TM1990A-F5 Smart Key
Although these products work together, they perform different functions.
|
Feature |
TM1990A iButton Reader |
TM1990A-F5 Smart Key |
|---|---|---|
| Main role | Provides the contact interface | Provides the identifier |
| Contains identification data | Not its primary function | Yes |
| Physical contact | Receives the key | Touches the reader |
| Connection to controller | Depends on reader wiring and interface | Communicates through a compatible reader |
| Reusable | Yes | Yes |
| Used independently | Requires a compatible key and controller for identification | Requires a compatible reader and controller to be read |
The reader is the interface, while the smart key is the item being identified.
For a complete project, verify that the reader supports the TM1990A-F5 and that its output is electrically compatible with the selected controller.
A two-wire contact probe should not automatically be assumed to contain a protocol converter or a powered reader circuit.

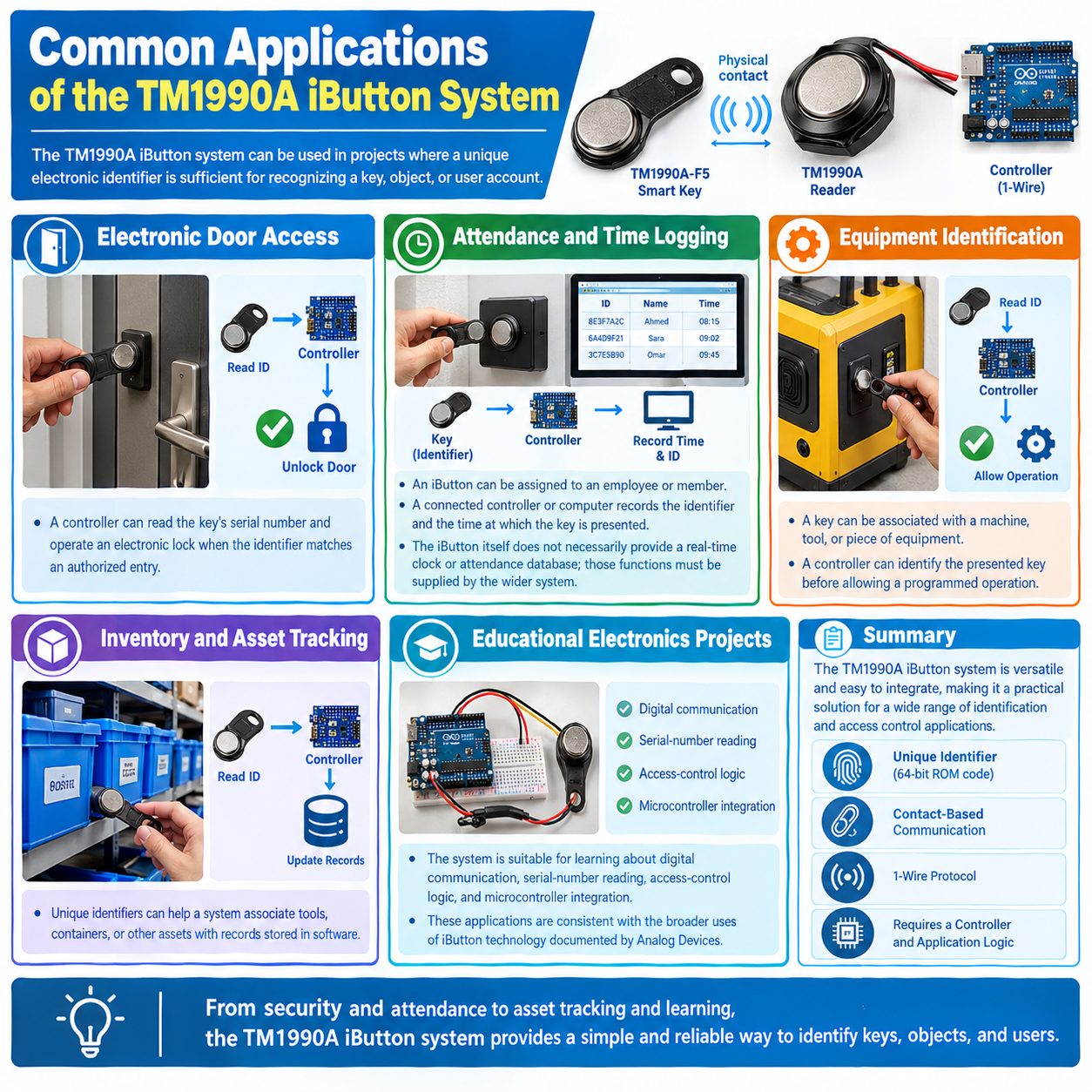

9. Common Applications
The TM1990A iButton system can be used in projects where a unique electronic identifier is sufficient for recognizing a key, object, or user account.

Electronic Door Access
A controller can read the key’s serial number and operate an electronic lock when the identifier matches an authorized entry.
Attendance and Time Logging
- An iButton can be assigned to an employee or member.
- A connected controller or computer records the identifier and the time at which the key is presented.
- The iButton itself does not necessarily provide a real-time clock or attendance database; those functions must be supplied by the wider system.
Equipment Identification
A key can be associated with a machine, tool, or piece of equipment. A controller can identify the presented key before allowing a programmed operation.
Inventory and Asset Tracking
Unique identifiers can help a system associate tools, containers, or other assets with records stored in software.
Educational Electronics Projects
- The system is suitable for learning about digital communication, serial-number reading, access-control logic, and microcontroller integration.
- These applications are consistent with the broader uses of iButton technology documented by Analog Devices.

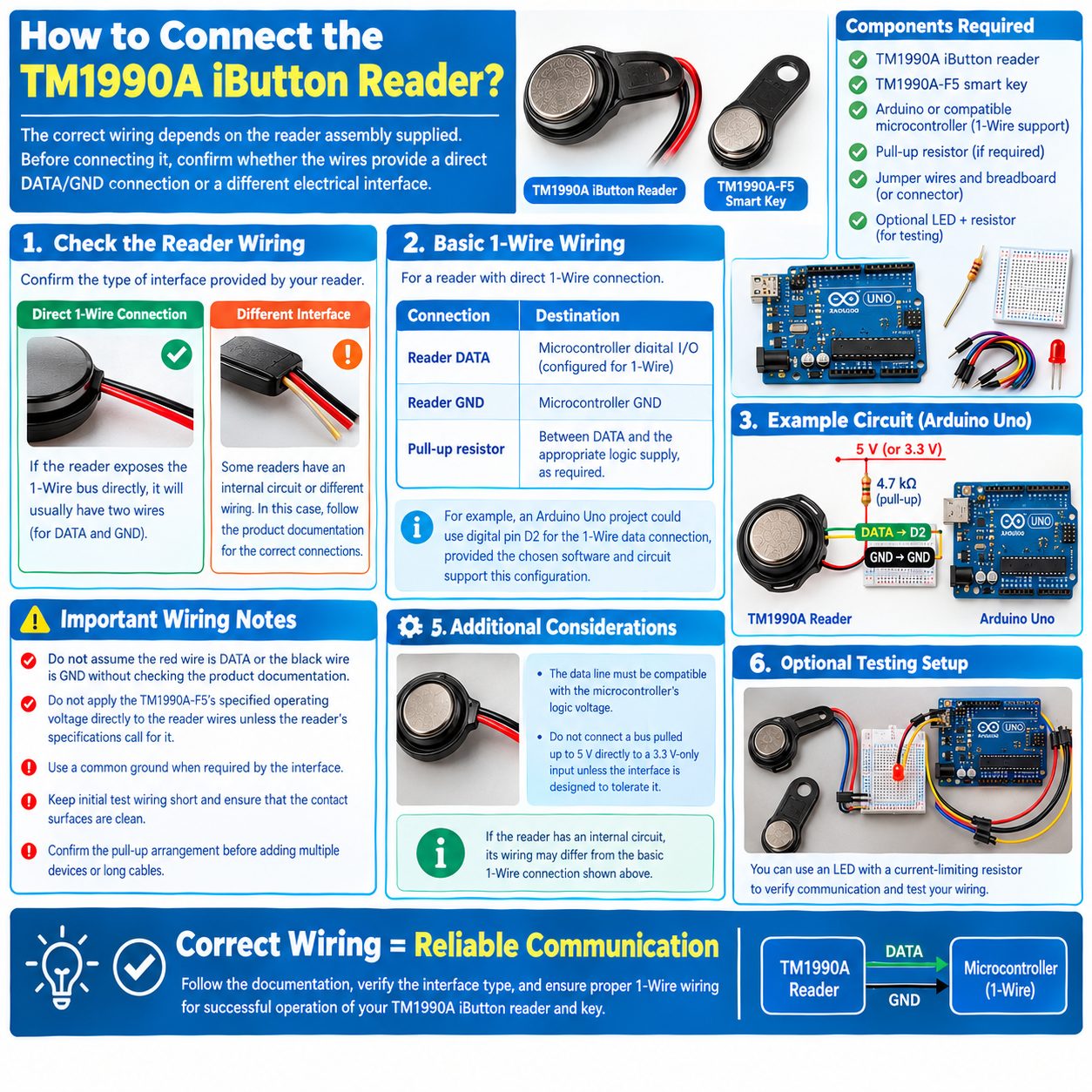

10. How to Connect the TM1990A iButton Reader?
The correct wiring depends on the reader assembly supplied. Before connecting it, confirm whether the wires provide a direct DATA/GND connection or a different electrical interface.

Components Required
For a basic microcontroller project, you may need:
- TM1990A iButton reader
- Compatible TM1990A-F5 smart key
- Arduino or another microcontroller with suitable 1-Wire support
- Pull-up resistor, if required by the circuit
- Jumper wires and a breadboard or suitable connector
- Optional LED and current-limiting resistor for testing
Basic 1-Wire Wiring
For a reader confirmed to expose the direct 1-Wire bus:
|
Connection |
Destination |
|---|---|
| Reader DATA | Microcontroller digital I/O configured for 1-Wire |
| Reader GND | Microcontroller GND |
| Pull-up resistor | Between DATA and the appropriate logic supply, as required |
- For example, an Arduino Uno project could use digital pin D2 for the 1-Wire data connection, provided the chosen software and circuit support this configuration.
- The data line must be compatible with the microcontroller’s logic voltage.
- Do not connect a bus pulled up to 5 V directly to a 3.3 V-only input unless the interface is designed to tolerate it.
Important Wiring Notes
- Do not assume the red wire is DATA or the black wire is GND without checking the product documentation.
- Do not apply the TM1990A-F5’s specified operating voltage directly to the reader wires unless the reader’s specifications call for it.
- Use a common ground when required by the interface.
- Keep initial test wiring short and ensure that the contact surfaces are clean.
- Confirm the pull-up arrangement before adding multiple devices or long cables.
If the reader has an internal circuit, its wiring may differ from the basic 1-Wire connection shown above.

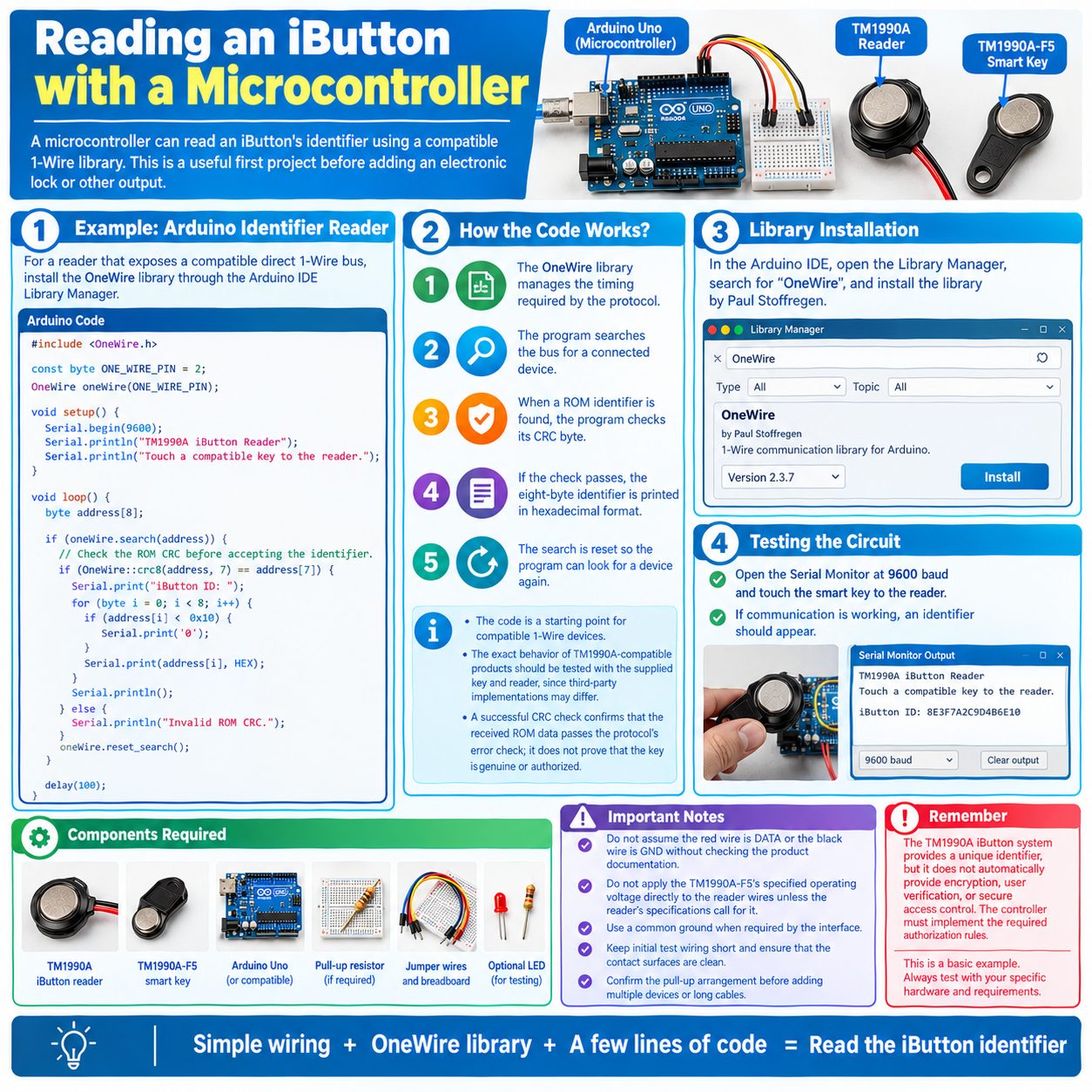

11. Reading an iButton with a Microcontroller
A microcontroller can read an iButton’s identifier using a compatible 1-Wire library. This is a useful first project before adding an electronic lock or other output.

Example: Arduino Identifier Reader
For a reader that exposes a compatible direct 1-Wire bus, install the OneWire library through the Arduino IDE Library Manager.
The following example searches for a device and prints its ROM identifier to the Serial Monitor.
#include <OneWire.h>
const byte ONE_WIRE_PIN = 2;
OneWire oneWire(ONE_WIRE_PIN);
void setup() {
Serial.begin(9600);
Serial.println("TM1990A iButton Reader");
Serial.println("Touch a compatible key to the reader.");
}
void loop() {
byte address[8];
if (oneWire.search(address)) {
// Check the ROM CRC before accepting the identifier.
if (OneWire::crc8(address, 7) == address[7]) {
Serial.print("iButton ID: ");
for (byte i = 0; i < 8; i++) {
if (address[i] < 0x10) {
Serial.print('0');
}
Serial.print(address[i], HEX);
}
Serial.println();
} else {
Serial.println("Invalid ROM CRC.");
}
// Prepare to search again.
oneWire.reset_search();
}
delay(100);
}
How the Code Works?
- The OneWire library manages the timing required by the protocol.
- The program searches the bus for a connected device.
- When a ROM identifier is found, the program checks its CRC byte.
- If the check passes, the eight-byte identifier is printed in hexadecimal format.
- The search is reset so the program can look for a device again.
The code is a starting point for compatible 1-Wire devices.
The exact behavior of TM1990A-compatible products should be tested with the supplied key and reader, since third-party implementations may differ.
A successful CRC check confirms that the received ROM data passes the protocol’s error check; it does not prove that the key is genuine or authorized.
Testing the Circuit
- Open the Serial Monitor at 9600 baud and touch the smart key to the reader. If communication is working, an identifier should appear.
- If no identifier appears, check the wiring, pull-up resistor, ground connection, library installation, and compatibility of the reader interface before proceeding.
12. Integrating the iButton System into Access Control
Once the controller can read the key’s identifier, the next step is to implement authorization logic.
Basic Authorization Logic
A simple access-control program can compare the detected identifier against a list of approved keys.

For example:
- If the identifier matches an authorized key, activate an output for a defined period.
- If the identifier does not match, keep the output inactive.
- If no key is present, continue waiting for a new identification attempt.
Controlling an Electronic Lock
- A microcontroller output should not normally drive a lock directly.
- Instead, use a properly rated relay module, MOSFET driver, or other suitable interface.
- For an inductive load such as a DC solenoid, provide appropriate transient suppression, such as a flyback diode where suitable for the load and switching arrangement.
- The lock’s current and voltage requirements must be supported by the driver and power supply.
- Separate load power may be necessary, with grounding and isolation arranged according to the circuit design.
Security Considerations
- A serial-number-only identification system should not be treated as strong authentication.
- An identifier can potentially be copied or emulated, and a CRC is an error-detection mechanism rather than a security feature.
- For a cabinet or low-risk hobby project, serial-number matching may be adequate.
- For a door controlling valuable equipment, sensitive areas, or critical infrastructure, use a system designed for the required threat level, potentially including cryptographic credentials, secure controllers, logging, and additional authentication factors.
13. Advantages and Limitations
Understanding both the benefits and limitations of the TM1990A iButton system helps determine whether it is appropriate for a particular project.
Advantages
- Simple identification: Each key provides a unique identifier that software can read.
- Minimal wiring: The 1-Wire protocol uses a single data line and a ground reference.
- Durable construction: The metal-contact package is designed for repeated physical contact.
- Easy microcontroller integration: Compatible interfaces and software libraries simplify prototyping.
- Reusable keys: The same key can be presented repeatedly for identification.
- Flexible applications: The identifier can be associated with users, tools, equipment, or access permissions.
Limitations
- Requires physical contact: The key must touch a compatible reader.
- Limited built-in functionality: The TM1990A-F5 is primarily an identification device, not a general-purpose memory card.
- Security limitations: A unique serial number alone does not provide cryptographic authentication.
- Reader compatibility matters: Different reader assemblies may have different wiring and interface requirements.
- System-level development is necessary: Access permissions, records, output control, and user management must be implemented separately.
The most important consideration is that a convenient identification method is not automatically a secure authentication system.
14. Installation and Troubleshooting Tips
Correct installation and systematic testing can prevent many common problems.
The Key Is Not Detected
- Check that the key touches both contact surfaces correctly.
- Inspect the reader for dirt, loose wires, or damaged contacts.
- Confirm that the circuit uses a compatible 1-Wire interface and the correct pull-up arrangement.
The Reader Produces No Data
- Verify the wiring against the reader’s documentation.
- Check that DATA and GND are connected correctly, the controller is using the intended digital pin, and the software library supports the interface.
The Identifier Fails the CRC Check
- A failed CRC may indicate communication errors, poor contact, electrical interference, incorrect timing, or incompatible device behavior.
- Recheck the wiring and repeat the test with short cables.
The System Rejects an Authorized Key
- Confirm that the identifier stored in the authorization list matches the identifier actually read from the key.
- Ensure that the software uses a consistent hexadecimal format and byte order.
The Lock Does Not Operate
Test the authorization logic separately from the lock driver. Verify the controller output, driver circuit, power supply, relay contacts, and lock current requirements.
The System Works Intermittently
- Improve the mechanical stability of the reader, check the pull-up resistor and wiring, and reduce cable length during initial testing.
- If the installation uses long cables or an electrically noisy environment, additional interface design may be required.
15. Frequently Asked Questions
What is the TM1990A iButton Reader used for?
- It provides a contact interface for reading a compatible iButton identification key.
- A connected controller can use the resulting identifier for access control, equipment identification, or logging.
What is the TM1990A-F5 Smart Key?
It is a contact-based electronic identification key containing a factory-programmed 64-bit registration number.
Does the TM1990A-F5 use RFID?
No. It communicates through physical electrical contact using the 1-Wire protocol rather than using a contactless radio-frequency interface.
Can I connect the reader directly to an Arduino?
Yes, if the particular reader exposes a compatible 1-Wire interface and the electrical requirements are met.
Confirm its pinout, logic voltage, and pull-up arrangement first.
Does the TM1990A-F5 store a user’s name or password?
- Its primary function is to provide an identifier.
- User names, permissions, and other account details can be stored in the controller’s software or an associated database.
Can the TM1990A system control an electronic door lock?
Yes. A compatible controller can read the identifier, check authorization, and activate a suitable lock driver.
The reader and key alone do not operate the lock.
Is the TM1990A-F5 secure enough for high-security access control?
- A serial-number-only key should not be considered a strong security credential because the identifier does not provide cryptographic authentication.
- Higher-security applications should use an appropriately designed secure authentication system.
What should I do if the key is not detected?
Check the physical contact, reader wiring, DATA and GND connections, pull-up resistor, software configuration, and compatibility of the reader and key.
Can multiple iButtons use the same 1-Wire bus?
- The 1-Wire protocol supports multiple compatible devices on a shared bus, provided the electrical design and software support them.
- Each device can be identified by its ROM code.
16. Conclusion
The TM1990A iButton Reader and TM1990A-F5 Smart Key provide a practical starting point for contact-based electronic identification.
The key supplies a unique serial number, the reader establishes the contact interface, and a compatible controller processes the identifier to perform a programmed action.
For hobbyists and engineers, this system offers a straightforward way to explore 1-Wire communication, microcontroller programming, access-control logic, attendance logging, and equipment identification.
Successful integration depends on verifying the reader’s electrical interface, implementing reliable communication, and designing the surrounding control circuit correctly.
For applications where security is important, it is equally essential to understand that serial-number identification alone does not provide strong protection against credential copying or emulation.
نظام الدخول باستخدام iButton TM1990A: القارئ الذكي ومفتاح التعريف الإلكتروني
قائمة المحتويات
- مقدمة
- ما نظام الدخول باستخدام iButton TM1990A؟
- التعرّف على قارئ iButton TM1990A
- ما مفتاح التعريف الذكي TM1990A-F5؟
- كيف يعمل نظام التعريف باستخدام iButton؟
- فهم واجهة الاتصال 1-Wire
- الميزات الرئيسية والخصائص التقنية
- مقارنة بين قارئ TM1990A ومفتاح TM1990A-F5
- التطبيقات الشائعة
- كيفية توصيل قارئ iButton TM1990A
- قراءة مفتاح iButton باستخدام متحكم دقيق
- دمج نظام iButton في أنظمة التحكم في الدخول
- المزايا والقيود
- نصائح التركيب واستكشاف الأعطال وإصلاحها
- الأسئلة الشائعة
- الخاتمة
مدة القراءة: 20 دقيقة
1. مقدمة
تُستخدم أنظمة التعريف الإلكتروني على نطاق واسع في التحكم في الدخول، وتتبع المعدات، وتسجيل الحضور والانصراف، والعديد من التطبيقات الأمنية.
يُعد نظام التعريف الإلكتروني iButton أحد الحلول العملية لهذه الاستخدامات. فهو يعتمد على مفتاح إلكتروني صغير ومتين يتواصل مع قارئ متوافق عن طريق التلامس الكهربائي المباشر.
يوفر قارئ iButton TM1990A ومفتاح التعريف الذكي TM1990A-F5 وسيلة بسيطة للتعرّف على المفتاح أو المستخدم من خلال رقم تعريف رقمي.

على عكس بطاقات RFID التقليدية التي تعمل دون تلامس، تتم قراءة هذا النوع من المفاتيح عندما تلامس نقاطه المعدنية قارئًا متوافقًا.
يمكن دمج النظام مع المشروعات القائمة على المتحكمات الدقيقة وأجهزة التحكم الإلكتروني في الدخول. ويتيح ذلك للمتحكم قراءة رقم التعريف واتخاذ القرار المناسب، مثل تشغيل قفل إلكتروني، أو فتح باب، أو تسجيل الحضور، أو تنفيذ إجراء آخر تحدده البرمجة.
يشرح هذا المقال آلية عمل نظام iButton TM1990A، وواجهة الاتصال المستخدمة فيه، واعتبارات التوصيل، والتطبيقات، والمزايا والقيود. وهو موجّه إلى المبتدئين والهواة والمهندسين الراغبين في فهم هذه التقنية واستخدامها بطريقة صحيحة في المشروعات الإلكترونية العملية.
2. ما نظام الدخول باستخدام iButton TM1990A؟
يتكوّن نظام الدخول باستخدام iButton TM1990A من عنصرين رئيسيين: قارئ للتلامس ومفتاح إلكتروني للتعريف.
هو واجهة التلامس المستخدمة للتواصل مع مفتاح إلكتروني متوافق.
مفتاح التعريف الذكي TM1990A-F5
- جهاز تعريف صغير يحتوي على رقم تسلسلي فريد مبرمج في المصنع.
- تصف وثائق الشركة المصنّعة جهاز TM1990A-F5 بأنه وحدة iButton مخصّصة للتعريف باستخدام الرقم التسلسلي، وتتواصل عبر بروتوكول 1-Wire.
- تتمثل وظيفته الأساسية في التعريف الإلكتروني، وليس تخزين بيانات المستخدم العشوائية أو تنفيذ عمليات مصادقة تشفيرية متقدمة.
- عند ملامسة المفتاح للقارئ، يستطيع النظام الإلكتروني قراءة رقم التعريف الخاص به.
- يمكن للمتحكم المتصل بالنظام مقارنة الرقم المقروء بقائمة أرقام التعريف المصرح لها بالدخول.

على سبيل المثال، يمكن أن يعمل نظام التحكم في الدخول وفق التسلسل التالي:
- يلامس المستخدم المفتاح بالقارئ.
- توفر واجهة القارئ التلامس الكهربائي اللازم لإجراء الاتصال.
- يقرأ المتحكم الرقم التسلسلي للمفتاح.
- يتحقق البرنامج مما إذا كان الرقم مسموحًا له بالدخول.
- يسمح المتحكم بالدخول أو يرفضه بناءً على نتيجة التحقق.
من المهم التمييز بين قارئ المفتاح ونظام التحكم في الدخول المتكامل؛ فالقارئ والمفتاح وحدهما لا يوفّران بالضرورة نظامًا كاملًا للتحكم في الدخول.
غالبًا ما تكون هناك حاجة إلى متحكم، وبرنامج مناسب، ودائرة خرج ملائمة لتشغيل قفل الباب أو أي جهاز آخر يراد التحكم فيه.
3. التعرّف على قارئ iButton TM1990A
- يمثّل القارئ الواجهة المادية التي تربط المفتاح الإلكتروني بدائرة التحكم.
- يظهر القارئ في الصورة بسطح تلامس معدني دائري مثبت داخل هيكل أسود، مع سلكين ممتدين من مجموعة القارئ.
- يسمح هذا التصميم بملامسة المفتاح للقارئ مباشرة دون الحاجة إلى إدخاله في فتحة.

كيف يعمل القارئ؟
- عند وضع مفتاح متوافق على القارئ، تتلامس الأسطح المعدنية لتكوين اتصال كهربائي.
- تتيح واجهة القارئ للمتحكم التواصل مع شريحة التعريف الموجودة داخل المفتاح.
- بحسب تصميم مجموعة القارئ، قد تتصل أسلاكه مباشرة بخط البيانات وخط الأرضي الخاصين بواجهة 1-Wire، أو بدائرة واجهة أخرى.
- يجب التأكد من وظائف الأسلاك بالرجوع إلى وثائق المنتج أو إجراء الاختبارات المناسبة؛ إذ لا يكفي الاعتماد على ألوان الأسلاك وحدها لتحديد أطراف التوصيل.
الوظائف الرئيسية
- التلامس المادي: يوفر اتصالًا متكررًا وموثوقًا بين المفتاح والدائرة الإلكترونية.
- الاتصال ونقل البيانات: يتيح للمتحكم المتوافق قراءة رقم تعريف المفتاح.
- سهولة التركيب: يمكن تثبيته على هيكل إلكتروني أو لوحة باب أو وحدة للتحكم في الدخول.
- إعادة استخدام المفتاح: يدعم قراءة المفاتيح المتوافقة بصورة متكررة.
ينبغي اختيار القارئ بناءً على واجهته الكهربائية، وأبعاده الميكانيكية، ومتطلبات التثبيت، ومدى توافقه مع المتحكم المراد استخدامه.
4. ما مفتاح التعريف الذكي TM1990A-F5؟
- يُعد TM1990A-F5 مفتاح تعريف إلكترونيًا صغيرًا يُعرف عادةً باسم iButton أو المفتاح الذكي ذي الزر المعدني.
- يحتوي على شريحة إلكترونية للتعريف داخل غلاف متين مزوّد بسطح تلامس معدني.
- يحتوي كل جهاز على رقم تسجيل فريد بطول 64 بت، يُستخدم معرّفًا إلكترونيًا له.
- توضح ورقة بيانات الشركة المصنّعة أن هذا الرقم يُبرمج في المصنع ويكون فريدًا لكل جهاز.

الخصائص الرئيسية للمفتاح
- التعريف الفريد: يمتلك كل مفتاح رقمًا تسلسليًا خاصًا به.
- التشغيل بالتلامس: يتواصل المفتاح عبر التلامس الكهربائي المباشر، ولا يحتاج إلى اتصال لاسلكي بالترددات الراديوية.
- التصميم المدمج: يجعله حجمه الصغير مناسبًا لسلاسل المفاتيح الإلكترونية، ورموز الدخول، وتعريف المعدات.
- الغلاف المتين: صُمّم الغلاف المعدني لتحمّل الاستخدام المتكرر.
- سهولة التعريف: يستطيع المتحكم المتوافق قراءة رقم التعريف واستخدامه داخل برنامج التطبيق.
هل يخزّن المفتاح كلمة مرور؟
- ليس بالمعنى نفسه المستخدم في بطاقات الذاكرة القابلة للبرمجة أو رموز المصادقة التشفيرية الآمنة.
- يُستخدم TM1990A-F5 أساسًا للتعريف الإلكتروني.
- يمكن استخدام رقمه التسلسلي في برنامج للتحكم في الدخول، لكن قراءة رقم تسلسلي فريد لا تثبت بحد ذاتها أن الشخص الذي يقدّمه مخوّل بالدخول.
- في التطبيقات التي تتطلب مستوى أمان مرتفعًا، ومقاومة للاستنساخ، ومصادقة تشفيرية، قد تكون هناك حاجة إلى جهاز تعريف آمن مخصص وبروتوكول مصادقة مصمم بصورة مناسبة.
5. كيف يعمل نظام التعريف باستخدام iButton؟
يعتمد النظام على التلامس الكهربائي المباشر لإنشاء اتصال بين المفتاح والقارئ، ثم يتولى المتحكم قراءة رقم تعريف المفتاح ومعالجة البيانات المستقبلة.

الخطوة الأولى: اكتشاف المفتاح
- عندما يلامس المفتاح القارئ، تنشأ وصلة كهربائية بينهما.
- يبدأ المتحكم تسلسل الاتصال المناسب للتواصل مع المفتاح.
الخطوة الثانية: اكتشاف الجهاز والتعرّف عليه
يرسل المتحكم إشارة إعادة ضبط (Reset) عبر ناقل الاتصال 1-Wire. يستجيب الجهاز المتوافق بإشارة حضور (Presence)، تشير إلى وجود جهاز جاهز للتواصل.
الخطوة الثالثة: قراءة الرقم التسلسلي
يرسل المتحكم أمر القراءة المناسب، ثم يستقبل بيانات تعريف المفتاح وفقًا للأوامر وبروتوكول الاتصال المدعومين.
الخطوة الرابعة: التحقق من صلاحية الدخول
- يقارن البرنامج رقم التعريف المستقبَل بأرقام التعريف المخزّنة للمفاتيح المصرح لها.
- تحدد نتيجة المقارنة الإجراء الذي سينفذه النظام بعد ذلك.
الخطوة الخامسة: التحكم في المخرجات
إذا كان رقم التعريف مصرحًا له، فيمكن للمتحكم تشغيل مرحّل كهربائي (Relay)، أو التحكم في قفل يعمل بجهد منخفض، أو عرض رسالة تأكيد، أو تسجيل عملية حضور وانصراف.
أما إذا كان رقم التعريف غير مصرح له، فيمكن للبرنامج رفض الدخول، مع إمكانية تسجيل محاولة الدخول في سجل الأحداث.
يمكن توضيح تسلسل العمل الكامل على النحو التالي:
- مفتاح التعريف الذكي TM1990A-F5.
- رقم تعريف فريد.
- قارئ التلامس.
- اتصال كهربائي.
- متحكم دقيق.
- قراءة رقم التعريف والتحقق منه.
- إذا كان المفتاح مصرحًا له: تشغيل المخرج المطلوب.
- إذا لم يكن المفتاح مصرحًا له: رفض الدخول.
تتميز هذه الآلية بفصل وظيفة التعريف عن وظيفة التحكم؛ إذ يوفّر المفتاح هويته الرقمية، بينما يتولى المتحكم تنفيذ منطق التطبيق واتخاذ القرارات المناسبة.
6. فهم واجهة الاتصال 1-Wire
بروتوكول 1-Wire هو نظام اتصال رقمي طوّرته شركة Dallas Semiconductor، التي أصبحت جزءًا من شركة Analog Devices. ويتيح هذا البروتوكول للمتحكم الرئيسي التواصل مع الأجهزة المتوافقة باستخدام خط بيانات واحد، بالإضافة إلى خط مرجعي للأرضي (GND).

خطوط الاتصال الرئيسية
يستخدم التوصيل الأساسي لبروتوكول 1-Wire اتصالين كهربائيين:
- DATA (البيانات): ينقل أوامر الاتصال وبيانات التعريف بين المتحكم والمفتاح.
- GND (الأرضي): يوفر مرجعًا كهربائيًا مشتركًا للدائرة.
تستخدم دائرة 1-Wire عادةً مقاومة سحب لأعلى (Pull-up Resistor) بين خط البيانات وجهد التغذية المناسب.
تعتمد قيمة هذه المقاومة وجهد التغذية على مواصفات الجهاز والمتحكم وطول الأسلاك ومتطلبات الدائرة الكهربائية؛ لذلك يجب الرجوع إلى وثائق المكونات المستخدمة قبل تحديد القيم النهائية.
كيف تنتقل البيانات؟
- يعمل المتحكم بوصفه الجهاز الرئيسي للناقل (Bus Master)، وهو الذي يبدأ عملية الاتصال.
- يرسل المتحكم نبضة إعادة ضبط، ثم يتحقق من استجابة حضور الجهاز، وبعد ذلك يتبادل البيانات باستخدام نبضات كهربائية ذات توقيت محدد بدقة.
- يدعم البروتوكول التعرّف على الأجهزة من خلال رمز ROM بطول 64 بت.
- يتضمن هذا الرمز حقلًا يحدد عائلة الجهاز، وحقلًا للرقم التسلسلي، وبايتًا للتحقق من سلامة البيانات باستخدام فحص التكرار الدوري (CRC).
- يُحدَّد تنسيق البيانات وفقًا للمواصفات ذات الصلة بجهاز 1-Wire المستخدم.
لماذا يُعد بروتوكول 1-Wire مفيدًا؟
- يحتاج إلى عدد أقل من أسلاك الإشارة مقارنةً بالعديد من واجهات الاتصال التسلسلي التقليدية.
- يناسب أجهزة التعريف التي تعمل بالتلامس الكهربائي، مثل مفاتيح iButton.
- يمكن تحديد كل جهاز متوافق والتعرّف عليه باستخدام معرّف ROM الخاص به.
- يمكن تنفيذه باستخدام متحكم دقيق ومكتبة برمجية تدعم البروتوكول.
ومع ذلك، يجب الانتباه إلى ما يلي:
- يختلف بروتوكول 1-Wire عن بروتوكولات UART وSPI وI²C، ولا يمكن التعامل معها على أنها بروتوكول واحد.
- لا يستطيع اتصال UART تقليدي قراءة مفتاح iButton بمجرد توصيله بأطراف UART؛ إذ يجب تنفيذ إشارات 1-Wire وتوقيتها بالطريقة الصحيحة، باستخدام برنامج أو واجهة مناسبة.
7. الميزات الرئيسية والخصائص التقنية
يُستخدم TM1990A-F5 بصورة أساسية للتعريف الإلكتروني؛ لذلك تتمثل أهم خصائصه في رقم التعريف الفريد، والغلاف المادي، وطريقة الاتصال.

| الخاصية | الوصف |
|---|---|
| نوع المنتج | مفتاح تعريف إلكتروني يعمل بالتلامس |
| رقم الطراز | TM1990A-F5 |
| بروتوكول الاتصال | 1-Wire (بروتوكول Dallas) |
| التعريف | رقم تسجيل بطول 64 بت مبرمج في المصنع |
| طريقة التلامس | تلامس مادي مع قارئ متوافق |
| الغلاف | هيكل مدمج بأسلوب iButton مزوّد بسطح تلامس معدني |
| الوظيفة الرئيسية | التعريف الإلكتروني |
| الاستخدامات الشائعة | التحكم في الدخول، والتعرّف على المعدات، والتتبع |
- تحدد ورقة بيانات الشركة المصنّعة نطاق جهد التشغيل لجهاز TM1990A-F5 من 2.8 إلى 6.0 فولت.
- هذا النطاق خاص بمواصفات الجهاز نفسه، ولا يعني أنه يمكن تطبيق الجهد ذاته مباشرةً على كل قارئ أو مدخل متحكم دقيق.
- يجب التحقق من متطلبات واجهة التوصيل كاملةً قبل ربط المكونات ببعضها.
اعتبارات تقنية مهمة
- يتيح الرقم التسلسلي الفريد التعرّف على المفتاح، لكنه لا يوفر تلقائيًا التشفير أو التحقق من هوية المستخدم أو الحماية الكاملة لنظام الدخول.
- يجب أن يتولى المتحكم تنفيذ قواعد التحقق من صلاحية الدخول وتحديد الإجراءات المسموح بها.
- لا ينبغي تطبيق مواصفات أجهزة iButton الأخرى على TM1990A-F5 دون التحقق من تطابقها معه.
- تحتوي بعض أجهزة iButton على ذاكرة أو ساعات أو مستشعرات أو وظائف تشفيرية، بينما يركز هذا الطراز بصورة أساسية على التعريف باستخدام الرقم التسلسلي.
8. مقارنة بين قارئ TM1990A ومفتاح التعريف الذكي TM1990A-F5
على الرغم من أن هذين المنتجين يعملان معًا ضمن نظام التعريف الإلكتروني، فإن لكل منهما وظيفة مختلفة.
| وجه المقارنة | قارئ iButton TM1990A | مفتاح التعريف الذكي TM1990A-F5 |
|---|---|---|
| الوظيفة الرئيسية | يوفر واجهة التلامس اللازمة للاتصال | يوفر رقم التعريف الخاص بالمفتاح |
| احتواء بيانات التعريف | ليس هذا هو الغرض الأساسي منه | نعم، يحتوي على رقم تعريف فريد |
| التلامس المادي | يستقبل المفتاح عند ملامسته | يلامس القارئ لإتمام الاتصال |
| الاتصال بالمتحكم | يعتمد على توصيلات القارئ وواجهة الاتصال المستخدمة | يتواصل عبر قارئ متوافق |
| إمكانية إعادة الاستخدام | نعم | نعم |
| الاستخدام بصورة مستقلة | يحتاج إلى مفتاح متوافق ومتحكم لإتمام عملية التعريف | يحتاج إلى قارئ متوافق ومتحكم لقراءة رقم التعريف ومعالجته |
باختصار، يعمل القارئ بوصفه واجهة الاتصال، بينما يمثّل المفتاح العنصر الذي يراد التعرّف عليه.
عند تصميم مشروع متكامل، تأكد من أن القارئ يدعم المفتاح TM1990A-F5، وأن الإشارة الصادرة من واجهة القارئ متوافقة كهربائيًا مع المتحكم المستخدم.
كذلك، لا ينبغي افتراض أن مجس التلامس ذي السلكين يحتوي بالضرورة على محوّل بروتوكول أو دائرة قارئ إلكترونية مزوّدة بالطاقة؛ إذ يعتمد ذلك على التصميم الفعلي للمنتج.
9. التطبيقات الشائعة
يمكن استخدام نظام iButton TM1990A في المشروعات التي يكفي فيها وجود معرّف إلكتروني فريد للتعرّف على مفتاح أو عنصر أو حساب مستخدم.

التحكم الإلكتروني في دخول الأبواب
يمكن للمتحكم قراءة الرقم التسلسلي للمفتاح وتشغيل القفل الإلكتروني عندما يتطابق رقم التعريف مع أحد الأرقام المسجّلة ضمن قائمة المفاتيح المصرح لها بالدخول.
تسجيل الحضور والانصراف والوقت
- يمكن تخصيص مفتاح iButton لموظف أو عضو في مؤسسة.
- يسجّل المتحكم أو الكمبيوتر المتصل بالنظام رقم التعريف والوقت الذي قُدّم فيه المفتاح إلى القارئ.
- لا يحتوي مفتاح iButton بالضرورة على ساعة لحساب الوقت الفعلي أو قاعدة بيانات للحضور والانصراف؛ إذ يجب توفير هذه الوظائف ضمن النظام الإلكتروني المتكامل.
التعرّف على المعدات
يمكن ربط مفتاح معين بآلة أو أداة أو قطعة من المعدات. وبعد قراءة المفتاح، يستطيع المتحكم التعرّف عليه قبل السماح بتنفيذ عملية محددة وفقًا للبرنامج.
إدارة المخزون وتتبع الأصول
تساعد أرقام التعريف الفريدة النظام على ربط الأدوات أو الحاويات أو غيرها من الأصول بسجلات محفوظة في برنامج مخصص للإدارة والتتبع.
المشروعات التعليمية في الإلكترونيات
- يُعد النظام مناسبًا للتعلّم العملي لمفاهيم الاتصال الرقمي، وقراءة الأرقام التسلسلية، وبرمجة منطق التحكم في الدخول، ودمج أجهزة التعريف مع المتحكمات الدقيقة.
- تتوافق هذه الاستخدامات مع التطبيقات الأوسع لتقنية iButton الموثقة لدى شركة Analog Devices.
10. كيفية توصيل قارئ iButton TM1990A؟
تعتمد طريقة التوصيل الصحيحة على نوع مجموعة القارئ المتوفرة لديك. قبل توصيل الأسلاك، تأكد مما إذا كانت توفر اتصالًا مباشرًا بخطّي البيانات والأرضي (DATA/GND)، أم تستخدم واجهة كهربائية مختلفة.

المكونات المطلوبة
لإنشاء مشروع أساسي باستخدام متحكم دقيق، قد تحتاج إلى المكونات التالية:
- قارئ iButton TM1990A.
- مفتاح التعريف الذكي TM1990A-F5 المتوافق.
- لوحة Arduino أو متحكم دقيق آخر يدعم بروتوكول 1-Wire باستخدام واجهة مناسبة أو مكتبة برمجية متوافقة.
- مقاومة سحب لأعلى (Pull-up Resistor)، إذا كانت الدائرة تتطلب ذلك.
- أسلاك توصيل ولوحة تجارب (Breadboard) أو موصل مناسب.
- مصباح LED اختياري مع مقاومة تحديد التيار لاختبار المخرجات.
التوصيل الأساسي لبروتوكول 1-Wire
إذا تأكدت من أن القارئ يوفّر اتصالًا مباشرًا بناقل 1-Wire، فيمكن تنفيذ التوصيل الأساسي وفق الجدول التالي:
| طرف التوصيل | وجهة التوصيل |
|---|---|
| DATA في القارئ | طرف دخل/خرج رقمي في المتحكم، مُهيّأ للعمل مع بروتوكول 1-Wire |
| GND في القارئ | الأرضي GND للمتحكم |
| مقاومة السحب لأعلى | تُوصّل بين DATA وجهد المنطق المناسب عند الحاجة إليها وفق تصميم الدائرة |
- على سبيل المثال، يمكن استخدام الطرف الرقمي D2 في لوحة Arduino Uno لتوصيل خط بيانات 1-Wire، بشرط أن تدعم الدائرة والبرنامج هذا الإعداد.
- يجب أن يكون جهد خط البيانات متوافقًا مع مستويات المنطق الكهربائي للمتحكم.
- لا توصل خط بيانات مرفوعًا إلى 5 فولت مباشرةً بمدخل لا يتحمل سوى 3.3 فولت، إلا إذا كانت واجهة التوصيل مصممة لتحمّل هذا الجهد.
ملاحظات مهمة عند التوصيل
- لا تفترض أن السلك الأحمر هو DATA أو أن السلك الأسود هو GND دون الرجوع إلى وثائق المنتج والتأكد من وظائف الأسلاك.
- لا تطبّق جهد التشغيل المحدد للمفتاح TM1990A-F5 مباشرةً على أسلاك القارئ ما لم تنص مواصفات القارئ على ذلك.
- استخدم أرضيًا مشتركًا عندما تتطلب واجهة الاتصال ذلك.
- اجعل أسلاك الاختبار الأولي قصيرة، وتأكد من نظافة أسطح التلامس المعدنية.
- تحقق من طريقة توصيل مقاومة السحب لأعلى قبل إضافة عدة أجهزة إلى الناقل أو استخدام كابلات طويلة.
إذا كان القارئ يحتوي على دائرة إلكترونية داخلية، فقد تختلف طريقة توصيله عن التوصيل الأساسي لبروتوكول 1-Wire الموضح أعلاه.
11. قراءة مفتاح iButton باستخدام متحكم دقيق
يمكن للمتحكم الدقيق قراءة رقم تعريف مفتاح iButton باستخدام مكتبة برمجية متوافقة مع بروتوكول 1-Wire. وتُعد هذه الخطوة مشروعًا أوليًا مفيدًا قبل إضافة قفل إلكتروني أو أي جهاز آخر إلى النظام.

مثال عملي: قراءة رقم تعريف المفتاح باستخدام Arduino
إذا كان القارئ يوفر اتصالًا مباشرًا متوافقًا مع بروتوكول 1-Wire، فقم بتثبيت مكتبة OneWire من خلال مدير المكتبات (Library Manager) في بيئة Arduino IDE.
يبحث البرنامج التالي عن جهاز متصل، ثم يعرض معرّف ROM الخاص به في نافذة المراقبة التسلسلية (Serial Monitor).
#include <OneWire.h>
const byte ONE_WIRE_PIN = 2;
OneWire oneWire(ONE_WIRE_PIN);
void setup() {
Serial.begin(9600);
Serial.println("TM1990A iButton Reader");
Serial.println("Touch a compatible key to the reader.");
}
void loop() {
byte address[8];
if (oneWire.search(address)) {
// Check the ROM CRC before accepting the identifier.
if (OneWire::crc8(address, 7) == address[7]) {
Serial.print("iButton ID: ");
for (byte i = 0; i < 8; i++) {
if (address[i] < 0x10) {
Serial.print('0');
}
Serial.print(address[i], HEX);
}
Serial.println();
} else {
Serial.println("Invalid ROM CRC.");
}
// Prepare to search again.
oneWire.reset_search();
}
delay(100);
}
كيف يعمل البرنامج؟
- تتولى مكتبة OneWire إدارة التوقيت الدقيق المطلوب للاتصال وفق البروتوكول.
- يبحث البرنامج عن جهاز متصل بناقل البيانات.
- عند العثور على معرّف ROM، يتحقق البرنامج من بايت فحص CRC.
- إذا اجتاز المعرّف عملية التحقق، يعرض البرنامج البايتات الثمانية المكوّنة له بصيغة النظام الست عشري (Hexadecimal).
- بعد ذلك، يعيد البرنامج تهيئة عملية البحث حتى يتمكن من البحث عن جهاز مرة أخرى.
يمثل هذا الكود نقطة بداية للتعامل مع أجهزة 1-Wire المتوافقة.
يجب اختبار السلوك الفعلي لمنتجات TM1990A المتوافقة باستخدام المفتاح والقارئ المتوفرين، لأن بعض المنتجات المصنّعة من جهات خارجية قد تختلف في طريقة تنفيذ البروتوكول.
نجاح فحص CRC يعني أن بيانات ROM المستقبلة اجتازت اختبار اكتشاف الأخطاء المحدد في البروتوكول، لكنه لا يثبت أن المفتاح أصلي أو أنه مصرح له بالدخول.
اختبار الدائرة
- افتح نافذة Serial Monitor واضبط سرعة الاتصال على 9600 baud، ثم لامس المفتاح الذكي بالقارئ. إذا كان الاتصال يعمل بصورة صحيحة، فمن المفترض أن يظهر رقم التعريف.
- إذا لم يظهر أي رقم، فتحقق من الأسلاك، ومقاومة السحب لأعلى، والتوصيل الأرضي، وتثبيت المكتبة، وتوافق واجهة القارئ قبل الانتقال إلى الخطوات التالية.
12. دمج نظام iButton في أنظمة التحكم في الدخول
بعد التأكد من قدرة المتحكم على قراءة رقم تعريف المفتاح، تأتي الخطوة التالية، وهي برمجة منطق التحقق من صلاحية الدخول.
منطق التحقق الأساسي من صلاحية الدخول
يمكن لبرنامج بسيط للتحكم في الدخول مقارنة رقم التعريف المكتشف بقائمة المفاتيح المعتمدة مسبقًا.

على سبيل المثال:
- إذا تطابق رقم التعريف مع مفتاح معتمد، يشغّل المتحكم أحد المخارج لفترة زمنية محددة.
- إذا لم يتطابق الرقم مع أي مفتاح معتمد، يظل المخرج في حالة عدم التشغيل.
- إذا لم يكن هناك مفتاح على القارئ، يستمر النظام في انتظار محاولة تعريف جديدة.
التحكم في القفل الإلكتروني
- لا ينبغي عادةً توصيل القفل مباشرةً بمخرج المتحكم الدقيق لتشغيله؛ إذ إن تيار القفل ومتطلبات تشغيله قد تتجاوز قدرة هذا المخرج.
- بدلًا من ذلك، استخدم وحدة مرحّل كهربائي (Relay Module) مناسبة، أو دائرة قيادة تعتمد على MOSFET، أو واجهة إلكترونية أخرى مصنفة لتحمّل الحمل.
- عند تشغيل حمل حثّي، مثل ملف قفل يعمل بتيار مستمر، يجب توفير حماية مناسبة من النبضات العابرة الناتجة عن الفصل، مثل دايود الحماية العكسي (Flyback Diode)، عندما يكون ذلك مناسبًا لنوع الحمل وطريقة التبديل.
- يجب أن تكون دائرة القيادة ومصدر التغذية قادرين على توفير الجهد والتيار اللذين يتطلبهما القفل.
- قد يحتاج القفل إلى مصدر تغذية منفصل عن المتحكم، مع تنفيذ التأريض والعزل الكهربائي وفقًا لتصميم الدائرة.
اعتبارات الأمان
- لا ينبغي اعتبار نظام التعريف المعتمد على الرقم التسلسلي وحده وسيلة مصادقة قوية.
- يمكن نظريًا نسخ رقم التعريف أو محاكاة الجهاز الذي يحمله، كما أن فحص CRC مخصص لاكتشاف أخطاء البيانات، وليس لتوفير الحماية الأمنية.
- قد تكون مقارنة الأرقام التسلسلية كافية لمشروع هواة بسيط أو خزانة منخفضة المخاطر، بحسب طبيعة الاستخدام.
- أما الأبواب التي تحمي معدات مرتفعة القيمة أو مناطق حساسة أو بنية تحتية حيوية، فينبغي استخدام نظام مصمم لمواجهة مستوى التهديدات المتوقع، وقد يتطلب ذلك بيانات اعتماد تشفيرية، ومتحكمات آمنة، وتسجيلًا للأحداث، وعوامل مصادقة إضافية.
13. المزايا والقيود
يساعد فهم مزايا نظام iButton TM1990A وقيوده على تحديد مدى ملاءمته للمشروع المراد تنفيذه.
المزايا
- سهولة التعريف: يوفّر كل مفتاح معرّفًا فريدًا يمكن للبرنامج قراءته واستخدامه.
- تقليل عدد الأسلاك: يعتمد بروتوكول 1-Wire على خط بيانات واحد ومرجع كهربائي للأرضي.
- المتانة: صُمّم الغلاف ذو نقاط التلامس المعدنية ليتحمّل الاستخدام المتكرر والملامسة المباشرة.
- سهولة الدمج مع المتحكمات الدقيقة: تساعد واجهات الاتصال المتوافقة والمكتبات البرمجية على تسريع تطوير النماذج الأولية.
- إمكانية إعادة الاستخدام: يمكن استخدام المفتاح نفسه مرات عديدة للتعريف الإلكتروني.
- تنوع التطبيقات: يمكن ربط رقم التعريف بالمستخدمين أو الأدوات أو المعدات أو صلاحيات الدخول.
القيود
- الحاجة إلى التلامس المباشر: يجب أن يلامس المفتاح قارئًا متوافقًا حتى تتم قراءته.
- محدودية الوظائف المدمجة: صُمّم TM1990A-F5 أساسًا للتعريف الإلكتروني، وليس بوصفه بطاقة ذاكرة متعددة الاستخدامات.
- القيود الأمنية: لا يوفر الرقم التسلسلي الفريد وحده مصادقة تشفيرية.
- ضرورة توافق القارئ: قد تختلف التوصيلات والمتطلبات الكهربائية من مجموعة قارئ إلى أخرى.
- الحاجة إلى تطوير النظام المحيط: يجب تنفيذ صلاحيات الدخول والسجلات والتحكم في المخرجات وإدارة المستخدمين بصورة مستقلة.
أهم نقطة يجب تذكّرها هي أن سهولة التعريف الإلكتروني لا تعني بالضرورة أن النظام يوفر مصادقة آمنة.
14. نصائح التركيب واستكشاف الأعطال وإصلاحها
يساعد التركيب الصحيح واتباع خطوات اختبار منظمة على تجنّب العديد من المشكلات الشائعة.
عدم اكتشاف المفتاح
- تأكد من أن المفتاح يلامس أسطح التلامس المعدنية بصورة صحيحة.
- افحص القارئ للتأكد من عدم وجود أوساخ أو أسلاك مفكوكة أو نقاط تلامس تالفة.
- تحقق من استخدام واجهة 1-Wire متوافقة ومن تنفيذ توصيل مقاومة السحب لأعلى بالطريقة الصحيحة.
القارئ لا يرسل أي بيانات
- راجع مخطط التوصيل في وثائق القارئ وتأكد من مطابقة الأسلاك له.
- تحقق من توصيل DATA وGND بصورة صحيحة، ومن استخدام الطرف الرقمي المحدد في البرنامج، ومن أن المكتبة البرمجية تدعم واجهة الاتصال المستخدمة.
فشل التحقق من CRC لرقم التعريف
- قد يشير فشل فحص CRC إلى أخطاء في الاتصال، أو ضعف التلامس، أو التداخل الكهربائي، أو عدم دقة التوقيت، أو اختلاف طريقة تنفيذ البروتوكول في الجهاز المستخدم.
- أعد فحص التوصيلات، ثم كرر الاختبار باستخدام أسلاك قصيرة.
النظام يرفض مفتاحًا مصرحًا له
- تأكد من أن رقم التعريف المخزّن في قائمة الصلاحيات يطابق الرقم الذي قرأه النظام فعليًا من المفتاح.
- تحقق من أن البرنامج يستخدم تنسيقًا موحدًا للأرقام الست عشرية (Hexadecimal) وترتيبًا ثابتًا للبايتات.
القفل لا يعمل
اختبر منطق التحقق من صلاحية الدخول بصورة مستقلة عن دائرة قيادة القفل. ثم افحص إشارة خرج المتحكم، ودائرة القيادة، ومصدر التغذية، وملامسات المرحّل الكهربائي، ومتطلبات التيار الخاصة بالقفل.
النظام يعمل بصورة متقطعة
- حسّن ثبات القارئ ميكانيكيًا، وافحص مقاومة السحب لأعلى والتوصيلات، وقلّل طول الأسلاك أثناء الاختبارات الأولية.
- إذا كان التركيب يستخدم كابلات طويلة أو يعمل في بيئة مليئة بالتشويش الكهربائي، فقد تحتاج إلى تصميم واجهة اتصال إضافية لتحسين موثوقية النظام.
15. الأسئلة الشائعة
ما استخدام قارئ iButton TM1990A؟
- يوفر واجهة تلامس لقراءة مفتاح تعريف iButton متوافق.
- يمكن للمتحكم المتصل به استخدام رقم التعريف الناتج في التحكم في الدخول أو التعرّف على المعدات أو تسجيل الأحداث.
ما مفتاح التعريف الذكي TM1990A-F5؟
هو مفتاح تعريف إلكتروني يعمل بالتلامس، ويحتوي على رقم تسجيل بطول 64 بت مبرمج في المصنع.
هل يستخدم TM1990A-F5 تقنية RFID؟
لا. يعتمد على التلامس الكهربائي المباشر وبروتوكول 1-Wire، وليس على الاتصال اللاسلكي بالترددات الراديوية المستخدم في أنظمة RFID التي تعمل دون تلامس.
هل يمكن توصيل القارئ مباشرةً بلوحة Arduino؟
نعم، بشرط أن توفر مجموعة القارئ المستخدمة واجهة 1-Wire متوافقة، وأن تتم مراعاة جميع المتطلبات الكهربائية.
يجب التأكد أولًا من توزيع أطراف التوصيل، وجهد المنطق، وطريقة توصيل مقاومة السحب لأعلى.
هل يخزّن TM1990A-F5 اسم المستخدم أو كلمة المرور؟
- تتمثل وظيفته الأساسية في توفير معرّف إلكتروني.
- يمكن تخزين أسماء المستخدمين وصلاحياتهم وبيانات حساباتهم الأخرى في برنامج المتحكم أو في قاعدة بيانات مرتبطة بالنظام.
هل يمكن استخدام نظام TM1990A للتحكم في قفل باب إلكتروني؟
نعم. يستطيع المتحكم المتوافق قراءة رقم التعريف والتحقق من صلاحية الدخول، ثم تشغيل دائرة قيادة مناسبة للقفل.
لكن القارئ والمفتاح وحدهما لا يشغّلان القفل؛ إذ يتطلب ذلك متحكمًا وبرنامجًا ودائرة خرج مناسبة.
هل يوفر TM1990A-F5 مستوى أمان كافيًا للتحكم عالي الأمان في الدخول؟
- لا ينبغي اعتبار المفتاح الذي يعتمد على الرقم التسلسلي وحده وسيلة أمان قوية، لأن هذا الرقم لا يوفر مصادقة تشفيرية.
- ينبغي استخدام نظام مصادقة آمن مصمم وفق متطلبات الحماية في التطبيقات التي تتطلب مستوى أمان مرتفعًا.
ماذا أفعل إذا لم يتم اكتشاف المفتاح؟
افحص التلامس المادي، وتوصيلات القارئ، وخطّي DATA وGND، ومقاومة السحب لأعلى، وإعدادات البرنامج، ومدى توافق القارئ والمفتاح.
هل يمكن توصيل عدة مفاتيح iButton على ناقل 1-Wire واحد؟
- يدعم بروتوكول 1-Wire توصيل عدة أجهزة متوافقة على ناقل مشترك، بشرط أن يسمح التصميم الكهربائي والبرنامج بذلك.
- يمكن التعرّف على كل جهاز باستخدام رمز ROM الخاص به.
16. الخاتمة
يوفر قارئ iButton TM1990A ومفتاح التعريف الذكي TM1990A-F5 نقطة بداية عملية لتطبيقات التعريف الإلكتروني التي تعتمد على التلامس المباشر.
يقدّم المفتاح رقمًا تسلسليًا فريدًا، ويوفر القارئ واجهة التلامس اللازمة للاتصال، بينما يتولى المتحكم المتوافق معالجة رقم التعريف وتنفيذ الإجراء المحدد في البرنامج.
يتيح هذا النظام للهواة والمهندسين فرصة عملية لفهم بروتوكول 1-Wire، وبرمجة المتحكمات الدقيقة، ومنطق التحكم في الدخول، وتسجيل الحضور والانصراف، والتعرّف على المعدات.
يعتمد نجاح دمج النظام على التحقق من الواجهة الكهربائية للقارئ، وضمان موثوقية الاتصال، وتصميم دائرة التحكم المحيطة بصورة صحيحة.
وفي التطبيقات التي تتطلب مستوى أمان مرتفعًا، من الضروري إدراك أن التعريف باستخدام الرقم التسلسلي وحده لا يوفر حماية قوية ضد نسخ بيانات المفتاح أو محاكاته.







Leave a comment
You must be logged in to post a comment.
