1. Introduction to EEPROM

Electronic systems often need to store important information even when their power supply is disconnected. Examples include device configuration settings, calibration values, identification numbers, and operating parameters.

EEPROM is a type of nonvolatile memory designed to store data electrically and retain it without continuous power. It is widely used in embedded systems, consumer electronics, industrial equipment, and microcontroller-based projects.

Understanding EEPROM helps electronics engineers, students, and hobbyists select the appropriate memory technology for applications that require reliable storage of small amounts of data.

This article explains what EEPROM is, how it works, its main types, communication interfaces, technical specifications, advantages, limitations, and practical applications.

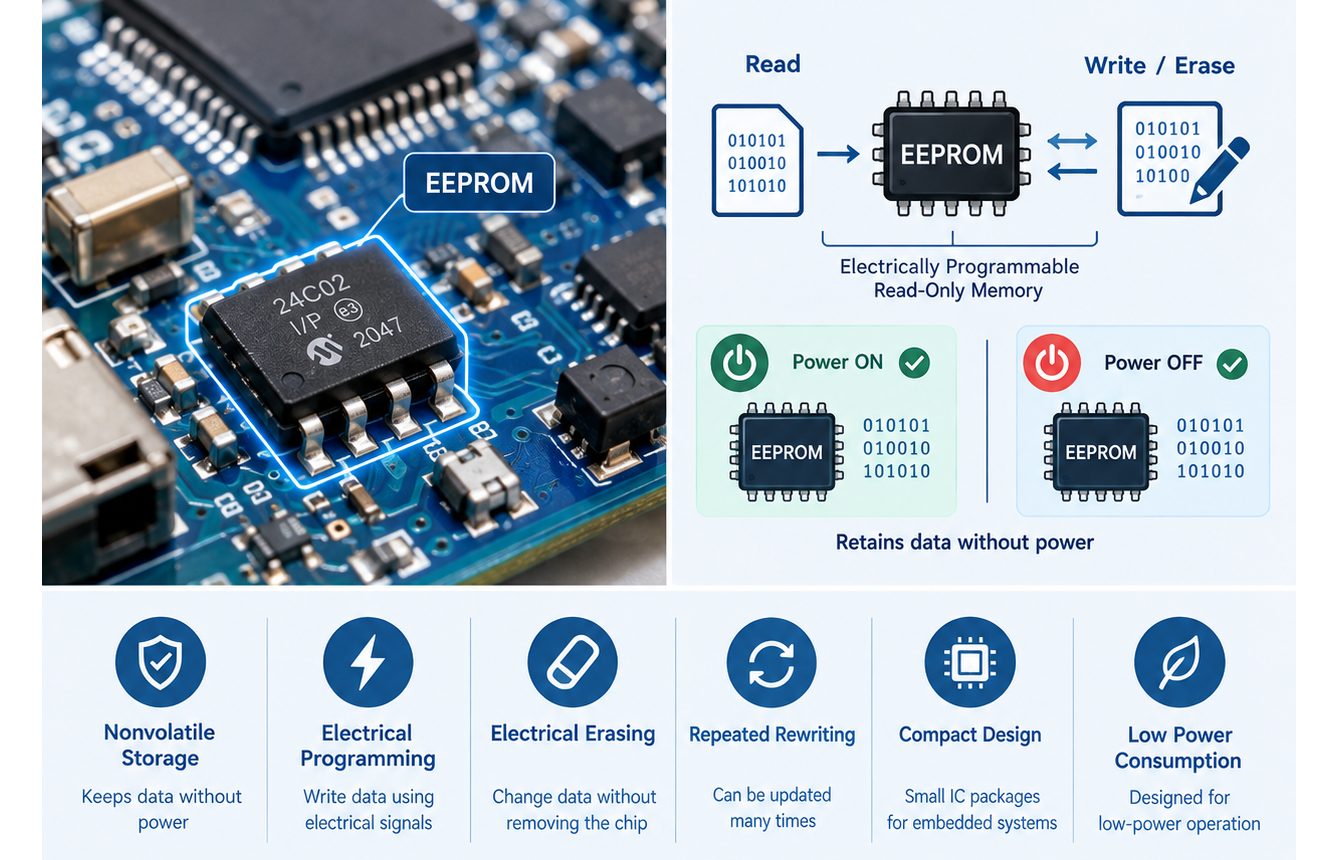

2. What Is EEPROM?

EEPROM stands for Electrically Erasable Programmable Read-Only Memory.

It is a nonvolatile semiconductor memory that allows stored information to be read, electrically modified, and erased without removing the memory chip from its circuit.

Unlike volatile memory, EEPROM retains its stored information when the power supply is turned off.

Key Characteristics of EEPROM

EEPROM is particularly useful when a system needs to preserve a relatively small amount of information that may change during normal operation.

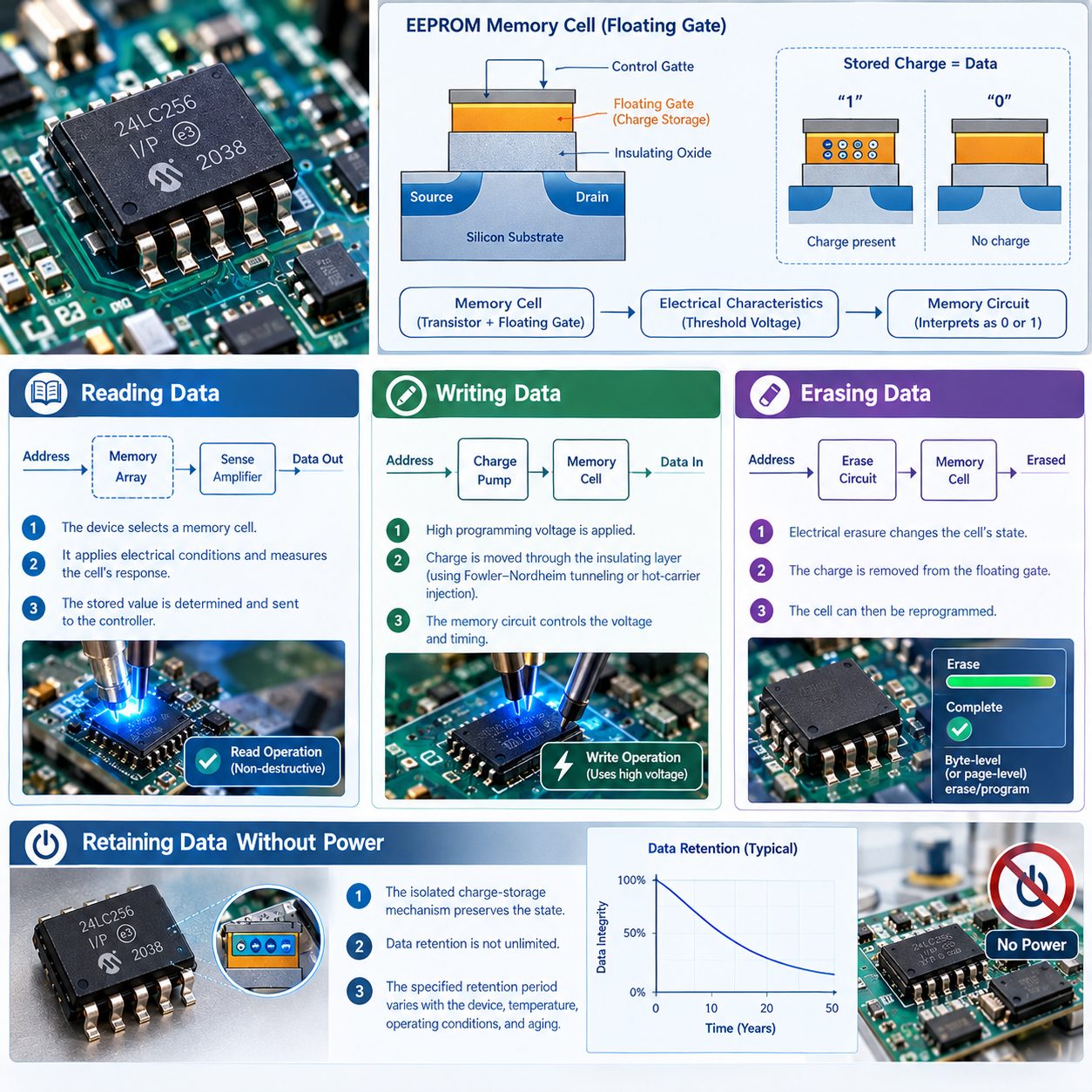

3. How Does EEPROM Work?

• EEPROM stores information in semiconductor memory cells.
• In traditional EEPROM technology, these cells use transistors with an electrically isolated charge-storage region, commonly called a floating gate.
• The presence or absence of stored electrical charge affects the transistor’s electrical characteristics.
• The memory circuit interprets these characteristics as binary data.

Reading Data

• During a read operation, the memory circuit applies suitable electrical conditions to a selected memory cell and measures its response.
• The device determines the stored binary value and makes the information available to the controller.
• Reading data is generally faster than writing it and does not normally consume the same write-endurance allowance as programming operations.

Writing Data

• During a write operation, the memory device uses electrical programming mechanisms to change the state of the selected memory cell.
• In traditional floating-gate EEPROM technology, this involves moving electrical charge through an insulating layer using mechanisms such as Fowler–Nordheim tunneling or hot-carrier injection, depending on the design.
• The required programming voltage and timing are managed according to the memory device’s internal circuitry and specifications.

Erasing Data

• Erasing changes the stored state of a memory cell so that new information can be programmed.
• EEPROM supports electrical erasure and rewriting. Unlike conventional Flash memory, standard EEPROM commonly supports modification at byte-level granularity, although some devices use different programming organizations.

Retaining Data Without Power

• When power is removed, the isolated charge-storage mechanism allows the memory cell to preserve its state.
• Data retention is not unlimited.
• Stored information can eventually become unreliable, and the specified retention period depends on the memory device, operating conditions, temperature, and aging.

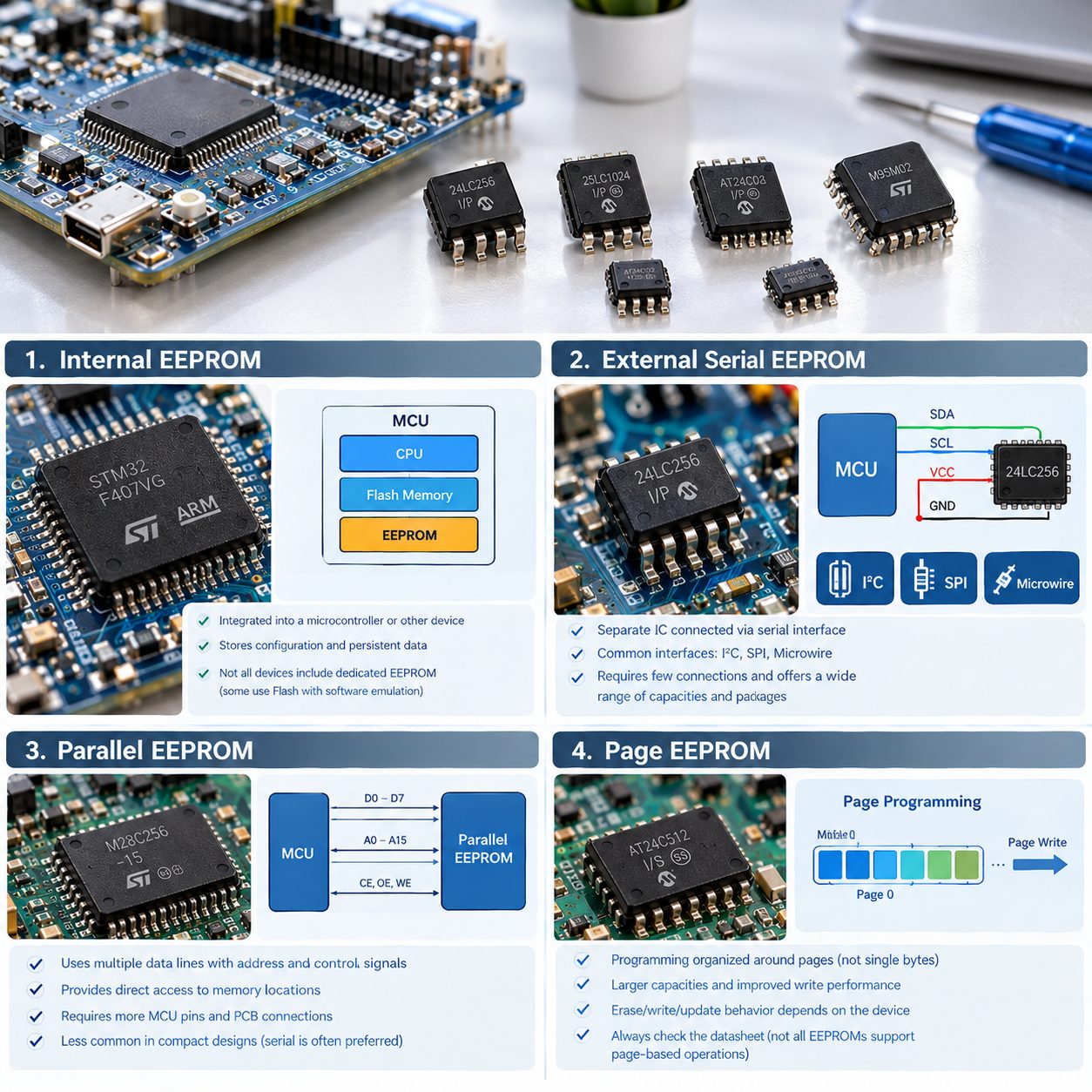

4. Main Types of EEPROM

EEPROM devices can be classified according to their physical integration and communication method.

Internal EEPROM

• Internal EEPROM is integrated into a microcontroller or another semiconductor device.
• It allows the system to store configuration parameters and other persistent data without necessarily adding a separate memory chip.
• However, not every microcontroller includes dedicated EEPROM. Some devices use Flash memory with software-based EEPROM emulation instead.

External Serial EEPROM

• External serial EEPROM is a separate integrated circuit connected to a microcontroller through a serial communication interface.
• Common interfaces include I²C, SPI, and Microwire.
• Serial EEPROM is widely used because it requires relatively few connections and is available in a broad range of memory capacities and packages.

Parallel EEPROM

• Parallel EEPROM transfers data using multiple data lines alongside address and control signals.
• This interface can provide direct access to memory locations but generally requires more microcontroller pins and PCB connections than serial EEPROM.
• Parallel EEPROM is less common in many modern compact embedded designs, where serial interfaces are often preferred.

Page EEPROM

• Some newer EEPROM-family devices organize programming operations around pages rather than individual bytes.
• Page-based devices can provide larger memory capacities and improved write performance, but their erase, write, and update behavior depends on the particular memory architecture.
• Always consult the datasheet because not every device marketed as EEPROM supports identical programming operations.

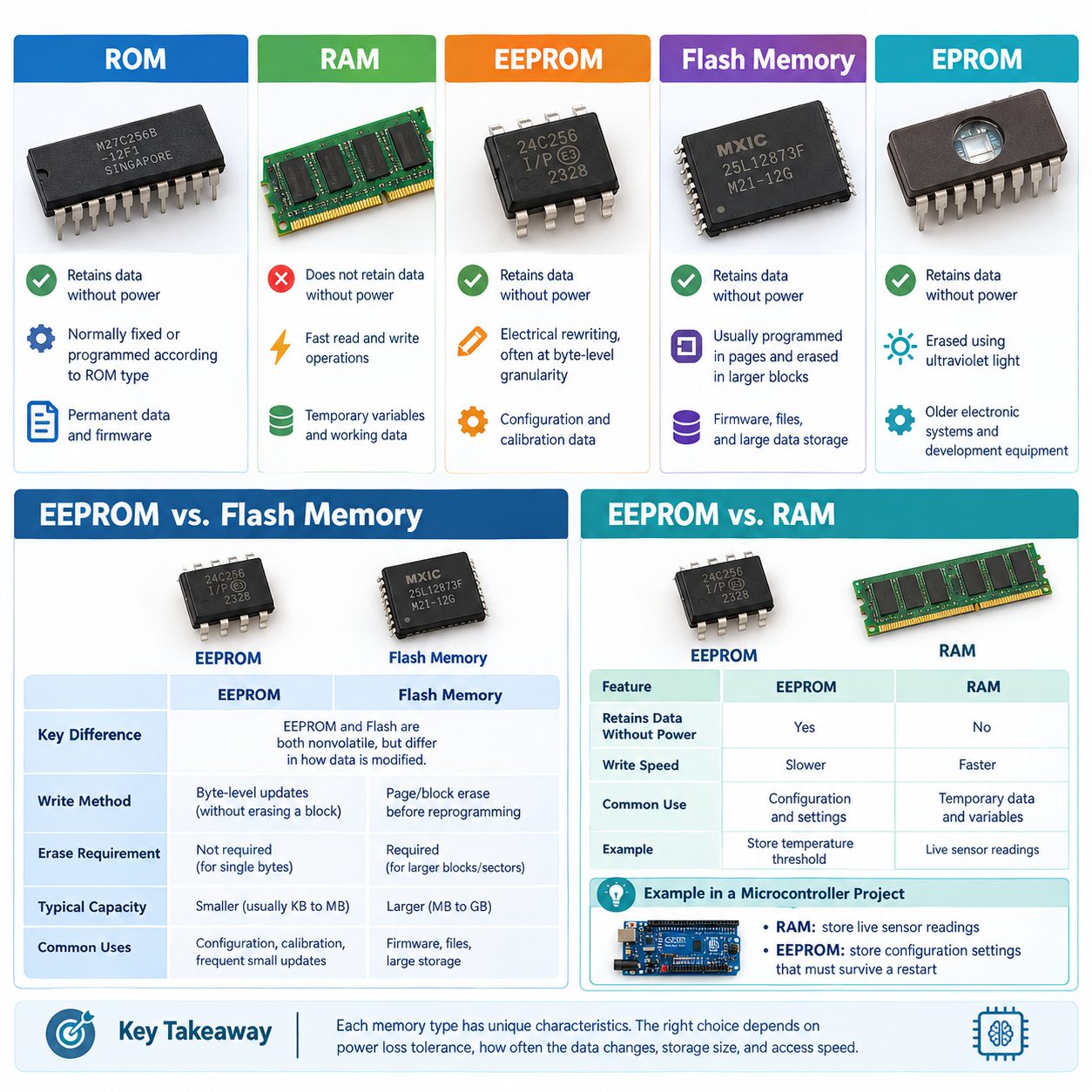

5. EEPROM vs. ROM, RAM, Flash Memory, and EPROM

Different memory technologies serve different purposes in electronic systems. The appropriate choice depends on whether the data must survive power loss, how often it changes, how much storage is required, and how quickly it must be accessed.

EEPROM vs. Flash Memory

• EEPROM and Flash memory are both nonvolatile technologies, but they differ in how data is modified.
• Conventional EEPROM commonly allows individual bytes to be updated without erasing an entire block first.
• Flash Memory generally requires an erase operation on a larger block or sector before previously programmed locations can be reused.
• Flash memory is often preferred for larger storage capacities, while EEPROM is useful when small amounts of data must be updated frequently and conveniently.
• However, the exact endurance, speed, and write granularity must be compared using the relevant datasheets.

EEPROM vs. RAM

• RAM is designed for temporary working data and normally loses its contents when power is removed. EEPROM preserves stored information without power but usually takes longer to write.
• For example, a microcontroller may use RAM for live sensor readings and EEPROM for configuration settings that must survive a restart.

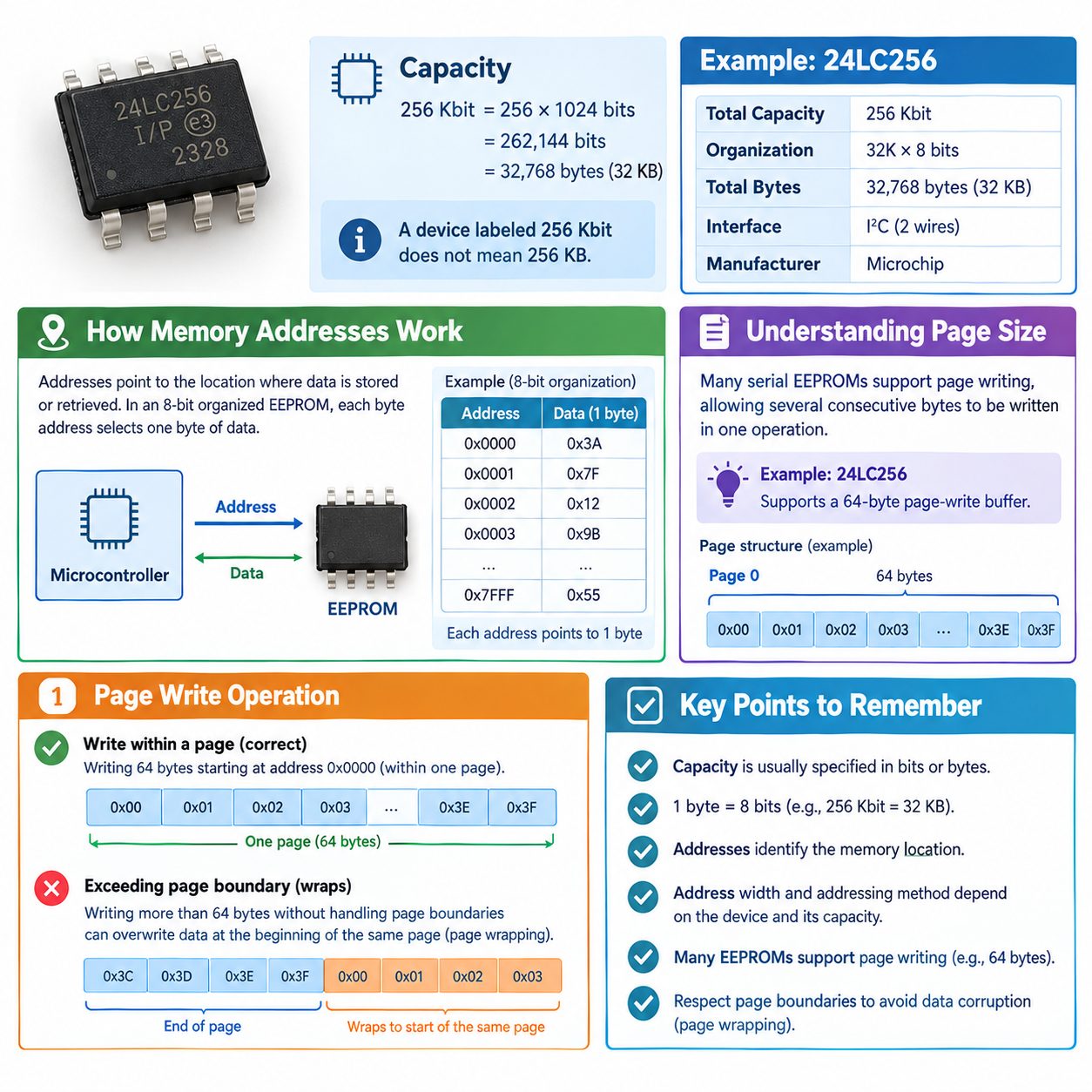

6. EEPROM Organization and Memory Capacity

• EEPROM capacity determines how much information the device can store.
• Manufacturers commonly specify capacity in bits or bytes. Since one byte contains eight bits, a memory device advertised as 256 Kbit does not contain 256 Kbytes.
• For example, the Microchip 24LC256 is a 256-Kbit serial EEPROM organized as 32K × 8 bits, providing 32,768 bytes of storage.

• Memory addresses identify locations where data can be stored or retrieved.
• In an 8-bit-organized EEPROM, each byte address identifies one byte of data. A microcontroller can specify the desired address during a read or write operation.
• The address width and addressing procedure depend on the memory device and its capacity.

Understanding Page Size

• Many serial EEPROMs support page writing, allowing several consecutive bytes to be written during one write operation.
• For example, the 24LC256 supports a 64-byte page-write buffer.
• Page writing can improve efficiency, but software must respect page boundaries. On devices with page wrapping, sending too much data in a single transaction can overwrite unintended locations within the same page.

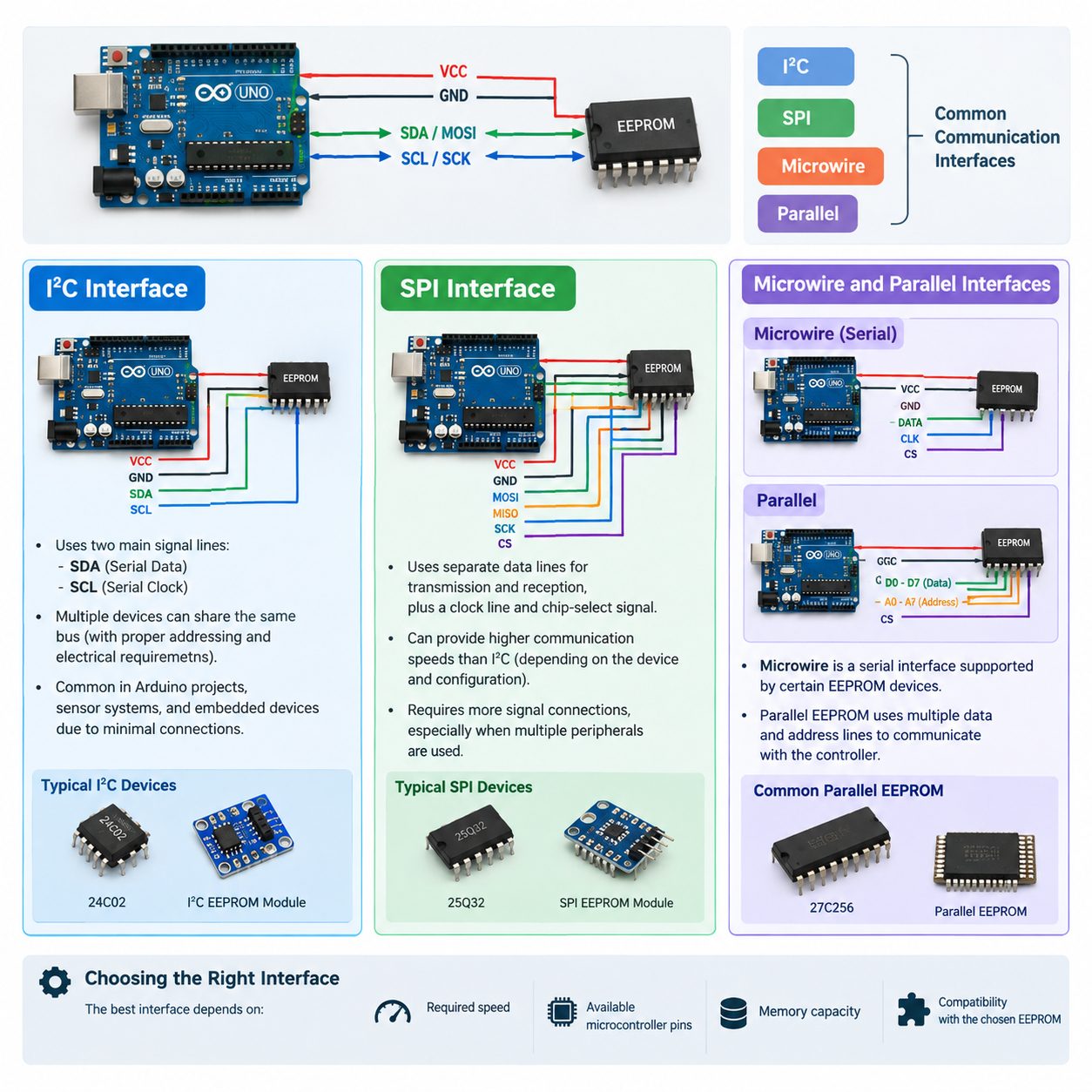

7. EEPROM Communication Interfaces

External EEPROM communicates with a microcontroller through a supported interface.

The most common options are I²C and SPI, while some devices use Microwire or parallel interfaces.

I²C Interface

I²C is a synchronous serial communication protocol that uses two main signal lines.

Multiple compatible devices can share the same bus, provided their addresses and electrical requirements are managed correctly.

I²C EEPROM is commonly used in Arduino projects, sensor systems, and embedded devices because it requires relatively few connections.

SPI Interface

• SPI is a synchronous serial communication interface that typically uses separate data lines for transmission and reception, a clock line, and a chip-select signal.
• Depending on the device and system configuration, SPI can provide higher communication speeds than I²C.
• However, it generally requires more signal connections, particularly when multiple peripherals are connected.

Microwire and Parallel Interfaces

• Microwire is a serial interface supported by certain EEPROM devices.
• Parallel EEPROM uses multiple data and address lines to communicate with the controller.
• The interface should be selected according to the required speed, available microcontroller pins, memory capacity, and compatibility with the chosen EEPROM.

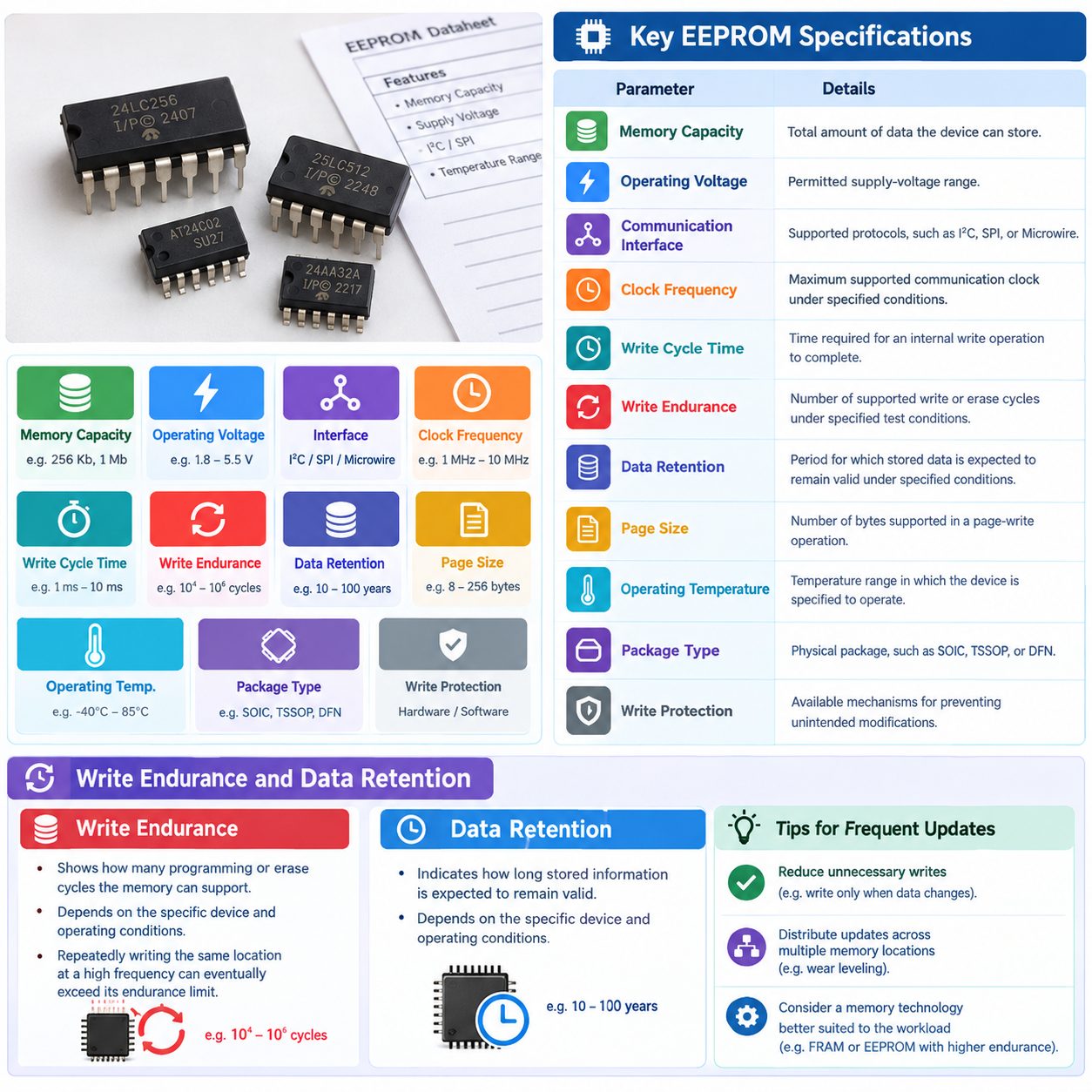

8. Important EEPROM Specifications

Before choosing an EEPROM, engineers should review its datasheet and compare the electrical and memory characteristics relevant to the application.

Write Endurance and Data Retention

• Write endurance and data retention describe different properties.
• Write endurance indicates how many programming or erase cycles the memory can support under specified conditions.
• Data retention indicates how long stored information is expected to remain valid.
• Both specifications depend on the particular device and operating conditions.
• Repeatedly writing the same location at a high frequency can eventually exceed its endurance limit.
• For applications that frequently update data, engineers can reduce unnecessary writes, distribute updates across multiple locations, or consider a memory technology better suited to the workload.

9. Advantages and Limitations of EEPROM

EEPROM offers useful benefits, but it is not the ideal solution for every storage application.

Advantages

Limitations

For critical applications, consider using data validation, checksums, redundant records, and safe update procedures to reduce the risk of losing important information.

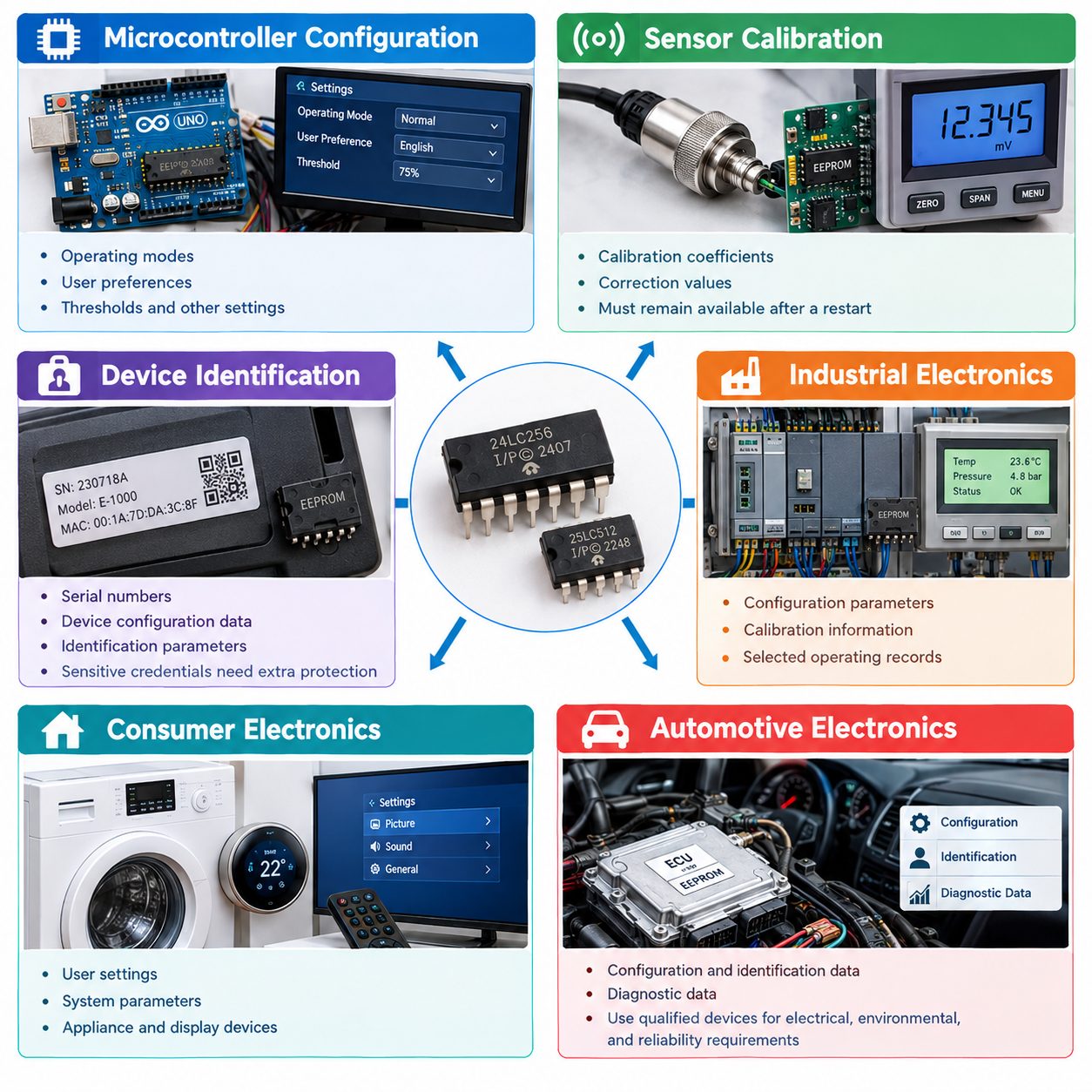

10. Common Applications of EEPROM

EEPROM is used in many electronic products that must retain a small amount of information across power cycles.

Microcontroller Configuration

EEPROM can store operating modes, user preferences, thresholds, and other settings that a microcontroller loads during startup.

Sensor Calibration

Measurement equipment can use EEPROM to preserve calibration coefficients and correction values that must remain available after a restart.

Device Identification

EEPROM can store serial numbers, device configuration data, and identification parameters. Security-sensitive credentials require additional protection and should not be assumed secure merely because they are stored in EEPROM.

Industrial Electronics

Industrial controllers and monitoring equipment can use EEPROM to store configuration parameters, calibration information, and selected operating records.

Consumer Electronics

Products such as appliances, displays, and other electronic devices may use EEPROM to retain user settings and system parameters.

Automotive Electronics

Automotive electronic modules can use EEPROM for selected configuration, identification, and diagnostic data. Automotive applications require devices qualified for the relevant electrical, environmental, and reliability requirements.

11. Using EEPROM with Arduino and Microcontrollers

EEPROM is useful in microcontroller projects whenever information must remain available after power is removed.

For example:

an Arduino-based system could store a temperature threshold so that the value remains unchanged after the board restarts.

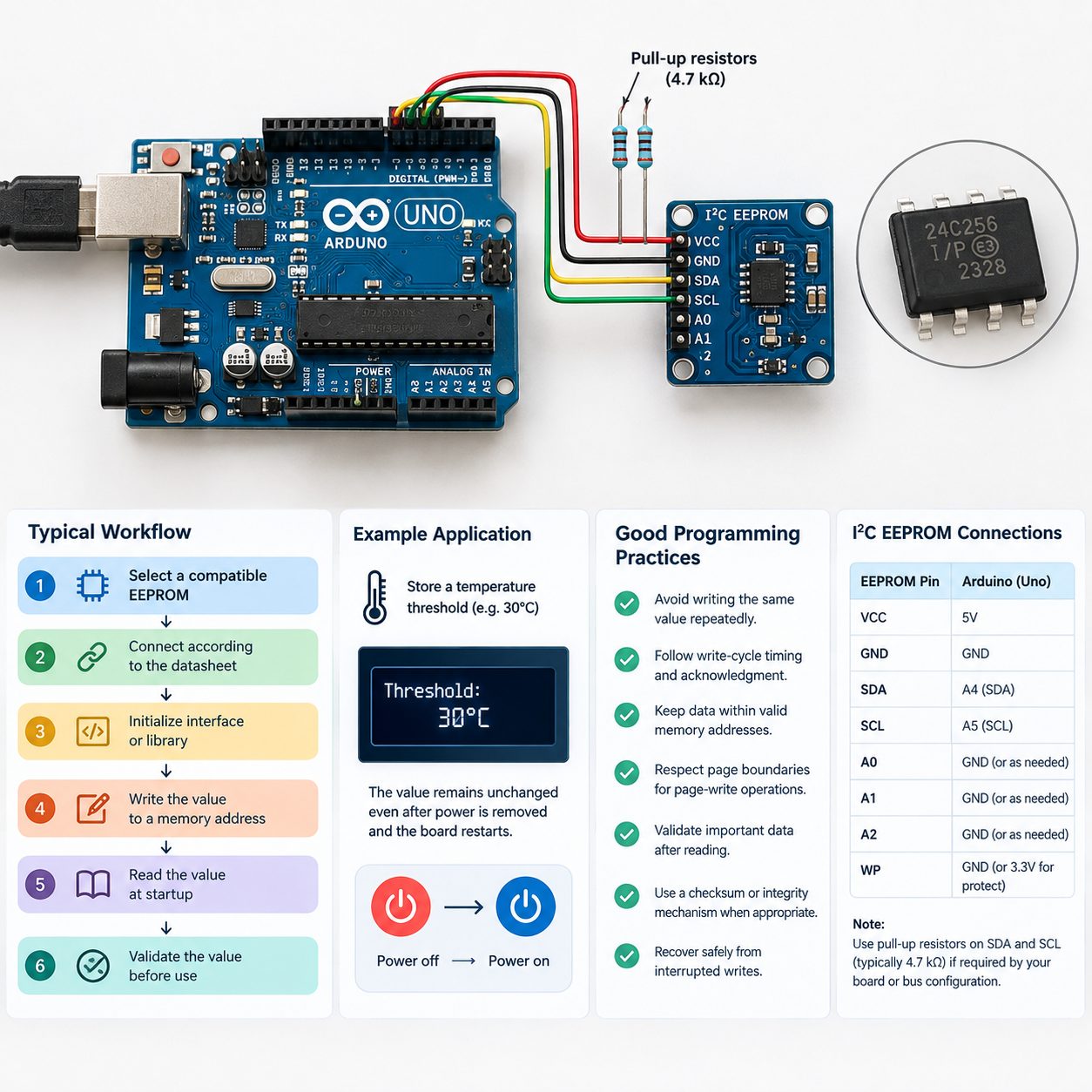

Example: Storing a Configuration Value

A basic workflow for using EEPROM in an embedded project is:

For Arduino boards with built-in EEPROM, the available EEPROM library can provide functions for reading and writing supported memory locations. External EEPROM generally requires the appropriate communication library and device-specific addressing.

Example: External I²C EEPROM

A typical external I²C EEPROM connection requires:

Pull-up resistors may be required on the SDA and SCL lines, depending on the board and bus configuration.

Always check the specific datasheet before connecting the memory. Not all EEPROM devices use the same pinout, voltage range, address format, or write procedure.

Good EEPROM Programming Practices

These practices help improve reliability and reduce unnecessary memory wear.

12. How to Choose the Right EEPROM?

Selecting an EEPROM requires matching its capabilities to the system’s actual requirements.

Determine the Required Capacity

Estimate how much information must be stored, including future expansion and any metadata used for validation.

Select the Communication Interface

Choose I²C when minimizing signal connections is important. Consider SPI when the application requires a supported higher communication speed or has an existing SPI bus.

Check Operating Voltage

Confirm that the EEPROM supply-voltage range is compatible with the microcontroller and the rest of the circuit.

A 5V-compatible interface must not be assumed to work directly with a 3.3V device, or vice versa, without checking the electrical specifications.

Evaluate Write Endurance

Estimate how frequently the system will update each memory location. If updates are frequent, consider wear management or another storage technology.

Review Write Time and Page Size

Ensure that write timing and page organization meet the application’s requirements. Remember that a write operation may take significantly longer than transferring the data over the serial bus.

Consider Environmental Conditions

For industrial or automotive systems, verify the operating-temperature range, qualification requirements, data-retention specifications, and any other relevant reliability parameters.

Check Package and Availability

Confirm that the package suits the PCB design and that the selected part is available for production.

The Microchip 24LC256 is a useful example for learning about I²C EEPROM because its documentation provides concrete capacity, page-write, voltage, and timing specifications. However, it should only be selected when its actual specifications meet the design requirements.

What Does EEPROM Stand For?

EEPROM stands for Electrically Erasable Programmable Read-Only Memory. It is a nonvolatile memory technology that supports electrical erasure and rewriting.

Does EEPROM Retain Data Without Power?

Yes. EEPROM retains stored information without a continuous power supply, subject to the device’s specified data-retention limits.

Can EEPROM Be Rewritten?

Yes. EEPROM can be electrically rewritten, but each memory location has a finite write endurance specified by its manufacturer.

What Is the Difference Between EEPROM and Flash Memory?

Conventional EEPROM commonly supports smaller-granularity updates, often at the byte level. Flash memory generally uses larger erase blocks and is frequently preferred for larger storage capacities.

Is EEPROM the Same as RAM?

No. RAM is normally volatile and used for temporary working data, while EEPROM is nonvolatile and designed to retain information after power is removed.

Does Every Microcontroller Have Built-In EEPROM?

No. Some microcontrollers include dedicated EEPROM, while others use internal Flash memory and may support EEPROM emulation through software.

Can EEPROM Be Used with Arduino?

Yes. Arduino boards with built-in EEPROM can use the appropriate library, while external EEPROM can be connected through a supported interface such as I²C or SPI.

How Long Does EEPROM Store Data?

The retention period depends on the specific memory device and operating conditions. Check the datasheet for the manufacturer’s guaranteed or specified retention characteristics.

What Happens if Power Is Lost During a Write Operation?

The data being written may become invalid or incomplete, depending on the device and the timing of the interruption. Critical systems should use data-integrity checks and safe update strategies.

When Should I Use EEPROM Instead of Flash Memory?

EEPROM is a strong candidate when an application needs to store small amounts of data that must survive power loss and may require frequent, fine-grained updates. Flash is often more suitable for firmware and larger datasets.

14. Conclusion

EEPROM is an important nonvolatile memory technology used to preserve configuration settings, calibration values, identification information, and other data in electronic systems.

Its ability to retain information without power and support electrical rewriting makes it useful in microcontroller projects, industrial equipment, consumer electronics, and many embedded applications.

To use EEPROM effectively, engineers should understand its memory organization, communication interfaces, write endurance, data retention, and electrical requirements. They should also account for write timing, power interruptions, and data integrity when designing the associated software.

By comparing these characteristics with the requirements of a project, electronics engineers, beginners, and hobbyists can make informed decisions about when EEPROM is the right memory solution.
