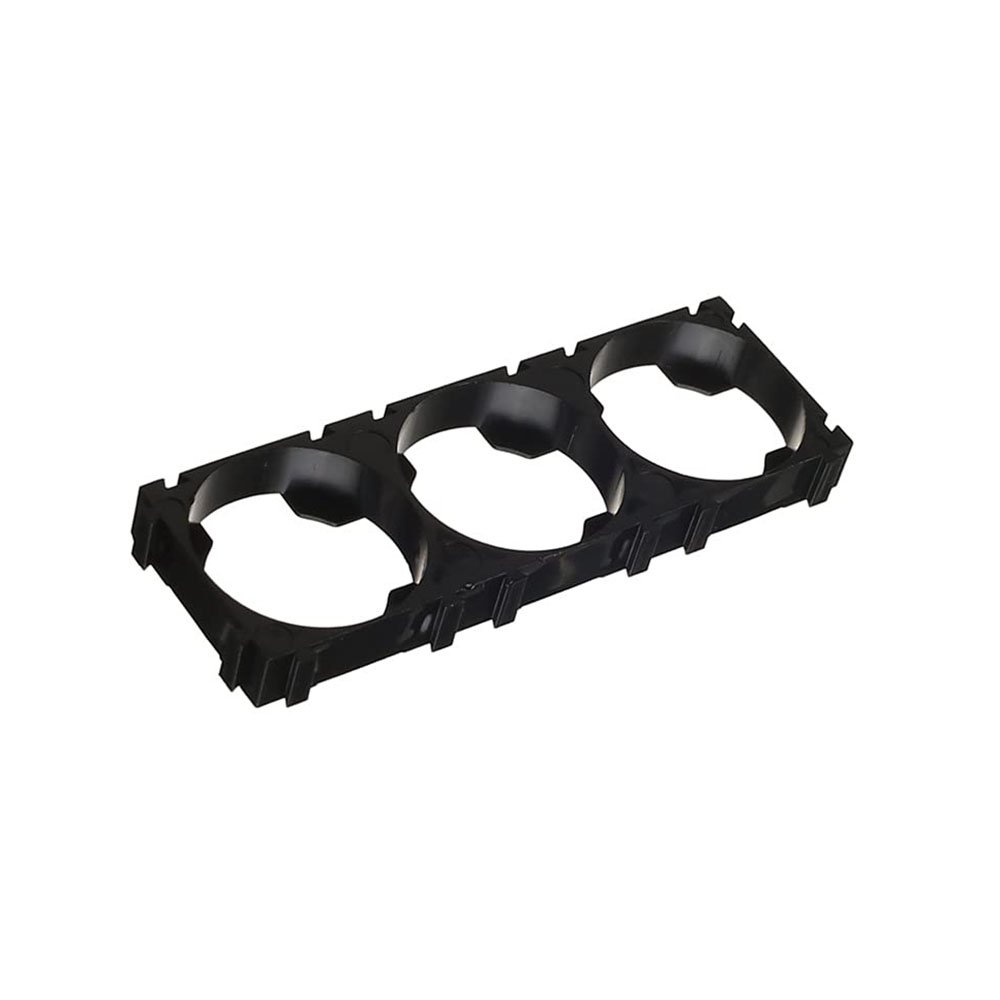

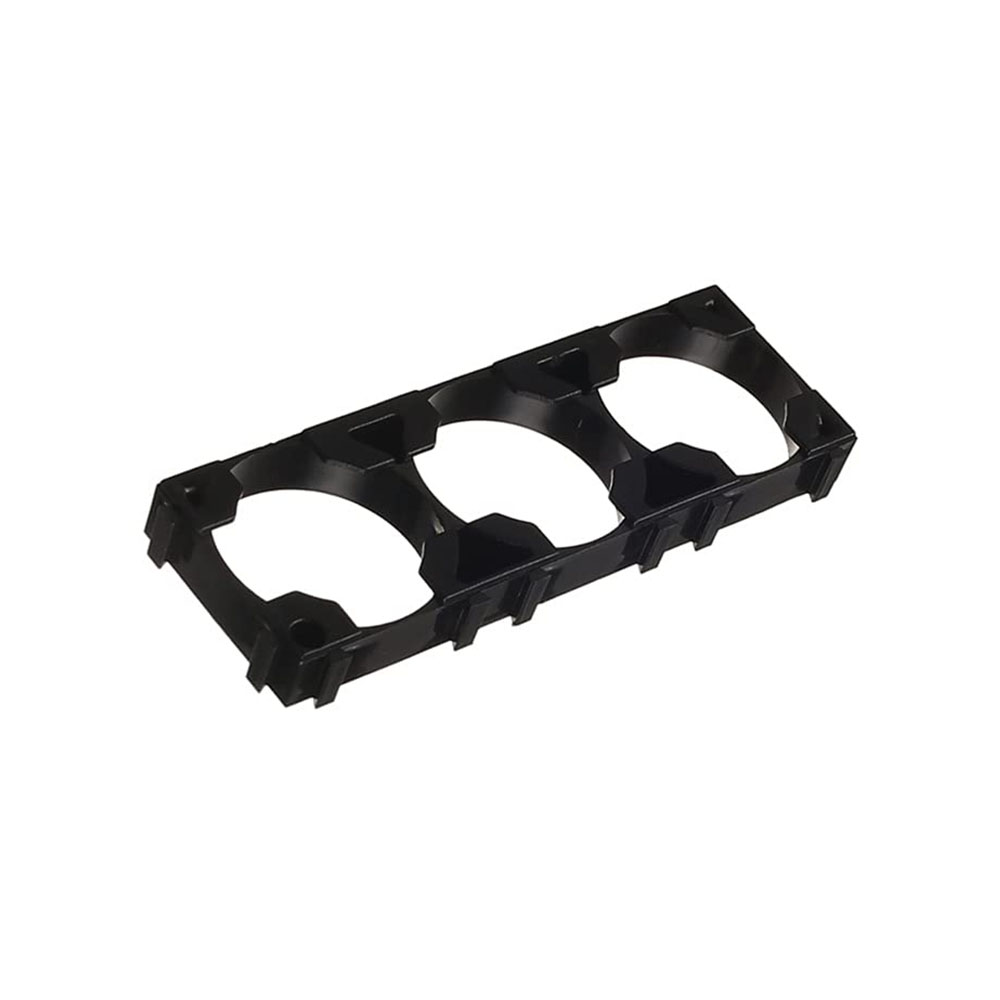

26650 Battery Bracket 3 Cell
The 26650 Battery Bracket 3 Cell is designed to securely organize and position three 26650 cylindrical battery cells during custom battery pack assembly. It keeps the cells aligned in a side-by-side arrangement while maintaining consistent spacing between them. The bracket provides a stable mechanical structure that helps simplify battery pack construction and keeps individual cells properly positioned during assembly, wiring, and installation.
The bracket features an interlocking structure that allows multiple holders to be combined when building larger battery configurations. This modular arrangement makes it easier to create organized battery packs containing several 26650 cells. Maintaining consistent spacing between the batteries also helps simplify the installation of nickel strips, wiring, insulation materials, and battery management components while keeping the overall pack structure neat and organized.
Features
- Designed for 26650 cylindrical battery cells.
- Holds three battery cells.
- Side-by-side cell arrangement.
- Maintains consistent spacing between cells.
- Interlocking modular design.
- Can be combined for larger battery configurations.
- Helps keep battery cells aligned during assembly.
- Suitable for custom battery pack construction.
- Lightweight plastic construction.
- Mechanical holder with no electrical connection.
Specifications
| Specification | Details |
|---|---|
| Product Type: | Battery Cell Bracket / Holder |
| Compatible Battery Size: | 26650 |
| Number of Cells: | 3 Cells |
| Configuration: | 3P |
| Cell Arrangement: | Side-by-Side |
| Battery Shape: | Cylindrical |
| Cell Opening Diameter: | 27 mm |
| Cell Spacing: | 27 mm |
| Material: | ABS / ABS+PC Plastic |
| Color: | Black |

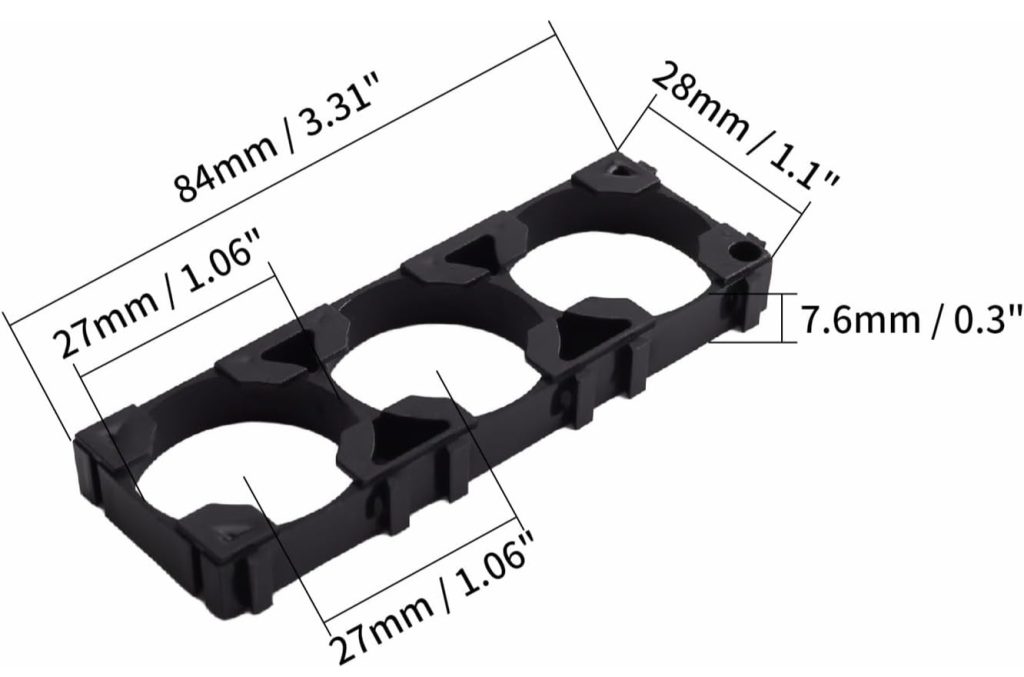

| Dimensions: | 84 × 29 × 7.6 mm |
| Mounting Style: | Interlocking Battery Spacer |
| Installation Type: | Cell Spacing / Battery Pack Assembly |
| Electrical Connection: | None – Mechanical Holder Only |
| Expandable: | Yes, multiple brackets can be combined for larger battery packs |
| Suitable For: | 26650 Battery Pack Construction |
Applications
- Custom Battery Packs.
- DIY Battery Projects.
- Energy Storage Systems.
- Backup Power Systems.
- Electric Mobility Battery Packs.
- Portable Power Systems.
- Battery Pack Repair.
- Battery Pack Prototyping.
Package Contents
- 1× 26650 Battery Bracket 3 Cell
