744075 IC TTL Triple 3-Input OR Gate
The 744075 is a digital logic IC designed to perform OR operations on three input signals across multiple independent gates, making it useful for signal combination and digital control circuits.
35.00 ج.م
متوفرالكود 4637509018517
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
744075 IC TTL Triple 3-Input OR Gate
The 744075 is identified in the supplied product title as a triple 3-input OR gate IC. An OR gate produces a HIGH output when at least one of its inputs is HIGH, and produces a LOW output only when all its inputs are LOW. This logic function is useful for combining control signals, detecting active conditions, and building combinational logic circuits.
The IC is intended for digital logic applications where multiple input conditions need to be combined into a single output. Its DIP-14 through-hole package is convenient for prototyping, educational electronics, and PCB assembly. The exact device identity and pin configuration should be checked against the manufacturer’s datasheet before use, as the designation 744075 may require confirmation.
Features:
- OR logic function.
- Three-input gate configuration as stated in the product title.
- Multiple logic inputs for combining signals.
- Suitable for combinational logic circuits.

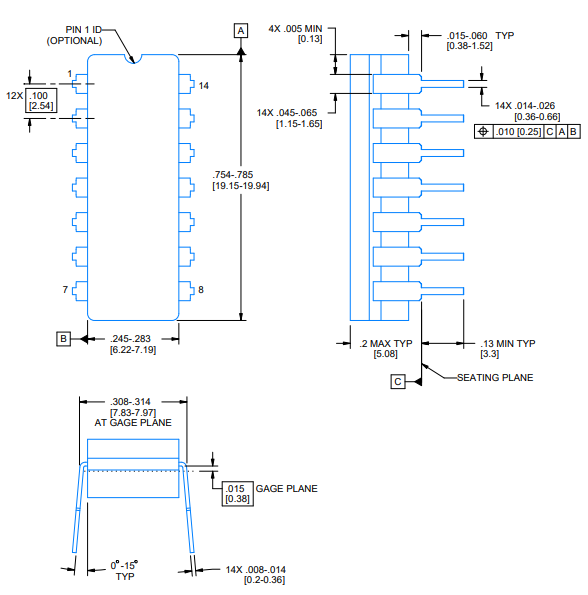

- Through-hole DIP package.
- Useful in digital control and signal-processing designs.
Specifications:
| Physical | |
| Case/Package | PDIP |
| Mount | Through Hole |
| Number of Pins | 14 |
| Technical | |
| High Level Output Current | -5.2 mA |
| Logic Function | OR |
| Low Level Output Current | 5.2 mA |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 6 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 2 V |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 5.2 mA |
| Propagation Delay | 20 ns |
| Quiescent Current | 1 µA |
| Turn-On Delay Time | 80 ns |
Pinout:
Applications:
- Digital logic circuits.
- Signal combination.
- Digital control systems.
- Logic condition detection.
- Alarm and status circuits.
- Combinational logic experiments.
- Educational electronics projects.
Packages Included:
- 1 × 744075 IC TTL Triple 3-Input OR Gate.
Documents:
