7495 4-Bit Parallel-Access Shift Register 5V 21mA IC DIP-14
IC 7495 is a shift register IC. It is also known as IC74LS95. It is a 4-bit device and has both serial and parallel synchronous operating modes. In this article, we are going to see a pin diagram of IC 7495, IC 7495 internal circuit, IC 7495 truth table, or functional table. The main application of this IC 7495 is encryption and decryption in digital circuits.
Features:
- Four-bit data storage.
- Parallel data loading.
- Serial shift operation.
- Clock-controlled data transfer.
- Supports sequential logic design.
- Through-hole DIP package.
- Suitable for digital logic circuits and educational projects.
Specifications:
| Specification |
Value |
| Minimum Supply Voltage (VCC) |
4.75V |
| Maximum Supply Voltage (VCC) |
5.25V |
| Nominal Operating Voltage |
5V |
| Typical Frequency at Normal Voltage |
36MHz |
| Maximum Low-Level Output Current (IOL) |
8mA |
| Maximum High-Level Output Current (IOH) |
-0.4mA |
| Rating |
Catalog |
| Package |
14-pin PDIP |
| Load Type |
Synchronous Parallel Load |
| Clock Inputs |
Separate Shift and Load Clock Inputs |

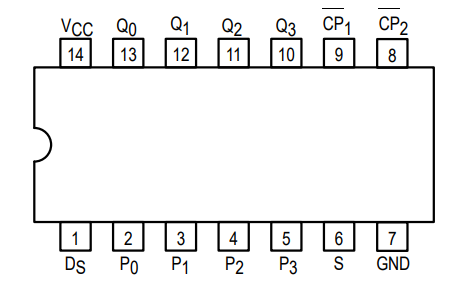

Pinout:
| Pin No. |
Pin Name |
Description |
| 1 |
Serial Input |
Serial data input |
| 2 |
A |
Parallel Input A |
| 3 |
B |
Parallel Input B |
| 4 |
C |
Parallel Input C |
| 5 |
D |
Parallel Input D |
| 6 |
Mode Control |
Selects the operating mode |
| 7 |
Ground (GND) |
Ground connection |
| 8 |
Clock 2 |
Left-shift clock (L-Shift) |
| 9 |
Clock 1 |
Right-shift clock (R-Shift) |
| 10 |
QD |
Output QD |
| 11 |
QC |
Output QC |
| 12 |
QB |
Output QB |
| 13 |
QA |
Output QA |
| 14 |
VCC |
Positive supply voltage |
Package Included:
- 7495 4-Bit Parallel-Access Shift Register 5V 21mA IC DIP-14.
