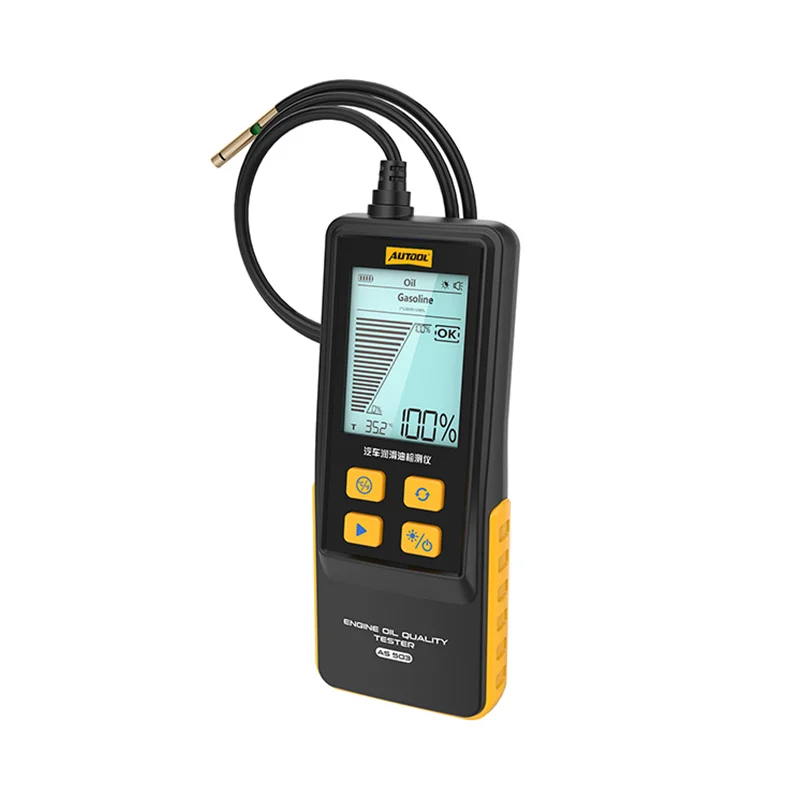

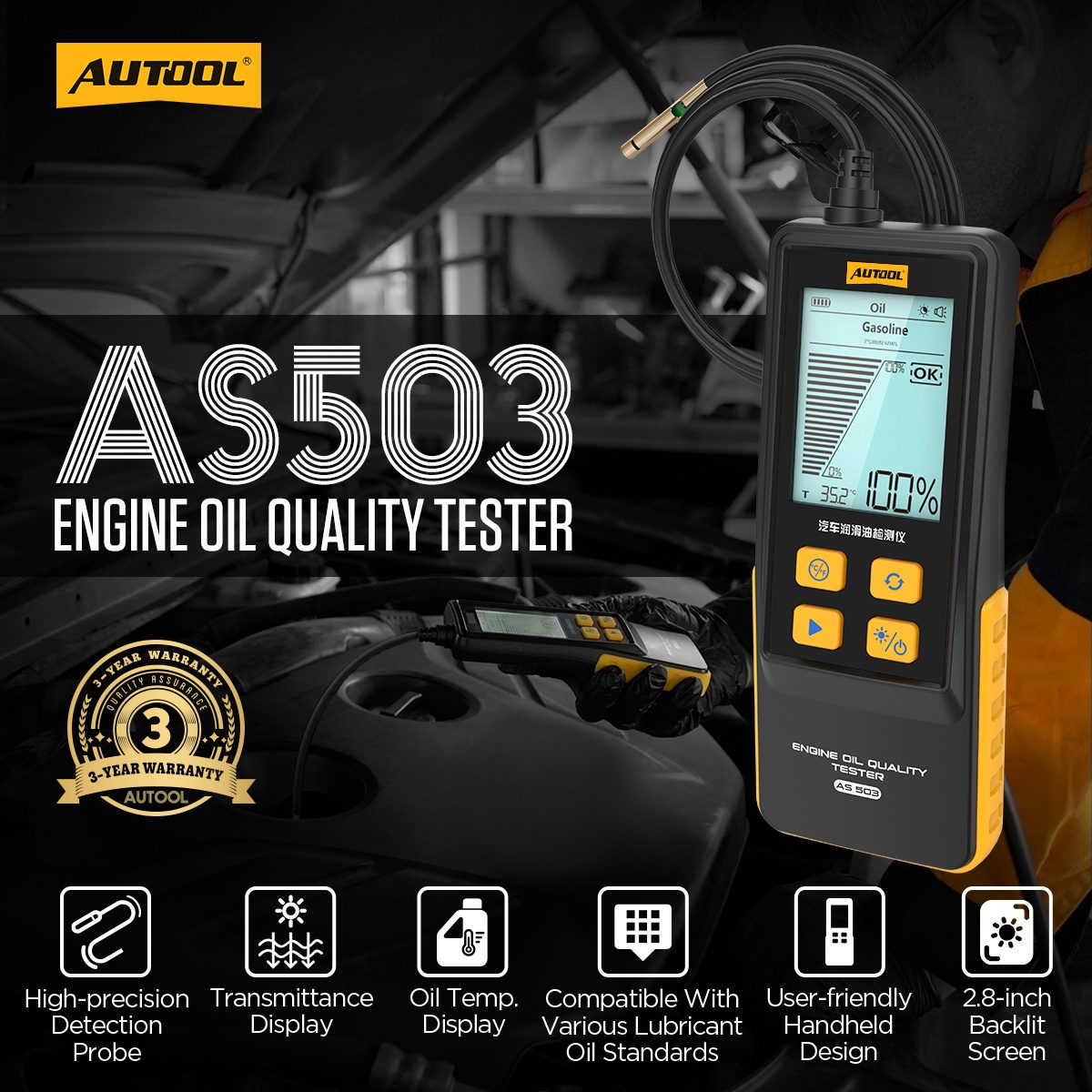

AUTOOL AS503 Engine Oil Quality Tester

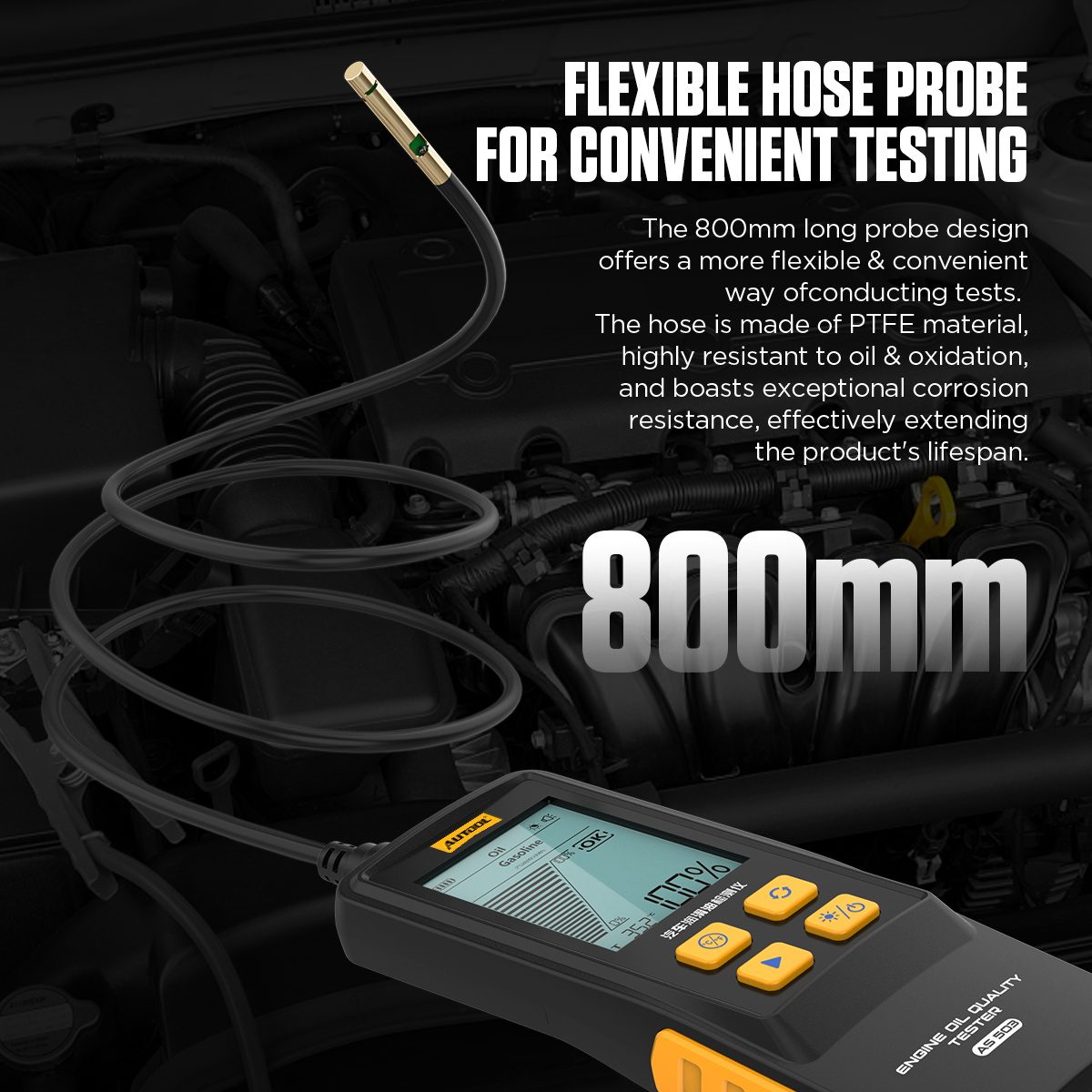

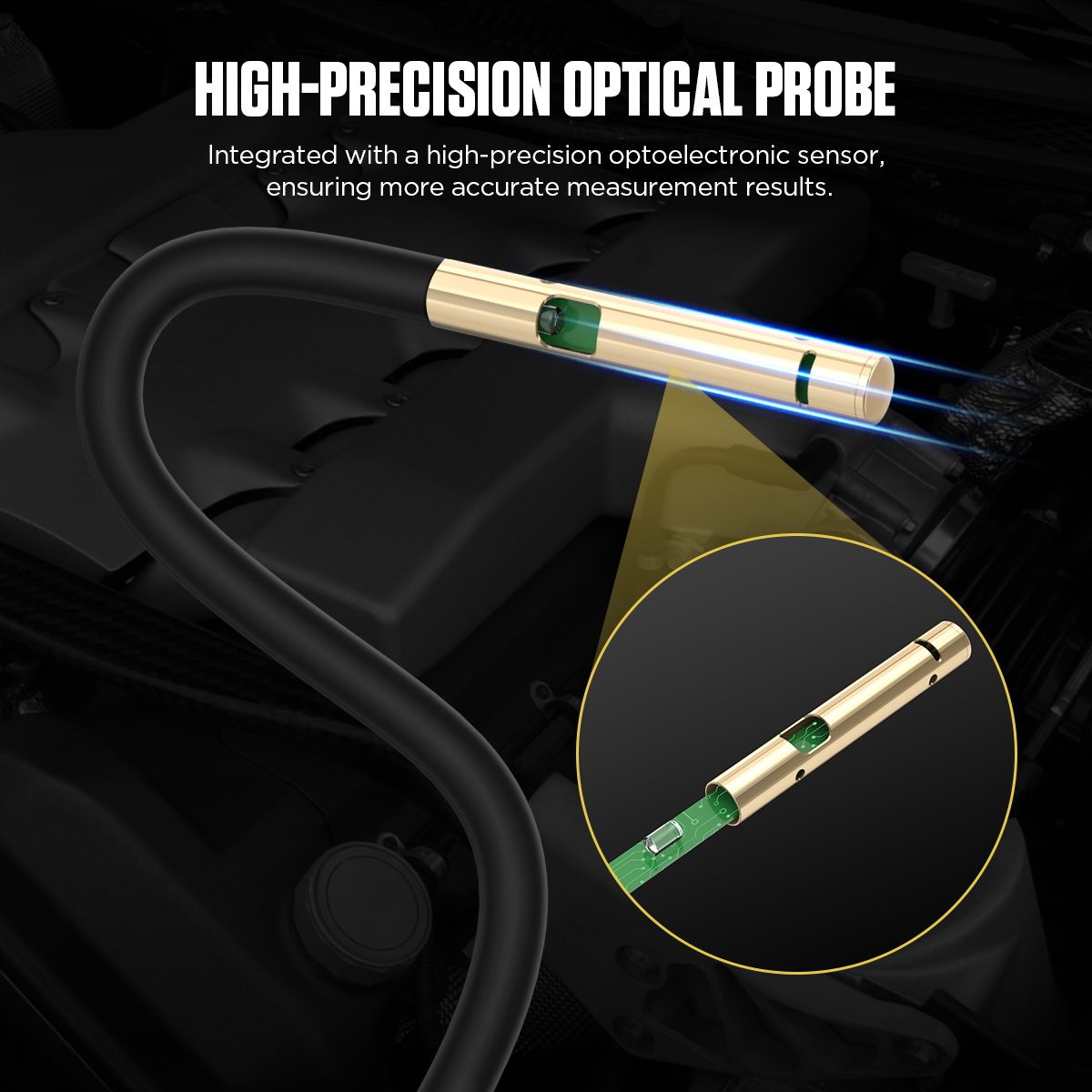

The AUTOOL AS503 is a handheld engine oil quality tester that relies on an optical detection probe to analyze the particulate content in oil. The probe is integrated with a high-precision opto-electronic sensor to ensure more accurate measurement results, and it is connected through an 800mm long flexible hose made of PTFE material, highly resistant to oil and oxidation with exceptional corrosion resistance, effectively extending the product’s lifespan.

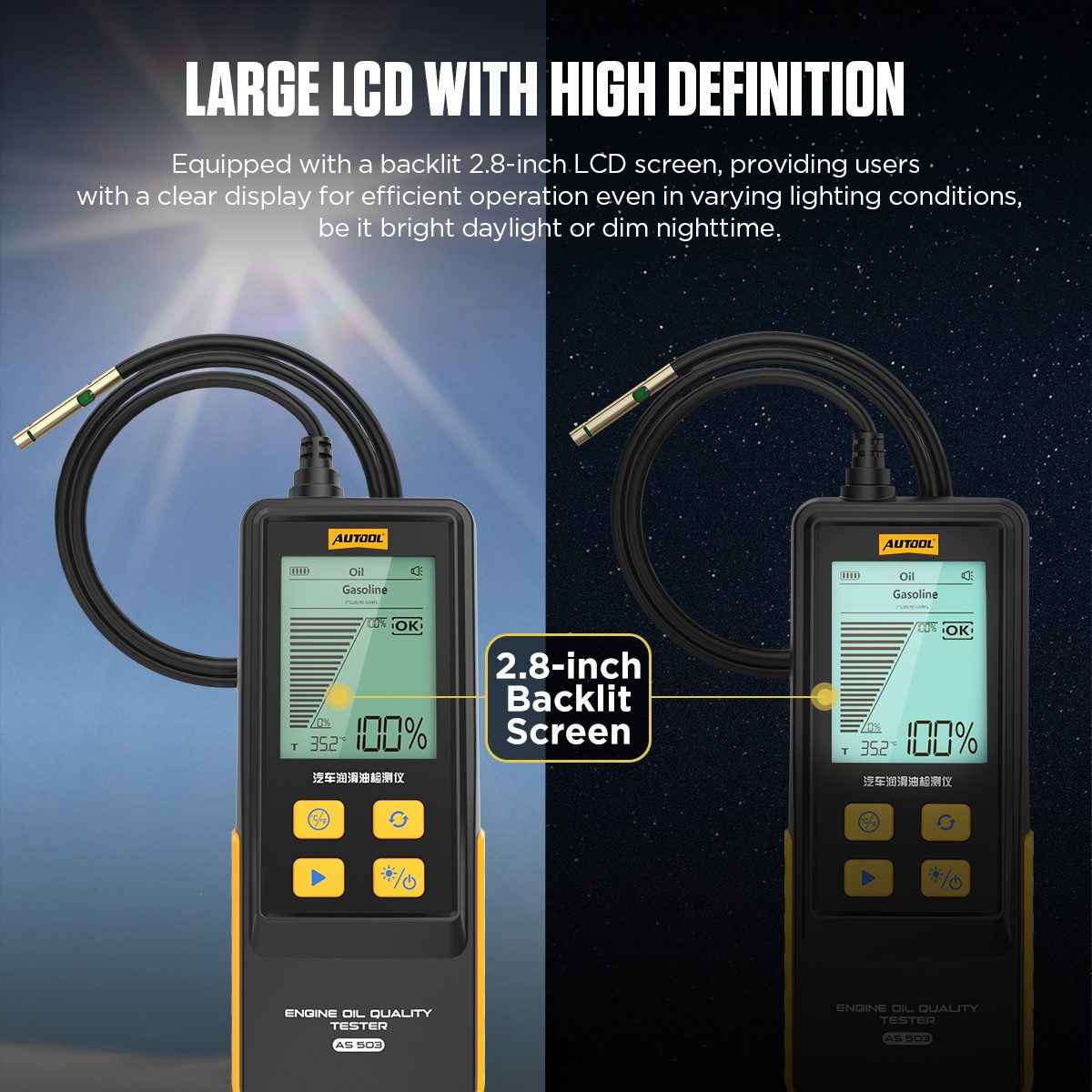

During testing, the probe tip is submerged in the engine oil and the instrument displays the transmittance of the oil together with the current oil measurement temperature, measured by an integrated temperature sensor for convenient assessment of the engine’s operating status. The backlit 2.8-inch LCD screen provides a clear display for efficient operation in varying lighting conditions, whether bright daylight or dim nighttime.

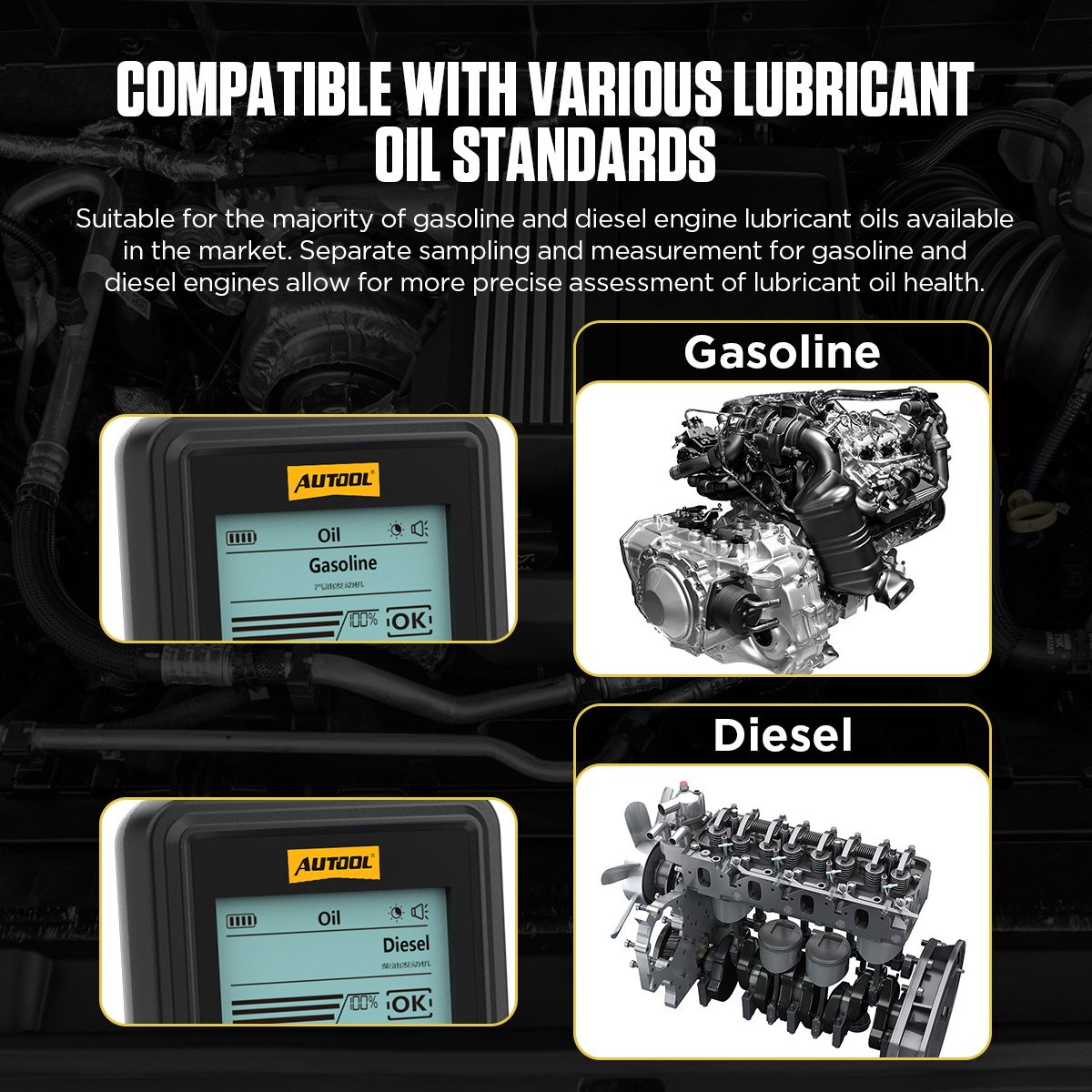

The AS503 is compatible with the majority of gasoline and diesel engine lubricant oils available in the market. Separate sampling and measurement for gasoline and diesel engines allow for a more precise assessment of lubricant oil health. Users can select petrol (gasoline) engine mode or diesel engine mode and toggle the temperature unit between °C and °F.
The display shows the battery level, backlight indicator, sound indicator, an analog bar graph (0%-100%), the transmittance percentage, and transmittance status indications: OK (transmittance is good), a warning symbol (transmittance warning), and an X symbol (suggested to replace), related to transmittance values above 60%, between 60% and 30%, and below 30%.

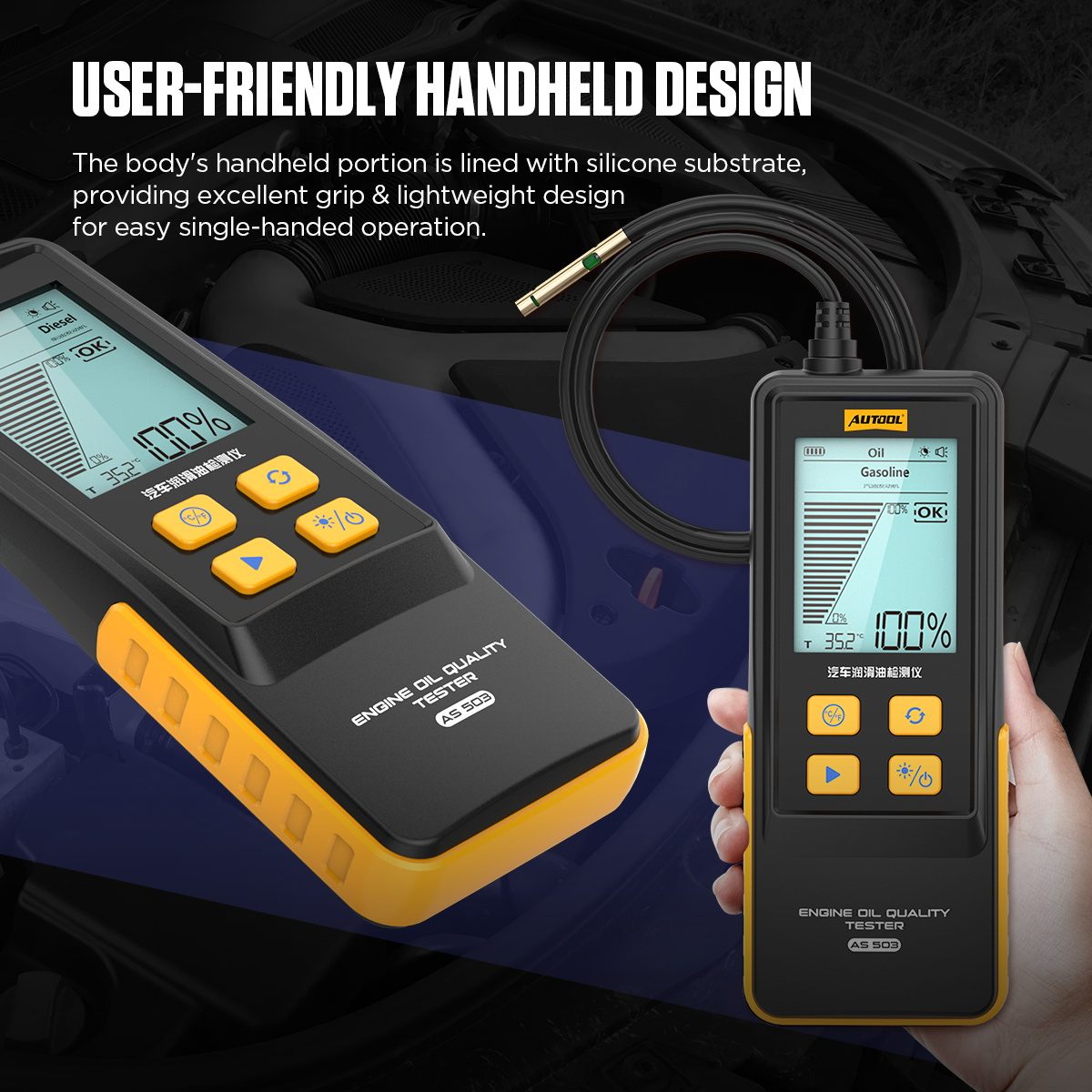

The handheld portion of the body is lined with silicone substrate, providing excellent grip and a lightweight design for easy single-handed operation. The tester is powered by 4 x 1.5V AAA batteries (6V), switches off automatically after 5 minutes of no activity, and can be powered on or off with a long press of approximately 2 seconds.
Features
- High-precision optical probe with optoelectronic sensor analyzes the particulate content in engine oil.
- 800mm flexible probe hose in PTFE material, highly resistant to oil, oxidation and corrosion.
- Selectable petrol (gasoline) engine mode and diesel engine mode with separate sampling and measurement for more precise oil health assessment.
- Compatible with the majority of gasoline and diesel engine lubricant oils available in the market.
- Backlit 2.8-inch LCD screen for clear reading in bright or dim lighting.
- Integrated temperature sensor displays engine oil temperature in °C or °F.
- Full display indicators: battery level, backlight indicator, sound indicator, analog bar graph (0%-100%), transmittance percentage and transmittance status.
- Transmittance status indications: OK (good), warning, and suggested to replace, for values above 60%, between 60% and 30%, and below 30%.
- Simple four-button operation: temperature unit toggle, engine oil type selection, test, and backlight/power control.
- Silicone-substrate grip and lightweight handheld design for single-handed operation.
- Long press (approx. 2 seconds) to power on or off; automatic power-off after 5 minutes of no activity.
- Compact size: 175mm (6.9inch) x 72mm (2.8inch) x 29mm (1.1inch).
- Battery powered: 6V via 4 x 1.5V AAA batteries.
- Operating temperature range: -10°C to 60°C.
Specifications
| Specification | Details |
|---|---|
| Product Name | AUTOOL AS503 Engine Oil Quality Tester |
| Model | AS503 |
| Detection Method | Optical detection probe with high-precision optoelectronic sensor; analyzes particulate content in oil |
| Probe Hose | 800mm flexible hose, PTFE material, resistant to oil, oxidation and corrosion |
| Lubricant Oil Compatibility | Suitable for the majority of gasoline and diesel engine lubricant oils available in the market; separate sampling and measurement for gasoline and diesel engines |
| Engine Oil Mode Selection | Petrol (gasoline) engine mode, Diesel engine mode |
| Display | 2.8-inch backlit LCD screen |
| Display Indicators | Battery level, backlight indicator, sound indicator, oil type (gasoline/diesel), analog bar graph (0%-100%), transmittance of engine oil (%), temperature of engine oil, transmittance status (OK / warning / suggested to replace) |
| Transmittance Indications | Status indications for transmittance above 60%, between 60% and 30%, and below 30% |
| Temperature Measurement | Integrated temperature sensor; engine oil temperature display |
| Temperature Units | °C / °F |
| Operating Voltage | 6V (4 x 1.5V batteries) |
| Battery Type | 4 x 1.5V AAA batteries |
| Operating Temperature | -10°C to 60°C |

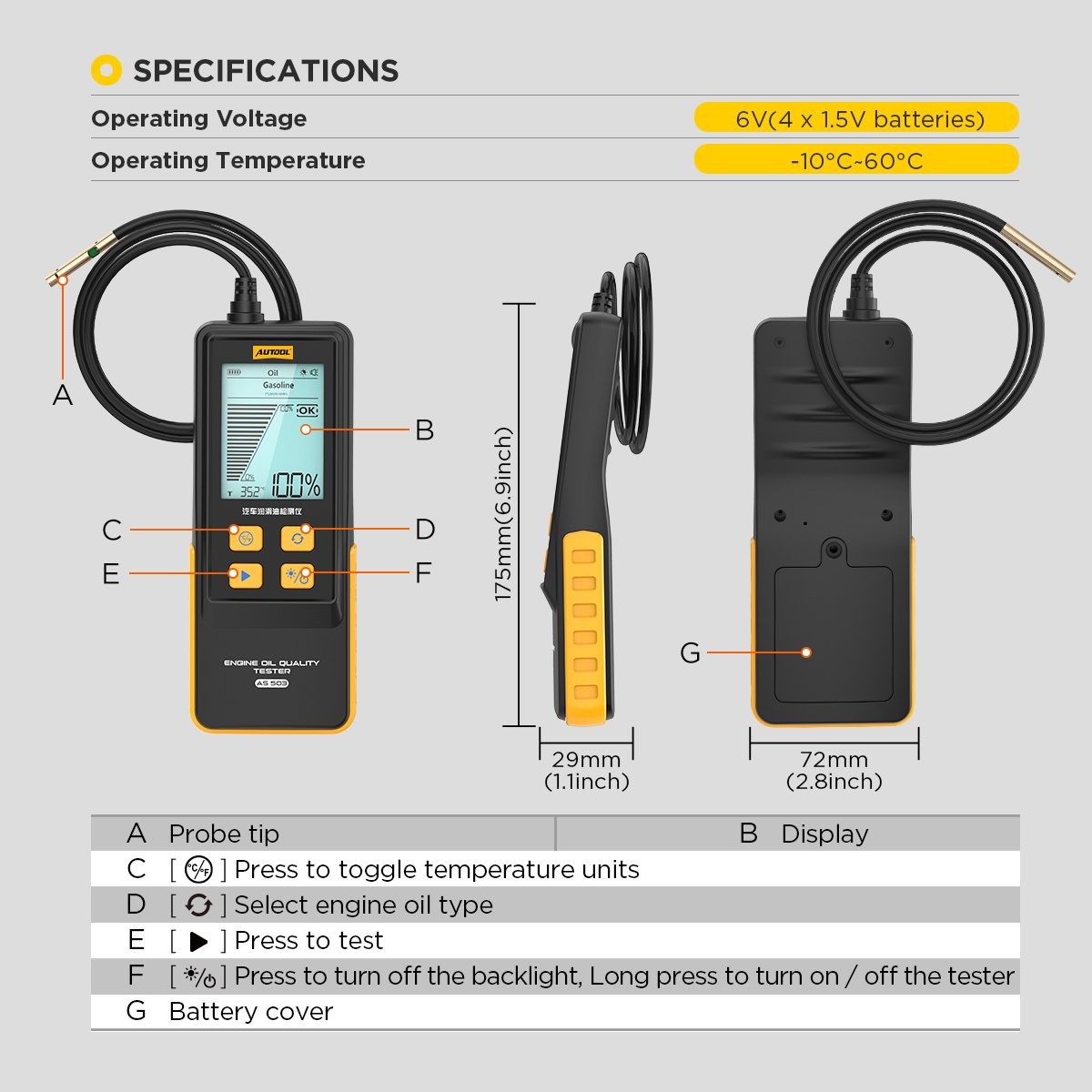

| Dimensions | 175mm (6.9inch) x 72mm (2.8inch) x 29mm (1.1inch) |
| Body / Grip | Handheld portion lined with silicone substrate; lightweight design for single-handed operation |
| Controls | Toggle temperature units; select engine oil type; test; backlight off / long press to power on-off |
| Auto Power Off | Automatically powers off after 5 minutes of no activity |
| Intended Use | Professional engine oil quality testing |
Applications
- Engine oil transmittance / particulate condition checking for petrol (gasoline) engines.
- Engine oil transmittance / particulate condition checking for diesel engines.
- Suitable for the majority of gasoline and diesel engine lubricant oils available in the market.

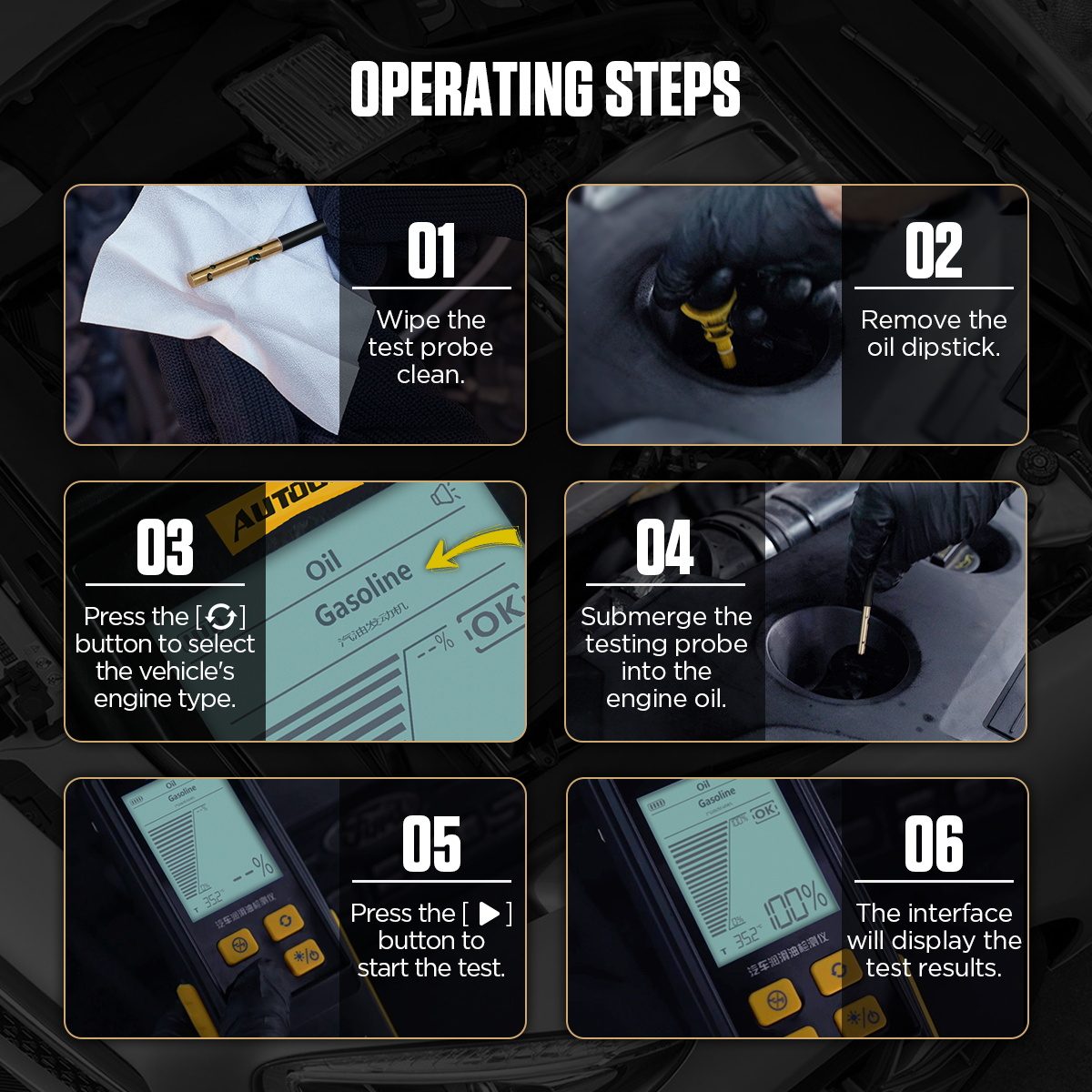

- Quick oil condition checks through the oil dipstick opening during vehicle maintenance.
- Reference data for professional workshops and maintenance decision-making.

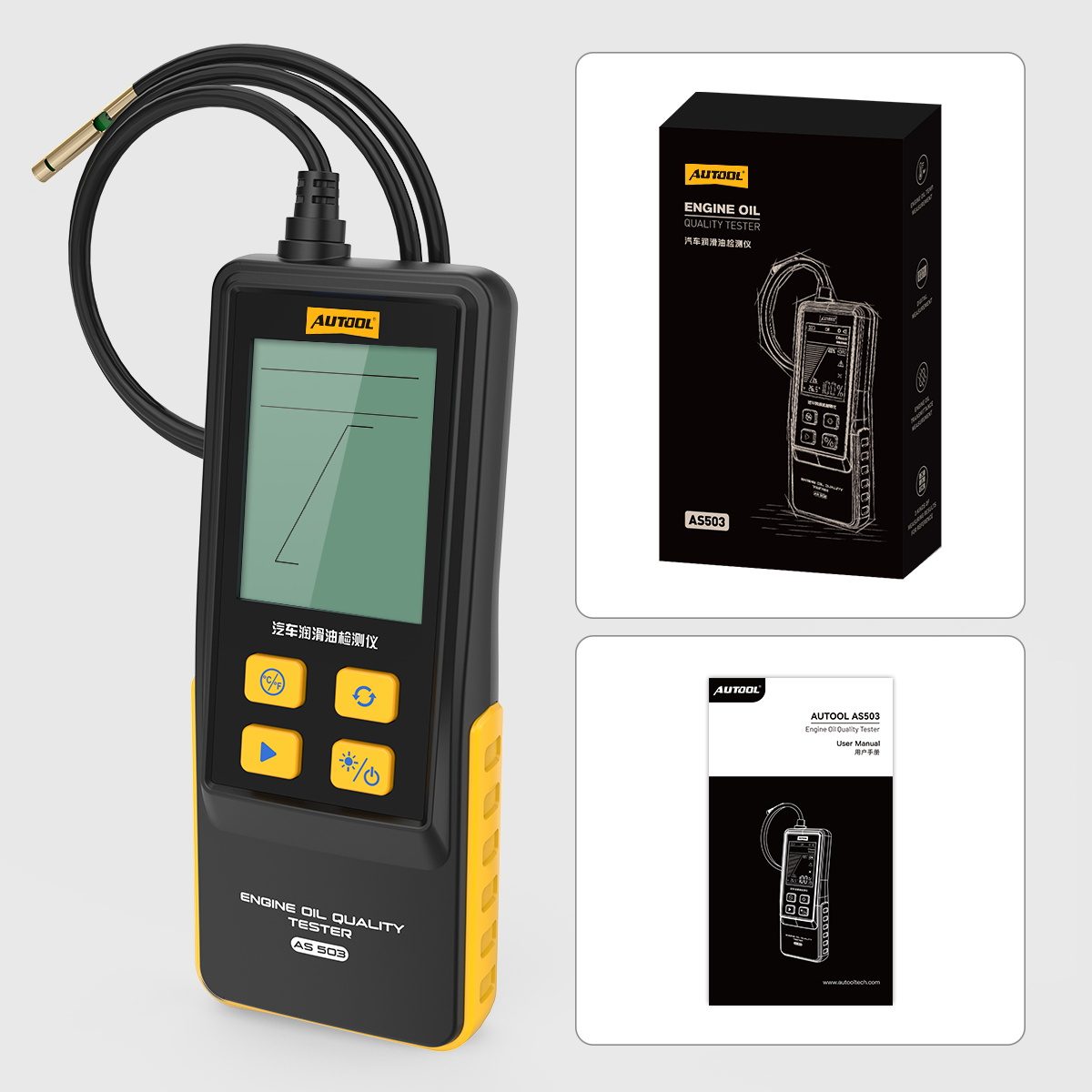

Package Contents
- 1 x AUTOOL AS503 Engine Oil Quality Tester
- 1 x User Manual
- 4 x 1.5V AAA batteries (6V)
