AUTOOL AS505 Transmission Fluid Tester

AUTOOL AS505 Transmission Fluid Tester

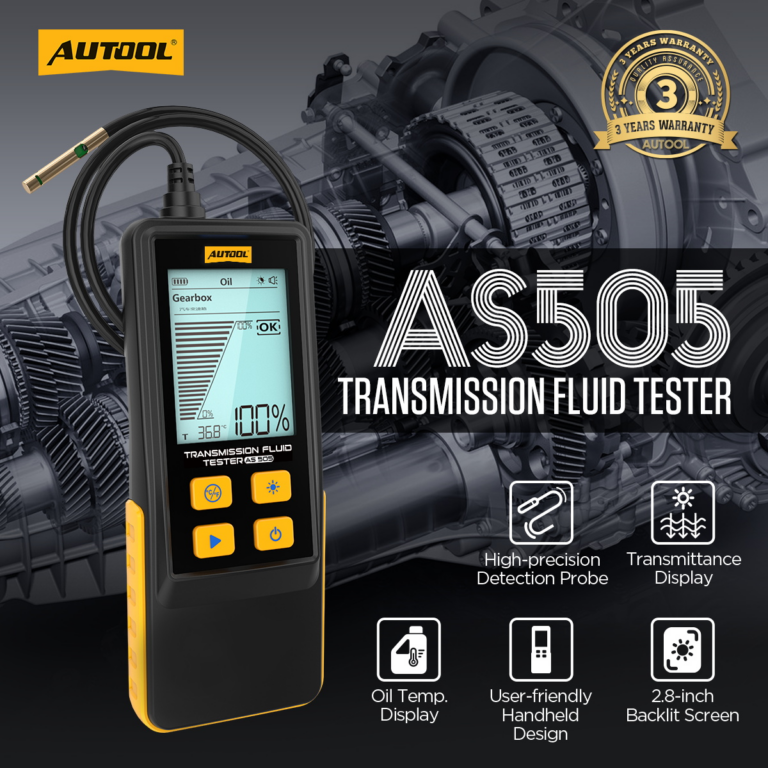

The AUTOOL AS505 Transmission Fluid Tester is designed for automotive transmission fluid (gearbox) inspection. It measures transmission fluid transmittance with a high-precision optical probe and displays the result together with the fluid temperature measured by an integrated temperature sensor, helping you determine the lubrication system’s working condition.

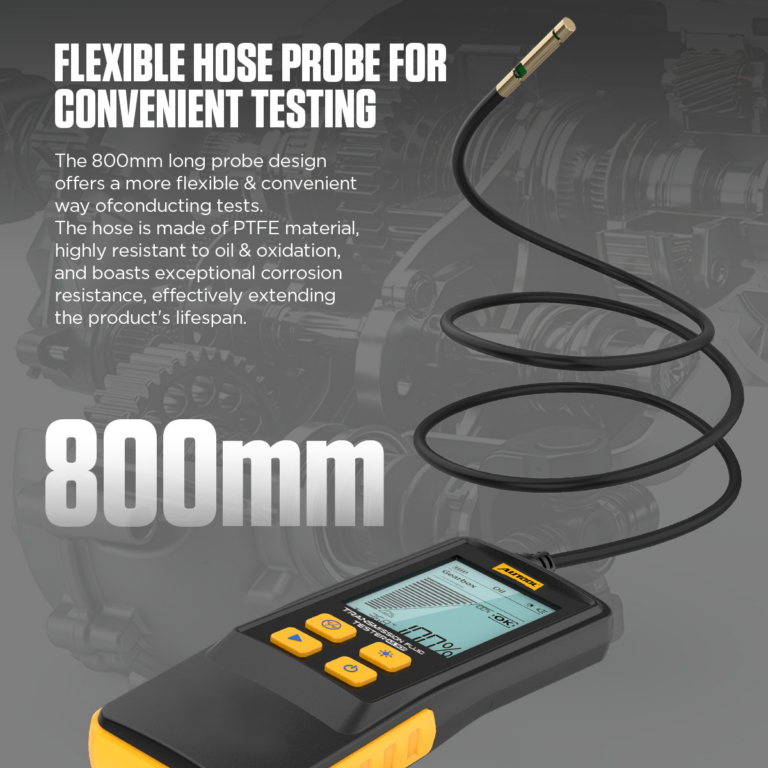

The probe is connected by an 800 mm flexible hose made of PTFE material, highly resistant to oil and oxidation with exceptional corrosion resistance. Results are shown on a 2.8-inch high-definition backlit LCD with an analog bar graph (0–100%), transmittance percentage, temperature reading, and good / warning / suggested-replacement indications. The handheld body is lined with a silicone substrate grip for lightweight, single-handed operation.

Features

• Tests transmission fluid transmittance with a high-precision optoelectronic (optical) probe.

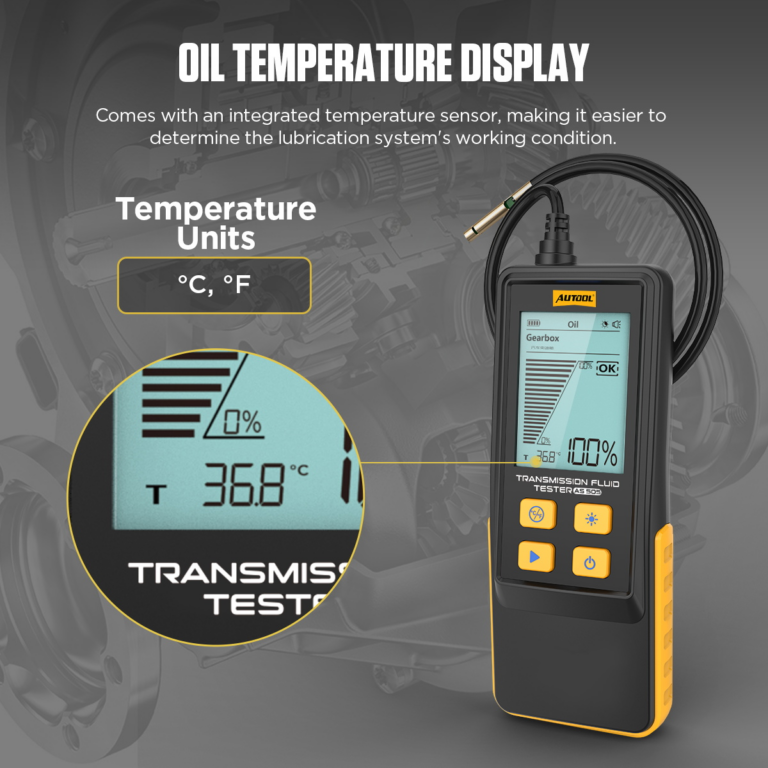

• Integrated temperature sensor displays transmission fluid (oil) temperature.

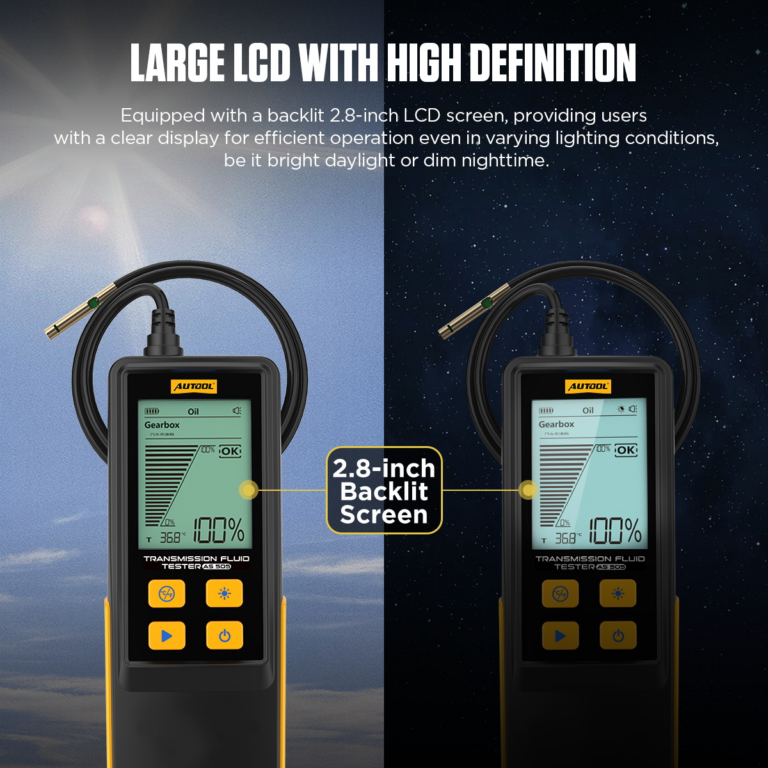

• 2.8-inch high-definition backlit LCD for clear reading in bright or dim lighting.

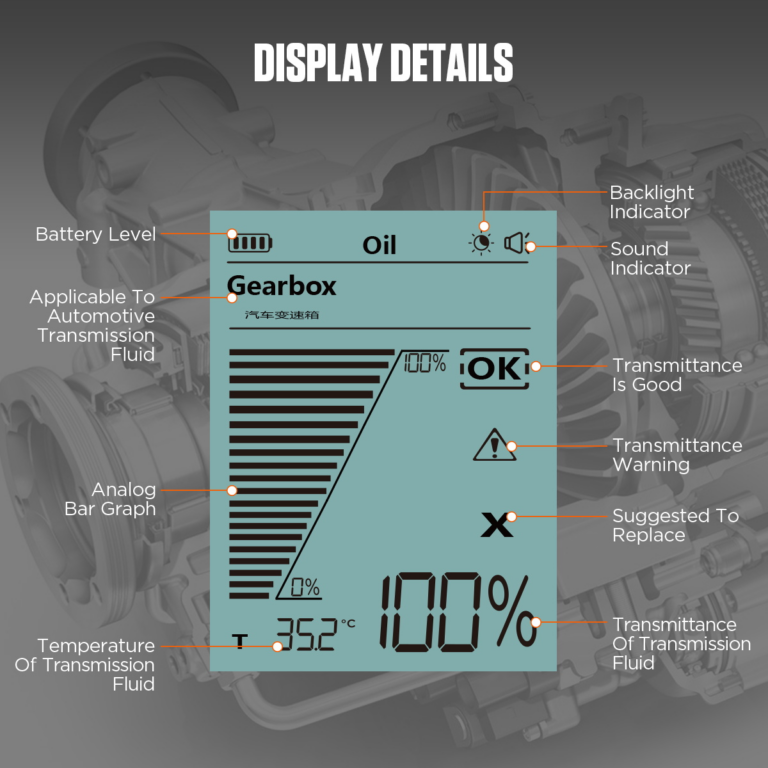

• Display shows battery level, backlight indicator, sound indicator, analog bar graph, transmittance %, and temperature.
• Transmittance status indications: OK (good), warning, and suggested to replace, for ranges above 60%, between 60% and 30%, and below 30%.
• Temperature units selectable: °C / °F.
• 800 mm flexible PTFE probe hose, resistant to oil, oxidation, and corrosion.

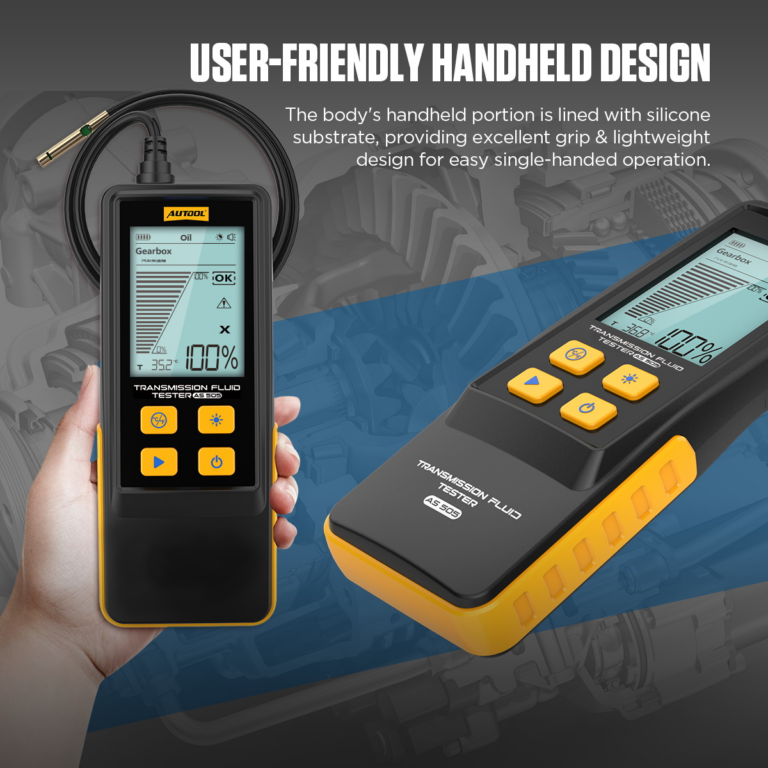

• Handheld design with silicone-substrate lined grip for single-handed use.

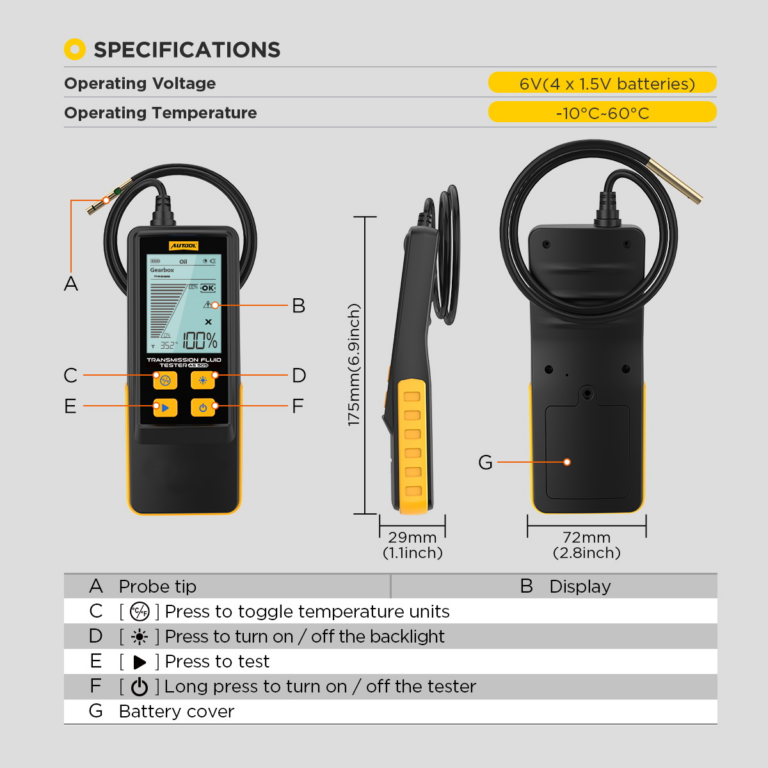

• Simple 4-key control: temperature unit toggle, backlight, test, and long-press power.
• Automatic power-off after 5 minutes of no activity.
• Battery powered: 4 x 1.5V AAA batteries; operating voltage 6V.
• Compact size: 175 x 72 x 29 mm (6.9 x 2.8 x 1.1 inch).

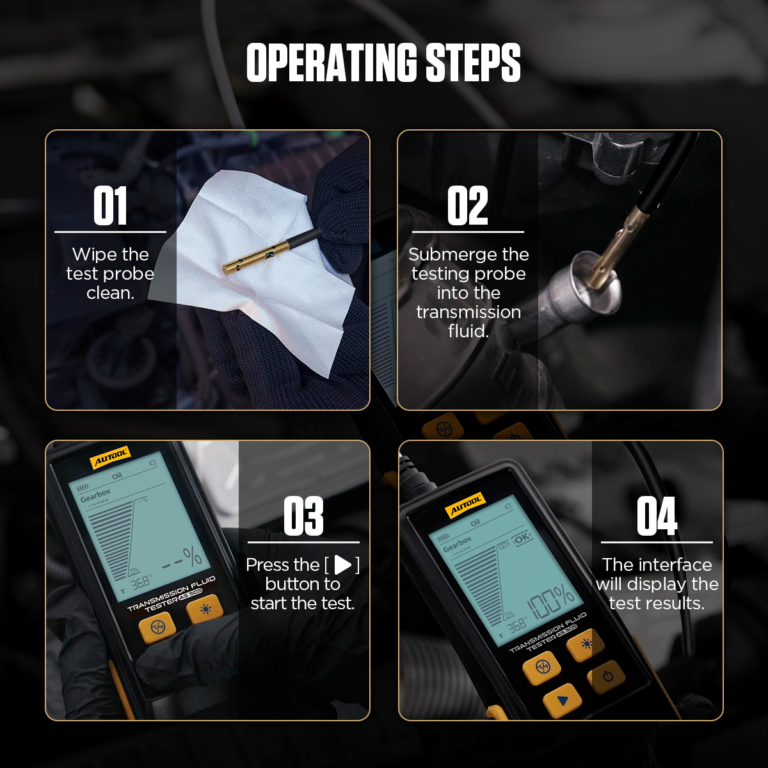

How to Use

1. Wipe the test probe clean.
2. Submerge the testing probe into the transmission fluid.
3. Press the [▶] button to start the test.
4. The interface will display the test results.

Important Notes

• Intended for professional use by trained and qualified personnel.
• Detection data and results are for reference only; do not rely solely on them for decision-making.
• Not designed for oils with special/particulate additives; readings may be inaccurate or unsuitable in such cases.
• Avoid contact with transmission fluid; wear protective goggles and gloves when working with oil.
• Store in a dry place; protect from rain, moisture, heat, and rough handling.

Specifications

Applications

• Automotive transmission fluid (gearbox) transmittance testing.
• Transmission fluid / oil temperature monitoring.
• Professional workshop and automotive service inspection.
• Reference-based fluid condition assessment (data for reference only).

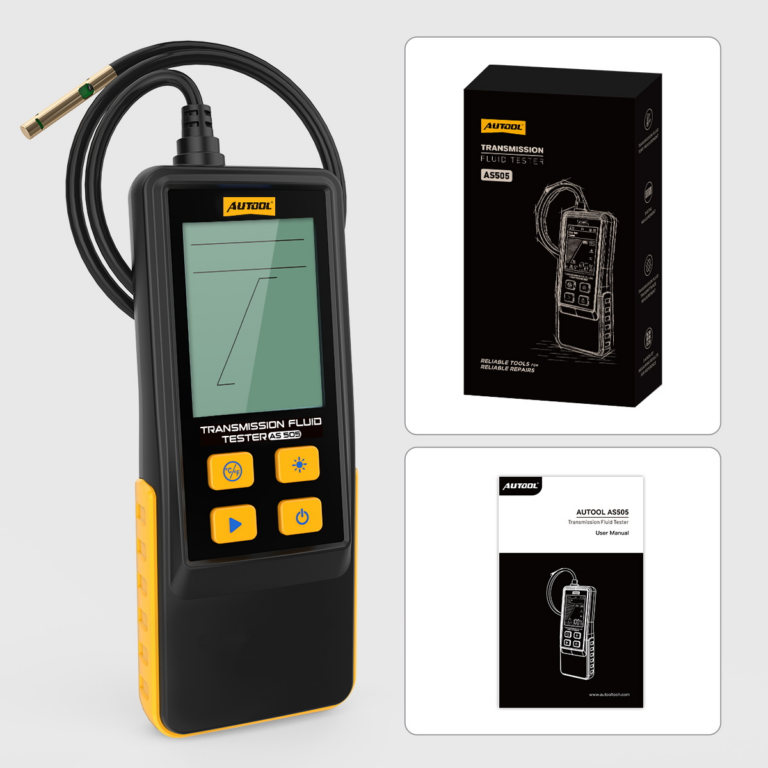

Package Contents

• 1 x AUTOOL AS505 Transmission Fluid Tester
• 1 x Integrated Optical Probe with 800mm Flexible PTFE Hose
• 1 x User Manual
• 4 x 1.5V AAA batteries

Documents

• autool-as505-user-manual
