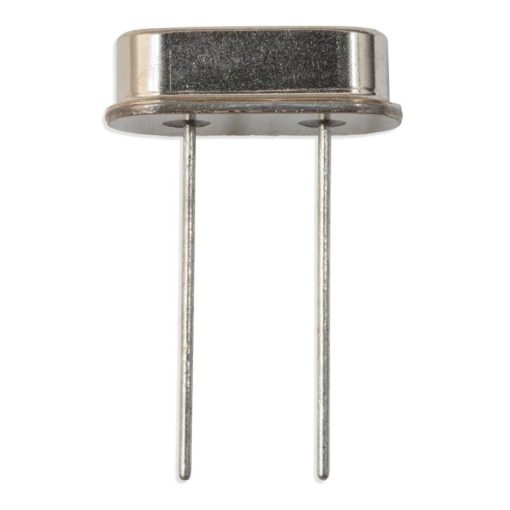

Crystal 75MHz 20PPM 20pF 40Ω HC-49S
The Crystal 75MHz 20PPM 20pF 40Ω HC-49S is a high-frequency quartz crystal designed for precision timing in high-speed digital and RF circuits. It operates at a nominal frequency of 75MHz with a tight frequency tolerance of ±20ppm, ensuring excellent stability and accuracy. Featuring a 20pF load capacitance and 40Ω series resistance, this crystal delivers consistent performance in demanding electronic applications. Housed in the industry-standard HC-49S package, it supports easy integration into a variety of circuit boards, making it ideal for use in communication devices, microprocessors, and frequency control systems.
Features:
- High-frequency operation at 75MHz.
- Tight frequency tolerance of ±20ppm for precise timing.
- 20pF load capacitance for stable oscillation.
- 40Ω equivalent series resistance.
- Standard HC-49S through-hole package.
- Excellent frequency stability over temperature range.
- Durable metal can construction.
- Suitable for high-speed digital and RF applications.
Specifications:
| Standard Frequency (MHz) | 75 |
| Frequency Tolerance (ppm) | ±20 |
| Load Capacitance (pF) | 20 |
| Equivalent Series Resistance (Ω) | 40 |
| Pin Count | 2 |
| Mounting | Through Hole |
| Package | HC-49S |
Dimensions:
Applications:
- Microcontroller and embedded system clock sources.
- UART and serial communication timing.
- Digital signal processing (DSP) circuits.
- Frequency synthesis and timing reference circuits.
- Consumer electronics and instrumentation.
- Data acquisition systems and measurement equipment.
- Industrial control and automation systems.
- Radio and RF communication modules.
Package Contents:
- 1 X Crystal 75MHz 20PPM 20pF 40Ω HC-49S
