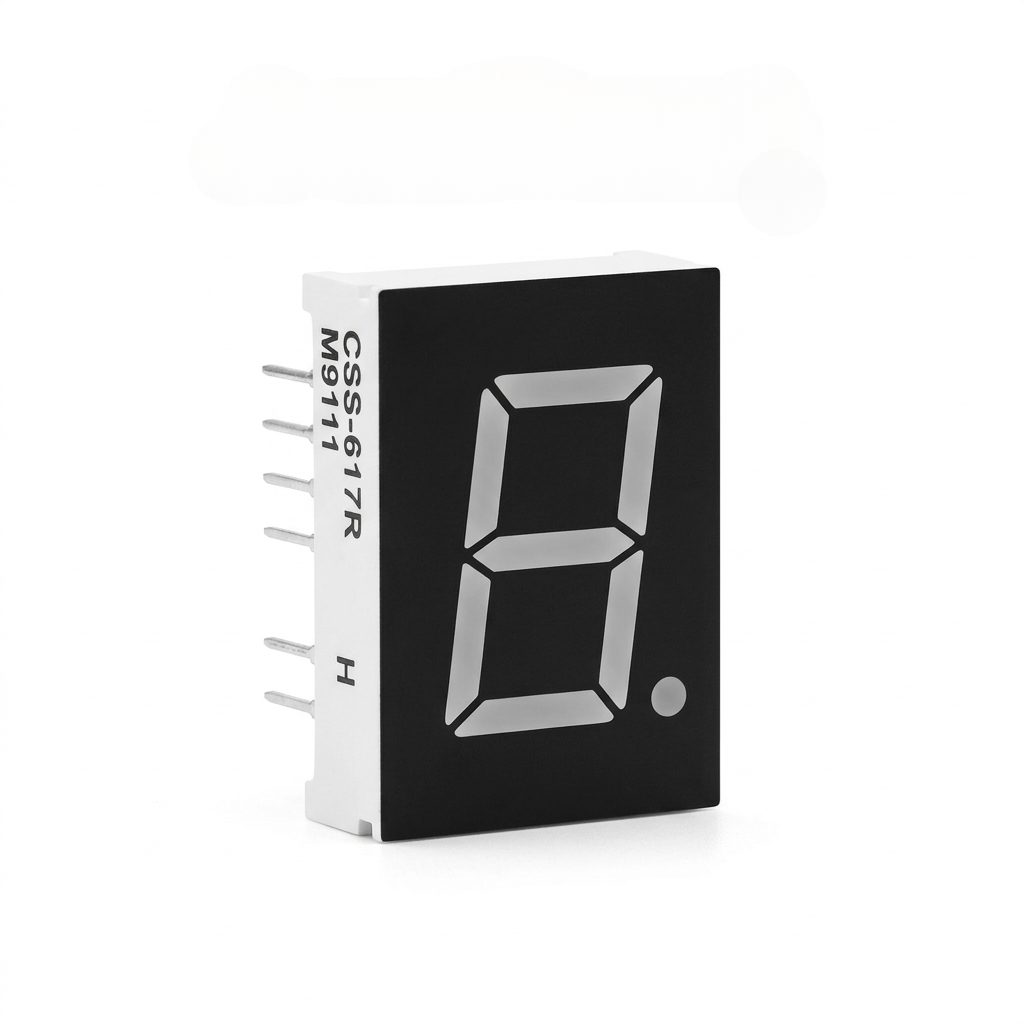

CSS-617R Single Digit 7-Segment
The CSS-617R is a single-digit 7-segment LED display designed to provide a clear numerical indication through individually controlled illuminated segments. Its traditional seven-segment arrangement allows numeric characters to be formed by activating different combinations of the internal LED sections. The display also includes a separate decimal point positioned on the left side of the digit.
The display uses a dark front surface that provides good visual contrast between the illuminated LED sections and the surrounding body. Its single-character format makes it suitable for integration into equipment where a dedicated numerical indicator is required. Each segment is electrically accessible, allowing the displayed character to be controlled externally by a suitable circuit or display driver.
The CSS-617R uses a common-cathode internal configuration, with multiple cathode terminals connected internally to the same common connection. This arrangement provides convenient access when integrating the display into custom electronic circuits. The unit is associated with the Series 815 display family, with references identifying the corresponding display as a red LED type with a 16 mm character height.
Features:
- Single-digit 7-segment LED display.
- Seven independently controlled numeric segments.
- Separate decimal-point indicator.
- Left-side decimal point.
- Red LED display.
- High-contrast dark display face.
- Common-cathode configuration.
- Multiple internally connected common cathode terminals.
- Individual electrical access to each LED segment.
- Suitable for external display-driver or discrete control circuits.
- 12-pin connection arrangement.
- Series 815 display-family design.
Specifications:

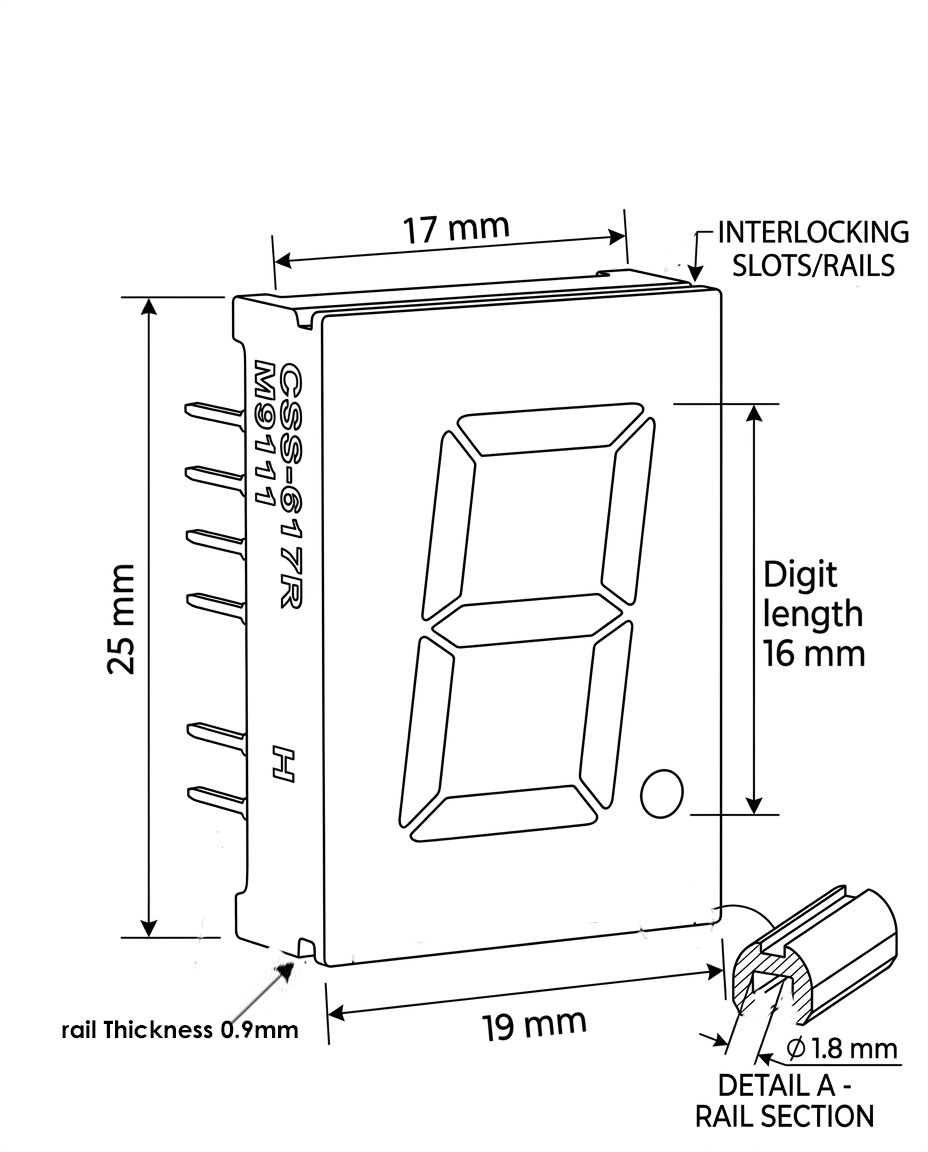

| Parameter | Value |
|---|---|
| Model / Marking: | CSS-617R |
| Product Type: | Single Digit 7-Segment LED Display |
| Number of Digits: | 1 |
| Number of Segments: | 7 Segments + Decimal Point |
| Display Technology: | LED |
| LED Color: | Red |
| Character Height: | 16 mm |
| Operating Voltage: | 3.3 V DC |
| Common Configuration: | Common Cathode |
| Decimal Point: | Yes |
| Decimal Point Position: | Left Side |

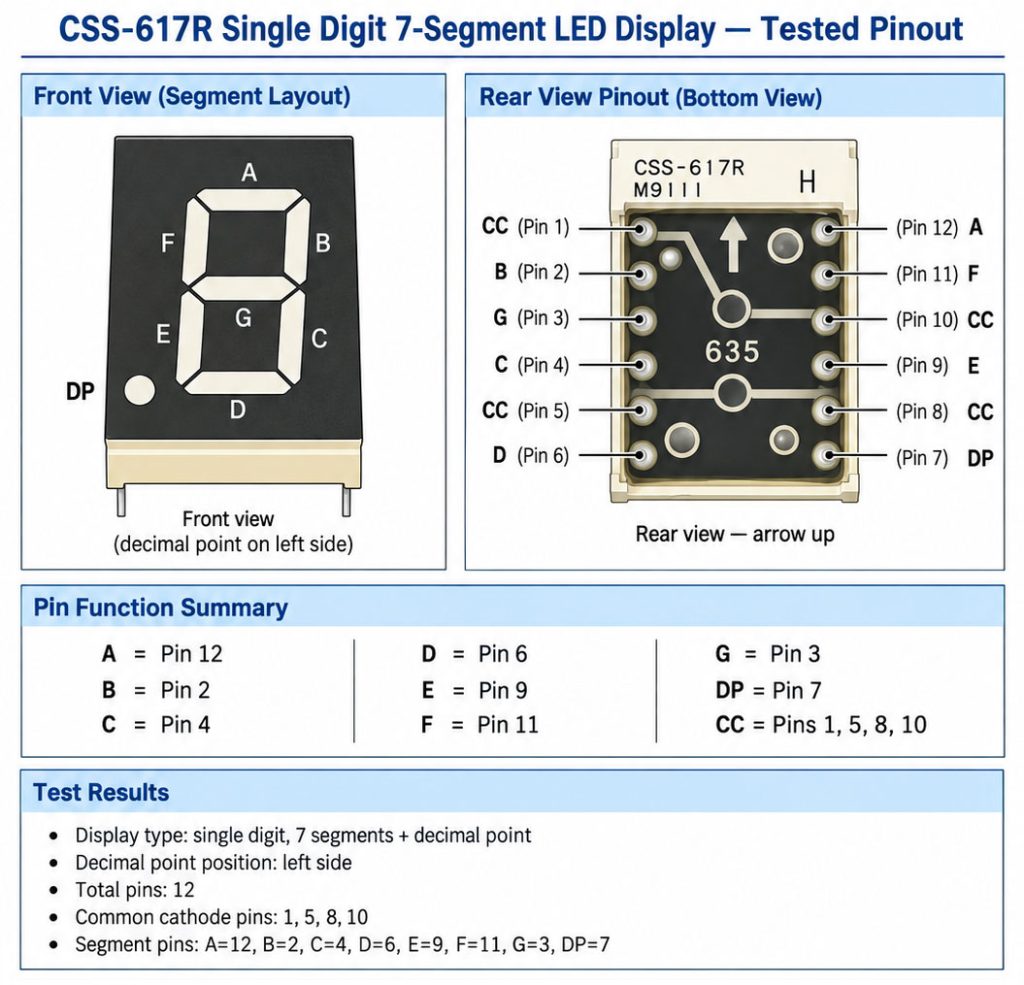

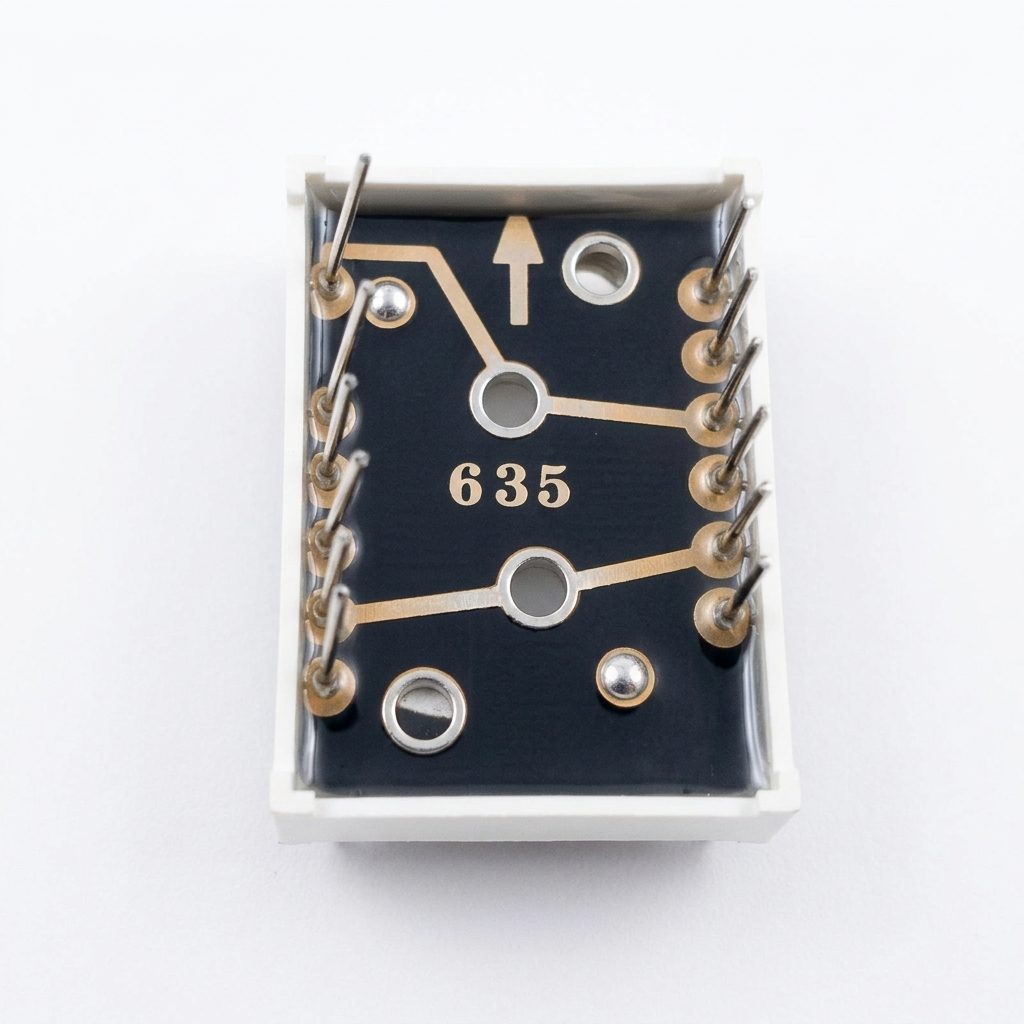

| Number of Pins: | 12 |
| Number of Common Cathode Pins: | 4 |
| Mounting / Connection: | Through-Pin Connection |
| Associated Series: | Series 815 |
| Associated Reference: | 815-057-21 |
Applications:
- Digital Numeric Displays.
- Industrial Control Panels.
- PLC Display Systems.
- Measurement Equipment.
- Counter Displays.
- Timer Displays.
- Instrumentation Panels.
- Electronic Control Equipment.
- Replacement Display Modules.
- Custom Electronic Projects.
Package Contents:
- 1× CSS-617R Single Digit 7-Segment LED Display
