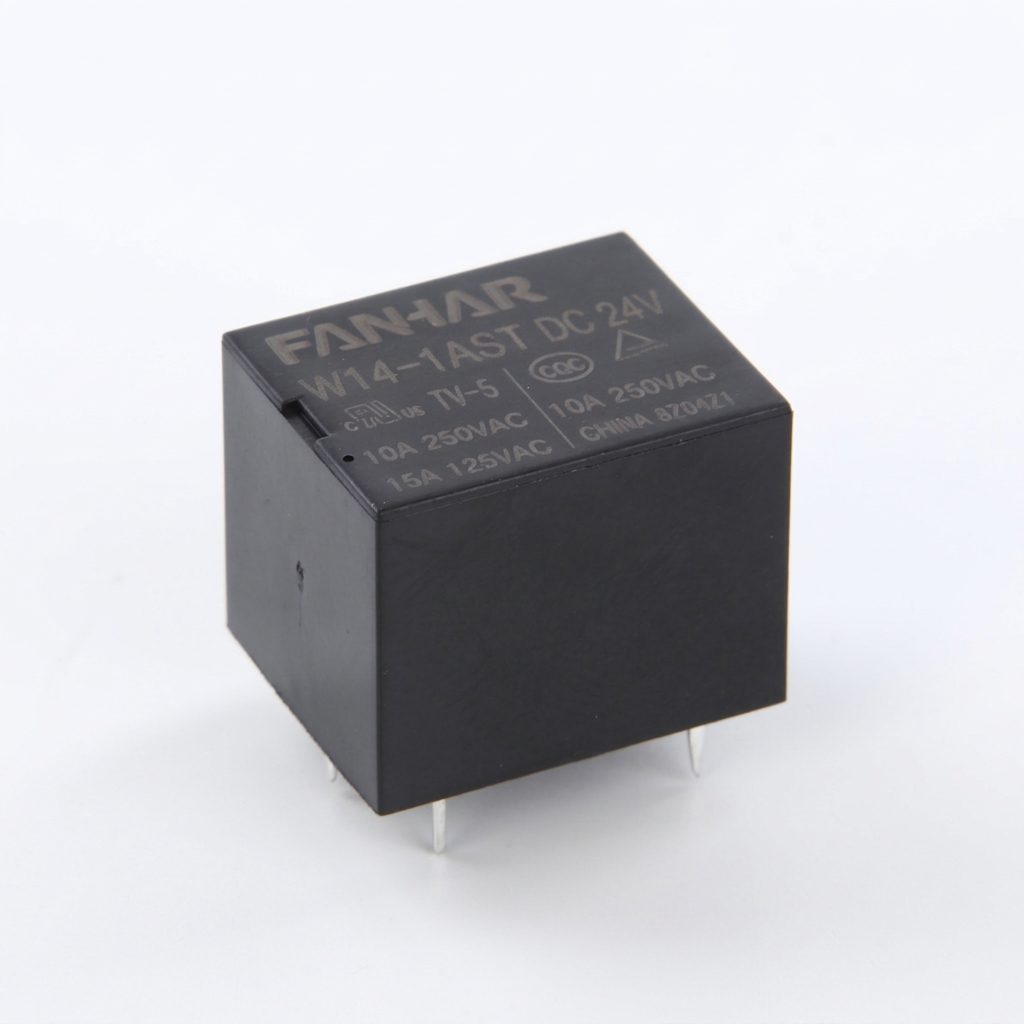

FANHAR Power Relay W14-1AST-DC24V 10A 4 Pin
The FANHAR Power Relay W14-1AST-DC24V 10A 4 Pin is a highly reliable, miniature electromagnetic switching component specifically engineered for demanding control and automation applications. Built with a robust plastic-sealed construction, this relay provides superior protection against environmental contaminants such as dust, moisture, and flux residues during the soldering process. It features a precise 24VDC coil and a single Form A (Normally Open) contact arrangement, making it an optimal choice for precise circuit isolation and reliable load switching in compact electronic assemblies.
Features:
- Compact miniature design measuring 19.0×15.2×15.2mm for high-density PCB mounting.
- Plastic-sealed construction provides superior protection against dust and environmental contaminants.
- Single Form A (1 NO) contact arrangement with high-quality AgSnO2 contact material.
- Rated switching capacity of 10A at 250VAC, with a maximum switching current of 15A.
- 24VDC coil voltage with a low nominal power consumption of 360mW for efficient operation.
- Fast operate time of ≤10ms and release time of ≤5ms for responsive control applications.
Specifications:
|
Parameter
|
Value
|
|---|---|
|
Model Number
|
W14-1AST-DC24V
|
|
Brand
|
FANHAR
|
|
Contact Arrangement
|
1 Form A (1 NO)
|
|
Contact Material
|
AgSnO2
|
|
Rated Load
|
10A 250VAC/30VDC
|
|
Max Switching Voltage
|
277VAC/30VDC
|
|
Max Switching Current
|
15A
|
|
Coil Voltage
|
24VDC
|
|
Coil Resistance
|
1600Ω
|
|
Pick-up Voltage
|
≤18.00VDC
|
|
Drop-out Voltage
|
≥1.20VDC
|
|
Nominal Power
|
360mW
|
|
Operate Time
|
≤10ms
|
|
Release Time
|
≤5ms
|
|
Insulation Resistance
|
1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Ambient Temperature
|
-40°C to 85°C
|
|

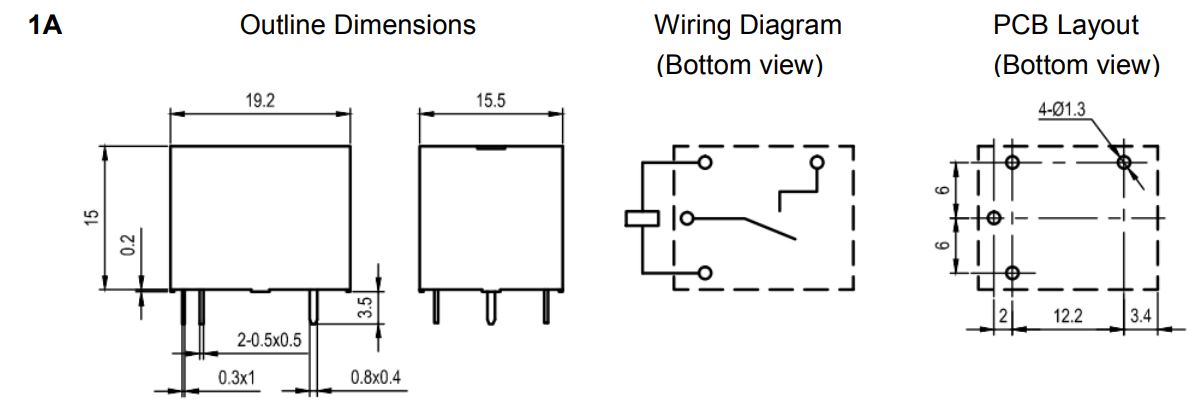

Dimensions
|
19.0×15.2×15.2mm
|
|
Construction
|
Plastic Sealed
|
|
Termination
|
PCB
|
Applications:
- Smart home automation systems and IoT control modules.
- Household appliances including washing machines, refrigerators, and air conditioners.
- Industrial control panels and programmable logic controller (PLC) output stages.
- Lighting control systems and LED driver switching circuits.
- Automotive electronics and battery management systems.
- Security systems and access control hardware.
Package Include:
1x FANHAR Power Relay W14-1AST-DC24V 10A 4 Pin
