FQP40N10 N-Channel Power MOSFET Transistor 100V 40A 150W TO-220
The FQP40N10 N-Channel Power MOSFET Transistor 100V 40A 150W TO-220 is a robust and versatile power switching device engineered to handle significant current and voltage demands in electronic power management applications. Featuring an N-channel enhancement mode MOSFET construction, this component is designed to provide efficient load switching with fast response characteristics and low conduction losses. It is enclosed in a durable TO-220 through-hole package, making it convenient for mounting on printed circuit boards or heatsinks in industrial, automotive, and consumer-grade designs.
Features:
- N-Channel enhancement mode power MOSFET with high current capability.
- Rated for 100 V drain-to-source voltage to support moderate voltage systems.
- Continuous drain current of 40 A for robust power handling.
- Low on-resistance (~0.04 Ω) to reduce conduction losses.
- Fast switching characteristics for efficient PWM and converter operation.
- TO-220 through-hole package for easy mounting and heatsinking
Specifications:
| Parameter | Specification |
|---|---|
| Type Designator | 40N10 |
| Transistor Type | MOSFET |
| Channel Type | N-Channel |
| Maximum Power Dissipation (Pd) | 150 W |
| Maximum Drain-Source Voltage (|Vds|) | 100 V |
| Maximum Gate-Source Voltage (|Vgs|) | 30 V |
| Maximum Gate-Threshold Voltage (Vgs(th)) | 4 V |
| Maximum Drain Current (Id) | 40 A |
| Maximum Junction Temperature (Tj) | 150 °C |
| Rise Time (tr) | 30 ns |
| Drain-Source Capacitance (Cd) | 2500 pF |
| Maximum Drain-Source On-State Resistance (Rds) | 0.04 Ω |

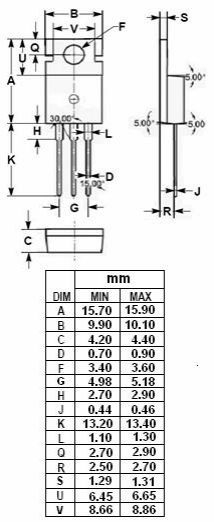

| Package | TO-220 |
Pin Configuration:
Applications:
- Switching power supplies and DC-DC converters.
- Motor control and driver circuits.
- Automotive power management systems.
- Industrial automation and control electronics.
- PWM power controllers and relay drivers.
