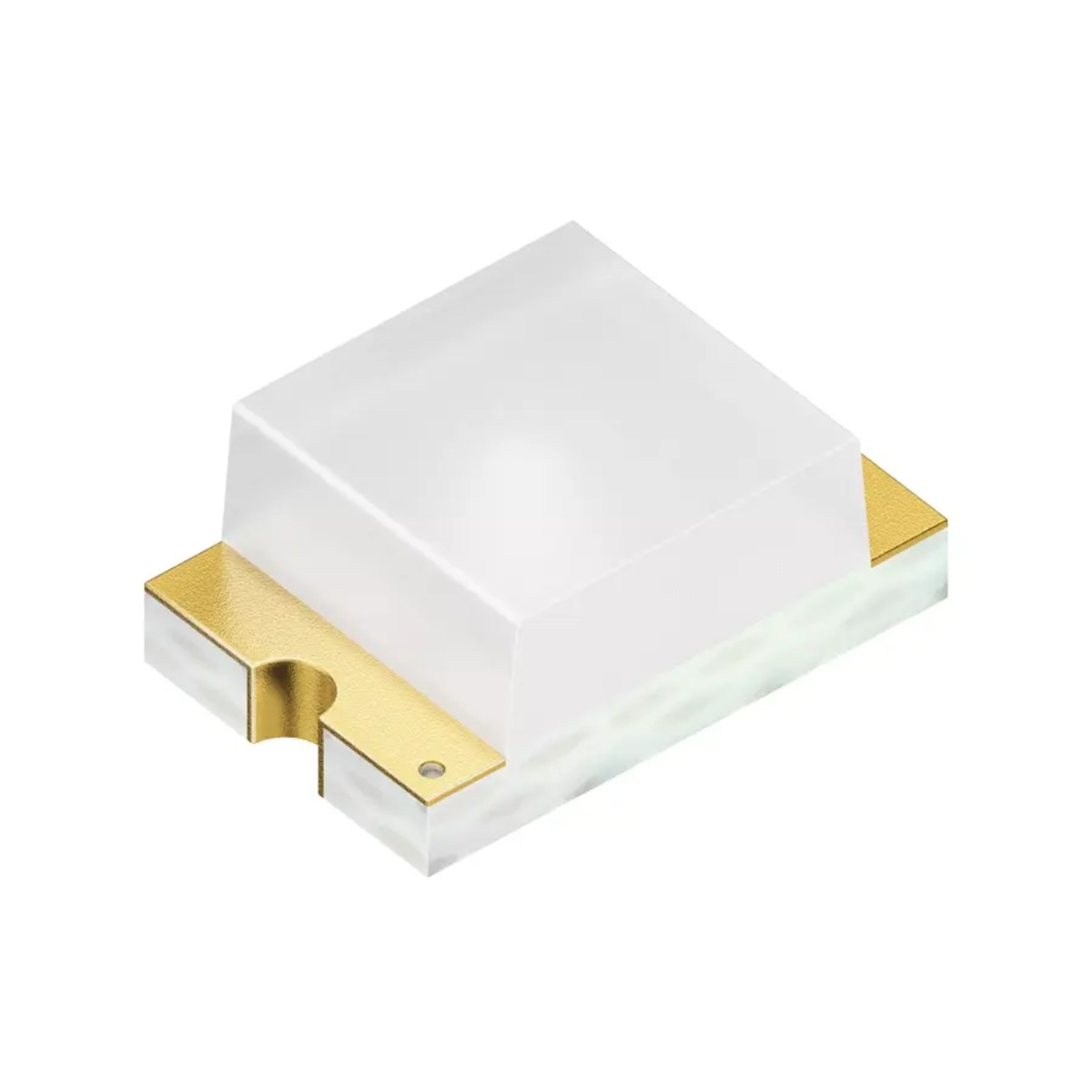

FYL-0805UGC Rectangular Green LED TH 1.2x1x2mm 520-525nm SMD
The FYL-0805UGC is a compact rectangular green LED designed to provide clear visual indication in electronic circuits and equipment. Its small 1.2×1×2mm package allows it to be used where board space is limited while still providing a visible green light for circuit status and signaling.
This through-hole LED can be installed directly into PCB holes and is suitable for indicator panels, control boards, consumer electronics, and DIY electronic projects. Its green emission makes it useful for power, operating-status, mode, and signal indicators.
Features:
- Rectangular LED package.
- Green light emission.
- Through-hole mounting.
- Compact size.
- Clear and visible indicator light.
- Suitable for PCB mounting.
- Low-profile design.
- Suitable for electronic status indication.
Specifications:
| Specification | Value |
|---|---|
| Part Number | FYL-0805UGC |
| LED Type | Green LED |
| Package Type | Rectangular |
| Mounting Type | Through-Hole (TH) |

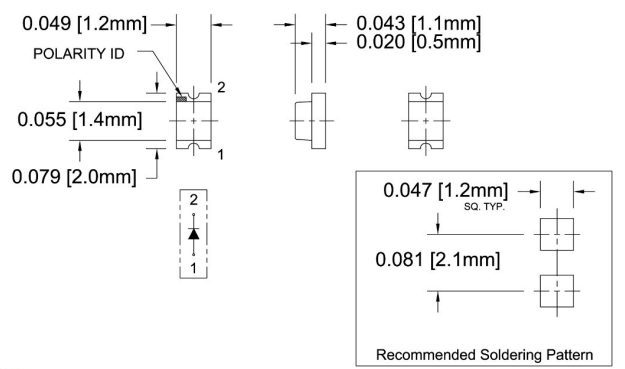

| Dimensions | 1.2 × 1 × 2mm |
| Emission Wavelength | 520–525nm |
| Color | Green |
| Polarity | Polarized |
| Application Type | Indicator LED |
Pinout:
| Pin | Function |
|---|---|
| Anode (+) | Positive LED terminal |
| Cathode (-) | Negative LED terminal |
Applications:
- PCB status indicators.
- Power indicators.
- Signal indication.
- Control panels.
- Electronic equipment.
- Consumer electronics.
- DIY electronic projects.
- Instrumentation.
- Industrial control boards.
Packages Included:
- 1 × FYL-0805UGC Rectangular Green LED TH 1.2x1x2mm 520-525nm SMD.
