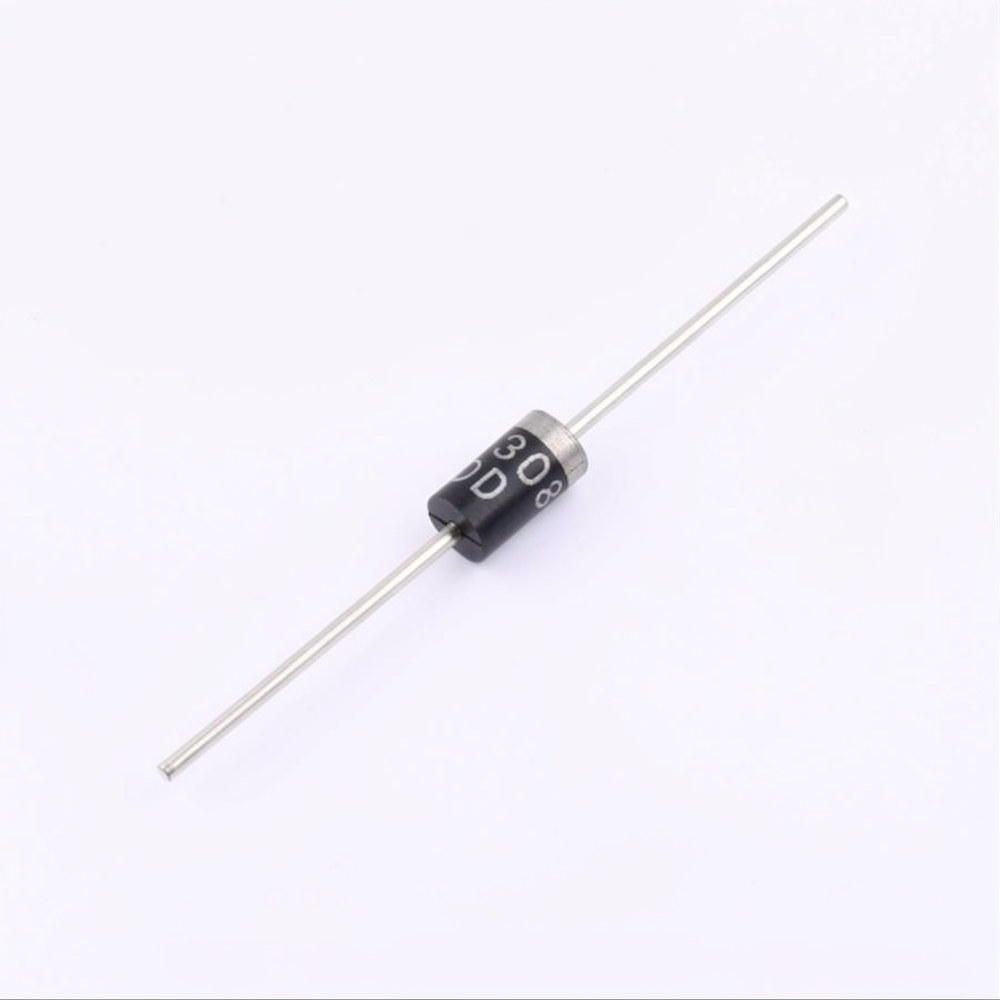

HER308 Fast Recovery Diode 1.7V@3A 70ns 3A 1kV DO-201AD
The HER308 Fast Recovery Diode is a high-efficiency rectifier diode designed for applications requiring fast switching, high reverse-voltage capability, and reliable rectification. It provides a maximum repetitive peak reverse voltage of 1000V and a maximum average forward rectified current of 3A.
Features:
- 3A maximum average forward rectified current.
- 1000V maximum repetitive peak reverse voltage.
- 1000V maximum DC blocking voltage.
- 700V maximum RMS voltage.
- 1.7V maximum forward voltage at 3A.
- 70ns maximum reverse-recovery time.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | HER308 |
| Diode Type | Fast Recovery Rectifier |
| Package | DO-201AD |
| Mounting Type | Through-Hole |
| Configuration | Single Diode |
| Maximum Repetitive Peak Reverse Voltage | 1000V |
| Maximum RMS Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Rectified Current | 3A |
| Maximum Forward Voltage | 1.7V@3A |
| Peak Forward Surge Current | 140A |
| Maximum Reverse Recovery Time | 70ns |
| Maximum Reverse Current at 25°C | 5µA |
| Maximum Reverse Current at 100°C | 150µA |
| Typical Junction Capacitance | 50pF |
| Typical Thermal Resistance | 20°C/W |
| Operating Junction Temperature | -65°C to +150°C |
| Storage Temperature | -65°C to +150°C |
Footprint:
Application:
- High-frequency rectifier circuits.
- Power-supply rectification.
- Switching power supplies.
- High-speed switching circuits.
- DC power conversion circuits.
- General-purpose power rectification.
- Freewheeling and protection circuits.
- Inverter and converter circuits.
- Industrial electronic equipment.
- Electronic circuits requiring high reverse-voltage capability.
Package Include:
1x HER308 Fast Recovery Diode 1.7V@3A 70ns 3A 1kV DO-201AD
